EC0-1821

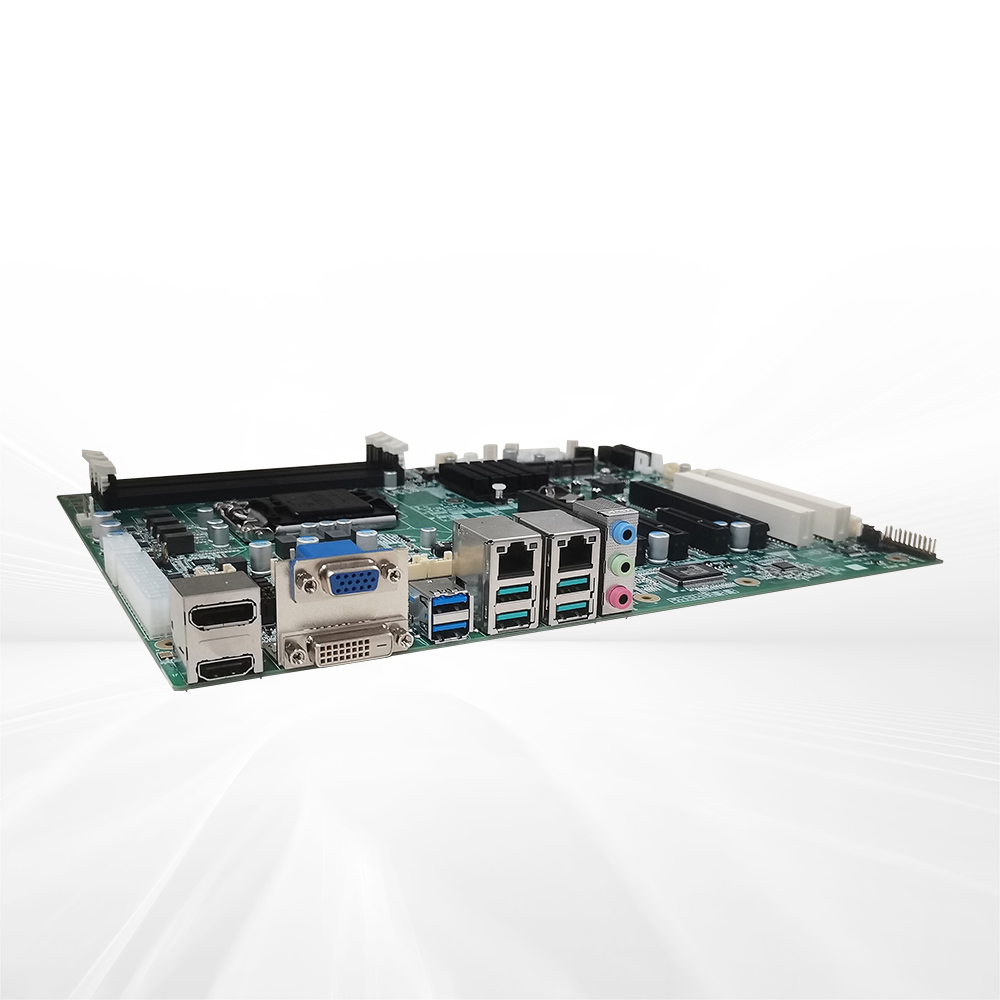

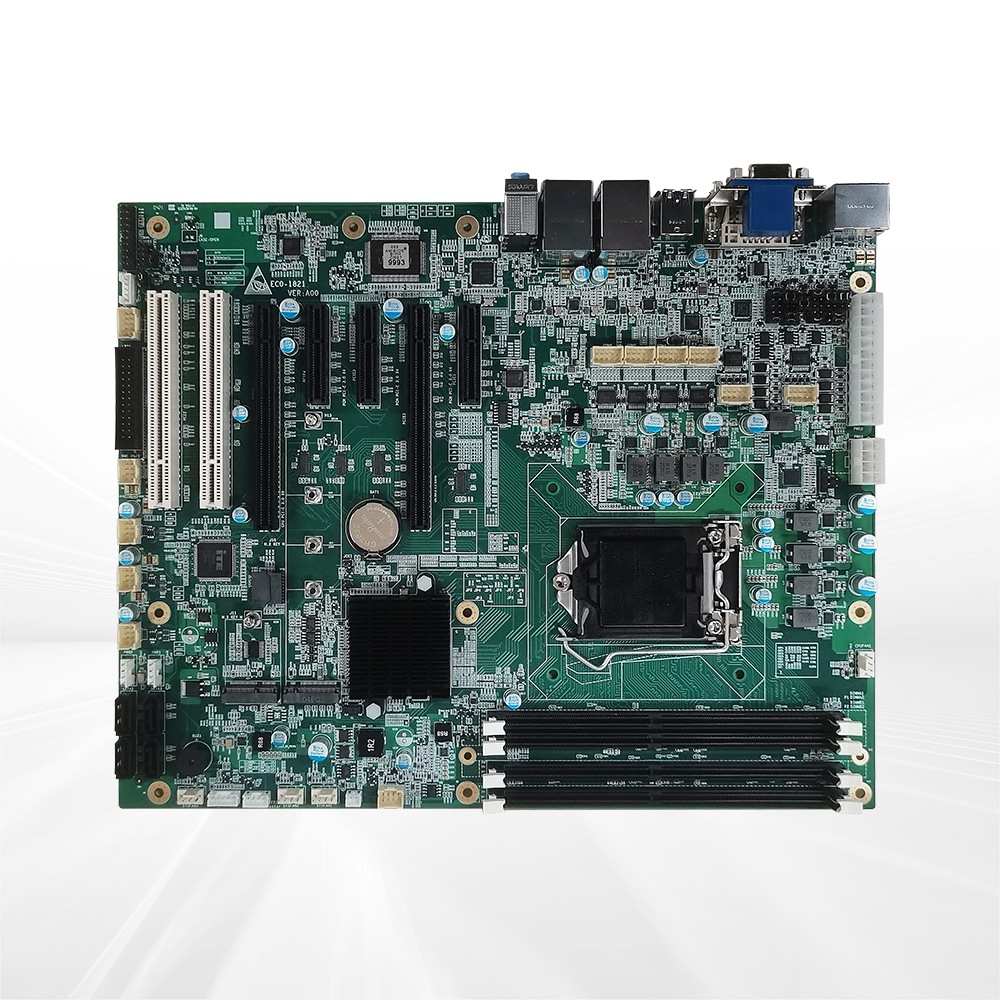

ATX Structure Single Board Computer

EC0-1821 motherboard adopts standard ATX specification, Intel C246 platform and provided with Intel 8/9th Gen processors; it supports PCI+PCIE expansion combination, multiple serial ports, multiple USB ports and SATA RAID 0, 1, 5, 10. The product can be widely used in industrial automation, Internet of Things, self-service terminal, petrochemical engineering, safety monitoring, intelligent transportation, environmental protection, communication and other fields.

Product Features

5 × PCIE expansion

2 × PCI

6 × serial port

12 × USB port

Supports 4 × memory slot

Supports Intel 8/9th Gen processors

Product Specifications

Item Description
Processor Supports Intel LGA 1151 pin: 8/9th Gen processors, Xeon E-21xx/E-22xx series processors
Chipset C246
Memory 4 x DDR4 DIMM memory slot, a single memory supporting 32GB, the four supporting up to 128GB
Display Port Any three display ports among VGA, HDMI, DVI-D and DP
Audio Supports MIC-IN/LINE-IN/LINE-OUT
LAN 2 × Gigabit LAN port, LAN1 supports LAN wakeup
Storage 4 × SATA3.0, supporting RAID 0, 1, 5, 10
I/O Port 6 × serial port, COM1 and COM2 support RS-232/RS-422/RS-485 mode selection
6 × USB 2.0 port, 4 × USB3.1 GEN2 port (10Gb/s), 2 × USB3.1 GEN1 port (5Gb/s)
1 × PS/2 port
1 × 8-channel digital I/O port
1 × TPM port
Bus Expansion 2 × PCI, 3 × PCIEx4
2 × PCIEx16 (when PCIE5 slot is occupied, the two PCIE slots adopts PCIEx8 speed by default)
1 × M.2 KEY M port (PCIe X4, supporting sizes 2242/2260/2280/22110)
1 × M.2 KEY E port (PCIe X1, supporting size 2230)
Power Supply ATX power supply
Working Environment -10℃~60℃
Storage Environment -20℃~80℃
Constant Damp Heat 40°C 95%RH, non-condensing
Overall Dimensions 305 mm (L) × 244 mm (W)
Operating System WIN10、Linux

Ordering Information

料号 型号 描述
0030-023211 EC0-1821-I210 ATX structure single board / C246 chipset / supports Intel 8/9th Gen processors / provides 4 × DDR4 DIMM, supporting expansion up to 128 GB /any three display ports among four (DP, HDMI, VGA and DVI-D)/ 4 × SATA3.0, supporting RAID 0,1, 5, 10 / 2 × Gigabit LAN port / 12 × USB / 6 × COM port / 1 group of audio ports / 1 × 8-channel GPIO / 1 × TPM port / 1 × PS2 motherboard built-in pin / expansion ports: 2 × PCI, 3 × PCIe x4, 2 × PCIe x16 / 1 × M.2 KEY M port (PCIe X4, supporting sizes 2242/2260/2280/22110), 1 × M.2 KEY E port (PCIe X1, supporting size 2230) Note: When the two PCIE x16 slots are occupied at same time, the speed will be reduced to the speed of PCIE x8
