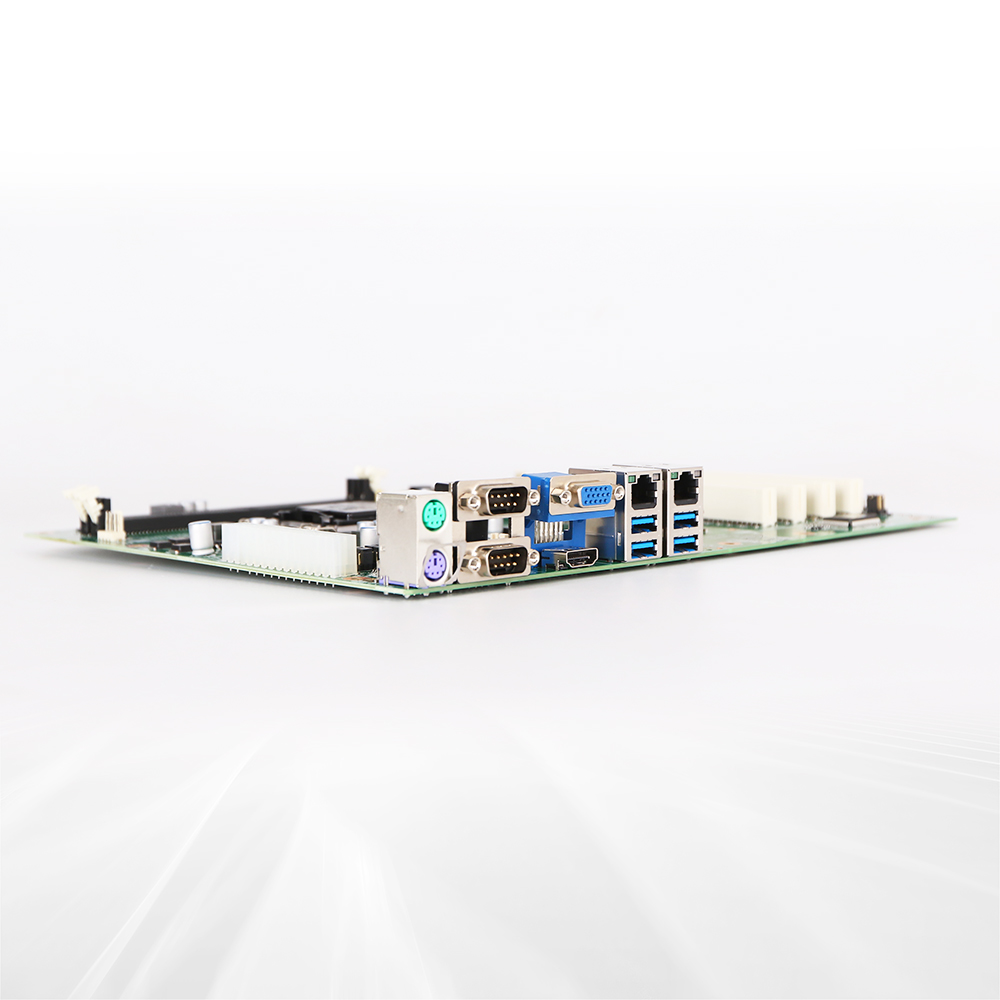

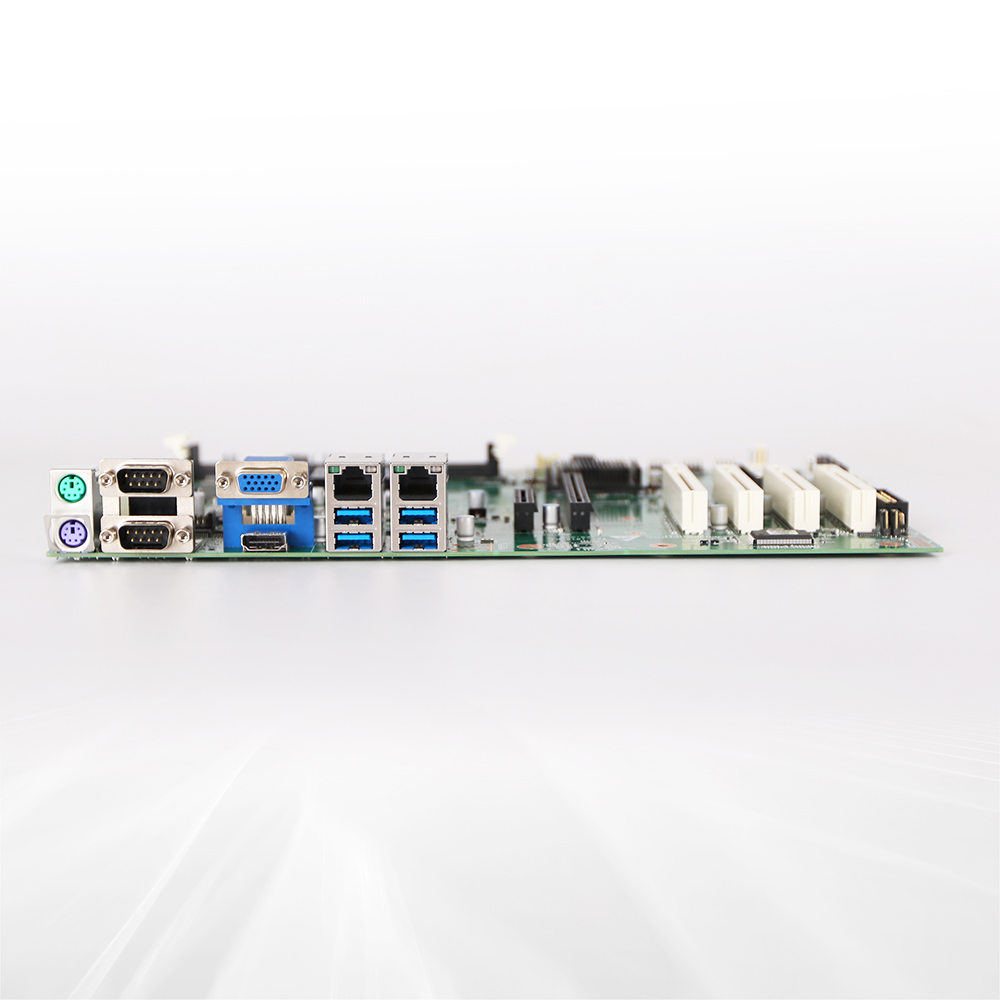

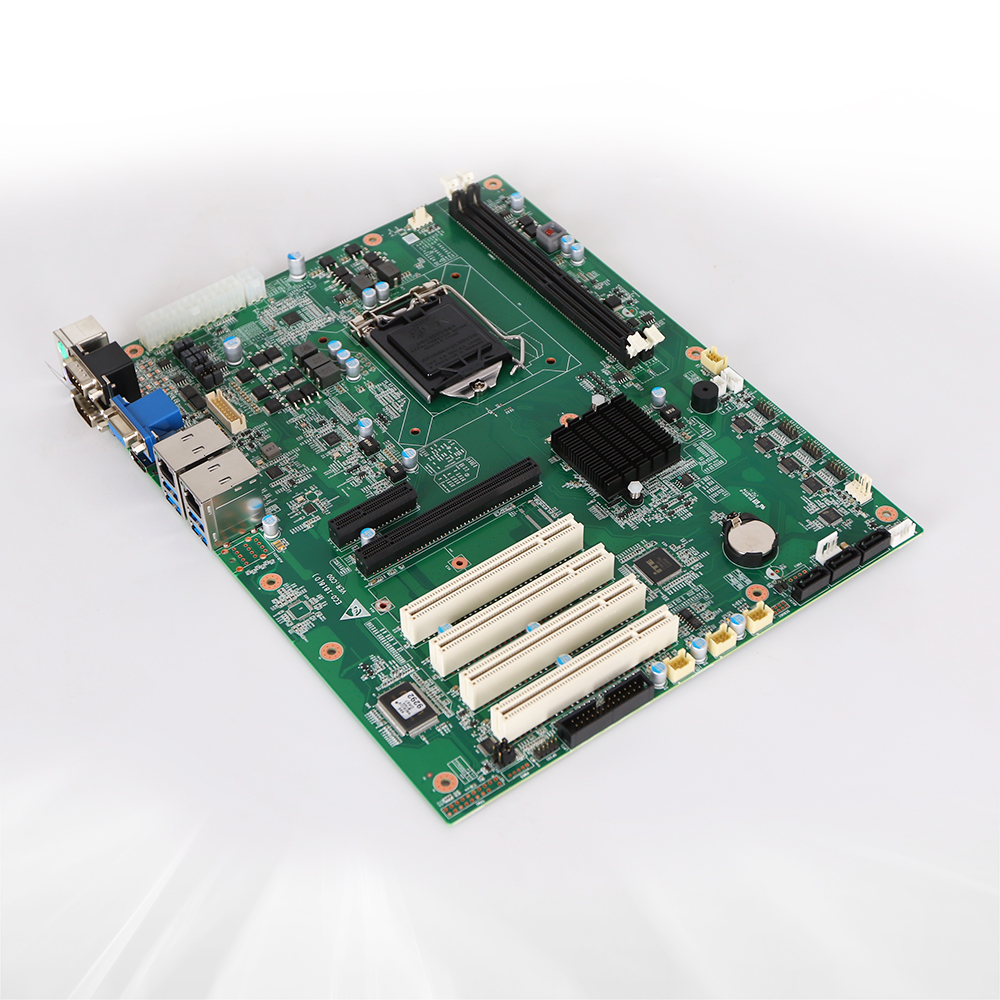

ATX Structure Single Board Computer
The EC0-1818(C) motherboard is equipped with Intel's latest generation H110 platform, supports the 6/7th Gen processors, adopts standard ATX motherboard specification, and has the characteristics of optimal cost performance and long supply cycle. The motherboard supports 4 × PCI + 2 × PCIE expansion combinations, 6 × COM port, 10 × USB port, and any two display ports among three (VGA, HDMI, DVI-D). As the company's main product in the next 5-7 years, this product will be widely used in petrochemical engineering, automatic control, automatic detection, safety monitoring, intelligent transportation environmental protection, communication and other fields.
| Item | Description | |
|---|---|---|
| Processor | Supports Intel LGA 1151 pin 6/7th Gen processors | |
| Chipset | H110 | |
| Memory | 2 x DDR4 DIMM memory slot, a single memory supporting 16GB, the two supporting up to 32GB | |
| Display Port | Any two display ports among VGA, HDMI and DVI-D Among them, VGA+HDMI ports are onboard, and DVI-D uses WAFER socket |
|
| Audio | Supports MIC-IN/LINE-IN/LINE-OUT | |
| LAN | 2 × Gigabit LAN port, LAN1 supports LAN wakeup | |
| Storage | 3 × SATA3.0 and 1 × M.2 | |
| I/O Port | 1 × parallel port 6 × serial port, COM1 and COM2 support RS-232/RS-422/RS-485 mode selection 4 × USB 3.0, 6 × USB 2.0 1 × PS/2 port 1 × 8-channel digital I/O port 1 × TPM port |
|
| Bus Expansion | 4 × PCI 1 × PCIEx16 1 × PCIEx4 |
|
| Power Supply | ATX power supply | |
| Working Environment | -10℃～60℃ | |
| Storage Environment | -20℃～80℃ | |
| Relative Humidity | 5%~95% (non-condensing) | |
| Overall Dimensions | 305 mm (L) × 244 mm (W) | |
| Operating System | WIN7, WIN10 and LINUX | |
| 料号 | 型号 | 描述 |
|---|---|---|
| 0030-024171 | EC0-1818(C)-I210 | ATX structure single board / H110 chipset /supports Intel LGA 1151 pin 6/7th Gen processors / 2 × DDR4 DIMM memory slot, supporting up to 32GB memory/VGA+HDMI onboard, 1 × DVI-D pin/3 × SATA3.0 + 1 × M.2/2 × Gigabit LAN port/4 × USB3.0, 6 × USB2.0/6 × serial port/1 × parallel port/1 × PS/2/1 group of audio ports/1 × 8-channel GPIO / 4 × PCI/1 × PCIE x4/1 × PCIE x16/1 × TPM/ standard ATX power supply |
