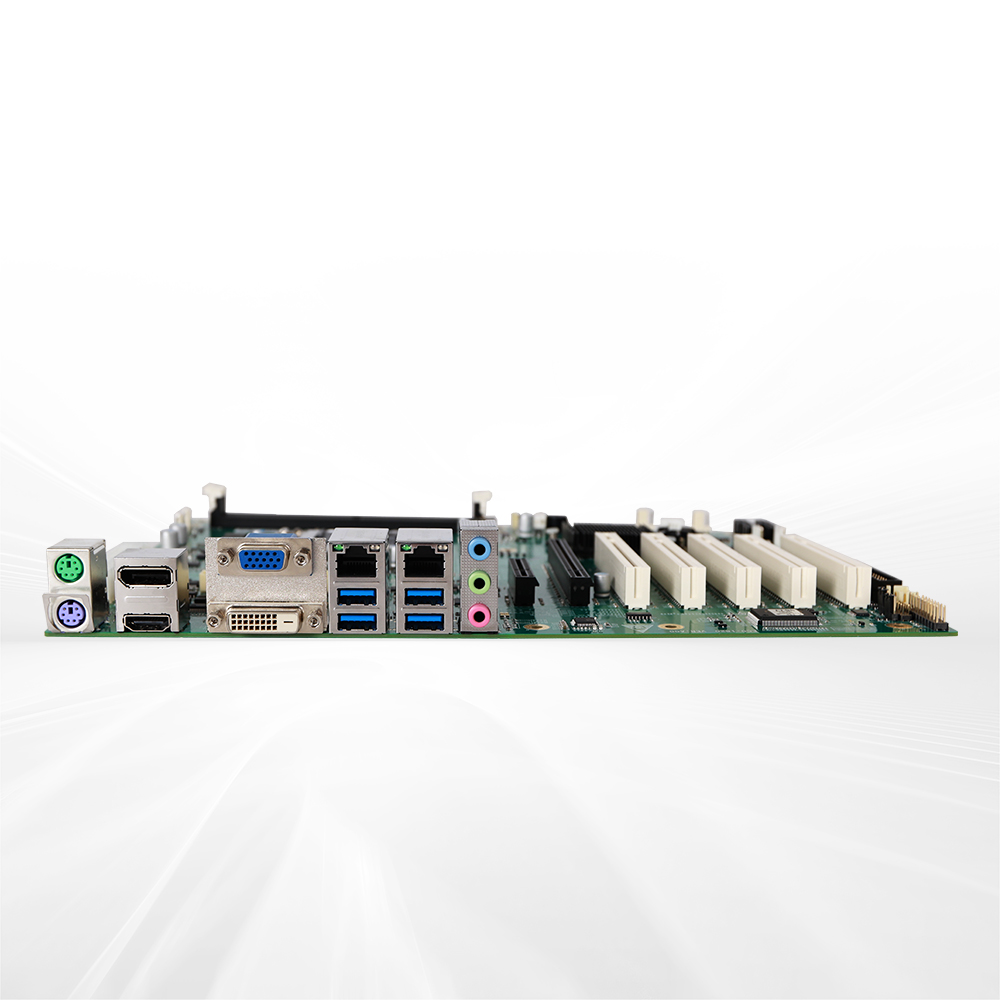

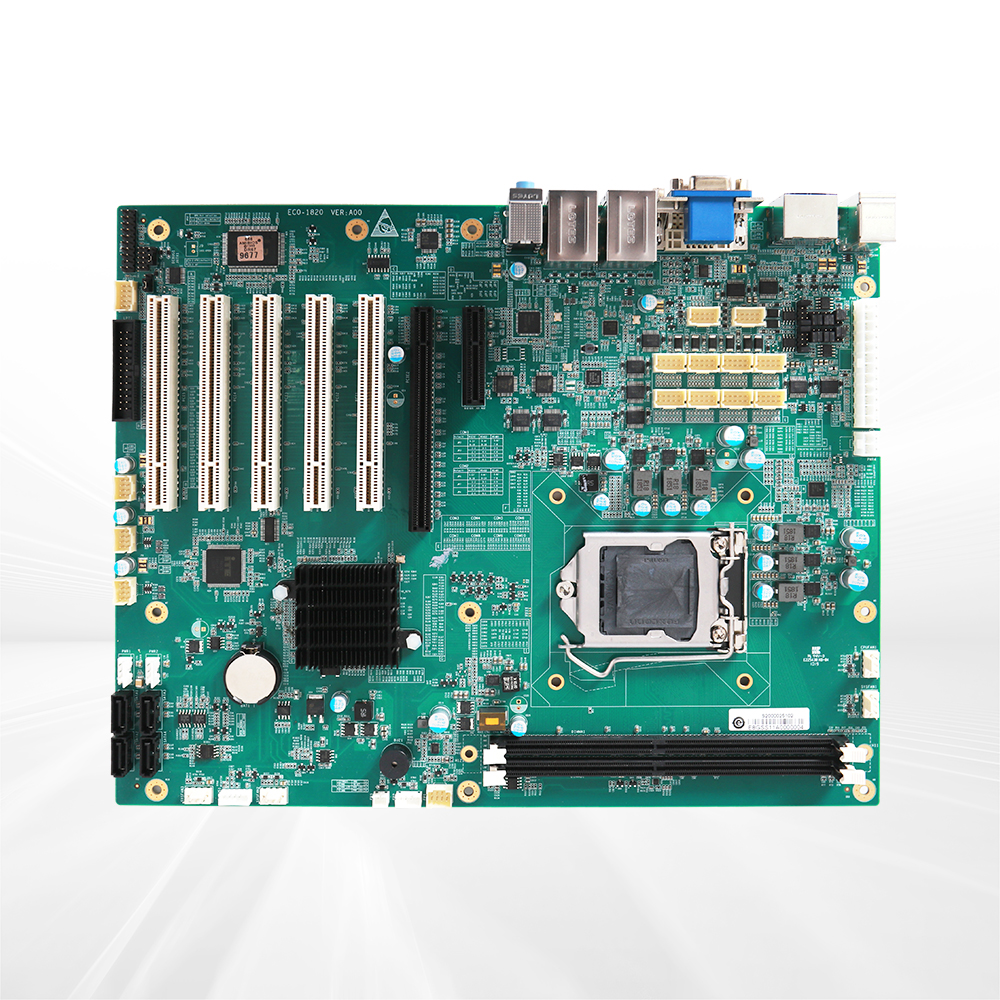

EC0-1820(B)

ATX Structure Single Board Computer

The EC0-1820 motherboard adopts the standard ATX motherboard specification, Intel H310 chipset, supports the latest Intel 8/9th Gen processors at present, and supports PCI+PCIE expansion combination, multiple serial ports and multiple USB ports. It can be widely used in petrochemical engineering, automatic control, automatic detection, safety monitoring, intelligent transportation, environmental protection, communication and other fields.

Product Features

2 × PCIE expansion

5 × PCI

10 × USB

Supports Intel 8/9th Gen processors

Product Specifications

Item Description
Processor Supports Intel LGA 1151 pin 8/9th Gen processors
Chipset H310
Memory 2 x DDR4 DIMM memory slot, a single memory supporting 16GB, the two supporting up to 32GB
Display Port Any two display ports among VGA, HDMI, DVI-D and DP
Audio Supports MIC-IN/LINE-IN/LINE-OUT
LAN 2 × Gigabit LAN port, LAN1 supports LAN wakeup
Storage 4 × SATA3.0
I/O Port 10 × serial port, COM1 and COM2 support RS-232/RS-422/RS-485 mode selection
4 × USB 3.1, 6 × USB 2.0
1 × PS/2 port
1 × 8-channel digital I/O port
1 × TPM port
Bus Expansion 5 × PCI
1 × PCIEx16
1 × PCIEx4
Power Supply ATX power supply
Working Environment -10℃~60℃
Storage Environment -20℃~80℃
Constant Damp Heat 40°C 95%RH, non-condensing
Overall Dimensions 305 mm (L) × 244 mm (W)
Operating System WIN10、Linux

Ordering Information

料号 型号 描述
0030-023151 EC0-1820(B)-I210 ATX structure single board / H310 chipset / supports Intel 8/9th Gen processors / 2 × DDR4 DIMM memory slot/any two display ports among four (VGA, HDMI, DVI-D, DP) / 4 × SATA3.0/2 × Gigabit LAN port/10 × USB/10 × RS-232/1 group of audio ports/1 × 8-channel GPIO/expansion: 5 × PCI, 1 × PCIEX4 and 1 × PCIEX16
