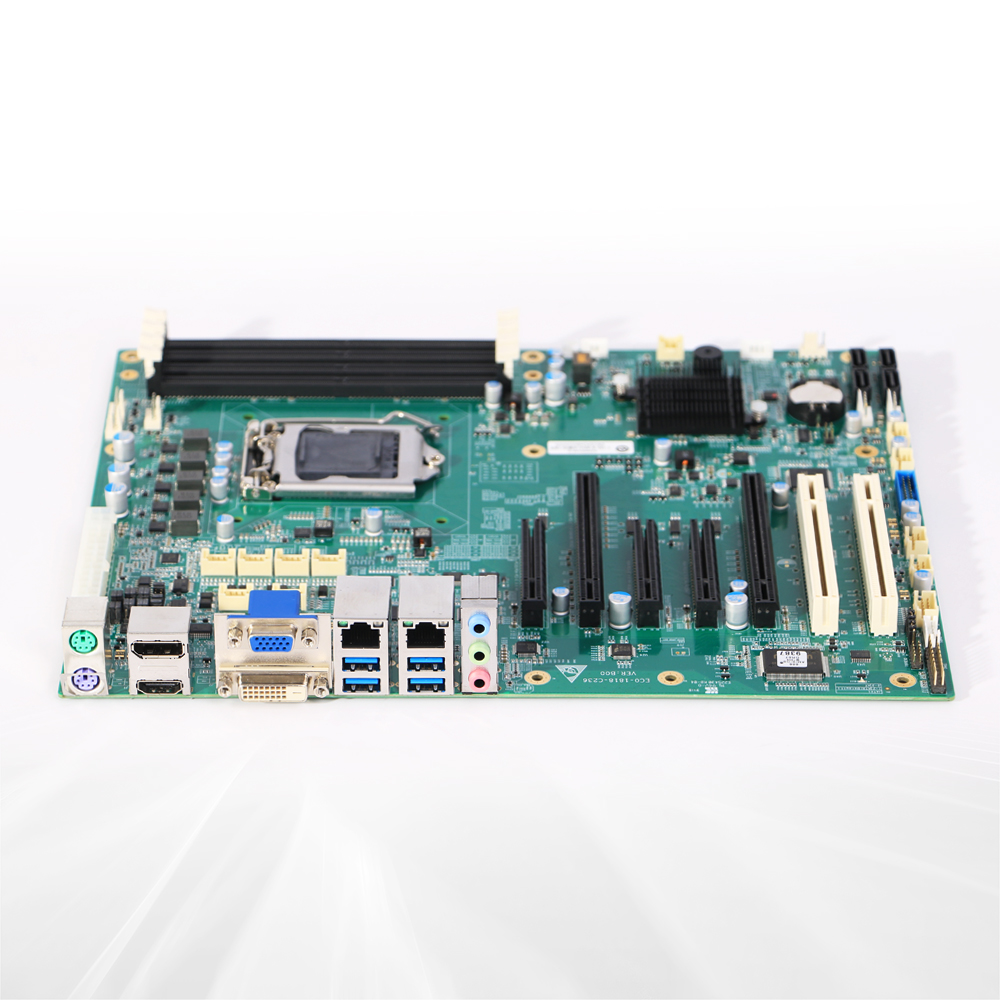

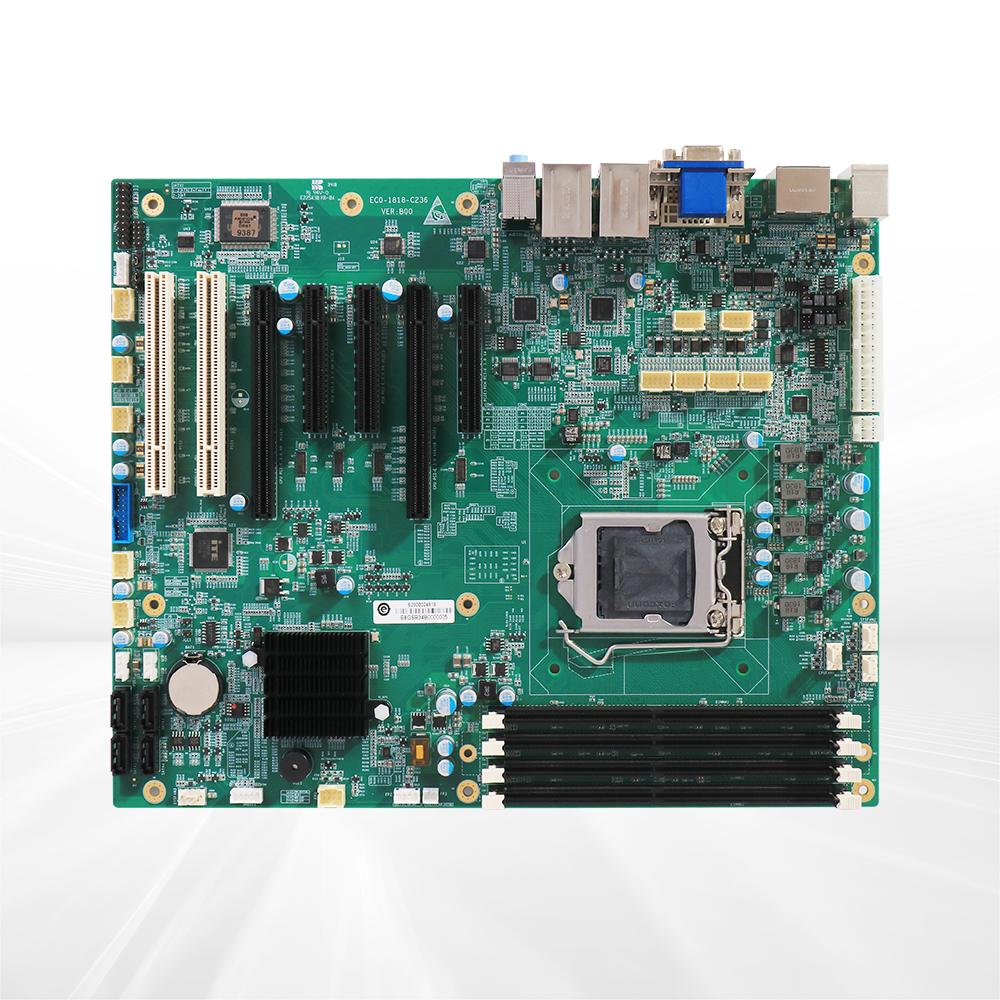

ATX Structure Single Board Computer
The EC0-1818-C236 motherboard adopts the standard ATX motherboard specification and C236 chipset. It supports PCI+PCIE expansion combination, multiple serial ports and multiple USB ports, featuring long supply cycle and high performance. The product will be widely used in petrochemical engineering, automatic control, automatic detection, safety monitoring, intelligent transportation, environmental protection, communication and other fields.
| Item | Description | |
|---|---|---|
| Processor | Processor Supports Intel LGA 1151 pin 6/7th Gen processors, and supports Xeon E3-1200 V5/V6 series processors | |
| Chipset | C236 | |
| Memory | 4 x DDR4 DIMM memory slot, a single memory supporting 16GB, the four supporting up to 64GB | |
| Display Port | Any three display ports among VGA, HDMI, DVI-D and DP | |
| Audio | Supports MIC-IN/LINE-IN/LINE-OUT | |
| LAN | 2 × Gigabit LAN port, LAN1 supports LAN wakeup | |
| Storage | 4 × SATA3.0 | |
| I/O Port | 6 × serial port, COM1 and COM2 support RS-232/RS-422/RS-485 mode selection 6 × USB 3.0, 8 × USB 2.0 1 × PS/2 port 1 × 8-channel digital I/O port 1 × TPM port |
|
| Bus Expansion | 2 × PCI 2 × PCIEx16 (when PCIE5 slot is occupied, the two PCIE slots adopts PCIEx8 speed by default) 3 × PCIEx4 (x8 connector is adopted) |
|
| Power Supply | ATX power supply | |
| Working Environment | -10℃～60℃ | |
| Storage Environment | -20℃～80℃ | |
| Constant Damp Heat | 40°C 95%RH, non-condensing | |
| Overall Dimensions | 305 mm (L) × 244 mm (W) | |
| Operating System | WIN7, WIN10, Linux, Server2008 and Server2010 | |
| 料号 | 型号 | 描述 |
|---|---|---|
| 0030-023911 | EC0-1818-C236-I210-01 | ATX structure single board/C236 chipset/supports Intel 6th and 7th Gen LGA 1151 pin processors/4 × 288Pin DDR4 DIMM memory slot, supporting up to 64GB memory/any three display ports among four (DP, HDMI, VGA and DVI-D)/4 × SATA3.0/2 × Gigabit LAN port (I210 chip)/14 × USB/6 × RS-232/1 group of audio ports/1 × 8-channel GPIO/2 × PCIE x16/3 × PCIEx4 (X8 connector)/2 × PCI |
