EC0-1816(F)

ATX Structure Single Board Computer

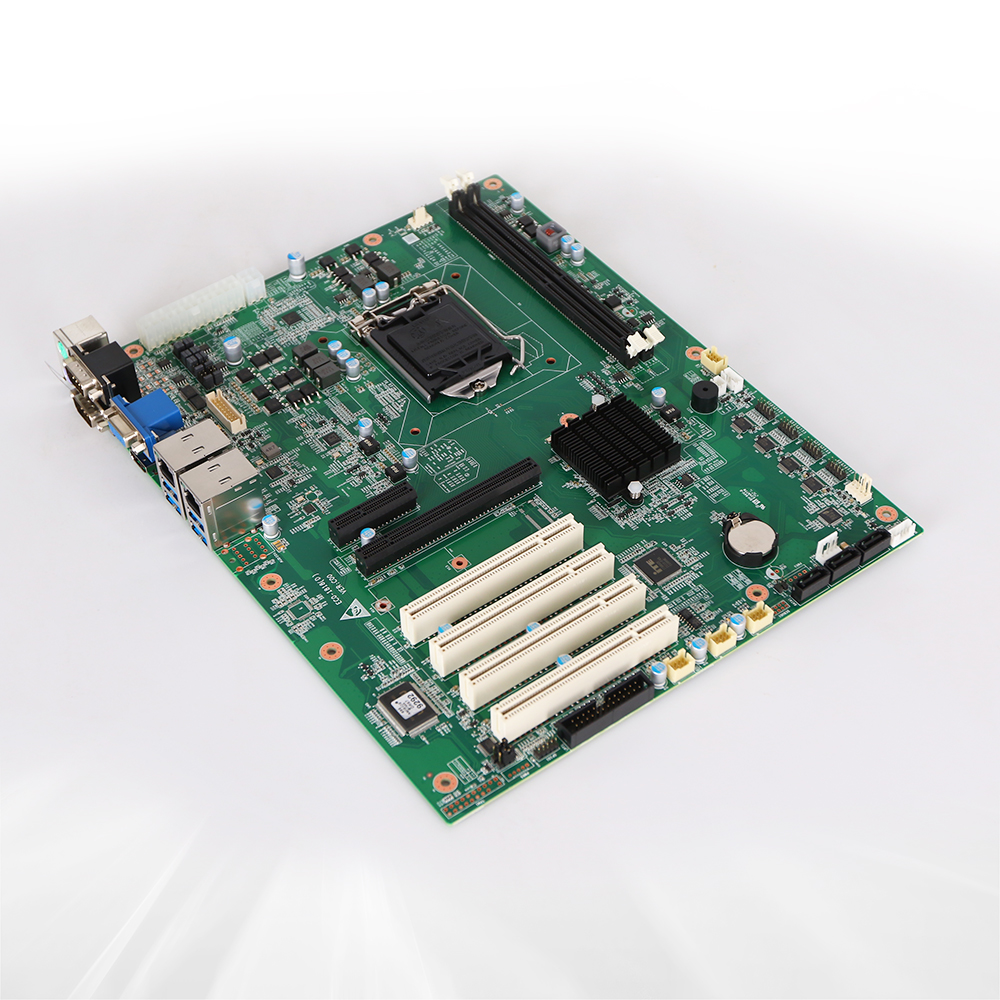

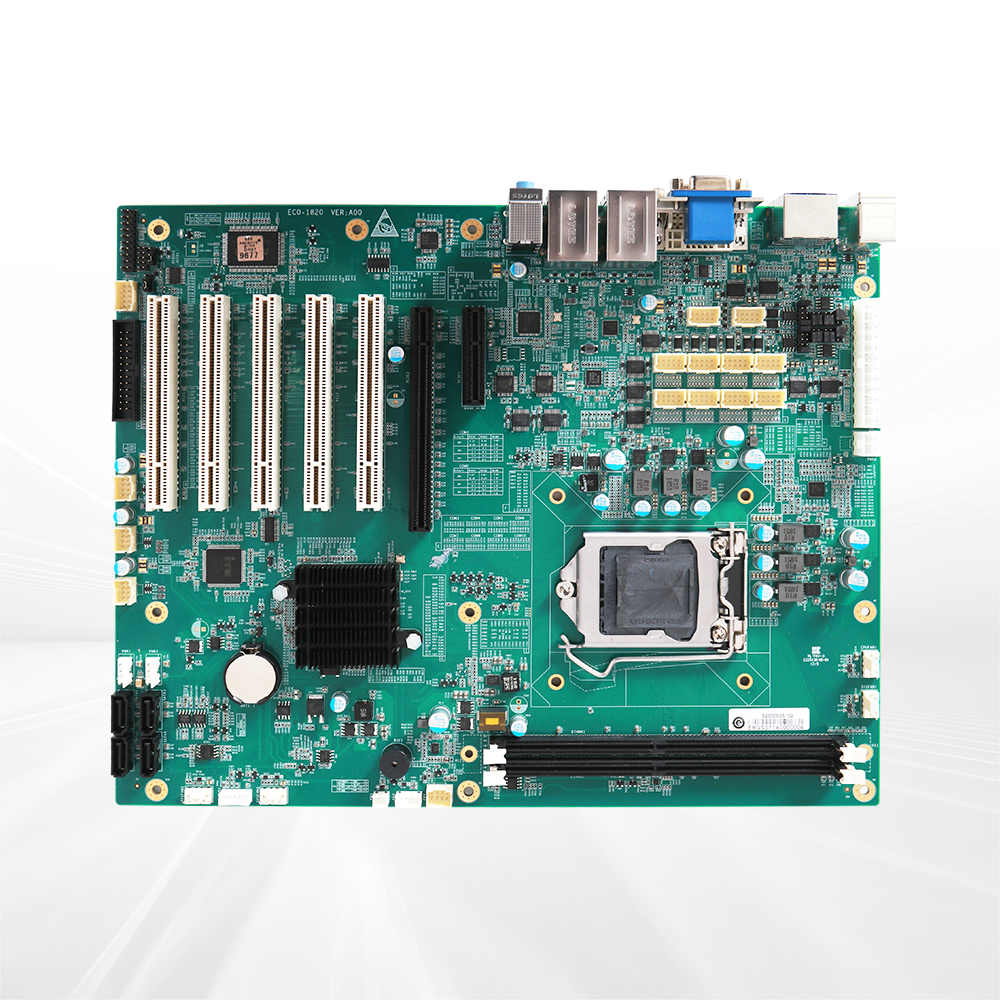

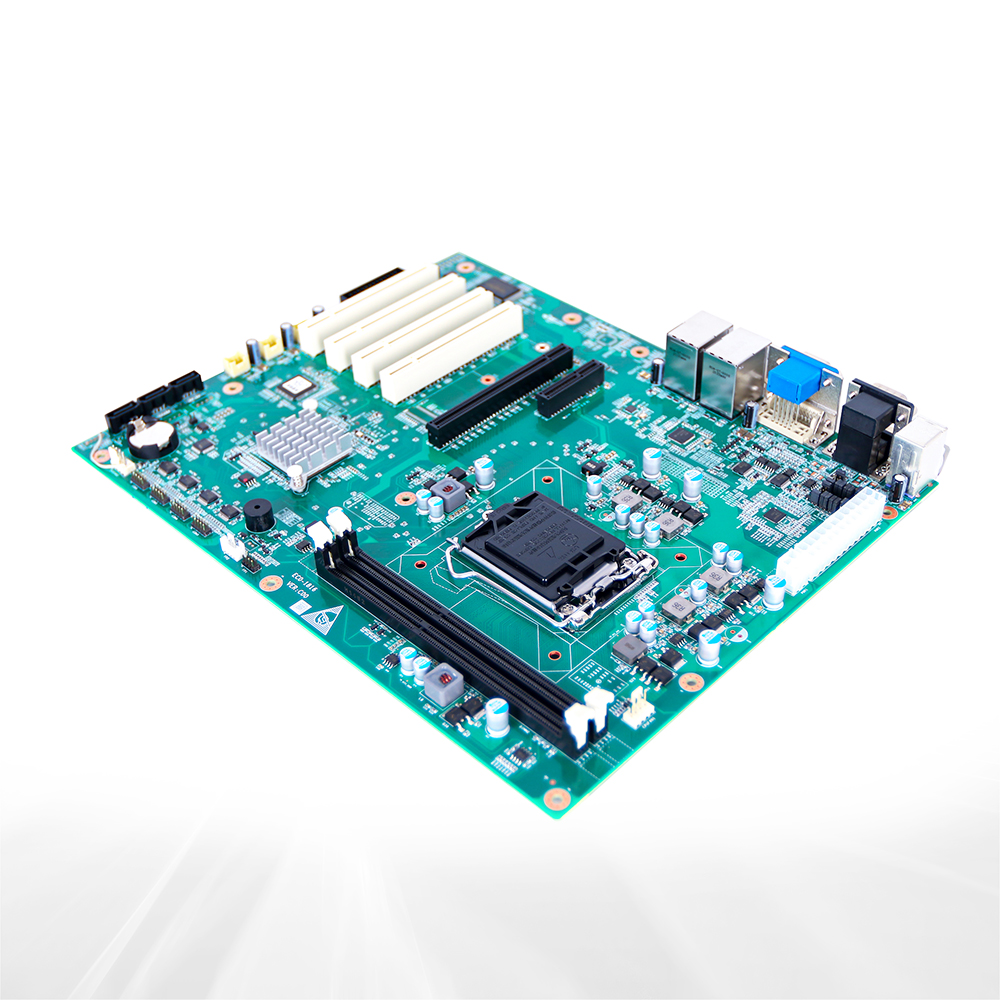

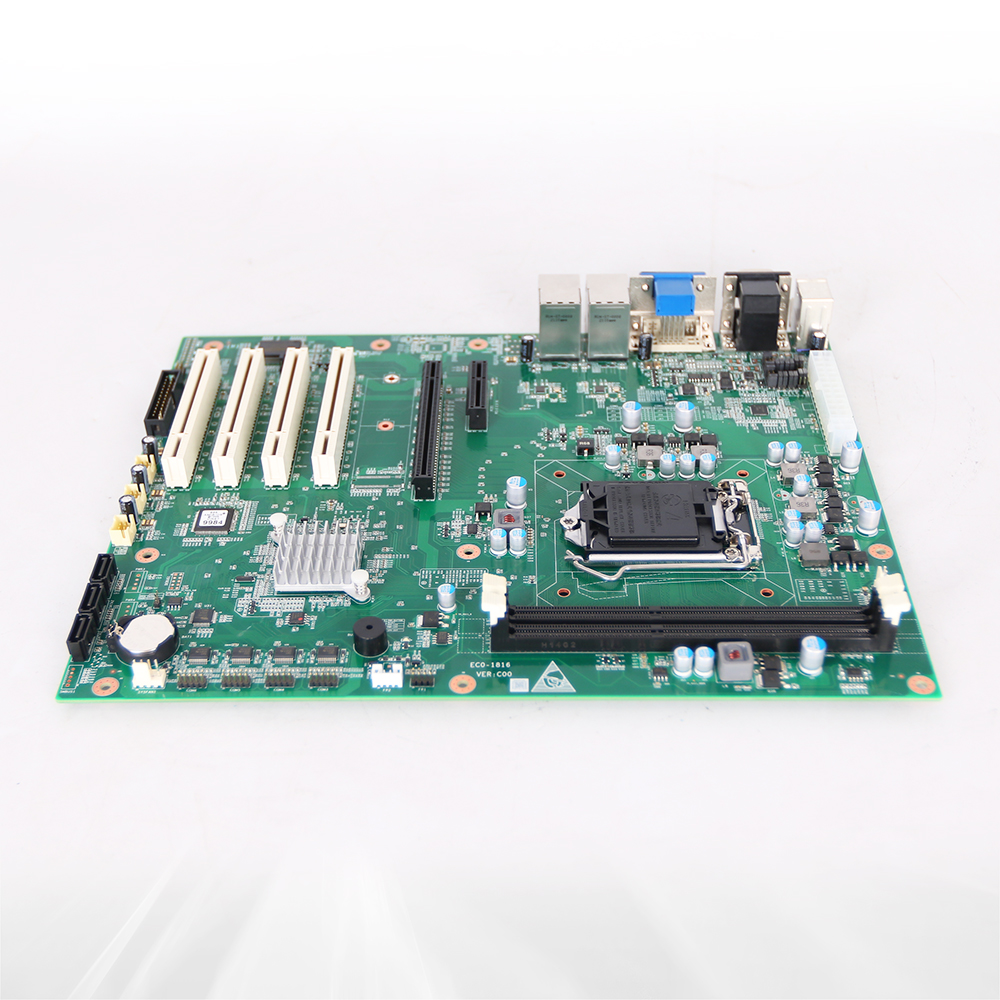

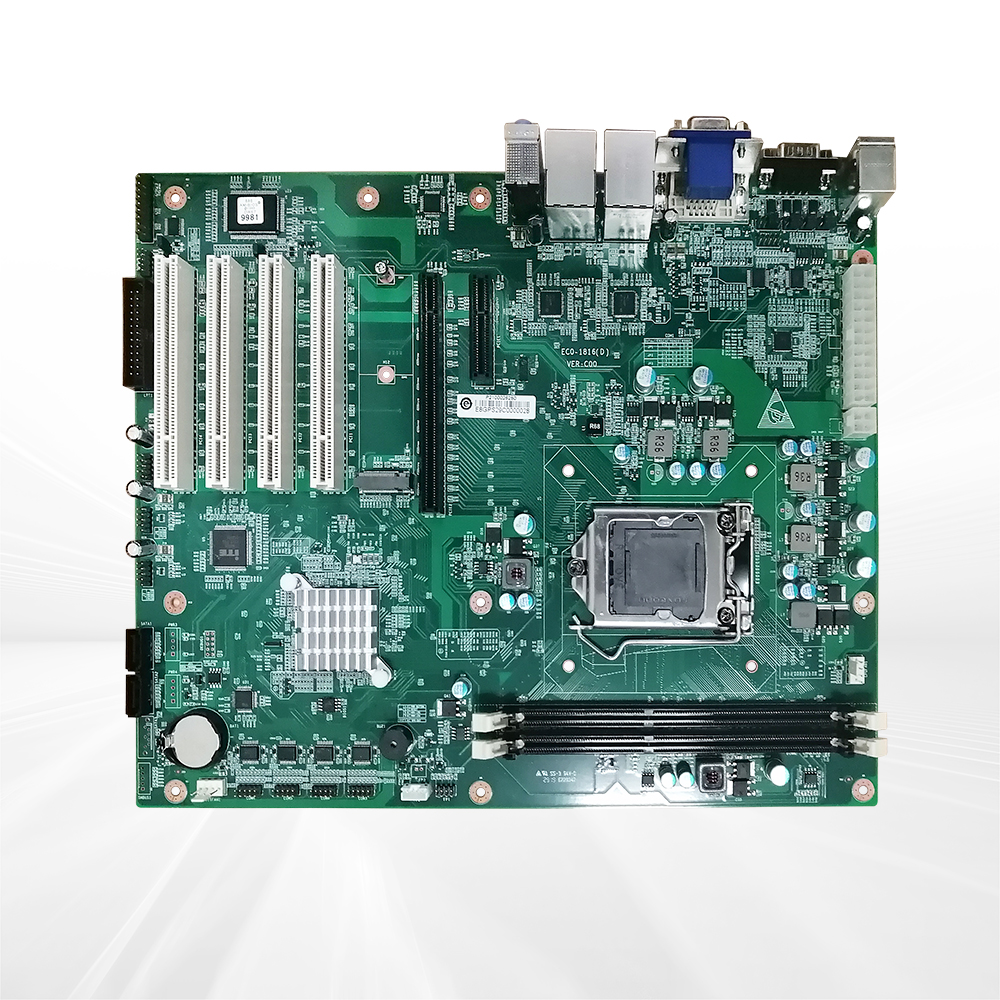

EC0-1816 is a single board computer with ATX structure developed based on Intel H61 chipset, and supports Ivy bridge/Sandy bridge LGA1155 pin processors; it supports VGA+DVI-D display function, abundant IO ports and PCIePC bus expansion, which can be widely used in industrial automation control, automatic detection, safety monitoring, intelligent transportation, communication automation, environmental protection detection and other fields.

Product Features

1 × M.2 port

2 × PCIE expansion

4 × PCI

10 × USB port

Product Specifications

Item Description
Processor Supports Ivy bridge/Sandy bridge LGA 1155 pin processors
Chipset H61
Memory 2 x 240Pin standard DDR3 DIMM memory slot, a single memory supporting 8GB, the two supporting up to 16GB
Display Port 1 × VGA, 1 × DVI-D
Audio Supports MIC-IN/LINE-IN/LINE-OUT
LAN LAN 2 × Gigabit LAN port, LAN1 supports LAN wakeup
Note: As PCIE x4 slot shares resources with LAN2, the LAN2 port has no function when inserting a PCIE x4 card
Storage 3 × SATA2.0, supporting hot-swap function in AHCI mode
I/O Port 1 × parallel port
6 × serial port, of which COM1 is onboard and supports RS-232/422/RS-485 mode selection(10 serial port motherboards optional)
10 × USB2.0 port
1 × PS/2 port
1 × 8-channel digital I/O port
1 × TPM port
Bus Expansion 4 × PCI
1 × PCIEx16
1 × PCIEx4 (actual x1 signal)
Power Supply ATX power supply
Working Environment -10℃~60℃
Storage Environment -20℃~80℃
Relative Humidity 5%~95% (non-condensing)
Overall Dimensions 305 mm (L) × 244 mm (W)
Operating System WIN7, LINUX

Ordering Information

料号 型号 描述
1030-035821 EC0-1816(F)-I210 ATX structure single board computer/H61 chipset/supports Ivy Bridge and Sandy Bridge LGA1155 pin processors/2 × DDR3 memory slot/VGA+DVI-D/2 × Gigabit LAN port/3 × SATA2.0/1 × M.2 KEY-B-2280 port/10 × USB2.0/6 × serial port/4 × PCI/1 × PCI_Ex16/1 × PCIEX4/1 × LPT/1 × 8-channel GPIO/1 × TPM/1 group of audio ports
