EC0-1816(E)

ATX Structure Single Board Computer

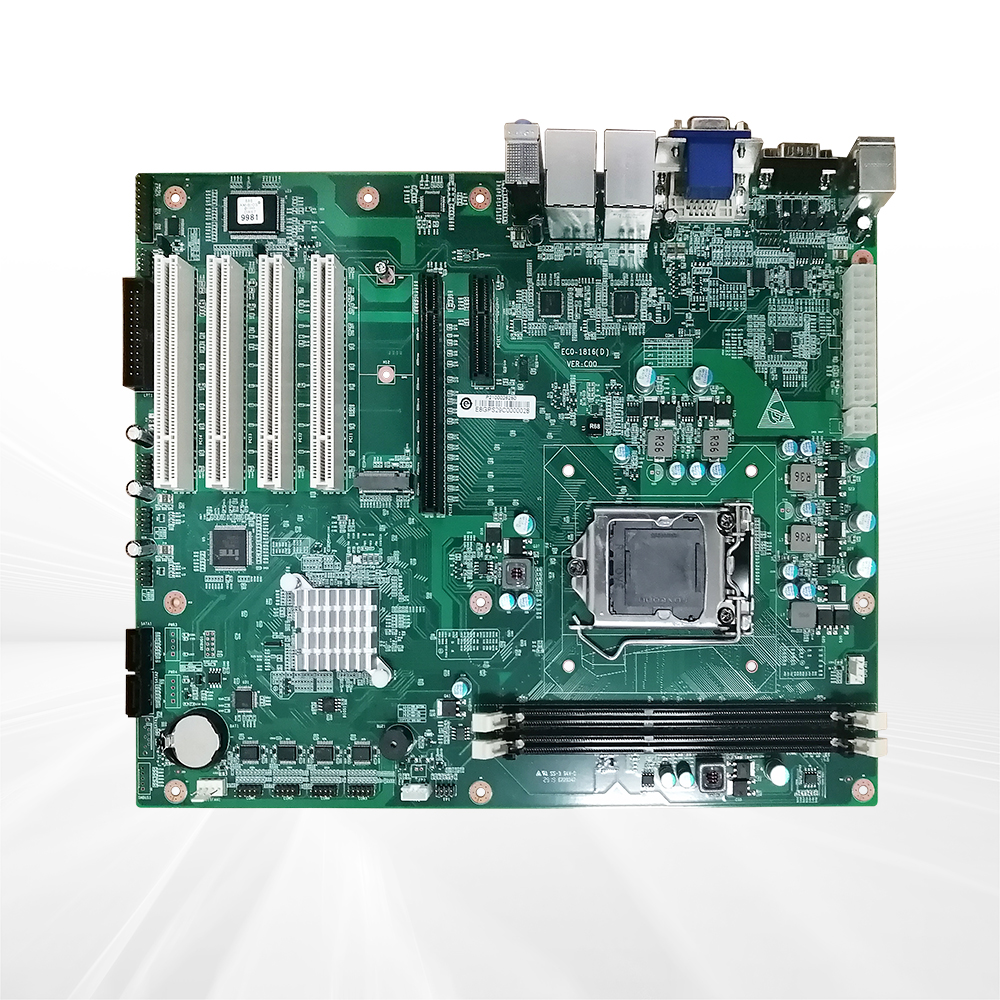

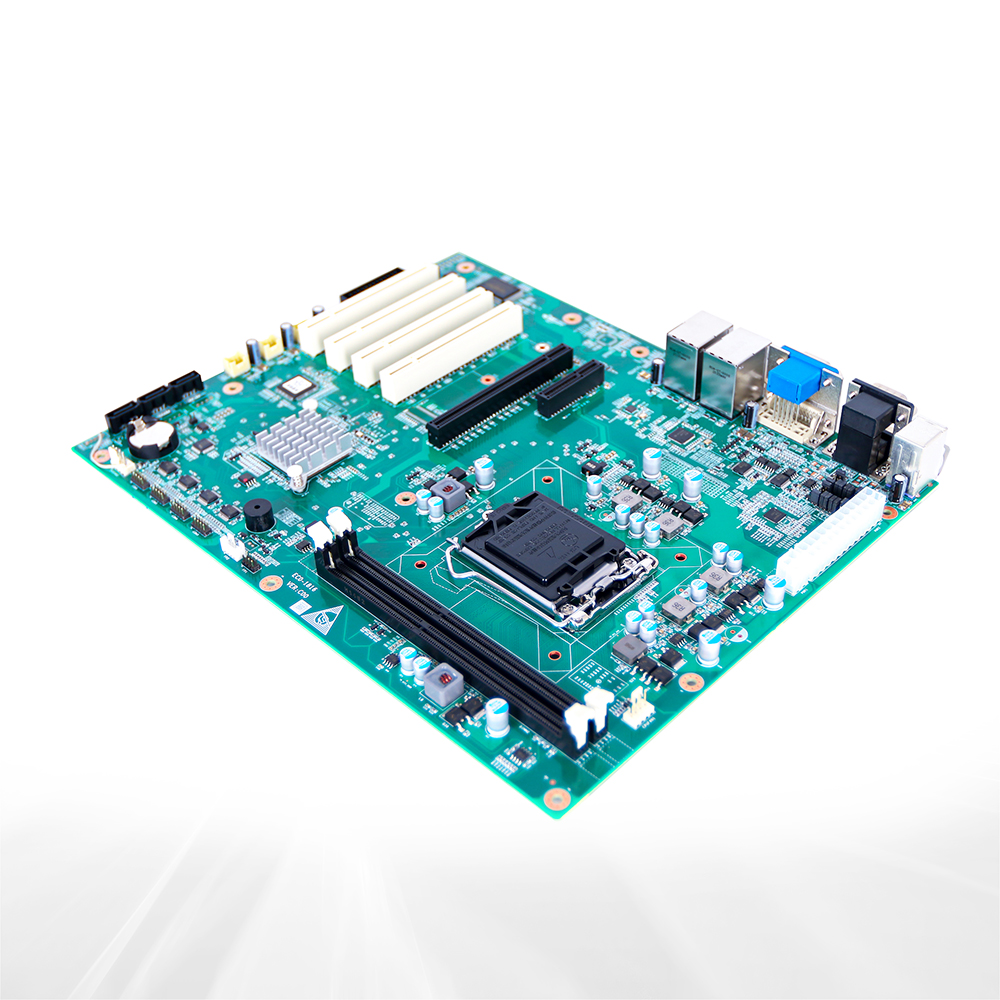

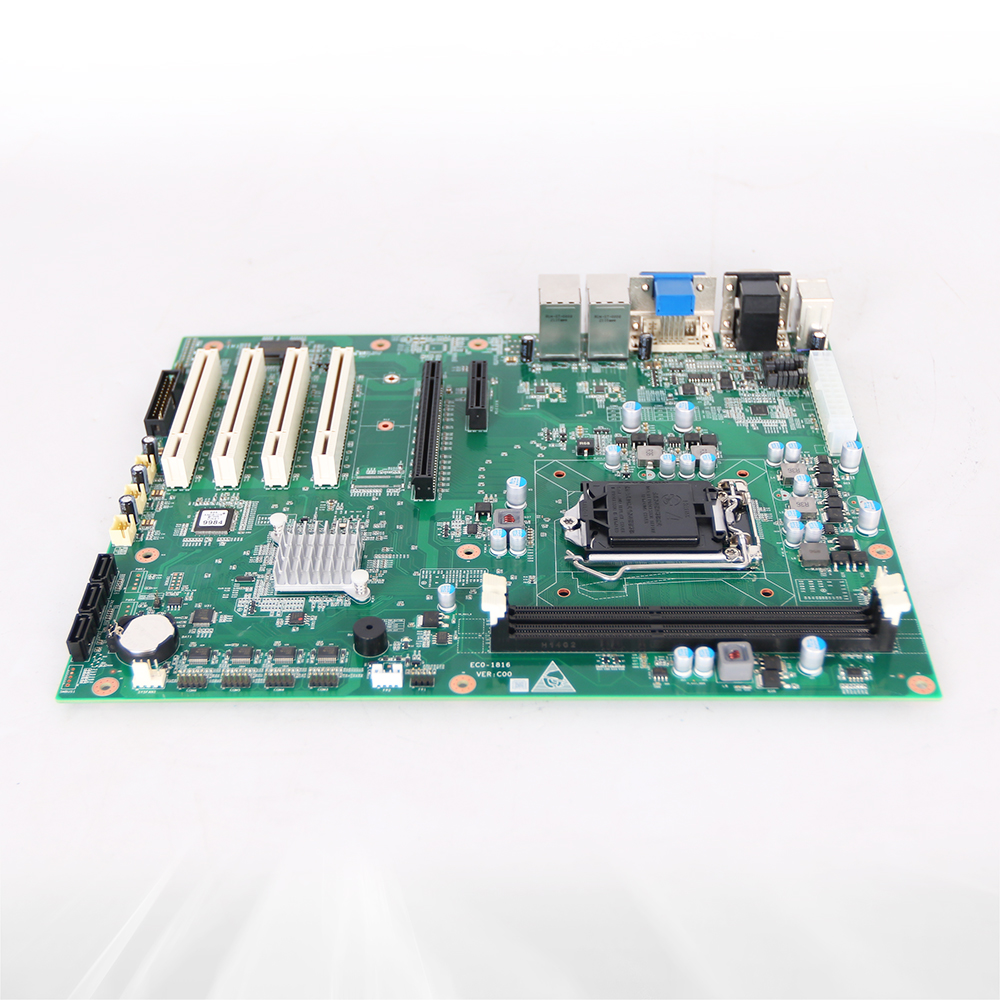

EC0-1816(E) is a single board computer with ATX structure developed based on IntelH61 chipset, and supports Ivy bridge/Sandy bridge core LGA1155 pin dual-core/quad-core processors; it supports VGA+DVI-D display function and PCIePCI bus expansion, which can be widely used in industrial automation control, automatic detection, safety monitoring, intelligent transportation, communication automation, environmental protection detection and other fields.

Product Features

2 × PCIE expansion

5 × PCI

10 × serial port

10 × USB port

Product Specifications

Item Description
Processor Supports Ivy bridge/Sandy bridge LGA 1155 pin processors
Chipset H61
Memory 2 x 240Pin standard DDR3 DIMM memory slot, a single memory supporting 8GB, the two supporting up to 16GB
Display Port 1 × VGA, 1 × DVI-D
Audio Supports MIC-IN/LINE-IN/LINE-OUT
LAN 2 × Gigabit LAN port, LAN1 supports LAN wakeup
Storage 2 × SATA2.0
I/O Port 1 × parallel port
6 × serial port, of which COM1 is onboard and supports RS-232/422/RS-485 mode selection(10 serial port motherboards optional)
10 × USB2.0 port
1 × PS/2 port
1 × 8-channel digital I/O port
1 × TPM port
Bus Expansion 5 × PCI
1 × PCIEx16
1 × PCIEx4 (actual x1 signal)
Power Supply ATX power supply
Working Environment -10℃~60℃
Storage Environment -20℃~80℃
Relative Humidity 5%~95% (non-condensing)
Overall Dimensions 305 mm (L) × 244 mm (W)
Operating System WIN7, LINUX

Ordering Information

料号 型号 描述
1030-030631 EC0-1816(E)-6COM-03 ATX structure single board/Intel H61 chipset/supports Intel Sandy bridge/lvy bridge LGA1155 processors/2 × DDR3 DIMM memory slot, totally supporting 16GB memory/VGA+DV-D /4 × SATA/2 × Gigabit LAN port/10 × USB2.0/6 × COM port (2 of which support 232/422/485)/1 × parallel port/1 × PS/2/1 group of audio ports/1 × 8-channel GPIO/5 × PCI/1 × PCIEx1/1 × PCIEx16/1 × TPM port/standard ATX power supply
1030-030661 EC0-1816(E)-10COM-03 ATX structure single board/Intel H61 chipset/supports Intel Sandy bridge/lvy bridge LGA1155 processors/2 × DDR3 DIMM memory slot totally supporting 16GB memory/VGA+DV-D /4 × SATA/2 × Gigabit LAN port/10 × USB2.0/10 × COM port (2 of which support 232/422/485)/1 × parallel port/1 × PS/2/1 group of audio ports/1 × 8-channel GPIO/5 × PCI/1 × PCIEx1/1 × PCIEx16/1 × TPM port/standard ATX power supply
