EC0-1817(B)

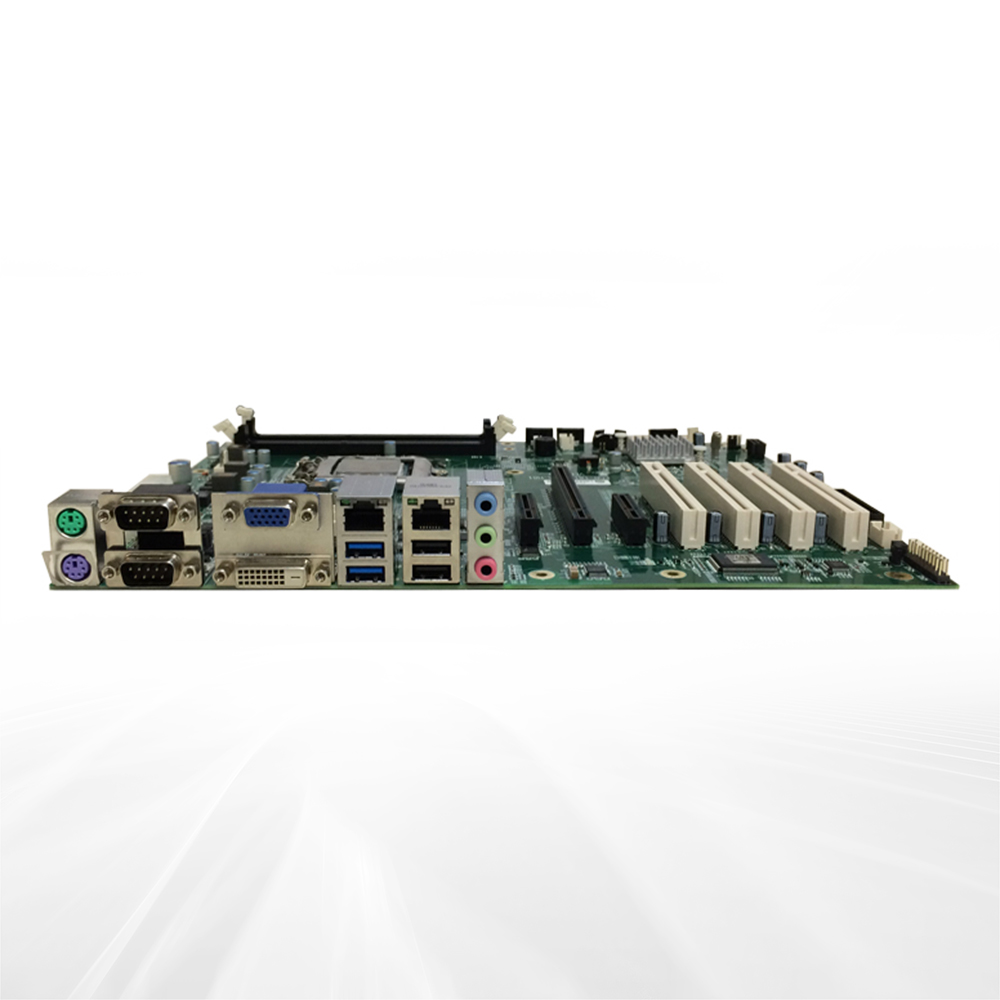

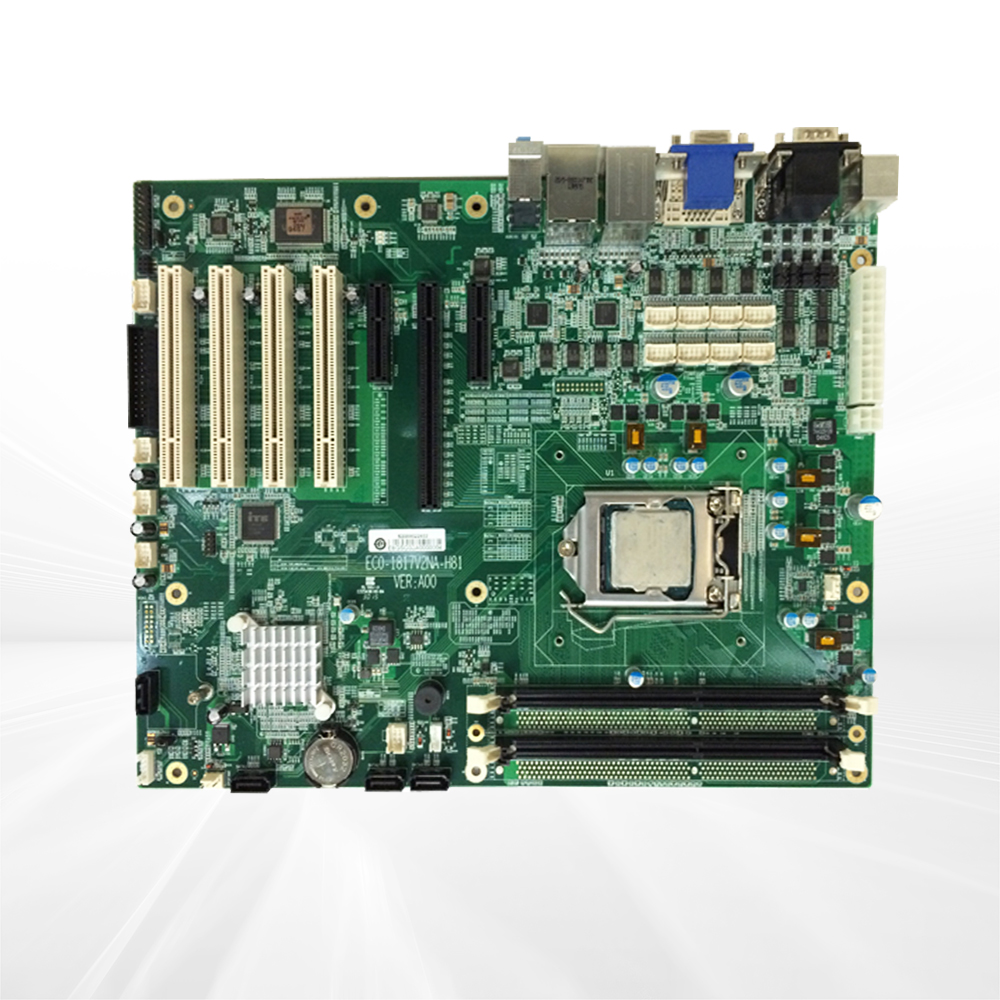

ATX Structure Single Board Computer

EC0-1817 (B) is a single board computer with ATX structure developed based on IntelH81 chipset. It supports the 4th Gen processor packaged by Intel Socket LGA1150, VGA+DVI-D dual display function, abundant IO ports, PCIe and PCI bus expansion. It can be widely used in industrial petrochemical engineering, automatic control, automatic detection, safety monitoring, intelligent transportation, communication automation, environmental protection testing and other fields.

Product Features

3 × PCIE expansion

4 × PCI

10 × serial port

Product Specifications

Item Description
Processor Supports Intel Haswell LGA 1150 pin 4th Gen processor
Chipset H81
Memory 2 x 240Pin standard DDR3 DIMM memory slot, a single memory supporting 8GB, the two supporting up to 16GB
Display Port 1 × VGA, 1 × DVI-D
Audio Supports MIC-IN/LINE-IN/LINE-OUT
LAN 2 × Gigabit LAN port, LAN1 supports LAN wakeup
Storage 4 × SATA2.0
I/O Port 1 × parallel port
10 × serial port, COM1 and COM2 support RS-232/RS-422/RS-485 mode selection
2 × USB 3.0, 8 × USB 2.0
1 × PS/2 port
1 × 8-channel digital I/O port
1 × TPM port
Bus Expansion 4 × PCI
1 × PCIEx16
2 × PCIEx4 (actual x1 signal)
Power Supply ATX power supply
Working Environment -10℃~60℃
Storage Environment -20℃~80℃
Relative Humidity 5%~95% (non-condensing)
Overall Dimensions 305 mm (L) × 244 mm (W)
Operating System WIN7, LINUX

Ordering Information

料号 型号 描述
1030-030741 EC0-1817V2NA(B)-H81-6COM ATX structure single board computer/supports Intel Haswell LGA 1150 pin 4th Gen processor/H81 chipset/2 × DDR3 memory slot/VGA+DVI-D/2 × Gigabit LAN port/4 × SATA2.0/10 × USB/6 × serial port/4 × PCI/1 × PCIEx16/2 × PCIEx4 (actually providing X1 signal)/1 × parallel port/1 × 8-channel GPIO/1 × TPM/1 group of audio ports
1030-032371 EC0-1817V2NA(B)-H81 ATX structure single board computer/supports Intel Haswell LGA 1150 pin 4th Gen processor/H81 chipset/2 × DDR3 memory slot/VGA+DVI-D/2 × Gigabit LAN port/4 × SATA2.0/10 × USB/10 × serial port/4 × PCI/1 × PCIEx16/2 × PCIEx4 (actually providing X1 signal)/1 × parallel port/1 × 8-channel GPIO/1 × TPM/1 group of audio ports
