EC0-1822
10th Gen/2xDDR4/4PCI/3PCIE

Industrial ATX Motherboard with Intel® H420E Chipset

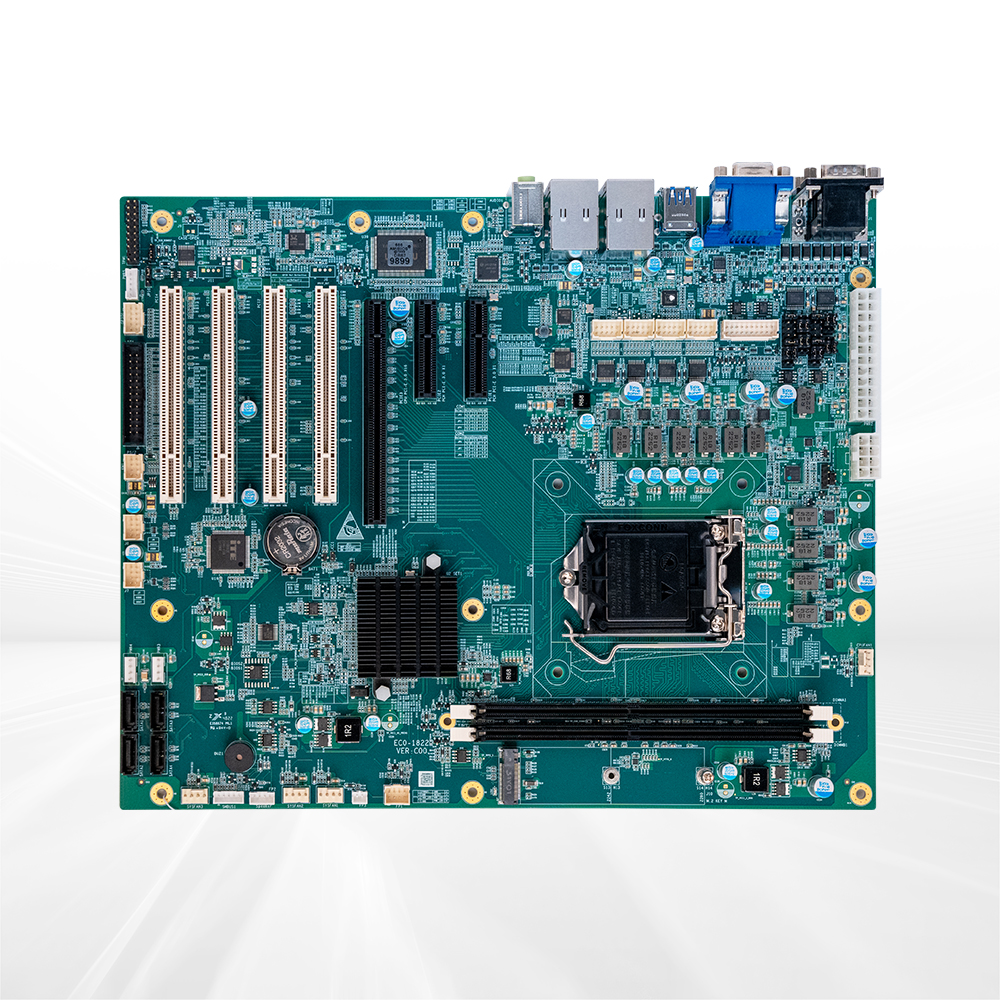

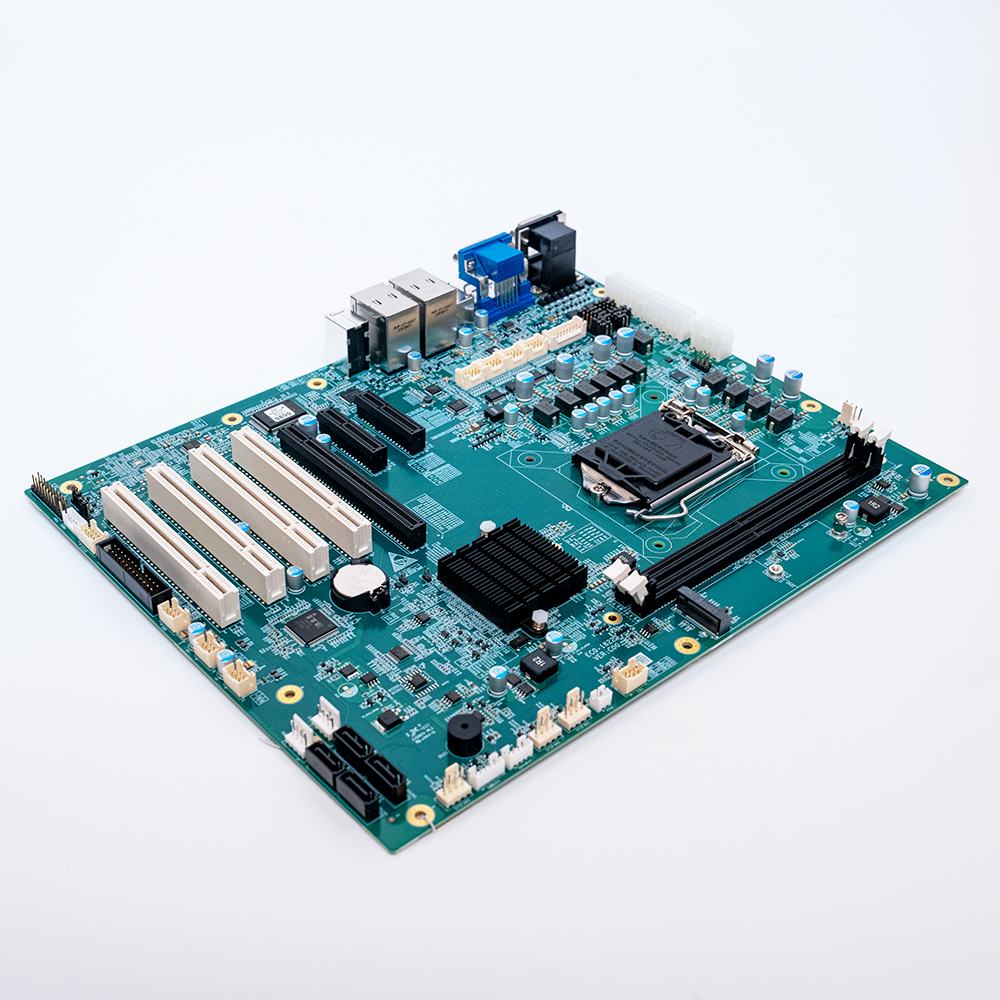

The EC0-1822 motherboard adopts standard ATX specification and Intel H420E platform, supports Intel LGA1200 pin 10th Gen processor; provides 2 × DDR4 memory slot; supports PCI +PCIE expansion combination, multiple serial ports and multiple USB ports. The product can be widely used in industrial automation, Internet of Things, self-service terminal, petrochemical engineering, safety monitoring, intelligent transportation, environmental protection, communication and other fields.

Product Features

4 × PCI + 3 × PCIE expansion

10 × USB port

Supports 2 × memory slot

Supports Intel 10th Gen processor

Product Specifications

Item Description
Processor Supports Intel LGA 1200 pin 10th Gen processor; maximum power consumption of processor TDP≤125W
Chipset H420E
Memory 2 x DDR4 DIMM memory slot, a single memory supporting 32GB, the two supporting up to 64GB
Display Port Any two display ports among VGA, DP and DVI-D
Audio Supports MIC-IN/LINE-IN/LINE-OUT
LAN 2 × Gigabit LAN port, LAN1 supports LAN wakeup
Storage 4 × SATA3.0
I/O Port 6 × serial port, COM1 and COM2 support RS-232/RS-422/RS-485 mode selection

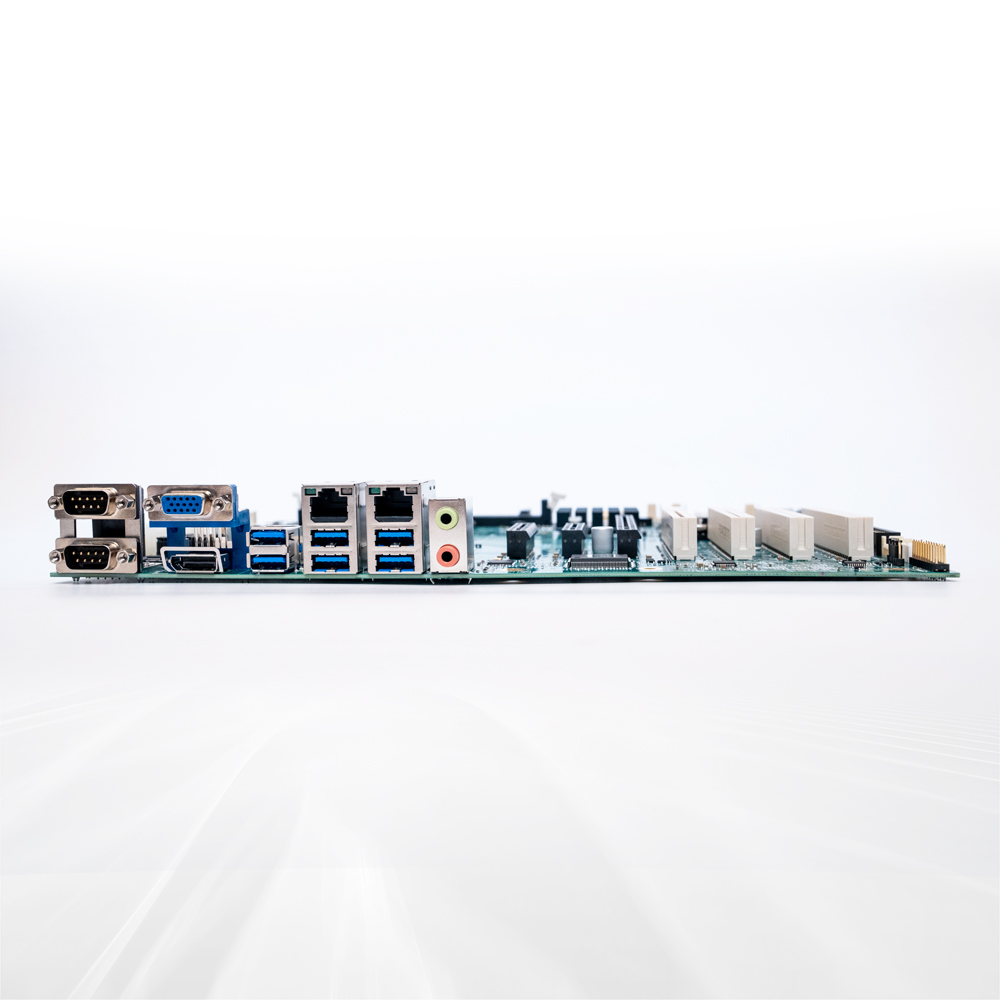

4 × USB 2.0 port and 6 × USB3.2 GEN1 port
1 × PS/2 port
1 × 8-channel digital I/O port
1 × TPM port
Bus Expansion 4 × PCI
2 × PCIEx4 (actual x1 signal)
1 × PCIEx16
1 × M.2 KEY M port (PCIE x 2, supporting sizes 2242/2280)
Power Supply ATX power supply
Working Environment -10℃~60℃
Storage Environment -20℃~80℃
Constant Damp Heat 40°C 95%RH, non-condensing
Overall Dimensions 305 mm (L) × 244 mm (W)
Operating System WIN10、Linux

Ordering Information

Part No. Model Description
0030-023461 EC0-1822 ATX structure single board/H420E chipset/10th Gen LGA1200 pin processor/2 x DDR4 DIMM memory slot, supporting expansion up to 64 GB/any two display ports among VGA, DP, DVI-D/4 × SATA3.0, 1 × M.2 (PCIe3.0 x2 M-key 2280 type)/2 × Gigabit LAN port/6 × USB 3.2 Gen 1, 4 × USB 2.0/6 × COM/1 group of audio ports/1 × 8 bit GPIO/1 × TPM/1 × LPT/1 × LPC/1 × PS2 motherboard built-in/expansion: 4 × PCI, 1 × PCI E x16, 2 × PCIEx4 (actually providing the speed of x1)
