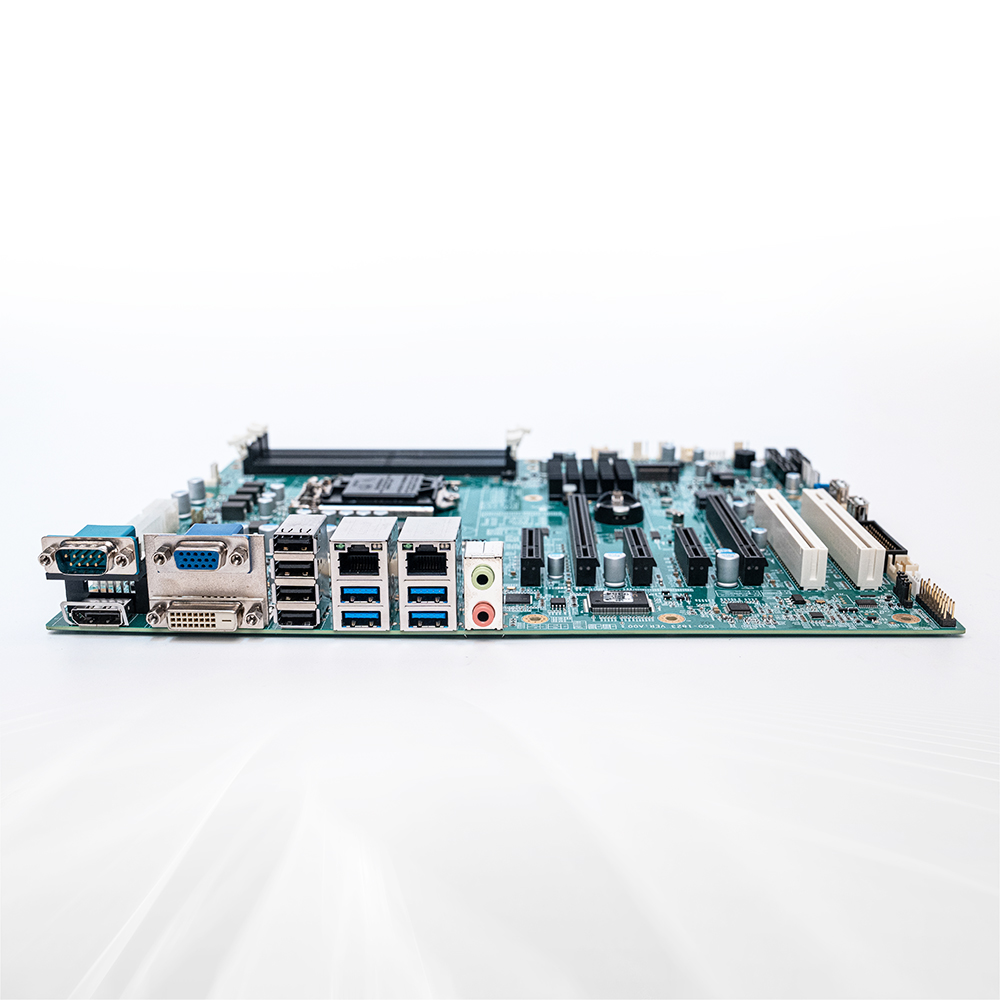

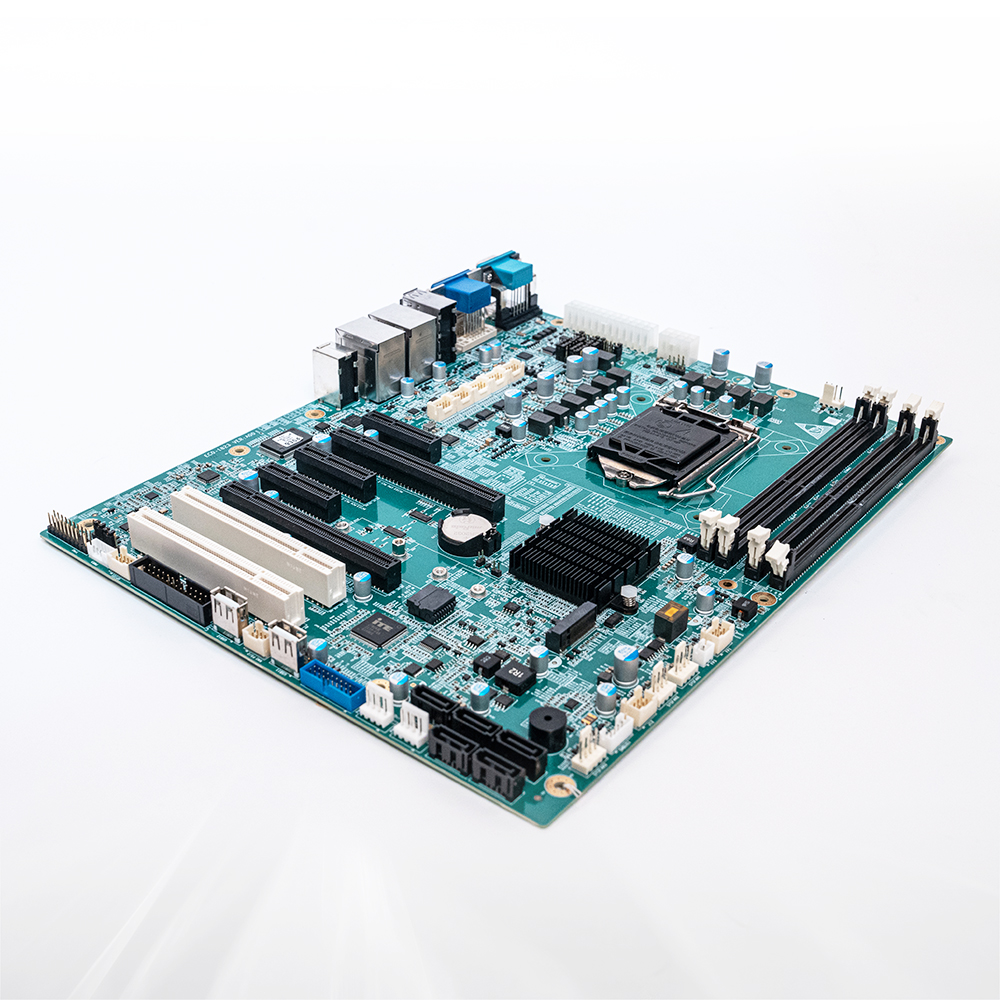

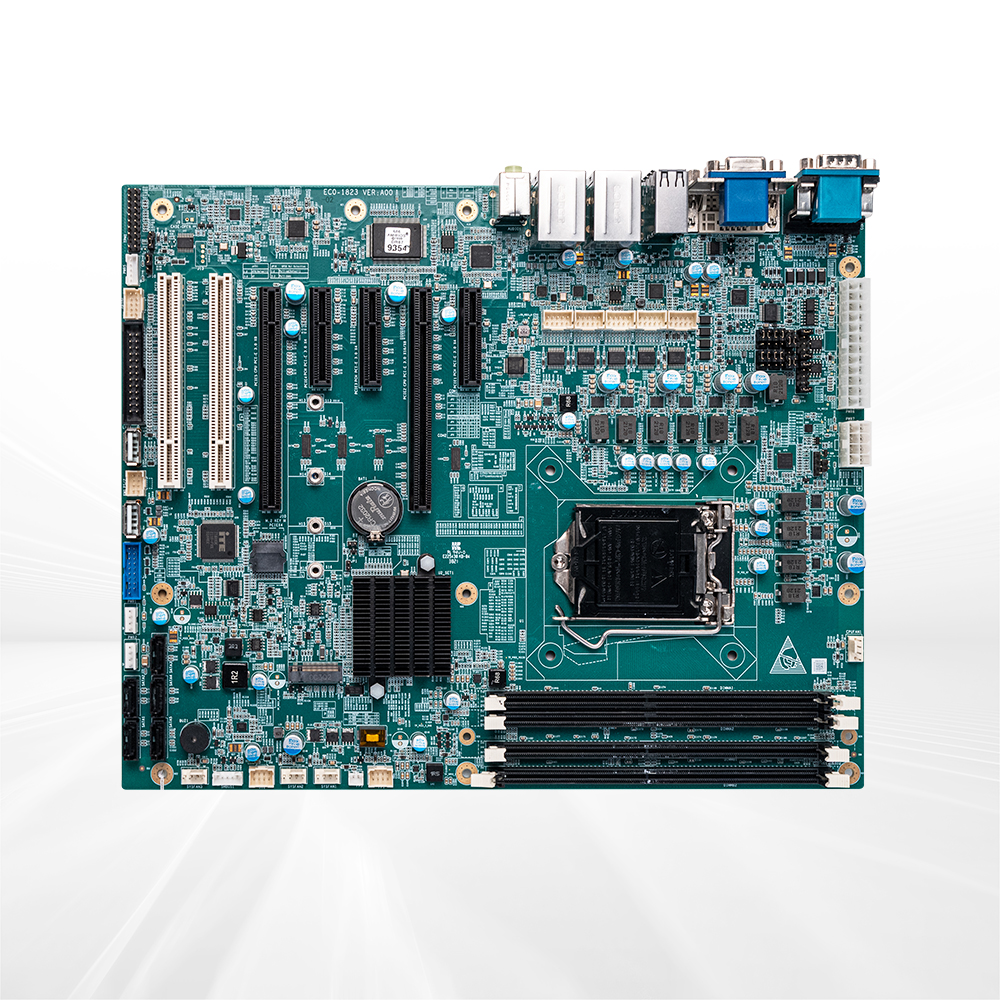

EC0-1823

ATX Structure Single Board Computer

The EC0-1823 mainboard adopts the standard ATX specification and Intel 470E&W480E chipset, which can support LGA 1200 pin 10/11th Gen processors; provides 4 x DDR4 DIMM memory slot, supporting expansion up to 128 GB; supports high-speed USB 3.2 Gen2 port, 10Gb/S broadband speed; supports PCI+PCIE expansion combination, multiple serial ports and multiple USB ports, and supports AMT remote management function; it can be widely used in industrial automation, machine vision, deep learning, safety monitoring, intelligent transportation, environmental protection, communication and other fields.

Product Features

2 × PCI + 5 × PCIE expansion

14 × USB port

AMT remote management

Supports Intel 10/11th Gen processors

Product Specifications

Item Description
Processor Q470E chipset: supports Intel LGA 1200 pin 10/11th Gen processors, with a maximum power consumption of 125W
W480E chipset: supports Intel LGA 1200 pin 10/11th Gen processors and Xeon W series processors, with a maximum power consumption of 125W
Chipset Q470E/W480E
Memory 4 x DDR4 DIMM memory slot, a single memory supporting 32GB, the four supporting up to 128GB
Display Port VGA, DVI-D and DP three-display
Audio Supports MIC-IN/LINE-OUT
LAN 2 × Gigabit LAN port, LAN1 supports LAN wakeup
Storage 5 × SATA3.0, supporting RAID 0, 1, 5, 10
I/O Port 6 × serial port, COM1 and COM2 support RS-232/RS-422/RS-485 mode selection
8 × USB2.0, 4 × USB3.2 GEN1 (5Gb/s), 2 × USB3.2 GEN1 (10Gb/s)
1 × PS/2 port
1 × 8-channel digital I/O port
1 × TPM port
Bus Expansion 2 × PCI, 3 × PCIEx4
2 × PCIEx16 (when the two PCIE slots are occupied at same time, PCIEx8 speed is used)
1 × M.2 KEY M port (PCIe3.0 X4 and SATA signal)
Power Supply ATX power supply
Working Environment -10℃~60℃
Storage Environment -40℃~85℃
Constant Damp Heat 40°C 95%RH, non-condensing
Overall Dimensions 305 mm (L) × 244 mm (W)
Operating System WIN10, WINServer 2019, Linux high kernel version

Ordering Information

料号 型号 描述
0030-023841 EC0-1823-03 ATX structure single board/Q470E chipset/supports Intel 10/11th Gen processors/provides 4 × DDR4 DIMM memory slot, supporting expansion up to 128GB/VGA+DP+DVI-D three-display/5 × SATA3.0, supporting Raid 0, 1, 5, 10/1 × M.2/2 × Gigabit LAN port/14 × USB/6 × COM/supports MIC-IN/LINE-OUT /1 × 8-channel GPIO/1 × TPM/1 × LPT/1 × LPC/expansion: 2 × PCI, 2 × PCI E x16 and 3 × PCI E x4
0030-023851 EC0-1823-04 ATX structure single board/W480E chipset/supports Intel LGA1200 pin 10/11th Gen processors Xeon W series processors/provides 4 × DDR4 DIMM memory slot supporting expansion up to 128GB/VGA + DP + DVI-D three-display/5 × SATA3.0 supporting Raid 0 1 5 10/1 × M.2/2 × Gigabit LAN port/14 × USB/6 × COM/supports MICIN/LINE-OUT/1 × 8-channel GPIO/1 × TPM/1 × LPT/1 × LPC/expansion: 2 × PCI 2 × PCI E x16 3 × PCI E x4
