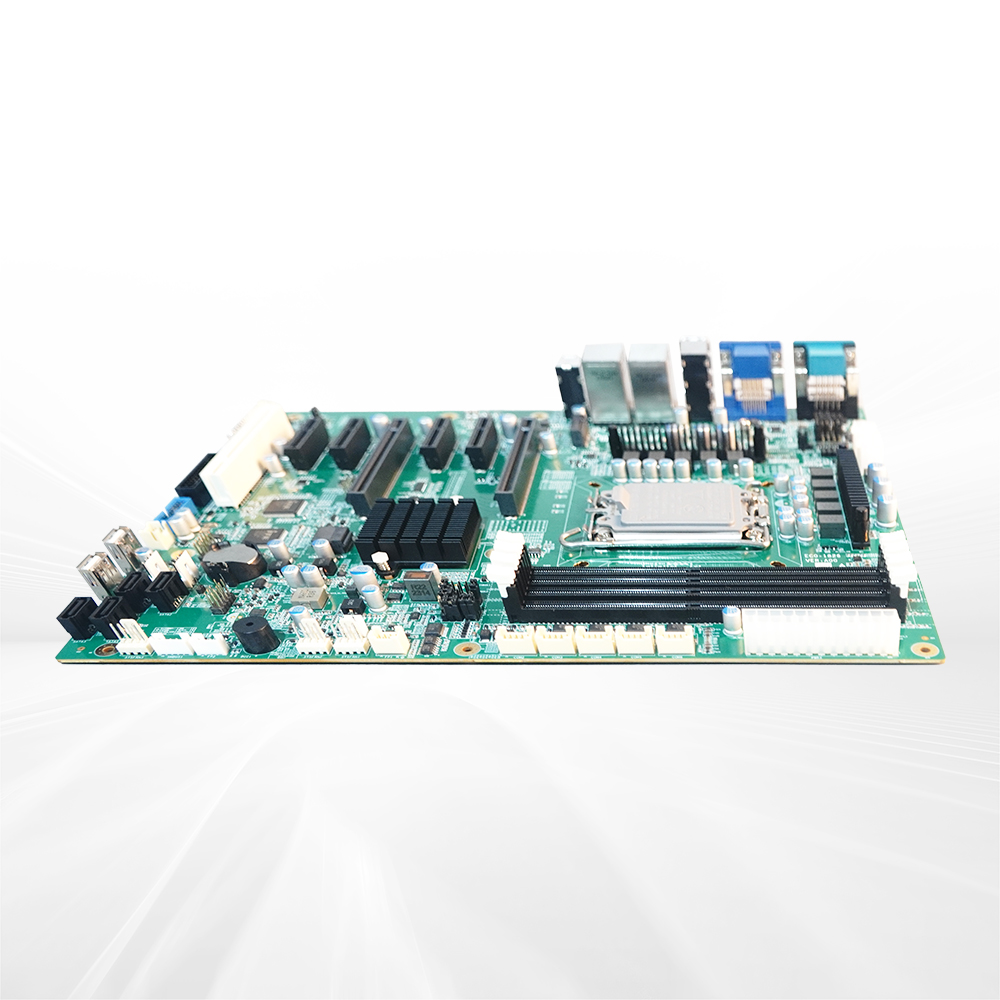

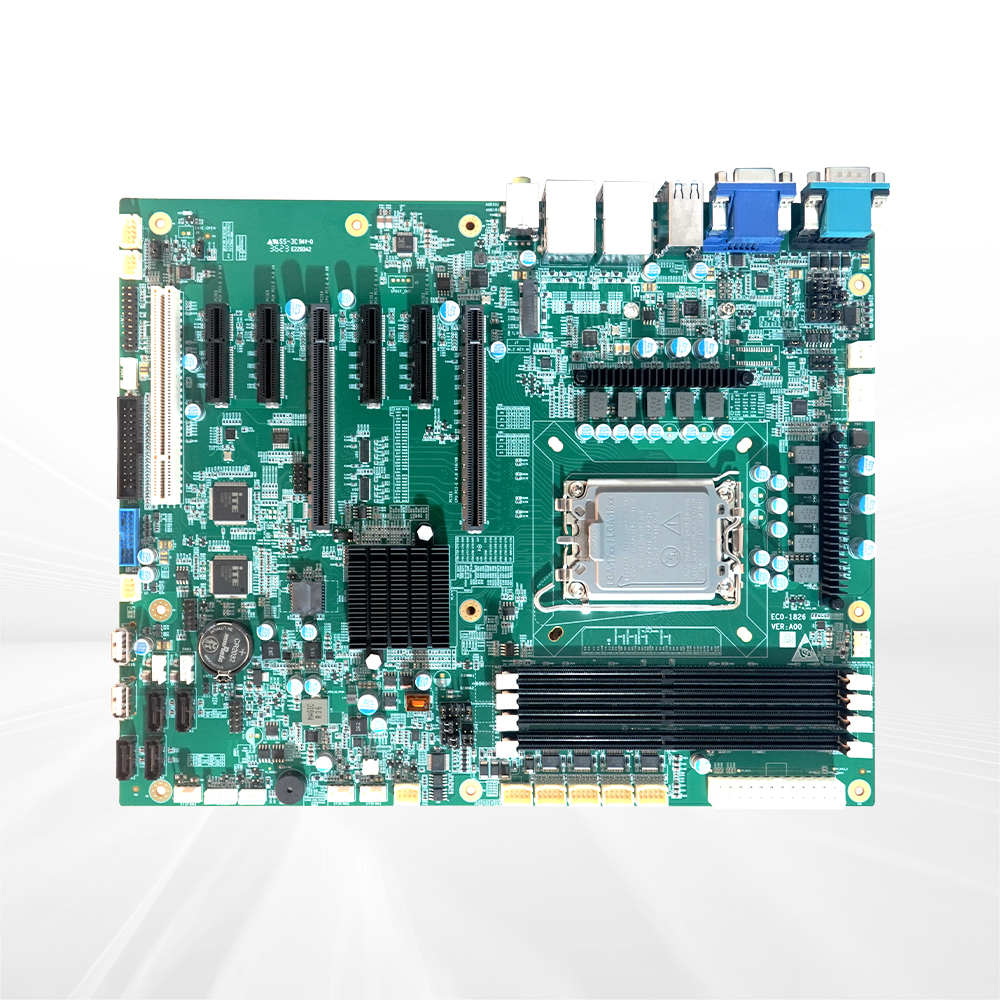

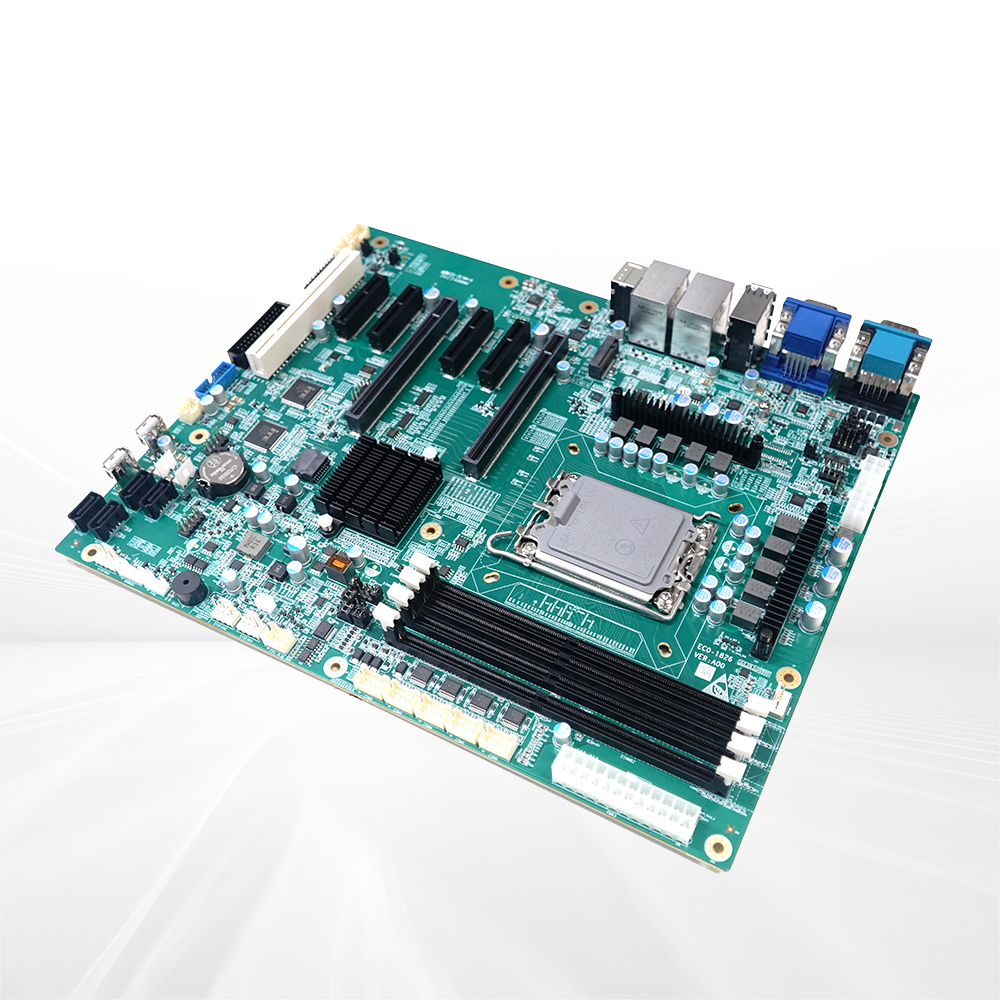

EC0-1826

ATX Structure Single Board Computer

The EC0-1826 motherboard adopts the standard ATX specification and Intel Q670E chipset, which can support Intel® 12th/13th Core™ i9/i7/i5/i3 processors; provides 4 × DDR4 Non-ECC U-DIMM memory slot, supporting expansion up to 128GB; supports high-speed USB3.2 Gen2 port, 10Gb/S broadband speed; supports PCI+PCIE expansion combination, multiple serial ports and multiple USB ports, and supports AMT remote management function; the product will be widely used in industrial automation, machine vision, deep learning, safety monitoring, intelligent transportation, environmental protection, communication and other fields.

Product Features

Provides 1 × 2500Mbps

1 × PCI + 6 × PCIE expansion

VGA+DP+HDMI2.0b high definition display

Supports Intel 12/13th Gen processors

Product Specifications

Item Description
Processor Supports Intel LGA1700 pin 12/13/14th Gen processors, with a maximum power consumption of 125W
Chipset Q670E
Memory 4 x DDR4 Non-ECC U-DIMM memory slot, a single memory supporting 32GB, the four supporting up to 128GB
Display Port VGA, DP and HDMI2.0 three-display
Audio Supports MIC-IN/LINE-OUT
LAN 1 × 10/100/1000Mbps LAN port
1 × 10/100/1000/2500Mbps LAN port
LAN1 can support LAN wakeup function
Storage 4 × SATA3.0, supporting RAID0, 1, 5, 10
I/O Port 6 × serial port, of which COM1/COM2 support RS232/422/485 adjustable
COM1 onboard, COM2-6 motherboard built-in
Onboard: 2 × USB3.2 Gen2, 2 × USB3.2 Gen1 and 4 × USB2.0
Built-in motherboard: 2 × USB3.2 Gen1, 2 × USB2.0 and 2 × USB2.0 TYPE-A
1 × 8-channel digital I/O port
1 × TPM port
1 × LPT
1 × PS2 pin
Bus Expansion 1 × PCI slot
1 × PCIE3.0 x4 slot
3 × PCIE4.0 x4 slot
2 × PCIE4.0 x16 slot (used when inserting cards at the same time, signals become PCIe4.0x8)
1 × M.2 Key-I (PCIE4.0 x4 size:2242/2280)
Power Supply ATX power supply
Working Environment -10℃~60℃
Storage Environment -40℃~85℃
Constant Damp Heat 40°C 95%RH, non-condensing
Overall Dimensions 305 mm (L) × 244 mm (W)
Operating System Windows 10 (21H1) and later versions, WIN11, high kernel version LINUX system

Ordering Information

料号 型号 描述
0030-024661 EC0-1826-01 ATX structure single board/Q670E chipset/supports LGA1700 pin 12th and 13th Gen processors/provides 4 × DDR4 memory slot/VGA+DP+HDMI2.0 three-display /4 × SATA3.0/1 × M.2/2 × RJ45 LAN port/14 × USB/6 × COM/MIC-IN/LINE-OUT /1 × 8-channel GPIO/1 × TPM/1 × LPC port/1 × PCI, 1 × PCIe3.0 x4, 3 × PCIe4.0 x4, 2 × PCIe4.0 x16
