2U Standard Rackmount Chassis

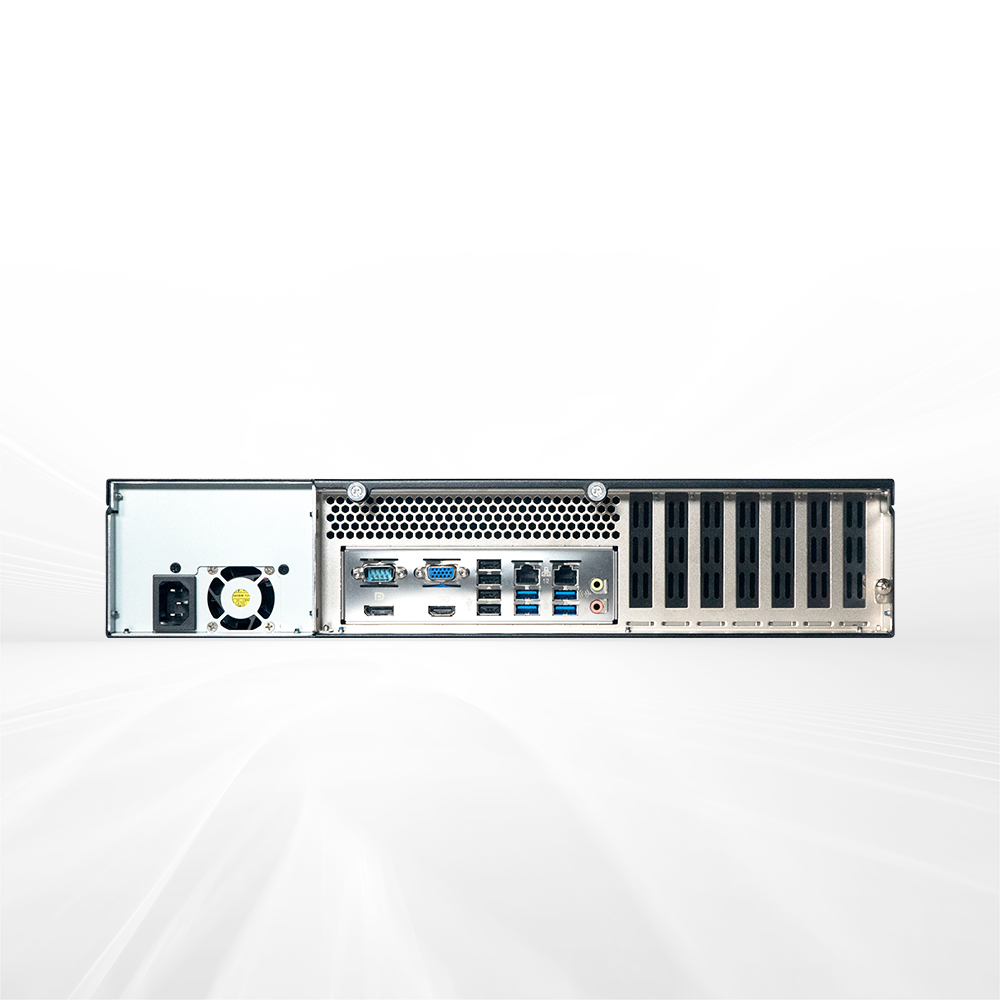

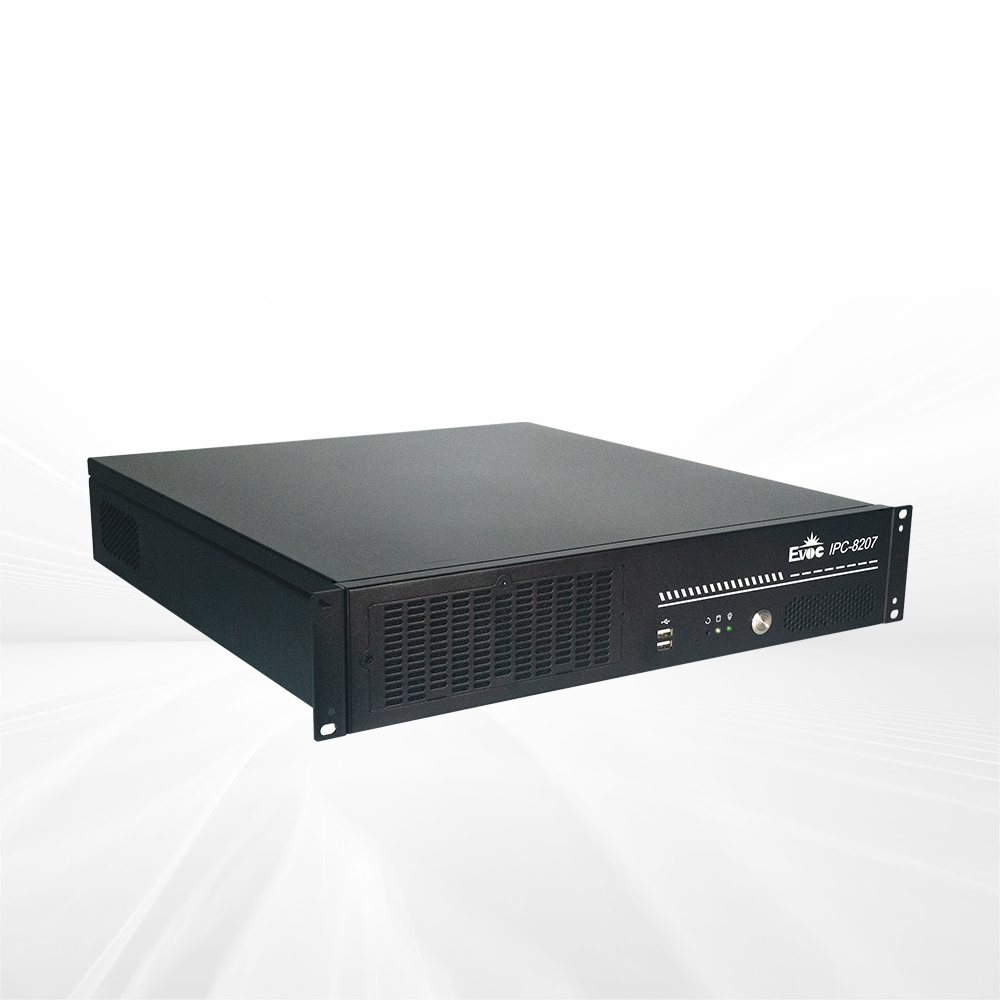

IPC-8207 is a 2U 19-inch standard rackmount chassis, compatible with EPE, EC0, EC9, EC7 and other types of full-length cards and industrial motherboards, compatible with a small 1U power supply, redundant power supply installation, front panel is with 2xUSB ports, power switch, status indicator, reset button. The front removable dust filter is easy to replace. There is air inlet on the front panel, air outlet on the rear panel, which has a excellent heat dissipation performance. It can be widely used in industrial control, industrial automation, intelligent transport, video surveillance and other fields.
It can be equipped with Standard ATX MATX ITX and EPE Series industrial motherboards

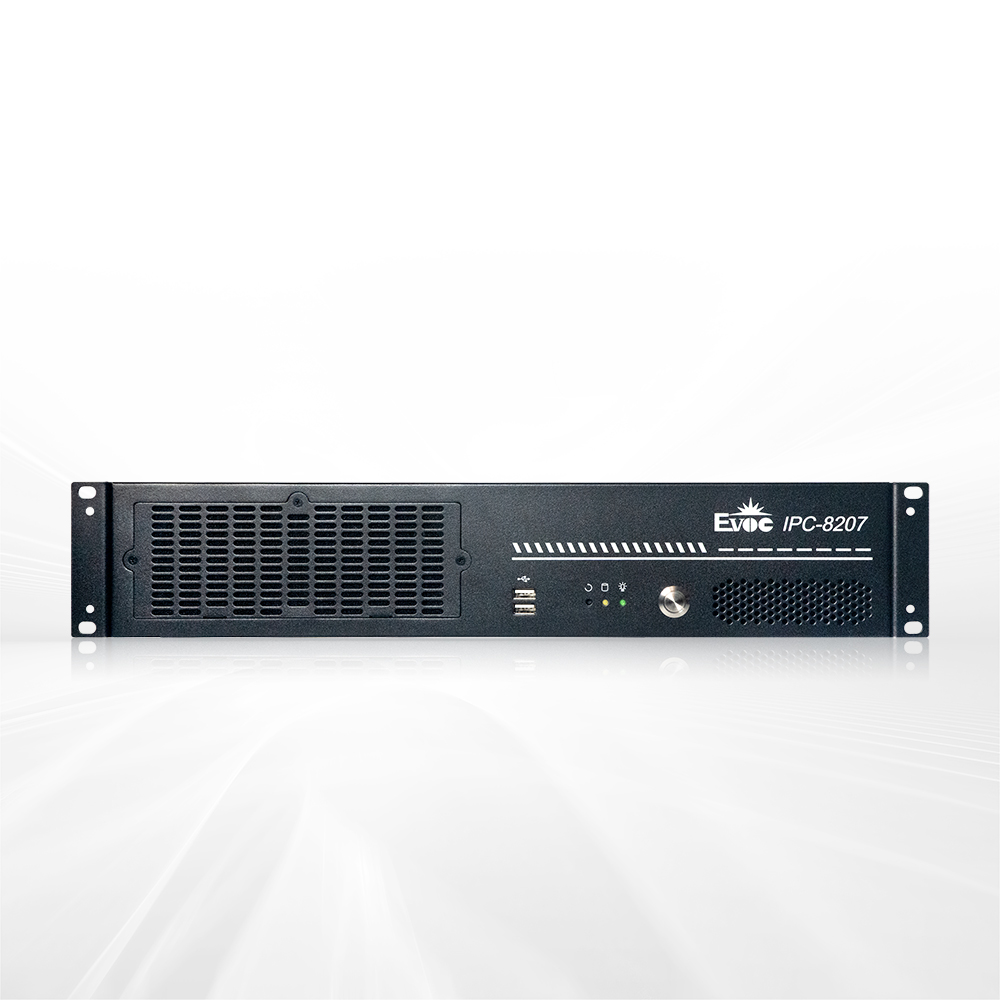

The Front Panel Features Two USB Ports, a Power Switch, Status Indicator Lights, and a Reset Button
| Item | Description | |
|---|---|---|
| Compatible Motherboard | Can be installed with standard ATX, MATX, ITX, EPE series industrial motherboards | |
| Storage | Standard configuration: 1x3.5" hard disk bay, 1x 2.5" hard disk bay IPC-8207-01/03 chassis: optional support up to 3x 3.5" hard disk bay, 1x 2.5" hard disk bay |
|
| IO Ports | 2xUSB 2.0, power switch, reset switch, power and hard disk indicator lights | |
| Expansion Card Slot | IPC-8207-01: Equipped with EC0 series motherboard, supports up to 7 vertical half-height expansion card slots IPC-8207-02: Equipped with EPE series motherboard, supports EPE backplane installation, supports horizontal full-height half-length expansion cards: PCI(3x)/PCIE(1x) expansion slots IPC-8207-03: Equipped with EC0 series motherboard, supports up to 2 horizontal full-height expansion card slots by installing riser card, depending on the spec of motherboard and riser card. Note: When using the IPC-8207-03 chassis with a riser card, please note: ① When you need to expand 2xPCIE slots, select the EB-X16-200G riser card, which can lead out 2xPCIE3.0 x8 signals. This riser card can only be used with the EC0-1823-05 motherboard, and cannot be used with other EC0 series standard motherboards. ② When you need to expand 1x PCIE slot, select the EB-X16-100H riser card, which can lead out 1x PCIE3.0x16 slot ③ This chassis cannot be used with the EC0-1826 motherboard, because of the PCIEx16 slot structure layout on the motherboard,the expansion slot cannot be leaded out. |
|
| Power Supply | 1U FLEX power supply or redundant power supply | |
| Working Temperature | 0℃～+40℃ (with HDD or GPU) 0℃～+50℃ (with SSD) |
|
| Storage Temperature | -40℃～+80℃ | |
| Constant Damp heat | （40）℃ （95）%RH non-condensing | |
| Dimensions | 482.6mm（W）x88mm（H）x475mm（D） | |
| 料号 | 型号 | 描述 |
|---|---|---|
| 0020-068311 | IPC-8207-01/EC0-1818/250W | 2U 19″ Standard Rack Mount Chassis IPC-8207-01/EC0-1818(C)-I210 Motherboard/Without CPU Cooler/ATX250W Power Supply/External Ports：2xGigabit LAN Ports/2xCOM/68USB（2 at front,4 at rear）/VGA+HDMI /1 Group of Audio Ports/1xPS2/7xVertical Half-height Expansion Slots： 4xPCI, 1xPCIE x16, 1xPCIE x4 |
| 0020-068321 | IPC-8207-01/EC0-1820/250W | 2U 19″Standard Rack Mount Chassis IPC-8207-01/EC0-1820(B)-I210 Motherboard/Without CPU Cooler/ATX250W Power Supply/External Ports：2xGigabit LAN Ports/2xCOM/6xUSB（2 at front 4 at rear）/Any two display ports among four(VGA HDMI DVI-D DP)/1 Group of Audio Ports/1xPS2/7xVertical Half-height Expansion Slots：5xPCI 18PCIE x16 1xPCIE x4 |
| 0020-068331 | IPC-8207-01/EC0-1823/350W | "2U 19″Standard Rack Mount Chassis IPC-8207-01/EC0-1823-03Motherboard/Without CPU Cooler/ATX350W Power Supply/External Ports：2xGigabit LAN Ports/1xCOM/10xUSB（2 at front8 at rear）/VGA+DP+DVI-D/1 Group of Audio Ports，SupportsMIC-IN/LINE-OUT /7xVertical Half-height Expansion Slots： 2xPCI 2xPCI E3.0 x16 3xPCI E3.0 x4 Note：When two PCIEx16 slots are inserted at same time the speed of PCIEx8 will be reduced" |
| 0020-068341 | IPC-8207-01/EC0-1826/350W | "2U 19″Standard Rack Mount Chassis IPC-8207-01/EC0-1826-01Motherboard/Without CPU Cooler/ATX350W Power Supply/External Ports：2xGigabit LAN Ports/1xCOM/10xUSB（2 at front 8 at rear）/ VGA+DP+HDMI2.0 Three Display Ports/MIC-IN/LINE-OUT /7xVertical Half-height Expansion Slots：1xPCI 1xPCIE3.0 x4 3xPCI E4.0 x4 1xPCIE4.0 x16 1xPCIE4.0 x16 ( x8 link） Note：When two PCIEx16 slots are inserted at same time the speed of PCIEx8 will be reduced" |
| 0020-068351 | IPC-8207-02/EPE-1816/250W | 2U 19″Standard Rack Mount Chassis IPC-8207-02/EPE-1816（C）Motherboard/Without CPU Cooler/250W Power Supply/4xFull-height Expansion Slots：EPE-6105E1P3 Backplane（3xPCI，18PCIE3.0 x16 ）/2xGigabit LAN Ports DP+VGA 4xUSB(2 at front 2 at rear) 2xCOM 1xAudio（Accessories） 1xPS2 |
| 0020-068361 | IPC-8207-03/EC0-1823/350W | 2U 19″Standard Rack Mount Chassis IPC-8207-03/EC0-1823-05 Motherboard/Without CPU Cooler/ATX350W Power Supply/External Ports：2xGigabit LAN Ports/1xCOM/10xUSB（2 at front 8 at rear）/VGA+DP+DVI-D/MIC-IN/LINE-OUT /Horizontal Full-height Expansion Slots：2xPCI E3.0 x8 |
| 1060-012911 | Riser card EB-X16-100H | 1xPCIE3.0 x16Horizontal Full-height Expansion Card，compatible with IPC-8207-03 Chassis |
| 1060-012901 | Riser card EB-X16-200G | 2xPCIE3.0 x16（Actual Speed x8）Horizontal Full-height Expansion Card，Equipped with IPC-8207-03 Chassis，Can Only be Equipped with EC0-1823-05 Motherboard，not compatible with other models of EC0 series standard motherboards |
| 1050-006241 | Backplane EPE-6105E1P3 | 3xPCI，18PCIE3.0 x16，compatible with IPC-8207-02 Chassis |
