4U Standard Rack-mounted Chassis

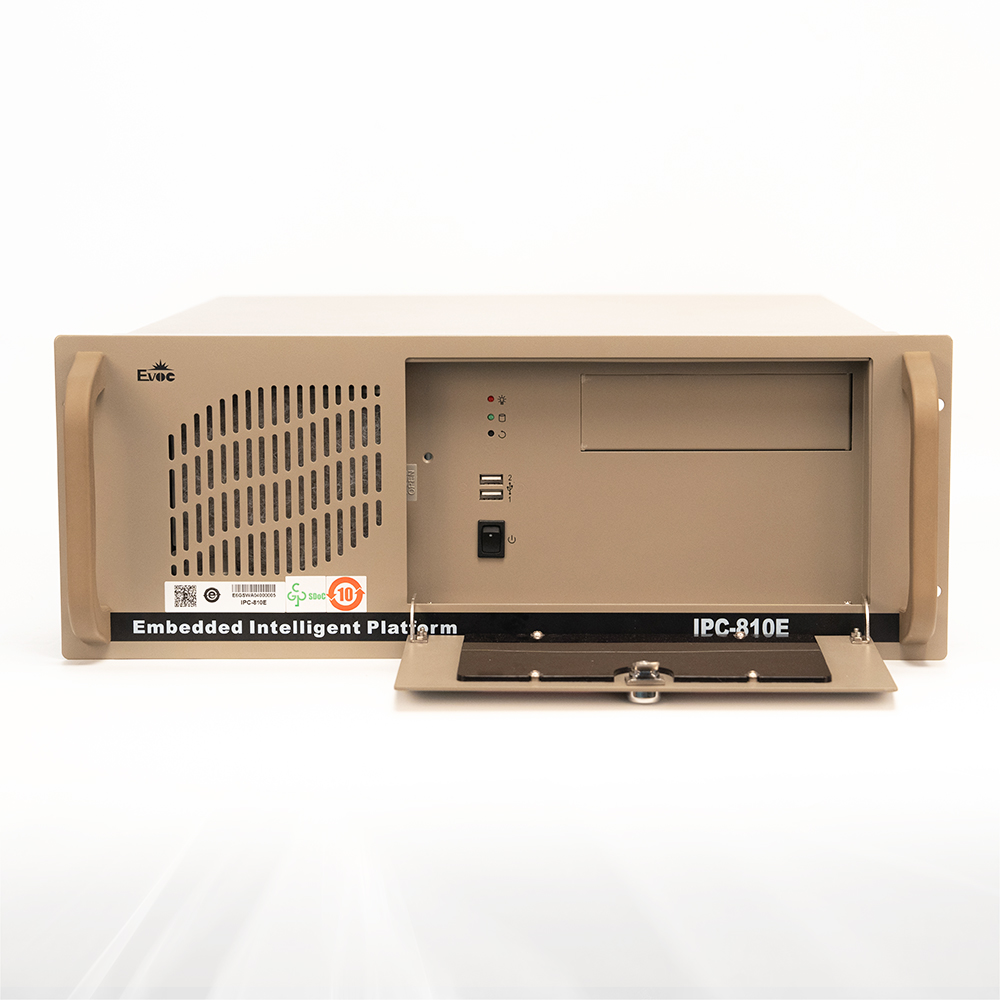

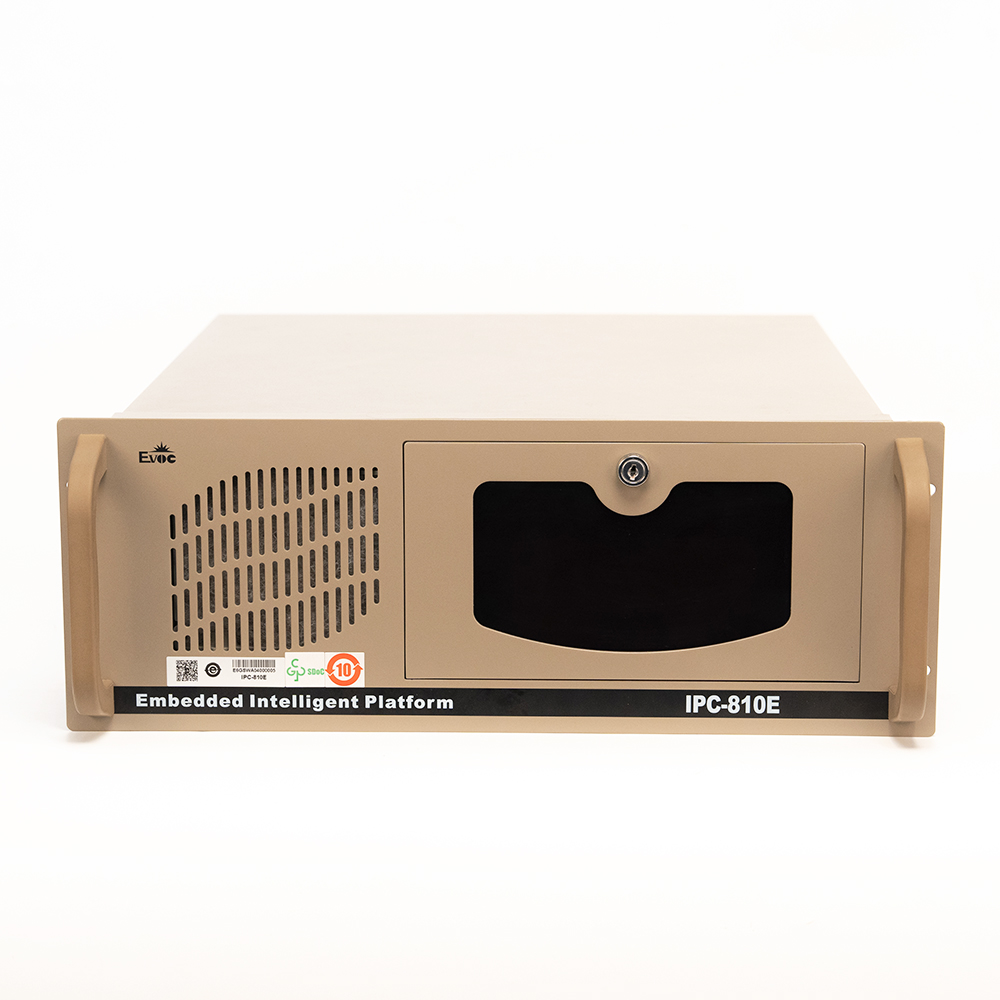

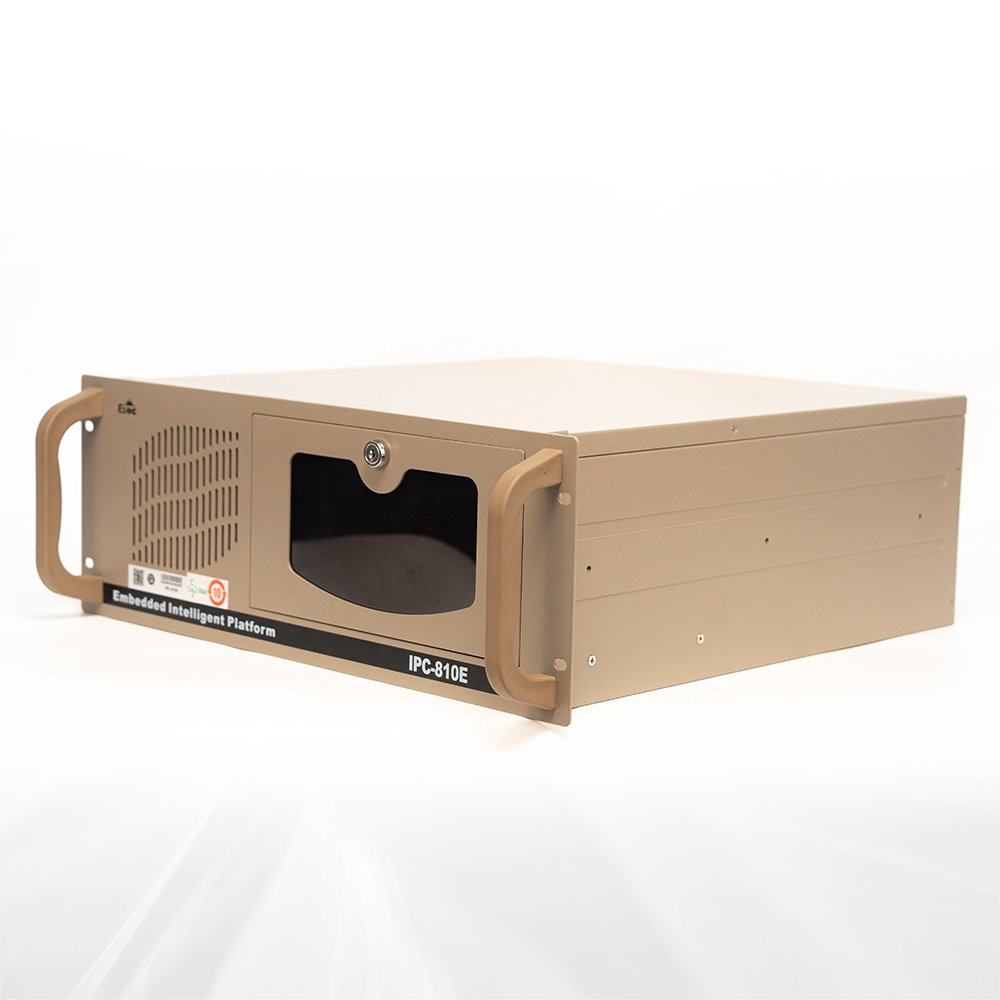

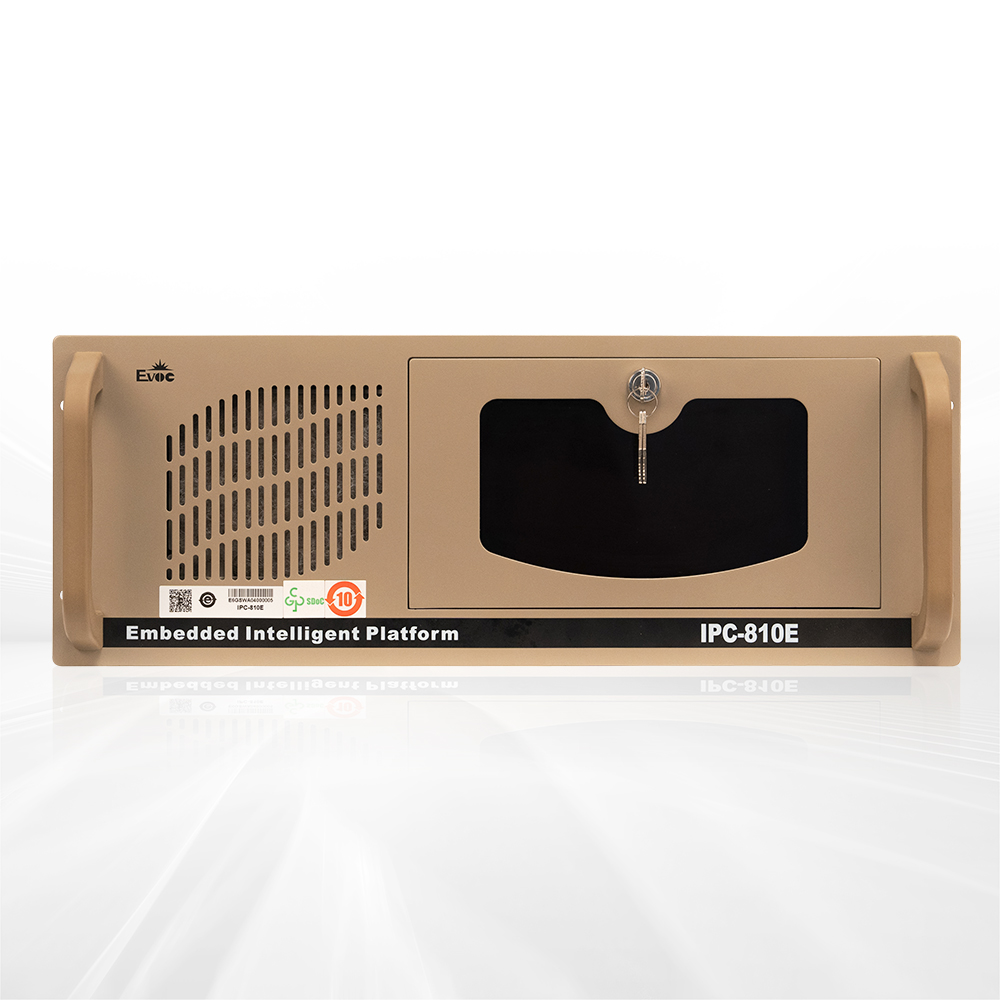

IPC-810E is a 4U rack-mounted chassis made of high-quality steel plate and compatible with various full-length cards and industrial motherboards such as EPE, EC9 and ECO. A 5.25" CD-ROM and two 3.5" shock-absorbing hard disk bays can be installed, with reasonable structure. It can be widely used in various fields such as communication, network, finance, electric power, transportation and industrial automation.
| Item | Description | |
|---|---|---|
| Adaptive motherboard | EPE full-length card and ATX single board | |
| Adaptive Backplane | EPE series backplane | |
| Memory | 1 x 5.25-inch CD-ROM bay; 2 x 3.5-inch shock-absorbing hard disk bay; 1 x 3.5-inch HDD space (without vibration reduction) | |

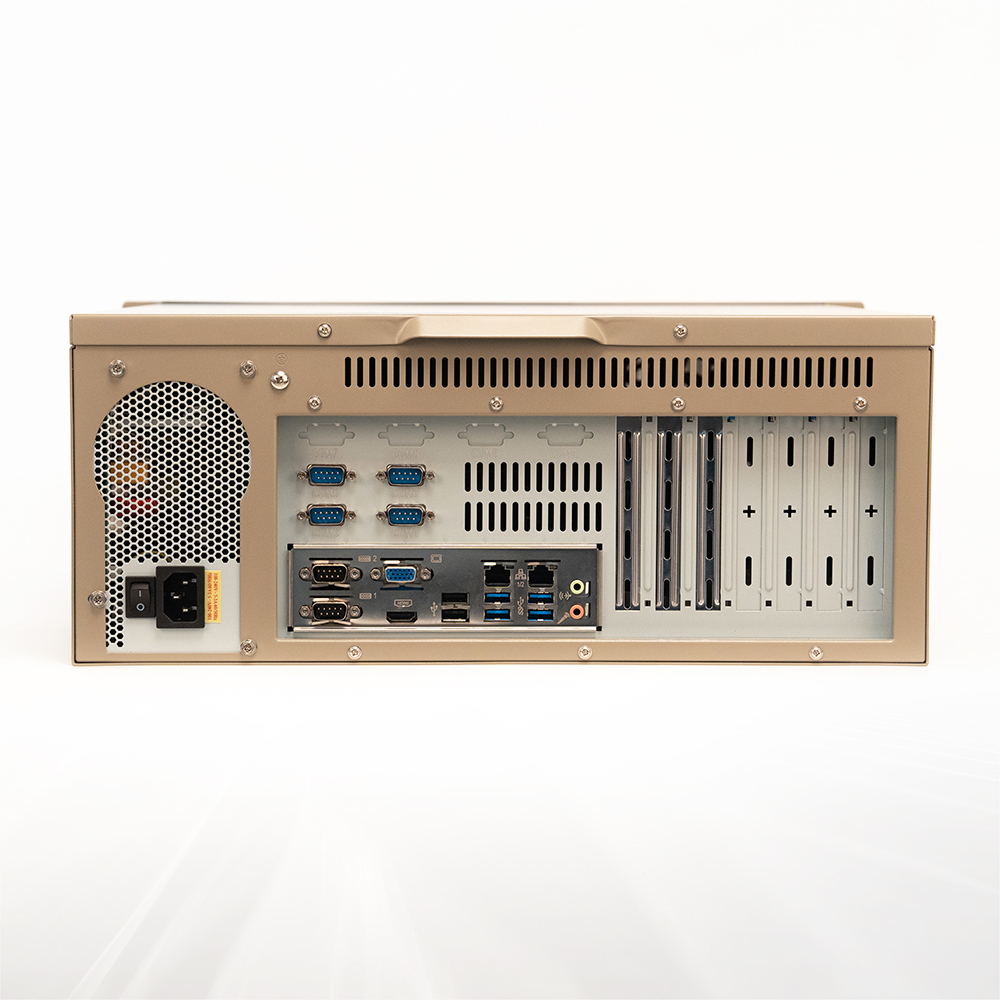

| I/O Port | Power switch, reset switch, power supply and hard disk indicator; 2 x USB port in front | |
| Power Supply | Standard ATX power supply | |
| Working Temperature | 0°C~50°C, 5%~90% (non-condensing state) | |
| Storage Temperature | -20°C~60°C, 5%~90% (non-condensing state) | |
| Overall Dimensions （W×H×D） |
482 mm×177 mm×470.4 mm | |
| 料号 | 型号 | 描述 |
|---|---|---|
| 0020-063911 | IPC-810/ECO-1816/250W | Equipped with H61 platform motherboard/250W power supply/VGA+DVI-D, 2 x Gigabit LAN port, 6 x USB (2 front and 4 rear), 2 x COM, 1 group of audio ports, 1 x PS2; expansion: 4 x PCI, 1 x PCIEX4 and 1 x PCIEX16 Note: As PCIE x4 slot shares resources with LAN2, the LAN2 port has no function when inserting a PCIE x4 card. |
| 0010-140561 | IPC-810E/ECO-1816/G1620/4G/1T/250W | Equipped with H61 platform motherboard/G1620/4G memory/1T hard disk/250W power supply/VGA+DVI-D 2 x Gigabit LAN port 6 x USB (2 front and 4 rear) 6 x COM port 1 group of audio ports 1 x PS2 1 x LPT; expansion: 4 x PCI 1 x PCIEX4 1 x PCIEX16 Note: As PCIE x4 slot shares resources with LAN2 the LAN2 LAN port has no function when inserting a PCIE x4 card. |
| 0020-061731 | IPC-810/EC0-1817-6COM/250W | Equipped with H81 platform motherboard/250W power supply/2 x COM 6 x USB port (2 front and 4 rear) 2 x Gigabit LAN port VGA+DVI-D 1 group of audio ports 1 x PS2 1 x LPT expansion: 4 x PCI 2 x PCIEX1 (PCIEX4 slots) and 1 x PCIEX16 No optical drive |
| 0020-063431 | IPC-810/EC0-1818(C)/250W电源 | Equipped with H81 platform motherboard/G1820/4G memory/1T hard disk/250W power supply/6 x COM 6 x USB port (2 front and 4 rear) 2 x Gigabit LAN port VGA+DVI-D 1 group of audio ports 1 x PS2 1 x LPT expansion: 4 x PCI 2 x PCIEX1 (PCIEX4 slots) and 1 x PCIEX16 1818(C)/250W power supply |
| 0010-127031 | IPC-810E/EC0-1818(C)/G3900/4G/1T/250W | Equipped with H110 platform motherboard/250W power supply/2 x COM 6 x USB port (2 front and 4 rear) 2 x Gigabit LAN port VGA+HDMI 1 group of audio ports 1 x PS2 1 x LPT; expansion: 4 x PCI 1 x PCIEX4 1 x PCIEX16 |
| 0020-064471 | IPC-810/EC0-1820(B)/250W | Equipped with H110 platform motherboard/G3900/4G memory/1T hard disk/250W power supply/6 x COM 6 x USB port (2 front and 4 rear) 2 x Gigabit LAN port VGA+HDMI 1 group of audio ports 1 x PS2 1 x LPT; expansion: 4 x PCI 1 x PCIEX4 1 x PCIEX16 |
| 0010-140681 | IPC-810E/EC0-1820(B)/G4900/4G/1TB/250W | Equipped with H310 platform motherboard/250W power supply/2 x COM 6 x USB (2 front and 4 rear) 2 x Gigabit LAN port any two-out-of-four display (VGA HDMI DVID DP) 1 group of audio ports 1 x PS2 expansion: 5 x PCI 1 x PCIEX4 1 x PCIEX16 |
| 0020-065711 | IPC-810/EC0-1820(C)/250W | Equipped with H310 platform motherboard/G4900/4G memory /1T hard disk /250W power supply/6 x COM 6 x USB (2 front and 4 rear) 2 x Gigabit LAN port any two-out-of-four display (VGA HDMI DVI-D DP) 1 group of audio ports 1 x PS2 expansion: 5 x PCI 1 x PCIEX4 1 x PCIEX16 |
| 0020-064981 | IPC-810/EC0-1821/300W | Equipped with H310 platform motherboard/250W power supply/2 x COM 6 x USB (2 front and 4 rear) 2 x Gigabit LAN port any two-out-of-four display (VGA HDMI DVID DP) 1 group of audio ports 1 x PS2 expansion: 4 x PCI 1 x PCIEX4 1 x PCIEX16 Note: EVOC Intelligent reserves the right to final interpretation of product specifications and ordering information. |
| 0010-151371 | IPC-810E/EC0-1821/I7-8700/8G/1T/300W | Equipped with C246 platform motherboard/300W power supply/2 x COM/2 x Gigabit LAN port/8 x USB (2 front and 6 rear)/any three-out-of-four display (VGA DVID DP HDMI) 1 group of audio ports; expansion: 2 x PCI 3 x PCIe x4 2 x PCIe x16; 1 x M.2 KEY M port (PCIe X4 supporting sizes 2242/2260/2280/22110); 1 x M.2 KEY E port (PCIe X1 supporting size 2230) Note: When two PCIE*16 slots are inserted at same time the speed is reduced to the speed of PCIE*8 |
| 0020-065581 | IPC-810/EC0-1822/300W/barebone system | Equipped with H420E platform motherboard/300W power supply/2 x COM 8 x USB (2 front and 6 rear) 2 x Gigabit LAN port VGA+DP 1 group of audio ports expansion: 4 x PCI 2 x PCIEX4 (actual rate X1) 1 x PCIEX16 |
| 0010-153571 | IPC-810E/EC0-1822/i5-10500E/8G/1T/300W | Equipped with H420E platform motherboard/i5-10500E/8G memory/1T hard disk/300W power supply/6 x COM 8 x USB (2 front and 6 rear) 2 x Gigabit LAN port VGA+DP 1 group of audio ports expansion: 4 x PCI 2 x PCIEX4 (actual rate X1) 1 x PCIEX16 |
| 0020-066471 | IPC-810/EC0-1823-03/300W | Equipped with Q470E platform motherboard/300W power supply/1 x COM 10 x USB (2 front and 8 rear) 2 x Gigabit LAN port VGA+DP+DVI-D 1 group of audio ports expansion: 2 x PCI 2 x PCIE x16 3 x PCIE x4 Note: When two PCIE*16 slots are used at same time the speed is reduced to the speed of PCIE*8 |
| 0010-169231 | IPC-810E/EC0-1823-03/I5-10500/8G/1T/300W | Equipped with Q470E platform motherboard/i5-10500/8G memory/1T hard disk/300W power supply/6 x COM 10 x USB (2 front and 8 rear) 2 x Gigabit LAN port VGA+DP+DVI-D 1 group of audio ports expansion: 2 x PCI 2 x PCIE x16 3 x PCIE x4 Note: When two PCIE*16 slots are used at same time the speed is reduced to the speed of PCIE*8 |
| 0010-169241 | IPC-820/EC0-1823-03/I7-10700/16G/1T/256G | Equipped with Q470E platform motherboard/i7-10700/16G memory /1T hard disk +256G SSD/300W power supply/6 x COM 10 x USB (2 front and 8 rear) 2 x Gigabit LAN port VGA+DP+DVI-D 1 group of audio ports expansion: 2 x PCI 2 x PCIEx16 3 x PCIEx4 |
| 0010-176481 | IPC-810E/EC0-1825/I5-12500/8G/1T/300W | Equipped with H610E platform motherboard/i5-12500/8G memory/1T hard disk/ATX 300W power supply/2 x Gigabit LAN port/6 x COM port/8 x USB/VGA+HDMI+DVI-D three-display/1 group of audio ports supporting MIC-IN/LINE-OUT/expansion ports: 4 x PCI 1 x PCIE4.0 x16 and 2 x PCIE3.0 x4 (attention shall be paid to the signal matching of PCIE x4) |
| 0020-066901 | IPC-810/EC0-1825/300W | Equipped with H610E platform motherboard/ATX300W power supply/2 x Gigabit LAN port/2 x COM port/8 x USB/VGA+HDMI+DVI-D three-display/1 group of audio ports supporting MIC-IN/LINE-OUT/expansion ports: 4 x PCI 1 x PCIE4.0 x16 and 2 x PCIE3.0 x4 (attention shall be paid to the signal matching of PCIE x4) |
| 0010-190031 | IPC-810E/EC0-1826/I3-13100/8G/1T/300W | Equipped with Q670E platform motherboard/i3-13100/8G memory/1T hard disk/ATX 300W power supply/2 x Gigabit LAN port/6 x COM/10 x USB/VGA+DP+HDMI2.0 three-display/1 group of audio ports/expansion ports: 1 x PCI 1 x PCIe3.0 x4 3 x PCIe4.0 x4 1 x PCIe4.0 x16 and 1 x PCIe4.0 x16 (x8 link) Note: If two PCIe x16 slots are used at the same time the speed will be reduced to PCIe x8 |
| 0020-067501 | IPC-810/EC0-1826/300W | Equipped with Q670E platform motherboard/ATX300W power supply/2 x Gigabit LAN port/1 x COM port/10 x USB/ VGA+DP+HDMI2.0 three-display/MIC-IN/LINE-OUT /1 x PCI 1 x PCIe3.0 x4 3 x PCIe4.0 x4 1 x PCIe4.0 x16 and 1 x PCIe4.0 x16 (x8 link) Note: If two PCIe x16 slots are used at the same time the speed will be reduced to PCIe x8 |
| 0020-061451 | IPC-810 barebone system /EPE-1816/EPE-6112E5/250W without optical drive | Equipped with H110 platform motherboard/250W power supply/EPE-6112E5 (6 x PCI 4 x PCIE*4 1 x PCIE*16)/2 x LAN port DP+VGA 4 x USB (2 front and 2 rear) 2 x COM 1 x audio port (accessory) 1 x PS2 |
| 0010-119761 | IPC-810E/EPE-1816/I5-6500/4G/1TB/300W无光 | Equipped with H110 platform motherboard/I5-6500/4G memory/1T hard disk/ATX 300W power supply/EPE-6112E5 (6 x PCI 4 x PCIE*4 1 x PCIE*16)/2 x LAN port DP+VGA 4 x USB (front 2 and rear 2) 2 x COM 1 x audio port (accessory) 1 x PS2 |
| 0020-061441 | IPC-810 barebone system /EPE-1816/EPE-6110E5/250W without optical drive | Equipped with H110 platform motherboard/250W power supply/EPE-6110E5(V) (4 x PCI 4 x PCI-E×1 (actually only 2 can be used) 1 x PCI-E×16)/2 x LAN port DP+VGA 4 x USB (2 front and 2 rear) 2 x COM 1 x audio port (accessory) and 1 x PS2 |
| 0020-059051 | IPC-810 barebone system /EPE-1815V2NA-H61/250W power supply | Equipped with H61 platform motherboard/250W power supply/EPE-6110E5(V) (4 x PCI 4 x PCI-E×1 (actually only 2 can be used) 1 x PCI-E×16)/2 x LAN port 1 x VGA 4 x USB (2 front and 2 rear) 2 x COM 1 x LPT 1 x audio port (accessory) 1 x PS2 Note: EVOC Intelligent reserves the right to final interpretation of product specifications and ordering information. |
