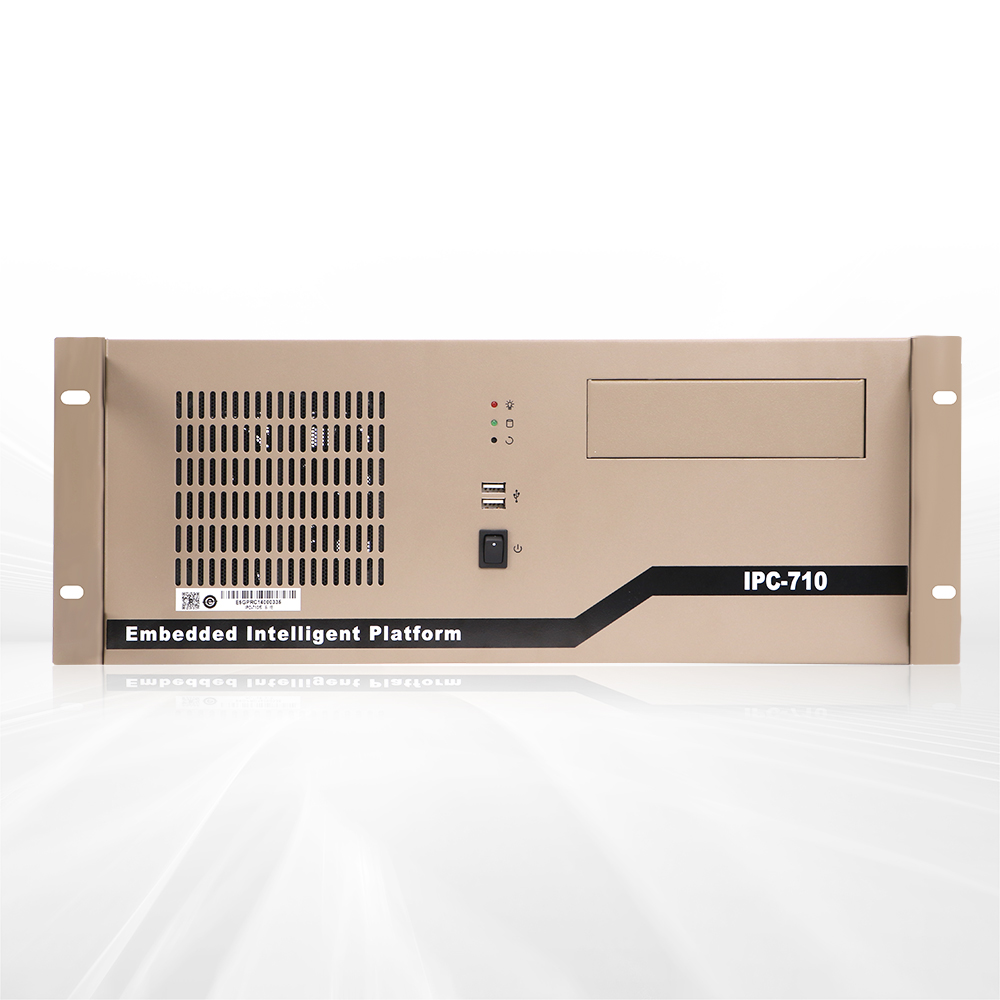

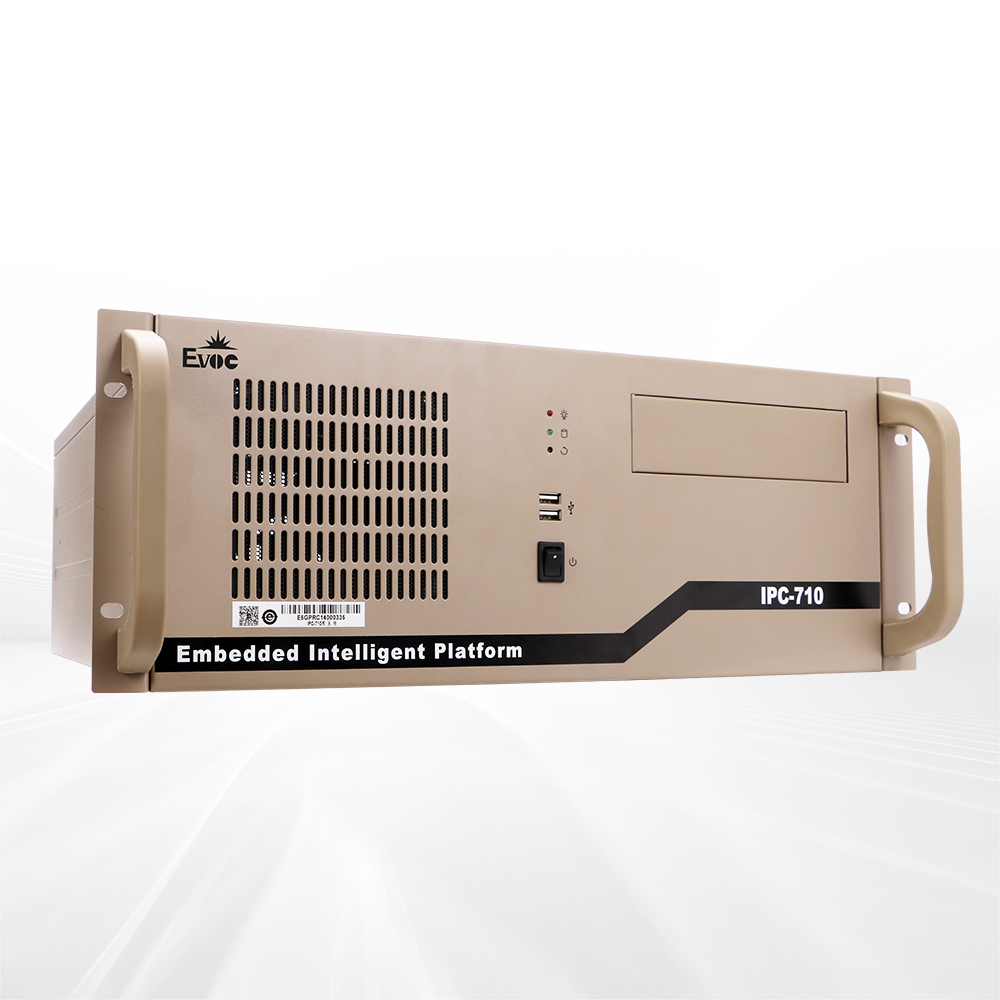

IPC-710-HG

4U Standard Rackmount Chassis

IPC-710 is a 4U rackmount chassis, which can be equipped with Chinese HYGON 3330/3350 processor, support UOS, Kylin and other Chinese operating systems, and is with rich IO interfaces. The product can be widely used in intelligent manufacturing, industrial control, intelligent transport, intelligent security and other fields.

Product Features

Outstanding EMC Performance

Excellent Heat Dissipation

PCI+PCIE Expansion

Rich I/O Interfaces

Equipped with Chinese HYGON 3330/3350 Processor

4U Standard Rackmount

Product Specifications

Item Description
Compatible motherboard EC0-8501-HG motherboard
Storage 1x5.25" CD-ROM bay
2x3.5" HDD bay (with shock absorption)
1x3.5" HDD bay (without shock absorption)
IO Ports Power switch, reset switch
Power supply and hard disk indicator lights
2xUSB ports in front
Power Supply Standard ATX Power Supply
Working Temperature 0℃ ~ 40℃ (with HDD or GPU)
0℃ ~ 50℃ (with SSD)
Storage Temperature -20℃~60℃
Constant Damp Heat (40)℃ (95)%RH non-condensing
(WxHxD)
Dimensions
482.6mmx177mmx469.8mm

Ordering Information

料号 型号 描述

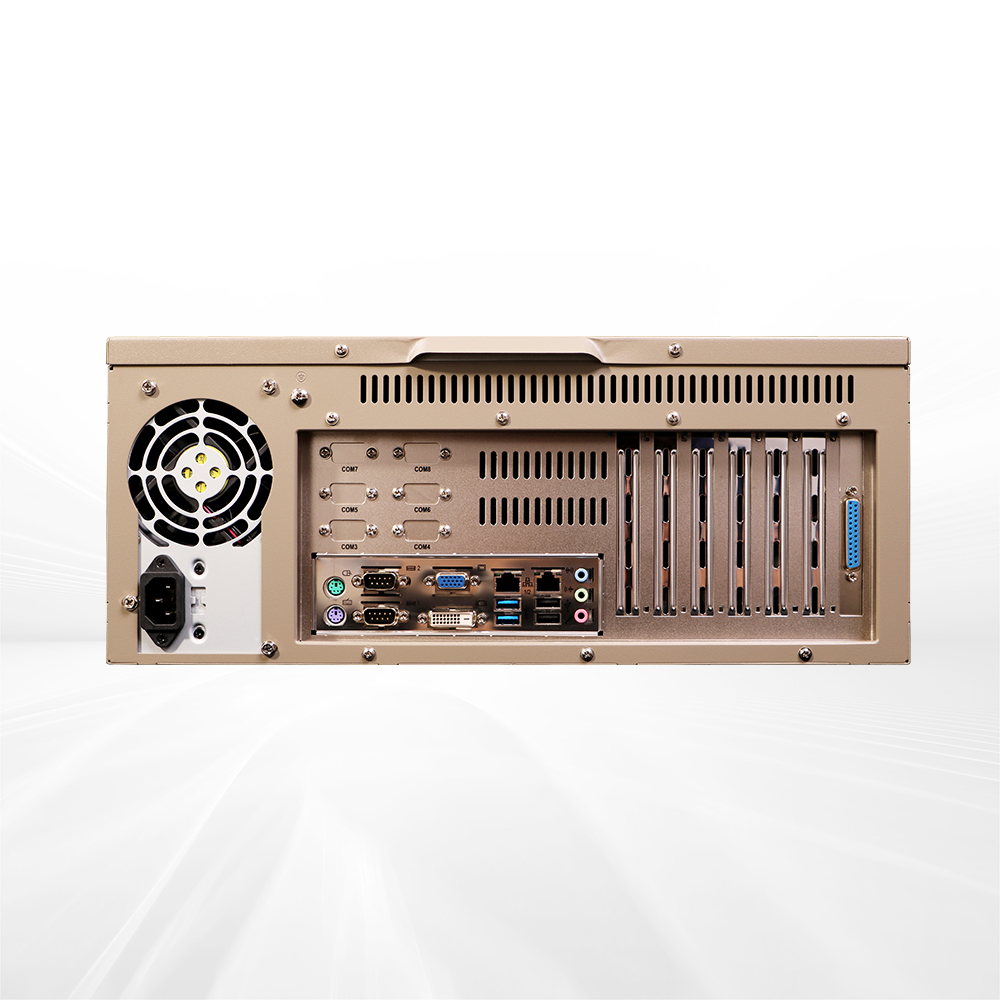

0010-198401 IPC-710/EC0-8501-HG-3330/8G/1T/300W EC0-8501-HG-3330 Motherboard/8G Memory/1T 3.5" HDD/ATX 300W Power Supply/Without Keyboard and Mouse/Front I/O Ports:2xUSB2.0/Rear I/O Ports: 4xSerial Ports, VGA+HDMI, 4xUSB 3.0, 4xNetwork Ports, LIN-OUT, MIC-IN/Expansion Slot:2xPCIE3.0 x16 Slots(x8 Lanes), 1xPCIE3.0 x8 Slots(x2 Lanes), 1xPCIE3.0 x4 Slots( x1 Lanes), 3xPCI Slots
0010-198411 IPC-710/EC0-8501-HG-3350/8G/1T/300W EC0-8501-HG-3350 Motherboard/8G Memory/1T 3.5" HDD/ATX 300W Power Supply/Without Keyboard and Mouse/Front I/O Ports:2xUSB2.0/Rear I/O Ports: 4xSerial Ports VGA+HDMI 4xUSB 3.0 4xNetwork Ports LIN-OUT MIC-IN/Expansion Slot:2xPCIE3.0 x16 Slots(x8 Lanes) 1xPCIE3.0 x8 Slots(x2 Lanes) 1xPCIE3.0 x4 Slots( x1 Lanes) 3xPCI Slots
