4U Standard Rackmount Chassis

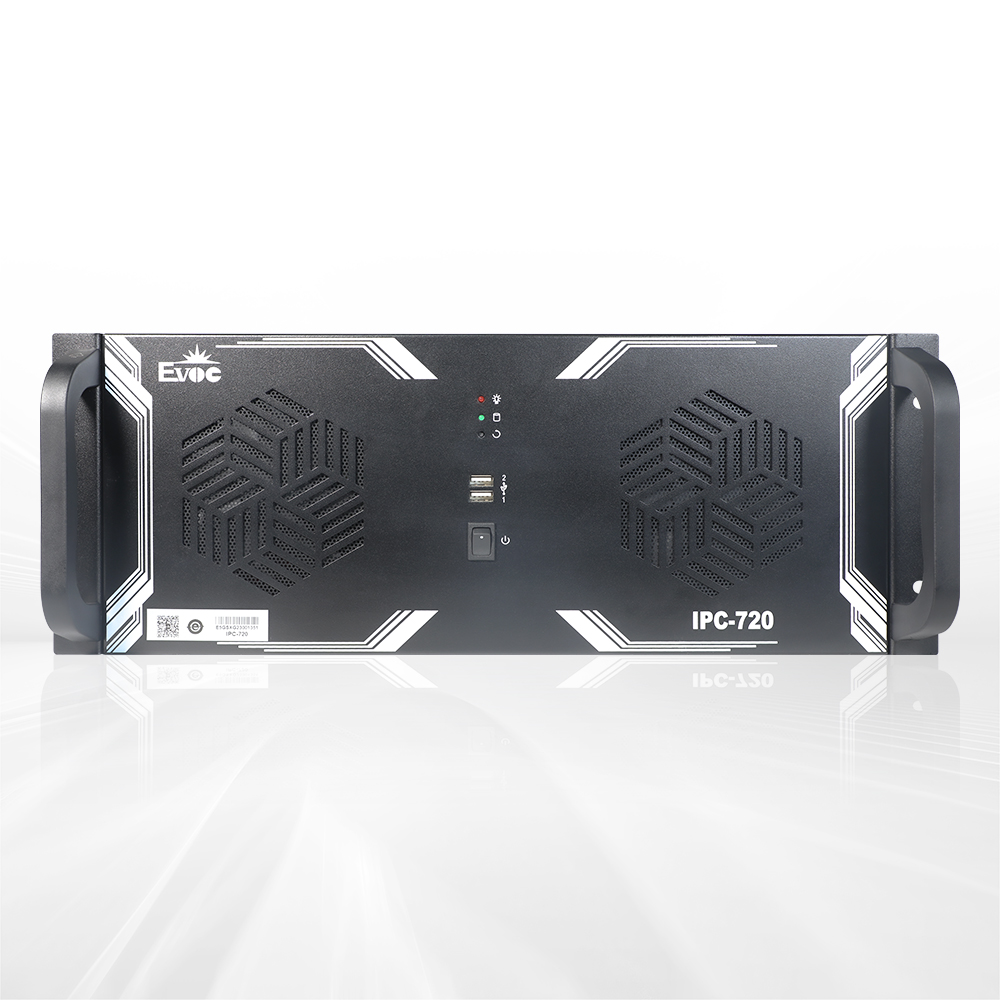

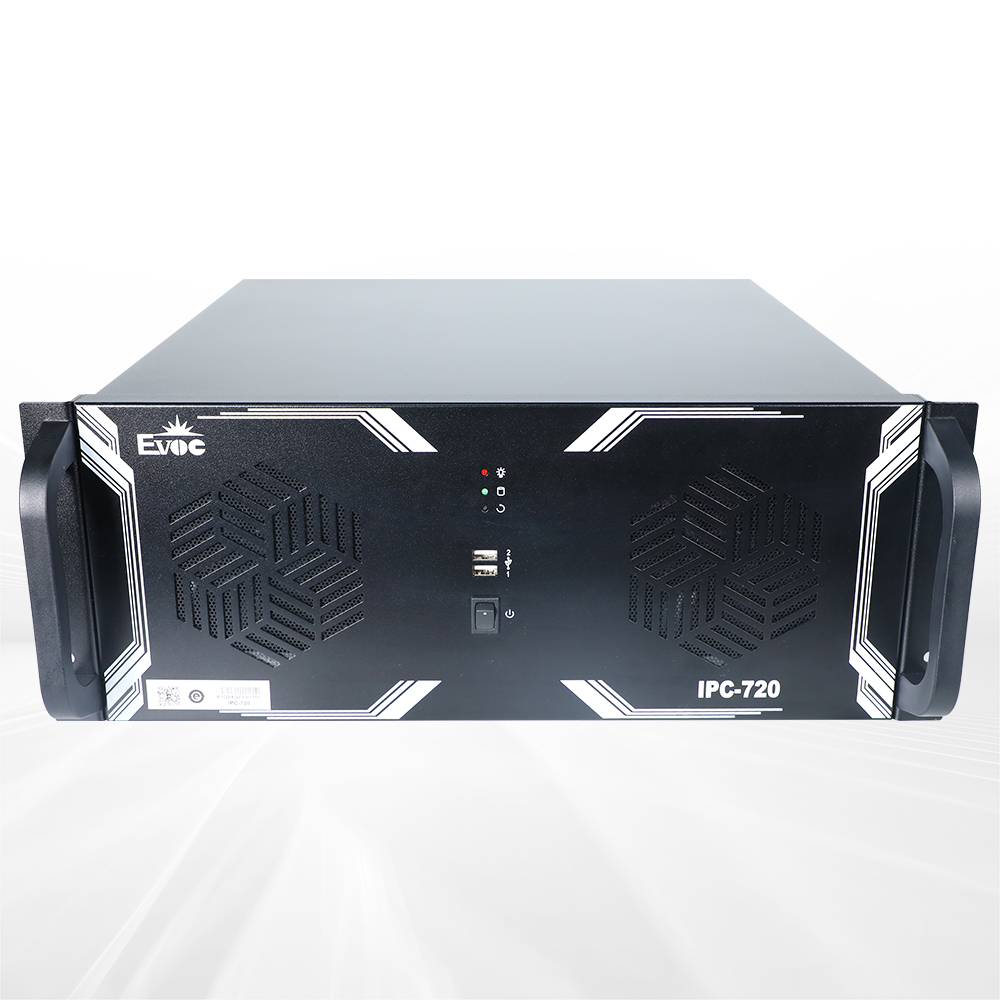

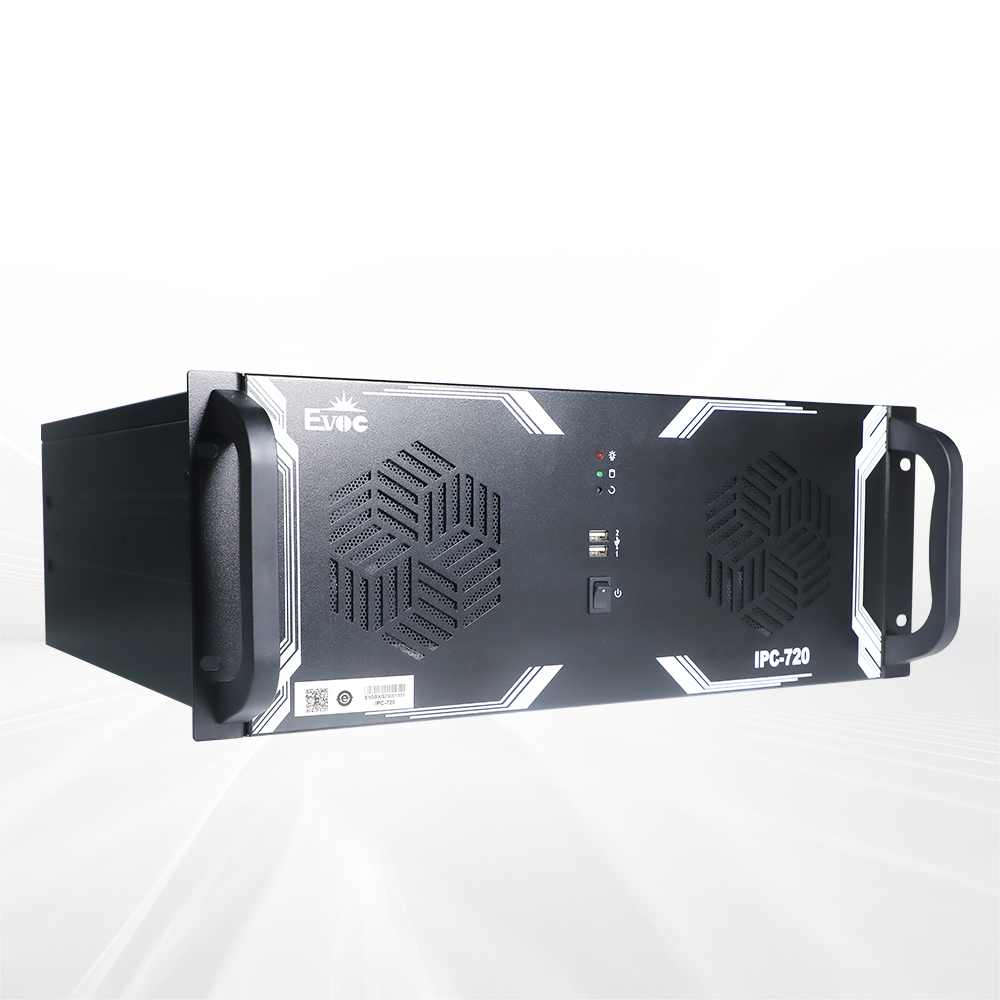

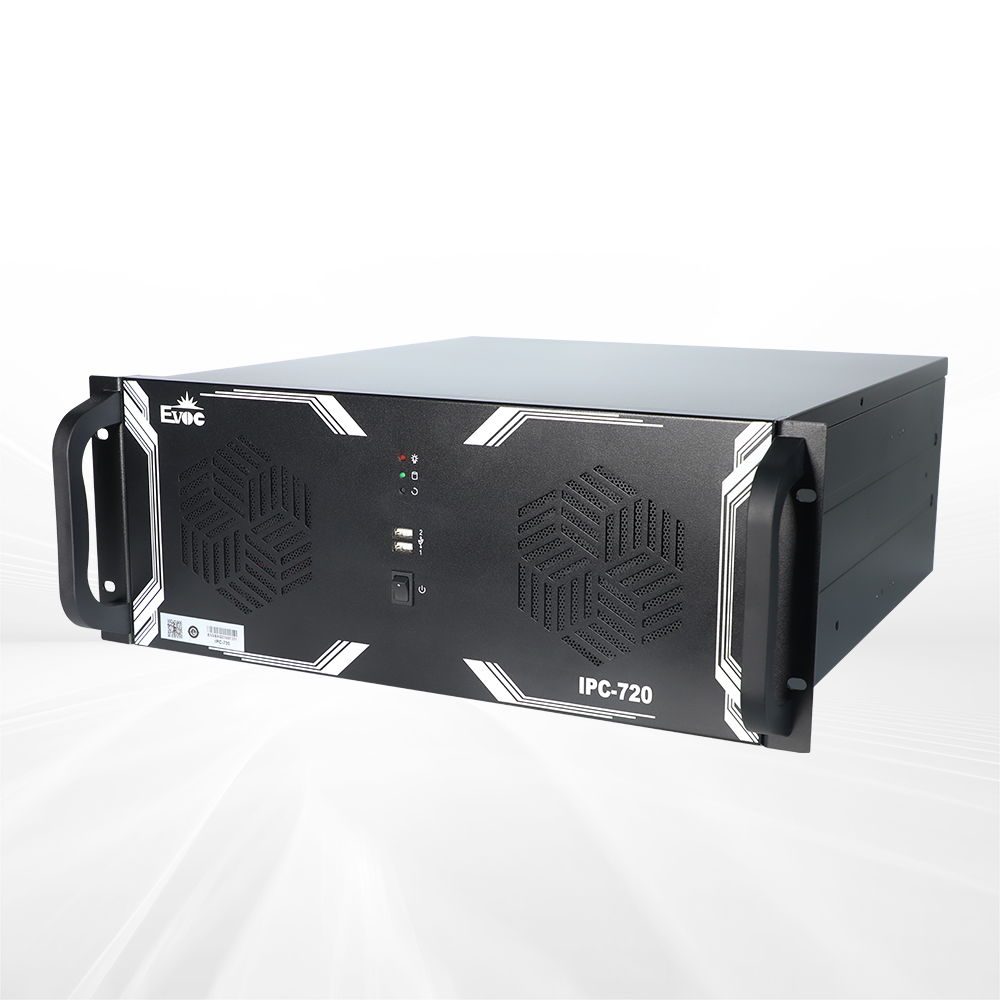

IPC-720 is a 4U rackmount GPU workstation that can be equipped with EVOC EC0 series motherboards. The chassis is made of high quality steel plate, the front panel is one-piece forming and with delicate design. Two high-speed inlet fans are built in the front of the chassis, and the air comes out from the rear panel, forming a highly efficient heat dissipation channel in the chassis, with good heat dissipation performance.Front panel is with 2xUSB ports, power switch, status indicator and reset button, convenient for operators to observe and operate. IPC-720 supports single or two full-height, full-length, high-power GPU cards. It can be widely used in industrial automation, intelligent traffic, video surveillance, machine vision, deep learning and other types of large computing power demand scenarios.
The System Can be Configured with a 1200W High-power Power Supply to Ensure Stable Operation
The Front Panel is Equipped with Two High-speed Intake Fans and the Rear Panel has Exhaust Fans Creating an Efficient Cooling Airflow within the Chassis
Strong Expandability and Flexibility to Easily Handle Various Computing Power Application Scenarios
Support a Single or Dual Full-height, Full-length, High-power Professional GPU Cards
| Item | Description | |
|---|---|---|
| Compatible Motherboard | Standard ATX Motherboard | |
| GPU | Support single three-slot or two dual-slot full-height full-length high-power GPU Maximum GPU power consumption 900W(total of two or more cards) Support installation of two standard dual-slot 4090D cards (requires 12038 boost fan) |
|
| Storage | 2x3.5" hard disk bay(with shock absorption) 1x3.5" hard disk bay (without shock absorption) |
|
| Front Panel | 2xUSB ports, power switch, reset switch, status indicator light | |
| Power Supply | ATX Power Supply | |
| Working Temperature | 0℃ ~ 50℃ (with SSD, no GPU) 0℃ ~ 40℃ (with HDD or single GPU) 0℃ ~ 35℃ (with two high-power GPU) |
|
| Storage Temperature | -40℃～80℃ | |
| Constant Damp Heat | +40℃（95）%RH | |
| Dimensions | 482.6（W）x177（H）x470.4（D）mm (without handle) | |
| 料号 | 型号 | 描述 |
|---|---|---|

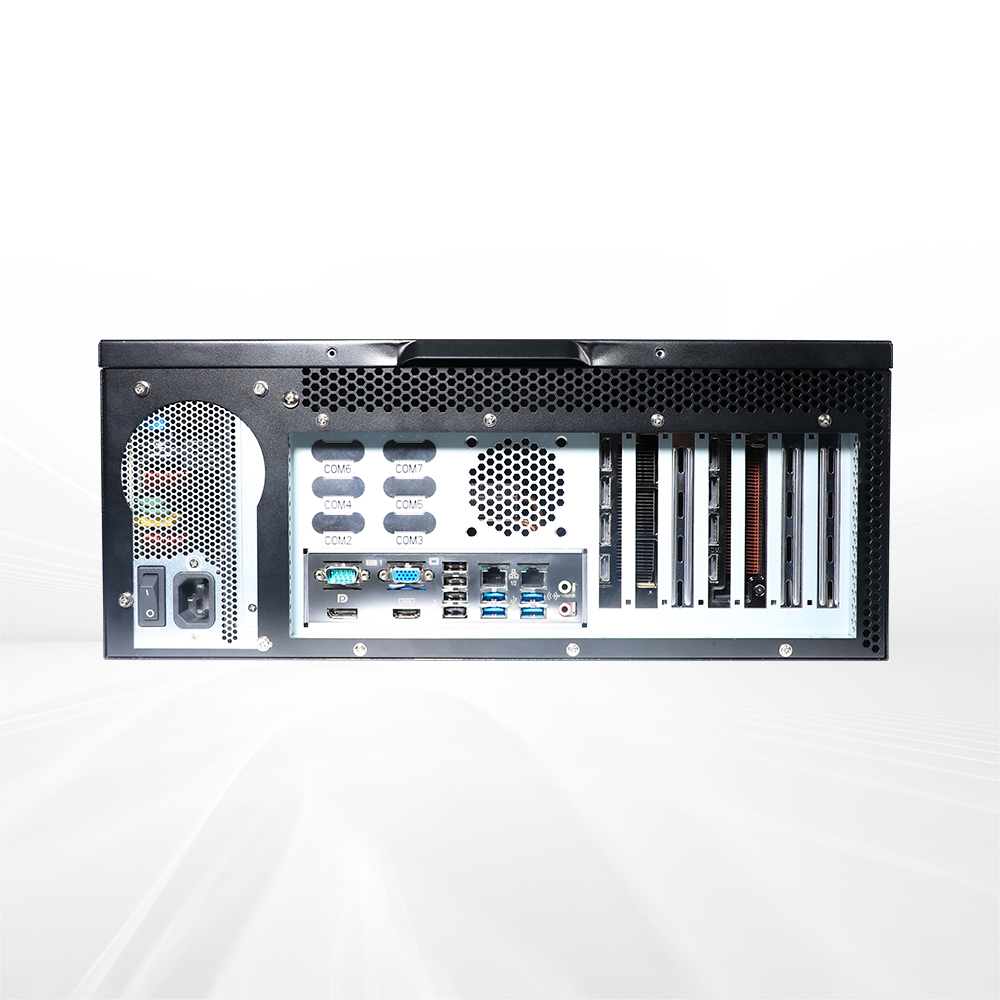

| 0020-068471 | IPC-720/EC0-1823/1000W | IPC-720/EC0-1823-03 Motherboard/Without CPU Cooler/1000W Power Supply/External Ports：2xGigabit LAN Ports/1xCOM/10xUSB（2 at front,8 at rear）/VGA+DP+DVI-D/1 Group of Audio Ports，Supports MIC-IN/LINE-OUT /Expansion Slot： 2xPCI, 2xPCI E3.0 x16, 3xPCI E3.0 x4 Note：When two PCIEx16 slots are inserted at same time, the speed of PCIEx8 will be reduced |
| 0020-068481 | IPC-720/EC0-1826/1200W | IPC-720/EC0-1826-01 Motherboard/Without CPU Cooler/1200W Power Supply/External Ports：2xGigabit LAN Ports/1xCOM/10xUSB（2 at front8 at rear）/ VGA+DP+HDMI2.0 Three Display/MIC-IN/LINE-OUT /Expansion Slot：1xPCI 1xPCIE3.0 x4 3xPCI E4.0 x4 1xPCIE4.0 x16 1xPCIE4.0 x16 ( x8 link） Note：When two PCIEx16 slots are inserted at same time the speed of PCIEx8 will be reduced |
