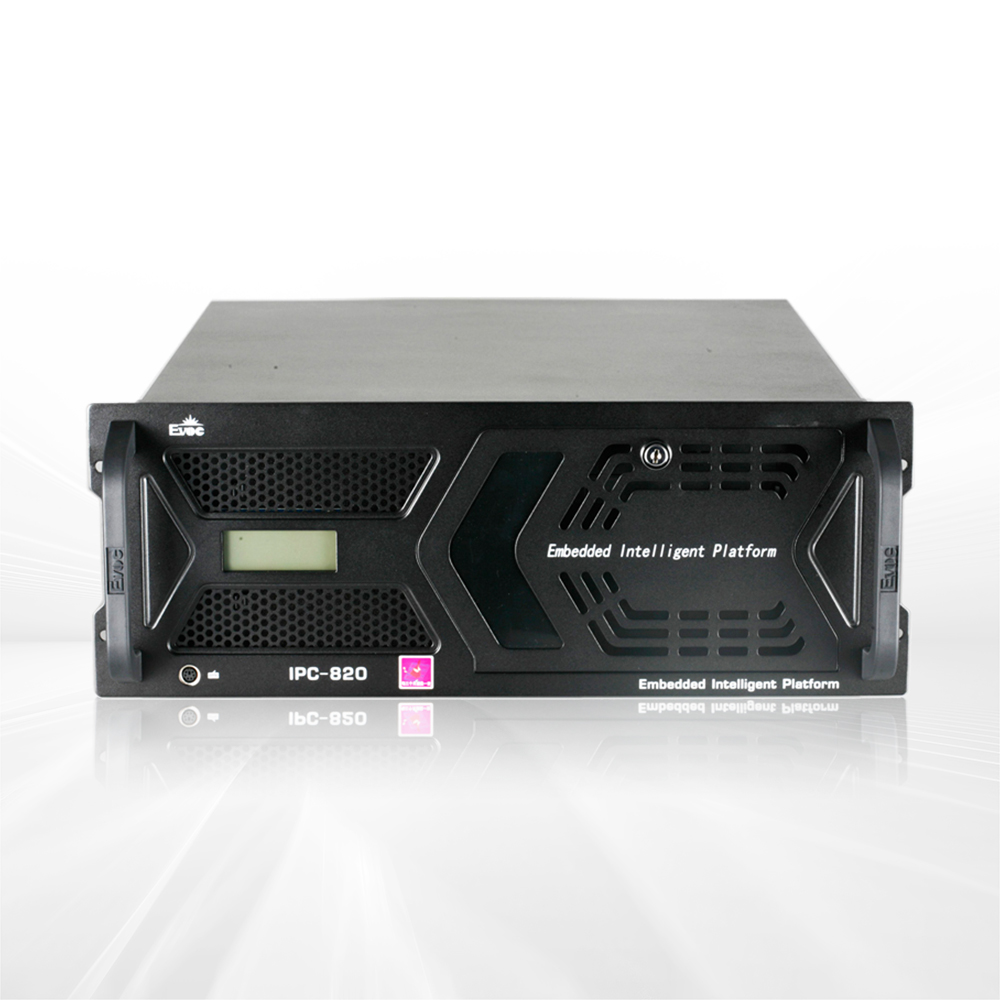

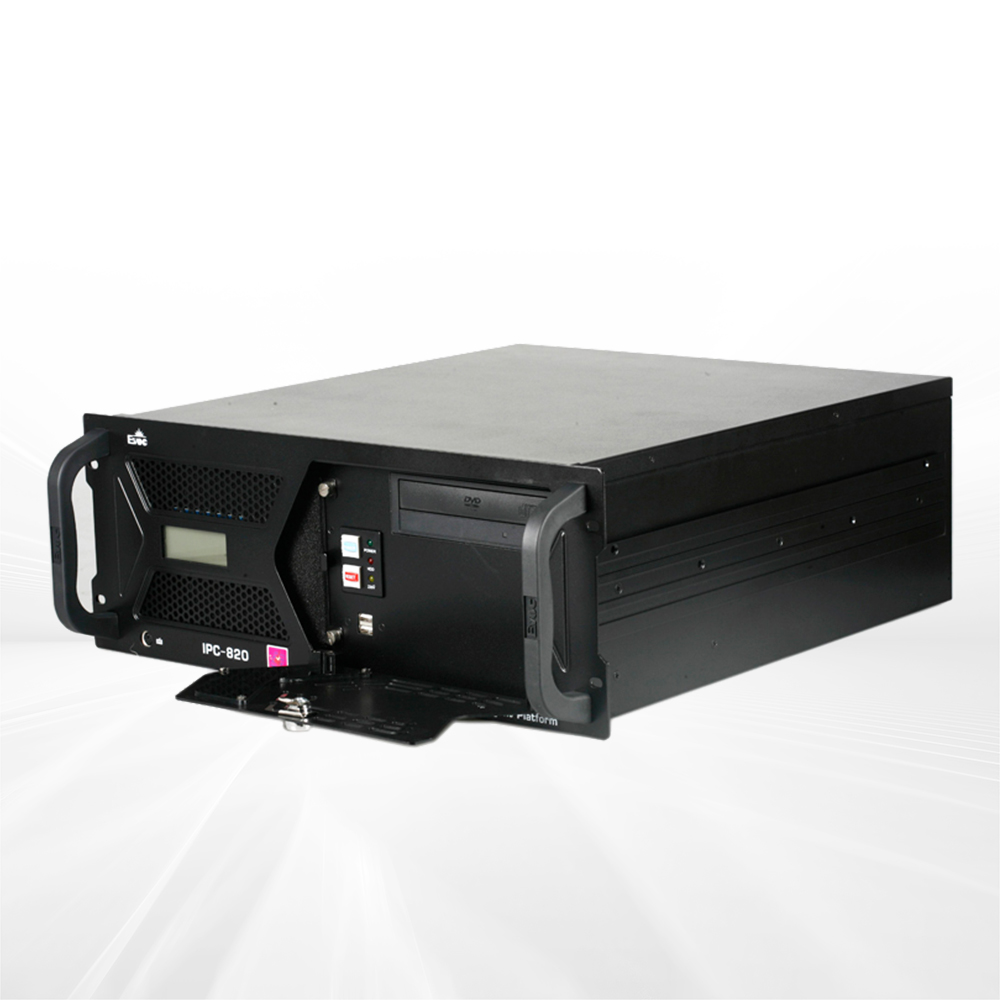

IPC-820

4U Standard Rack-mounted Chassis

IPC-820 is a 4U rack-mounted chassis compatible with various full-length cards and industrial motherboards such as EPE, EC9 and ECO. It has a built-in high-speed air intake fan with good heat dissipation, vibration resistance and EMC performance. The front panel is made of sheet metal, and the chassis is made of high-quality steel plate. The integrated lock protection system for chassis and door panels can also avoid the intrusion of unauthorized personnel. It can be widely used in various fields such as communication, network, finance, electric power, transportation and industrial automation.

Product Features

Easy to replace and clean the dust screen

Super EMC performance

Compatible with various motherboards

4U standard rack-mounted

Product Specifications

Item Description
Adaptive motherboard EPE full-length card and ATX single board
Adaptive Backplane EPE series backplane
Memory 1 x 5.25-inch CD-ROM bay; 2 x 3.5-inch shock-absorbing hard disk bay; 1 x 3.5-inch HDD space (without vibration reduction)
I/O Port Power switch, reset switch, power supply and hard disk indicator; 2 x USB port in front
Power Supply Standard ATX power supply
Working Temperature 0°C~50°C, 5%~90% (non-condensing state)
Storage Temperature -20°C~60°C, 5%~90% (non-condensing state)
Overall Dimensions (W×H×D) 482.6 mm×177 mm×470.4 mm

Ordering Information

料号 型号 描述
0010-140551 IPC-820/ECO-1816/G2130/4G/1T/250W Equipped with H61 platform motherboard/G2130/4G memory/1T hard disk/250W power supply/VGA+DVI-D, 2 x Gigabit LAN port, 6 x USB (2 front and 4 rear), 6 x COM port, 1 group of audio ports, 1 x PS2, 1 x LPT; expansion: 4 x PCI, 1 x PCIEX4 and 1 x PCIEX16 Note: As PCIE x4 slot shares resources with LAN2, the LAN2 port has no function when inserting a PCIE x4 card.
0010-098921 IPC-820/EC01817-6COM/G3430/4G/1T/250W Equipped with H81 platform motherboard/G3430/4G memory/1T hard disk/250W power supply/6 x COM 6 x USB port (2 front and 4 rear) 2 x Gigabit LAN port VGA+DVI-D 1 group of audio ports 1 x PS2 1 x LPT expansion: 4 x PCI 2 x PCIEX1 (PCIEX4 slots) and 1 x PCIEX16
0010-127011 IPC-820/EC0-1818(C)/G3900/4G/1T/250W Equipped with H110 platform motherboard/G3900/4G memory/1T hard disk/250W power supply/6 x COM 6 x USB port (2 front and 4 rear) 2 x Gigabit LAN port VGA+HDMI 1 group of audio ports 1 x PS2 1 x LPT; expansion: 4 x PCI 1 x PCIEX4 1 x PCIEX16
0010-140691 IPC-820/EC0-1820(B)/I7-9700/4G/1TB/300W Equipped with H310 platform motherboard/I7-9700/4G memory/1T hard disk/300W power supply/6 x COM 6 x USB (2 front and 4 rear) 2 x Gigabit LAN port any two-out-of-four display (VGA HDMI DVI-D DP) 1 group of audio ports 1 x PS2 1 x LPT expansion: 5 x PCI 1 x PCIEX4 1 x PCIEX16
0010-153581 IPC-820/EC0-1822/i7-10700E/8G/1T/300W Equipped with H420E platform motherboard/i7-10700E/8G memory/1T hard disk/300W power supply/6 x COM 8 x USB (2 front and 6 rear) 2 x Gigabit LAN port VGA+DP 1 group of audio ports expansion: 4 x PCI 2 x PCIEX4 (actual rate X1) 1 x PCIEX16
0010-169241 IPC-820/EC0-1823-03/I7-10700/16G/1T/256G Equipped with Q470E platform motherboard/i7-10700/16G memory /1T hard disk +256G SSD/300W power supply/6 x COM 10 x USB (2 front and 8 rear) 2 x Gigabit LAN port VGA+DP+DVI-D 1 group of audio ports expansion: 2 x PCI 2 x PCIEx16 3 x PCIEx4 Note: When two PCIE*16 slots are used at same time the speed is reduced to the speed of PCIE*8
0010-176491 IPC-820/EC0-1825/i7-12700/8G/1T/300W Equipped with H610E chipset/i7-12700/8G memory/1T hard disk/ATX 300W power supply/2 × Gigabit LAN port/6 × COM port/8 × USB/VGA+HDMI+DVI-D three-display/MIC-IN/LINE-OUT/4 × PCI 1 × PCIE4.0 x16 and 2 × PCIE3.0 x4 (attention shall be paid to the signal matching of PCIE x4)
0010-096921 IPC-820/EPE-1816/I3-6100/4G/500G/300W without optical drive Equipped with H110 platform motherboard/I3-6100/4G memory/500G hard disk/300W power supply/EPE-6110E5(V) (4 × PCI 4 × PCI-E×1 (actually only 2 can be used) 1 × PCI-E×16)/2 × LAN port DP+VGA 1 × PS2 4 × USB (2 front and 2 rear) 2 × COM and 1 × audio port (accessory)
0010-096941 IPC-820/EPE-1816/I7-6700/4G/1T/300W without optical drive Equipped with H110 platform motherboard/I7-6700/4G memory/1T hard disk/300W power supply/EPE-6113E2 (10 × PCI 1 × PCI-E×1(×4 slot) 1 × PCI-E×16)/2 × LAN port DP+VGA 1 × PS2 4 × USB (2 front and 2 rear) 2 × COM and 1 × audio port (accessory)
