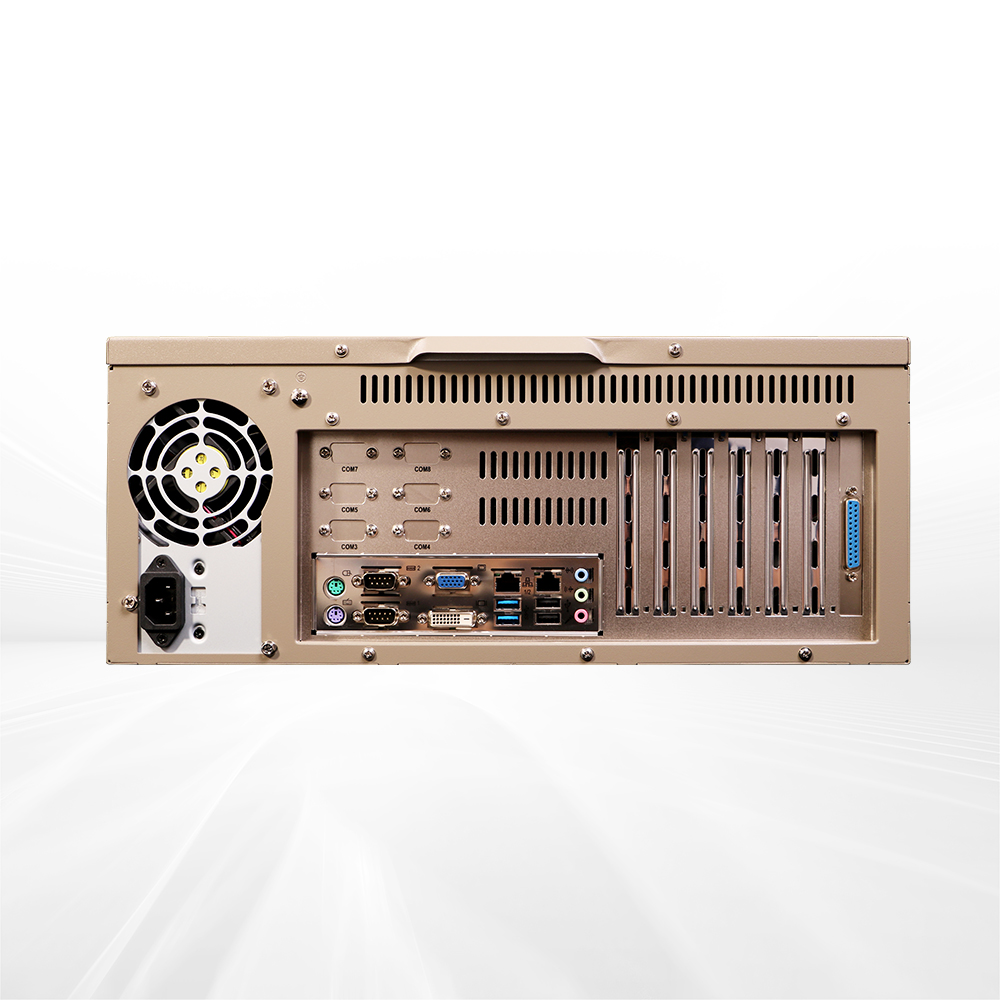

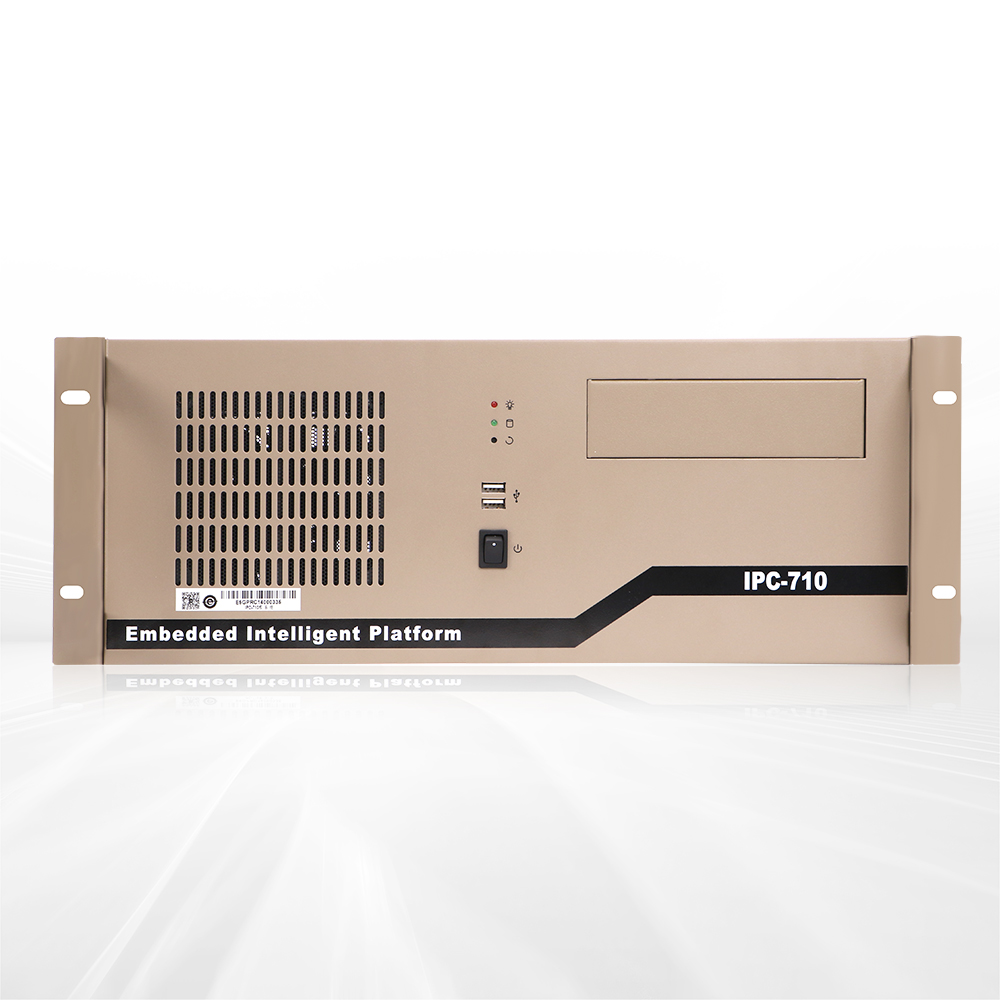

IPC-710

4U Standard Rack-mounted Chassis

IPC-710 is a new 4U rack-mounted chassis launched by EVOC, and the only difference between it and the IPC classic series of IPC-810E is that the front panel is different; With the same identity, quality, production process, and internal structure as IPC-810E, the product with a new shape can be compatible with various full-series full-length cards and industrial motherboards such as EPI, EPE, EC7, EC9, EC0 and ECS of the company. As a classic 4U rack-mounted chassis, the product can be widely used in intelligent manufacturing, industrial automation, petroleum and petrochemicals, finance, electricity, transportation and other fields.

Product Features

Excellent EMC performance

Excellent heat dissipation

4U standard rack-mounted

Product Specifications

Item Description
Memory 1 x 5.25'' CD-ROM space
2 x 3.5'' HDD space (with shock absorption)
1 x 3.5'' HDD space (without shock absorption)
I/O Port Power switch, reset switch, power supply and hard disk indicator; 2 x USB port in front
Power Supply Small PS2 ATX power supply or 1U small power supply
Working Temperature 0°C~50°C, 5%~90% (non-condensing state)
Storage Temperature -20°C~60°C, 5%~90% (non-condensing state)
Overall Dimensions (W×H×D) 482.6mm×177mm×469.8mm

Ordering Information

料号 型号 描述
0020-062061 IPC-710/EC9-1501-ZX/C4580/250W Equipped with ZX C4580 motherboard/250W power supply/2 x COM, 6 x USB (2 front and 4 rear), 2 x Gigabit LAN port, VGA+DVI-D, 1 group of audio ports, 1 x PS2; expansion: 2 x PCI, 1 x PCIEX4, 1 x PCIEX16 (actual rate X8)
0020-062081 IPC-710/EC0-1816V2NA Equipped with H61 platform motherboard/250W power supply/2 x COM 6 x USB (2 front and 4 rear) 2 x Gigabit LAN port VGA+DVI-D 1 group of audio ports 1 x PS2; expansion: 5 x PCI 1 x PCIEX4 (actual rate X1) 1 x PCIEX16
0020-064121 IPC-710/ECO-1816-6COM/250W Equipped with H61 platform motherboard/250W power supply/2 x COM 6 x USB (2 front and 4 rear) 2 x Gigabit LAN port VGA+DV-D 1 group of audio ports 1 x PS2; expansion: 4 x PCI 1 x PCIEX4 and 1 x PCIEX16
0020-062091 IPC-710/EC0-1817V2NA Equipped with H81 platform motherboard/250W power supply/2 x COM 6 x USB port (2 front and 4 rear) 2 x Gigabit LAN port VGA+DVI-D 1 group of audio ports 1 x PS2; expansion: 4 x PCI 2 x PCIEX4 (actual rate X1) 1 x PCIEX16
0020-065761 IPC-710/EC0-1818/250W Equipped with H110 platform motherboard/250W power supply/2 x COM 6 x USB (2 front and 4 rear) 2 x Gigabit LAN port VGA+HDMI 1 group of audio ports 1 x PS2; expansion: 4 x PCI 1 x PCIEX4 and 1 x PCIEX16
0020-066751 IPC-710/EC0-1818-C236/250W Equipped with C236 platform motherboard/250W power supply/2 x COM 6 x USB (2 front and 4 rear) 2 x Gigabit LAN port supporting any three displays (VGA HDMI DVID DP) 1 group of audio ports 1 x PS2; expansion: 2 x PCI 3 x PCIEX4 (X8 connector) 2 x PCIEX16 Note: If two PCIEX16 slots are used at the same time the speed will be reduced to PCIEX8
0020-066421 IPC-710/EC0-1820/250W Equipped with H310 platform motherboard/250W power supply/2 x COM 6 x USB (2 front and 4 rear) 2 x Gigabit LAN port any two-out-of-four display (VGA HDMI DVID DP) 1 group of audio ports expansion: 5 x PCI 1 x PCIEX4 1 x PCIEX16
0020-066411 IPC-710/EC0-1822/350W Equipped with H420E platform motherboard/350W power supply/2 x COM 8 x USB (2 front and 6 rear) 2 x Gigabit LAN port VGA+DP 1 group of audio ports expansion: 4 x PCI 2 x PCIEX4 (actual rate X1) 1 x PCIEX16
0020-067491 IPC-710/EC0-1826/300W Equipped with Q670E platform motherboard/300W power supply/1 x COM 10 x USB 2 x Gigabit LAN port VGA+DP+HDMI2.0 three-display 1 group of audio ports/1 x PCI 1 x PCIe3.0 x4 3 x PCIe4.0 x4 1 x PCIe4.0 x16 1 x PCIe4.0 x16 (x8 link) Note: If two PCIe x16 slots are used at the same time the speed will be reduced to PCIe x8
