IPC-860

4U Standard Rack-mounted Chassis

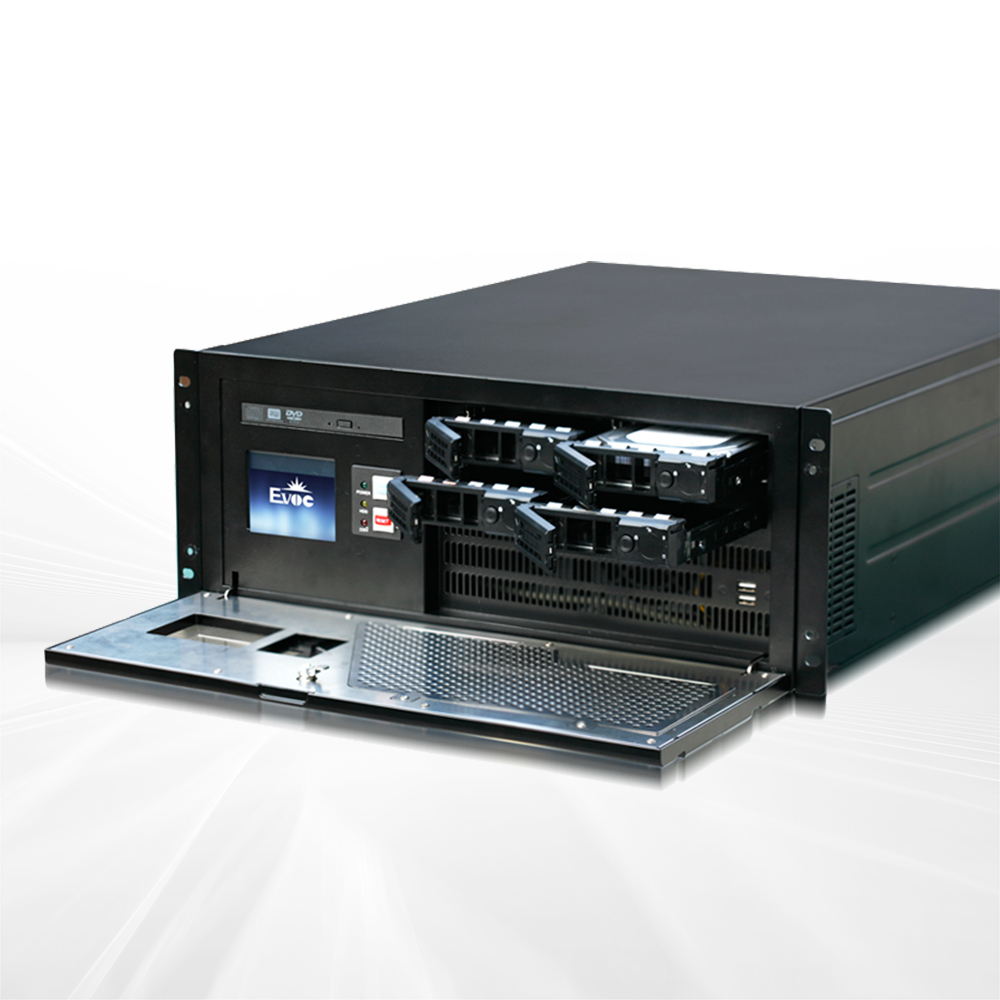

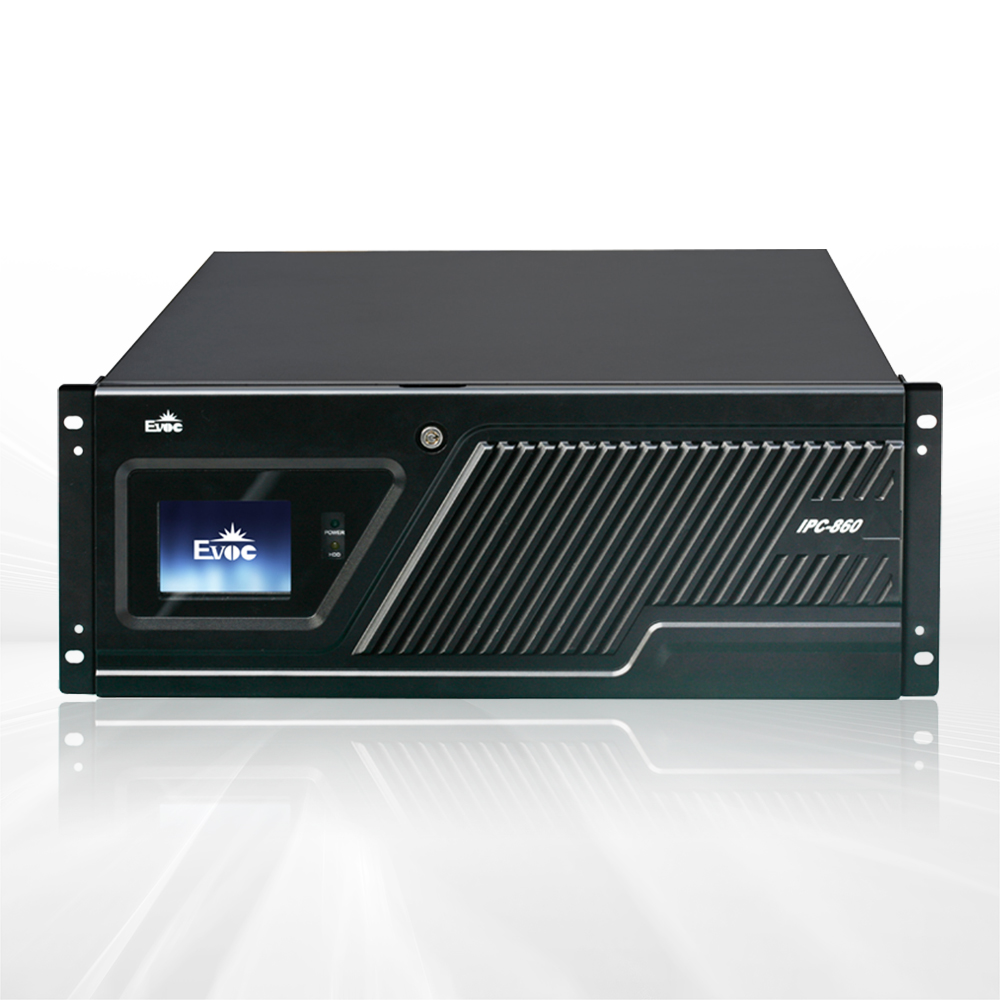

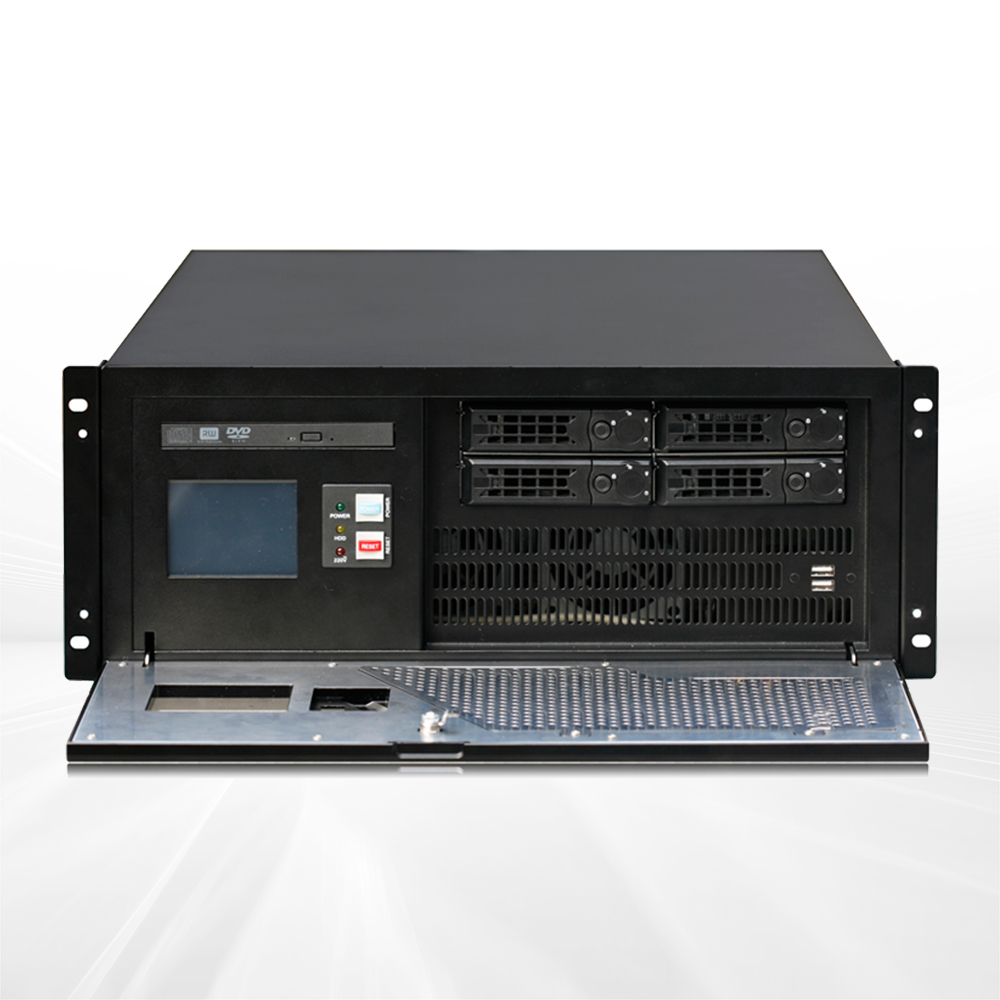

IPC-860 is a 19-inch 4U rack-mounted industrial chassis, which is made of high-quality metal steel plates. A high-power fan is used inside to directly dissipate heat from the system, which has good ventilation and heat dissipation performance. It has 4 × 3.5" pull-out type hard disk module, and is equipped with user interactive display module, which has touch function and can realize shutdown, information display, status monitoring, process management, log management, etc.
It can be widely used in bank security monitoring system, intelligent building management system (IBMS), integrated security management system (ISMS), integrated traffic management system (ITMS), machine vision, workstation, insurance, securities and other industry recording monitoring systems.

Product Features

Super EMC performance

Professional heat dissipation system

LCM interaction module

Multi-expansion

Compatible with installation of standard 3.5-inch hard disk

Compatible with various motherboards

Product Specifications

Item Description
Adaptive motherboard EPE full-length card, ATX single board, and EATX server motherboard
Processor Depends on motherboard: SVE-2901 motherboard: supports dual-channel Xeon E5-2600 V3/V4 series processors
Memory Depends on motherboard: SVE-2901 (dual-channel C612): supports 16 × 288PIN DDR4 slot, supporting up to 512GB DDR4 ECC RDIMM
Adaptive Backplane When an EPE series motherboard is used, it can be paired with 10-13-slot standard EPE backplane
Storage Compatible with two types of hard disk modules:
A: 4 × 3.5" pull-out hard disks (without shock absorption)
B: 2 × 3.5" pull-out hard disks (shock absorption)
Note: The server motherboard is compatible with SAS hard disk installation, and all hard disks are placed in the safety door to ensure data security.
I/O Port Power switch, reset switch; power supply and hard disk indicator lights; there are 2 × USB2.0 port in the lockable safety door;
Rear port: depends on different motherboard configurations
Power Supply Supports standard PS2 ATX power supply; supports 2U redundant power supply
Working Temperature ECO/EPE configuration: 0°C~50°C, 5%~90% (non-condensing state)
EATX server configuration: 0°C~40°C, 5%~90% (non-condensing state)
Storage Temperature -20°C~60°C, 5%~90% (non-condensing state)
Overall Dimensions (W×H×D) 482 mm×177 mm×552 mm

Ordering Information

料号 型号 描述
0020-066191 IPC-860/SVE-2901VD2N(B)-ES Equipped with C612 platform motherboard/supports dual Xeon E5 V3/V4 CPU/16*DDR4 DIMM/motherboard without integrated RAID function/4*3.5" pull-out hard disk cartridge/1 × ultra-thin optical drive/800W+800W redundant power supply/2*GbE/1*COM/1*VGA/6 × USB (front 2 × USB2.0 and rear 4 × USB3.0)/1* full height PCI-E x16, 1* full height PCI-E x8 (2 × CPU: 2* full height PCI-E x16, 4* full height PCI-E x8)
0020-062571 IPC-860/EC0-1818-C236/350W Equipped with C236 platform motherboard/350W power supply/2 × Gigabit LAN port (I210)/2*COM/any three display ports among four (onboard VGA HDMI DVI-D and DP)/6 × USB (2 front and 4 rear)/1 group of audio ports/expansion: 2 × PCI+3 × PCIEX4(X8 connector)+2 × PCIEX16 (see the manual for detailed resources)
0020-064991 IPC-860/EC0-1821/600W Equipped with C246 platform motherboard/600W power supply/2 × COM/2 × Gigabit LAN port/8 × USB (2 front and 6 rear)/any three display ports among four (VGA DVID DP HDMI) 1 group of audio ports; expansion: 2 × PCI 3 × PCIe x4 2 × PCIe x16; 1 × M.2 KEY M port (PCIe X4 supporting sizes 2242/2260/2280/22110); 1 × M.2 KEY E port (PCIe X1 supporting size 2230) Note: When two PCIE*16 slots are inserted at same time the speed is reduced to the speed of PCIE*8
0020-066481 IPC-860/EC0-1823-03/600W Equipped with Q470E platform motherboard/600W power supply/1 × COM 10 × USB (2 front and 8 rear) 2 × Gigabit LAN port VGA+DP+DVI-D 1 group of audio ports expansion: 2 × PCI 2 × PCIE x16 3 × PCIE x4 Note: When two PCIE*16 slots are used at same time the speed is reduced to the speed of PCIE*8
0020-066491 IPC-860/EC0-1823-03/1000W Equipped with Q470E platform motherboard/1000W power supply/1 × COM 10 × USB (2 front and 8 rear) 2 × Gigabit LAN port VGA+DP+DVI-D 1 group of audio ports expansion: 2 × PCI 2 × PCIE x16 3 × PCIE x4 Note: When two PCIE*16 slots are used at same time the speed is reduced to the speed of PCIE*8
0020-066501 IPC-860/EC0-1823-04/1000W Equipped with W480E platform motherboard/1000W power supply/1 × COM 10 × USB (2 front and 8 rear) 2 × Gigabit LAN port VGA+DP+DVI-D 1 group of audio ports expansion: 2 × PCI 2 × PCIE x16 3 × PCIE x4 Note: When two PCIE*16 slots are used at same time the speed is reduced to the speed of PCIE*8
0020-067521 IPC-860/EC0-1826/1000W Equipped with Q670E platform motherboard/ATX1000W power supply/2 × Gigabit LAN port/1 × COM port/10 × USB/ VGA+DP+HDMI2.0 three-display/MIC-IN/LINEOUT /1 × PCI 1 × PCIe3.0 x4 3 × PCIe4.0 x4 1 × PCIe4.0 x16 and 1 × PCIe4.0 x16 (x8 link) Note: If two PCIe x16 slots are used at the same time the speed will be reduced to PCIe x8
