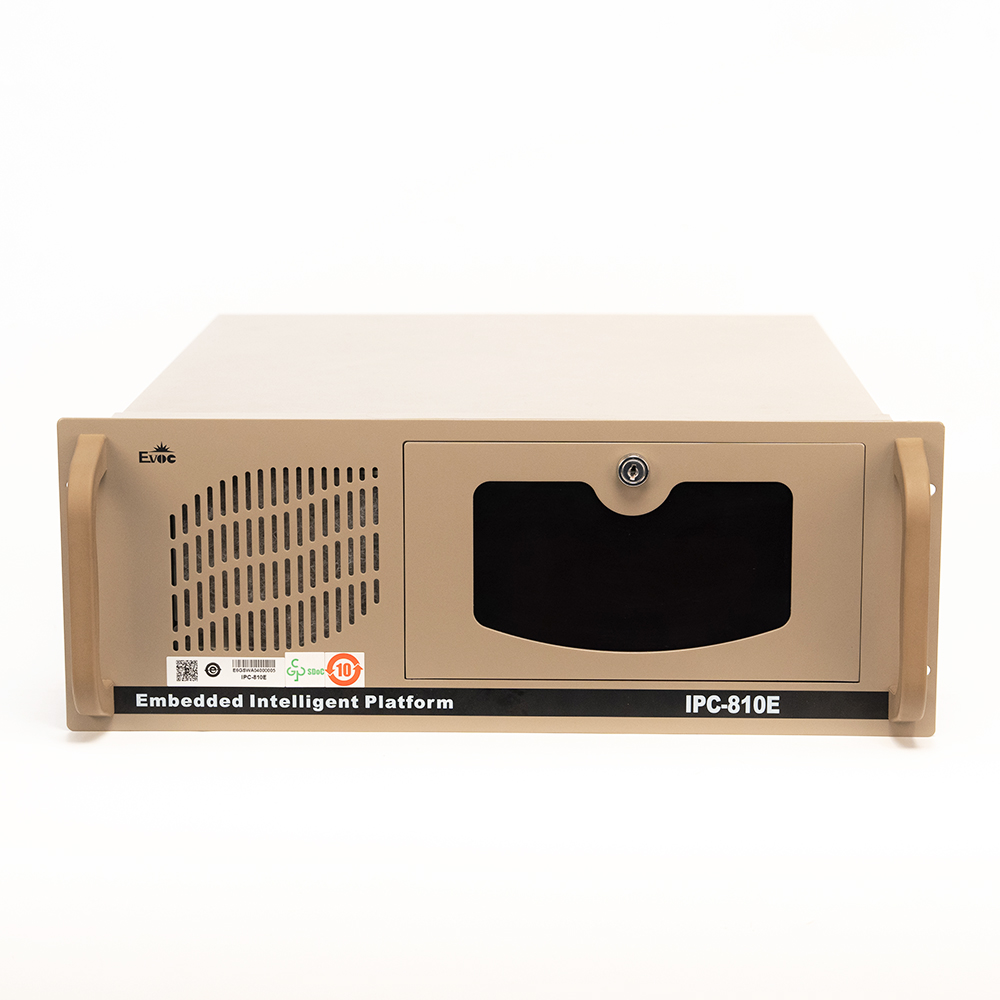

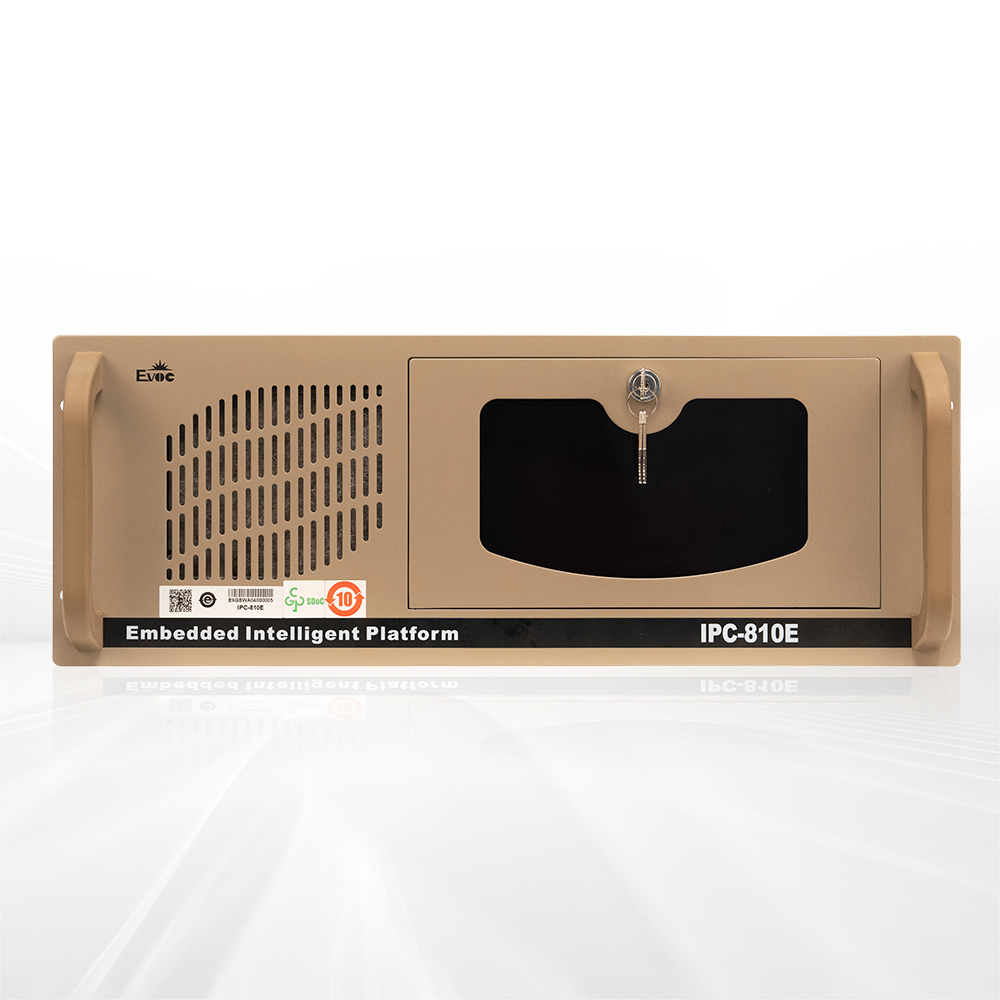

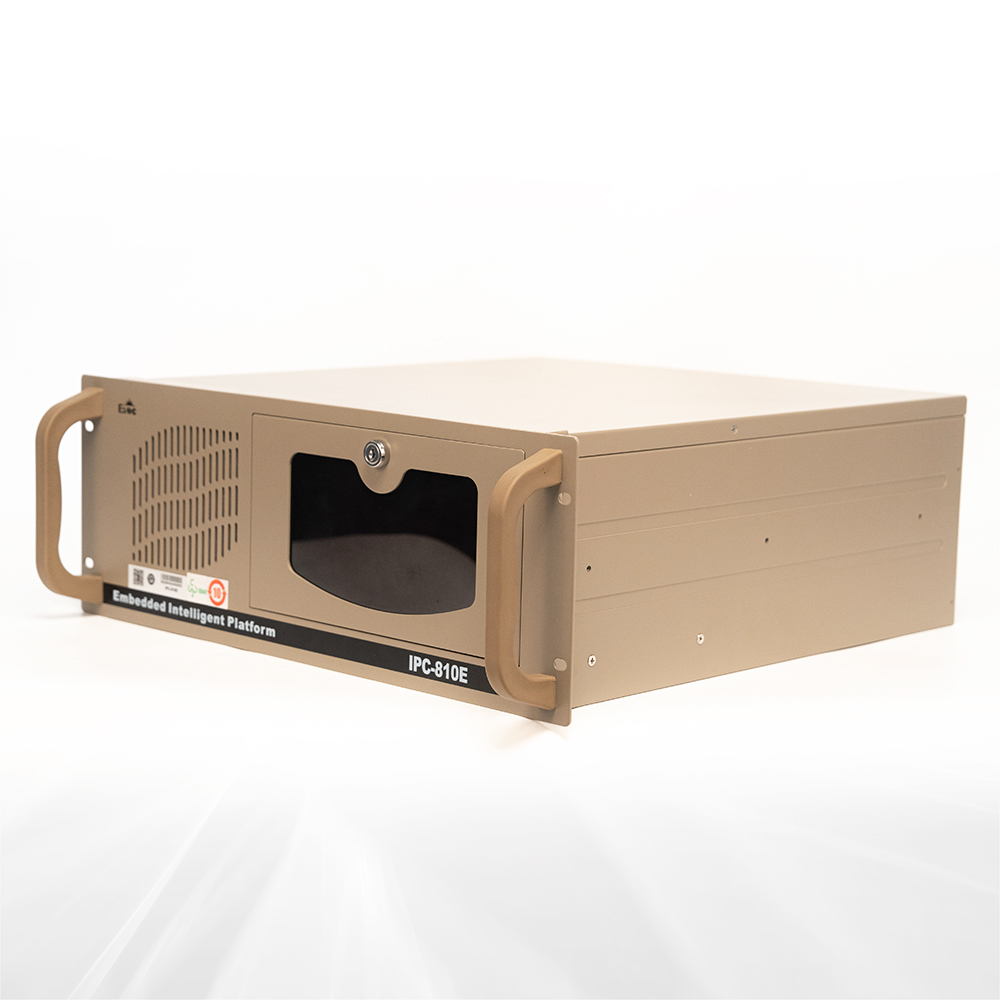

IPC-810E-HG

4U Standard Rackmount Chassis

IPC-810E is a 4U rackmount chassis, which can be equipped with Chinese HYGON 3330/3350 processor, support UOS, Kylin and other Chinese domestic operating systems, and the product has rich IO interfaces. The product can be widely used in intelligent manufacturing, industrial control, intelligent transport, intelligent security and other fields.

Product Features

Outstanding EMC Performance

Excellent Heat Dissipation

PCI+PCIE Expansion

Rich I/O interfaces

Equipped with Chinese HYGON 3330/3350 Processo

4U Standard Rackmount

Product Specifications

Item Description
Compatible Motherboard EC0-8501-HG、EC0-1501-HG motherboard
Storage 1x5.25" CD-ROM bay, 2x 3.5" hard disk vibration-damping bay, 1x 3.5" HDD bay (without vibration-damping)

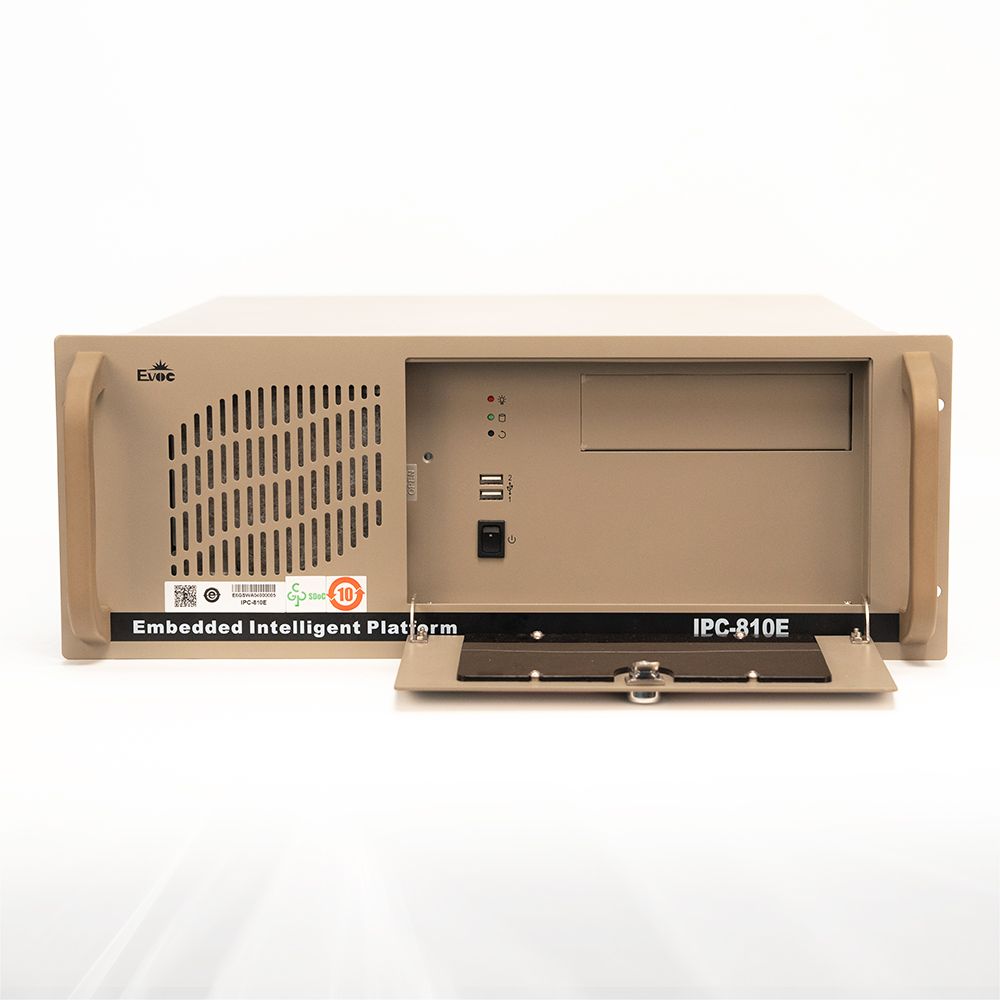

IO Ports Power switch, reset switch
Power and hard disk indicator lights
2xUSB ports in front
Power Supply Standard ATX Power Supply
Working Temperature 0℃ ~ 40℃ (with HDD or GPU)
0℃ ~ 50℃ (with SSD)
Storage Temperature -20℃~60℃
Constant Damp Heat (40)℃ (95)%RH non-condensing
Dimensions
(WxHxD)
482 mmx177 mmx470.4 mm

Ordering Information

料号 型号 描述

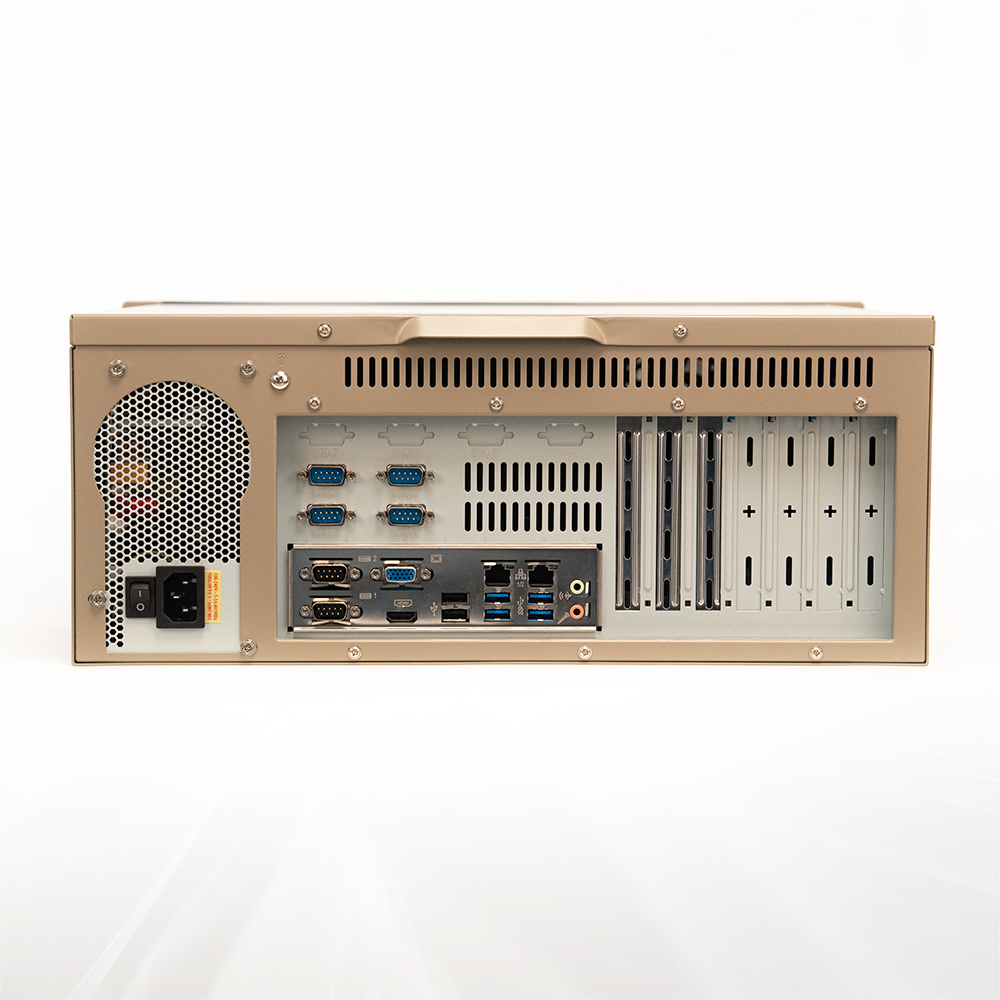

0010-198421 IPC-810E/EC0-8501-HG-3350/8G/1T/300W EC0-8501-HG-3350 Motherboard/8G Memory/1T 3.5" HDD/ATX 300W Power Supply/Without Keyboard and Mouse/Front I/O Ports:2xUSB2.0/Rear I/O Ports: 4xSerial Ports, VGA+HDMI, 4xUSB 3.0, 4xNetwork Ports, LIN-OUT, MIC-IN/Expansion Slot:2xPCIE3.0 x16 Slots(x8 Lanes), 1xPCIE3.0 x8 Slot(x2 Lanes), 1xPCIE3.0 x4 Slot( x1 Lanes), 3xPCI Slots
0010-204031 IPC-810E/EC0-1501-HG-3330/8G/1T/300W EC0-1501-HG-3330 Motherboard/8G Memory/1T 3.5" HDD/ATX 300W Power Supply/Without Keyboard and Mouse/Front I/O Ports:2xUSB2.0/Rear I/O Ports: 1xPS2 2xSerial Ports VGA+HDMI 2xUSB 3.0 2xUSB 2.0 2xNetwork Ports LIN-OUT MIC-IN/Expansion Slot:4xPCI 2xPCIe X4 1xPCIe X16
0010-196801 IPC-810E/EC0-1501-HG-3350/8G/1T/300W EC0-1501-HG-3350 Motherboard/8G Memory/1T 3.5" HDD/ATX 300W Power Supply/Without Keyboard and Mouse/Front I/O Ports:2xUSB2.0/Rear I/O Ports: 1xPS2 2xSerial Ports VGA+HDMI 2xUSB 3.0 2xUSB 2.0 2xNetwork Ports LIN-OUT MIC-IN/Expansion Slot:4xPCI 2xPCIe X4 1xPCIe X16
