Domestic Network Application Platform

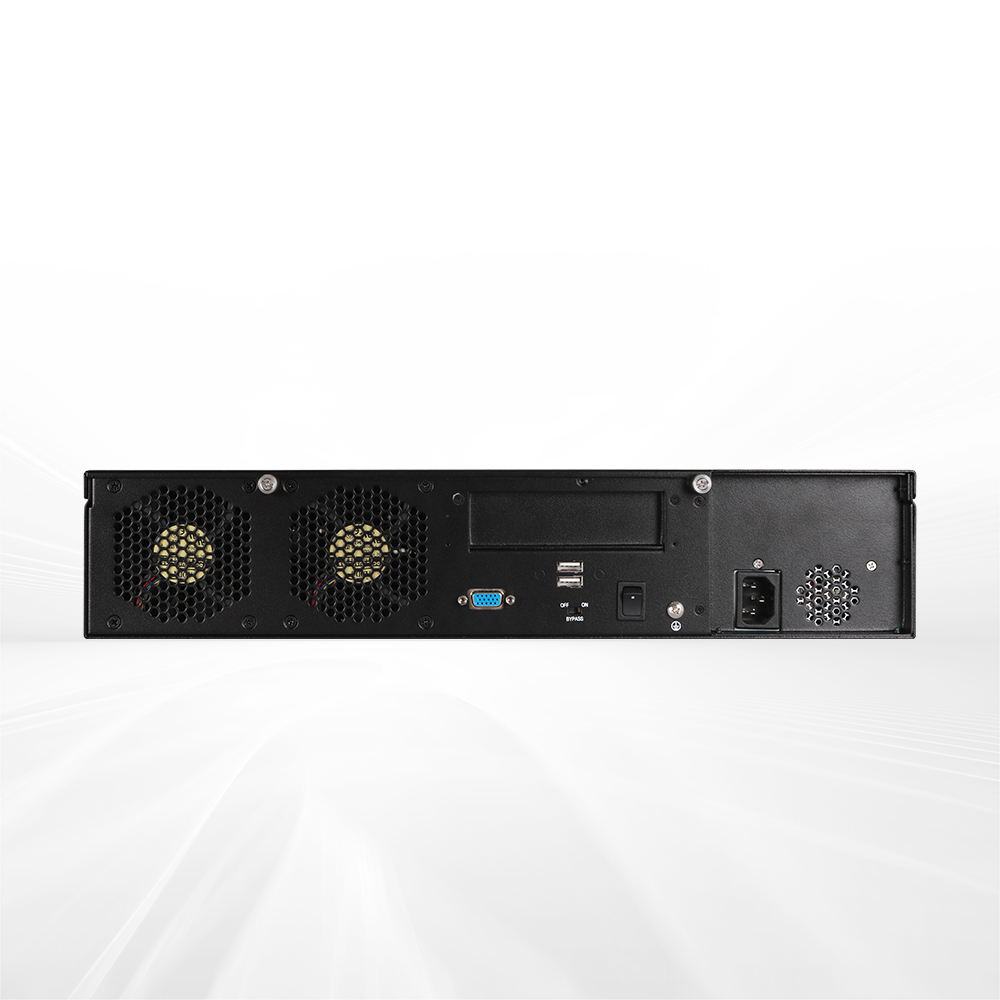

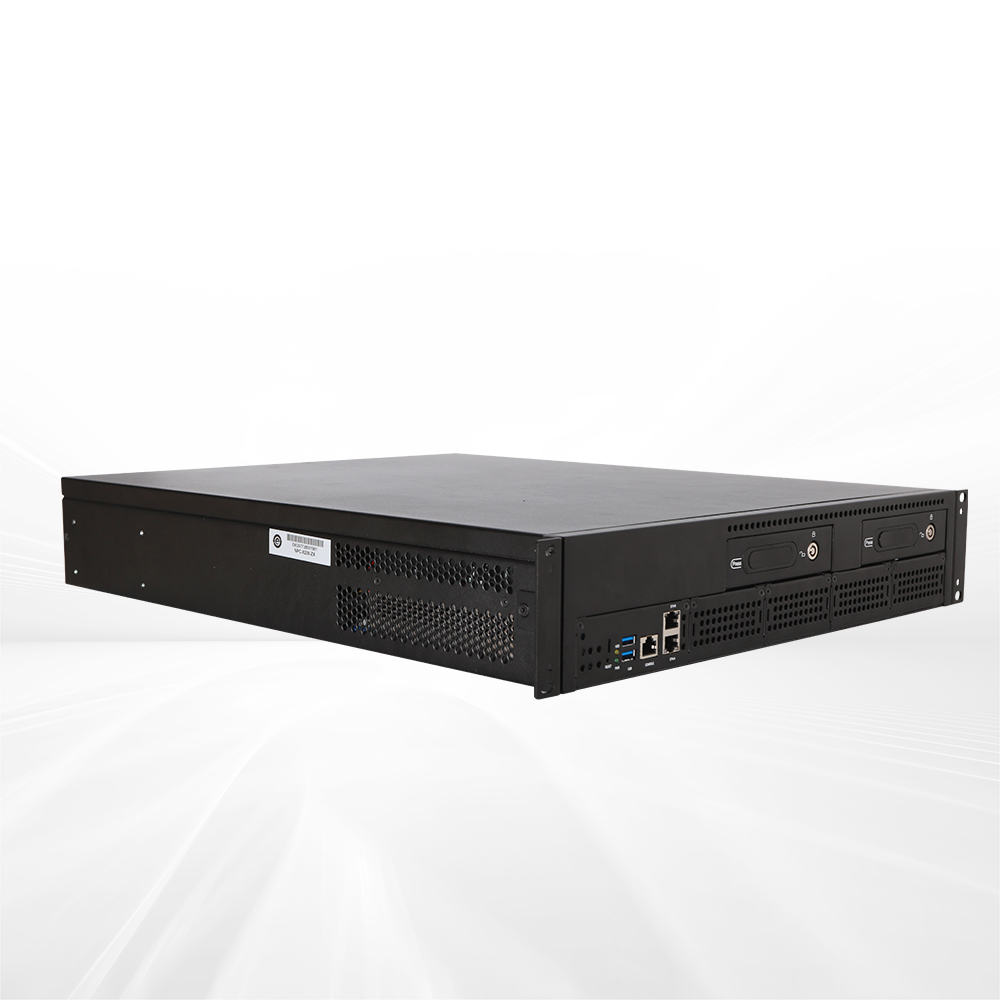

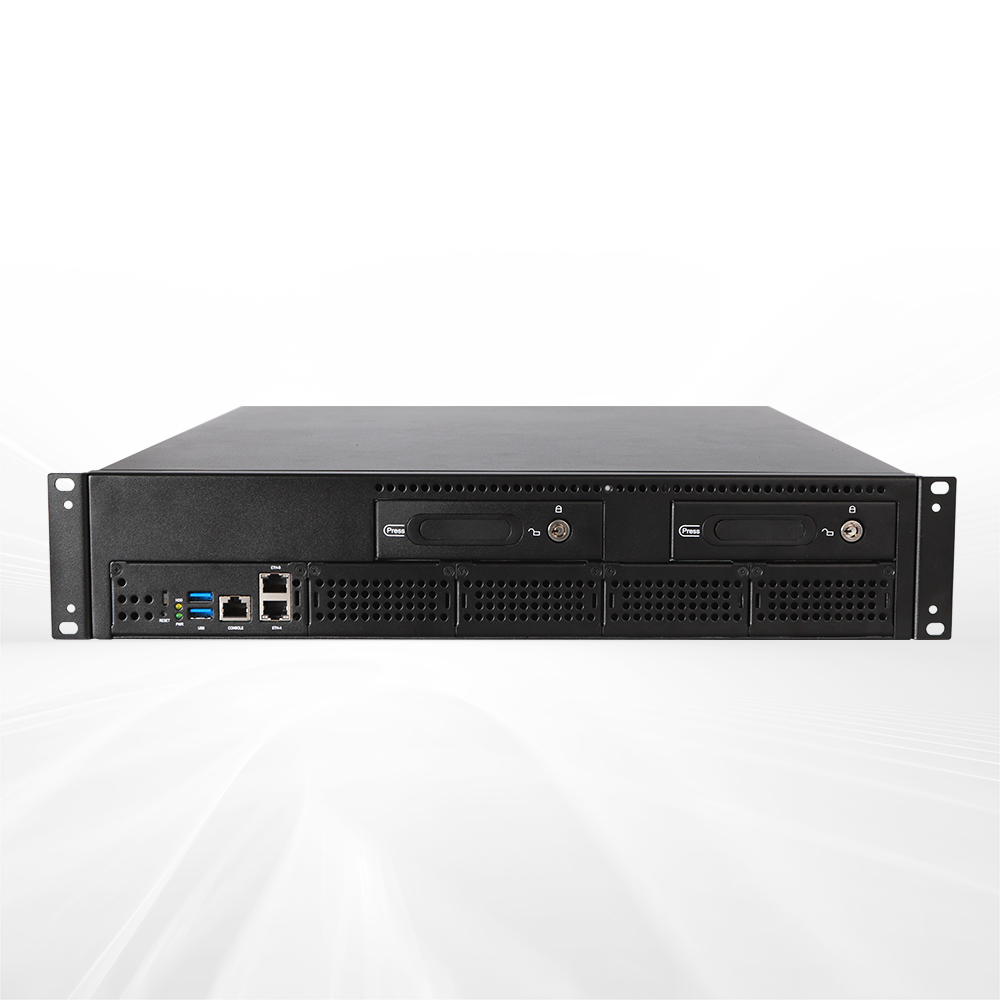

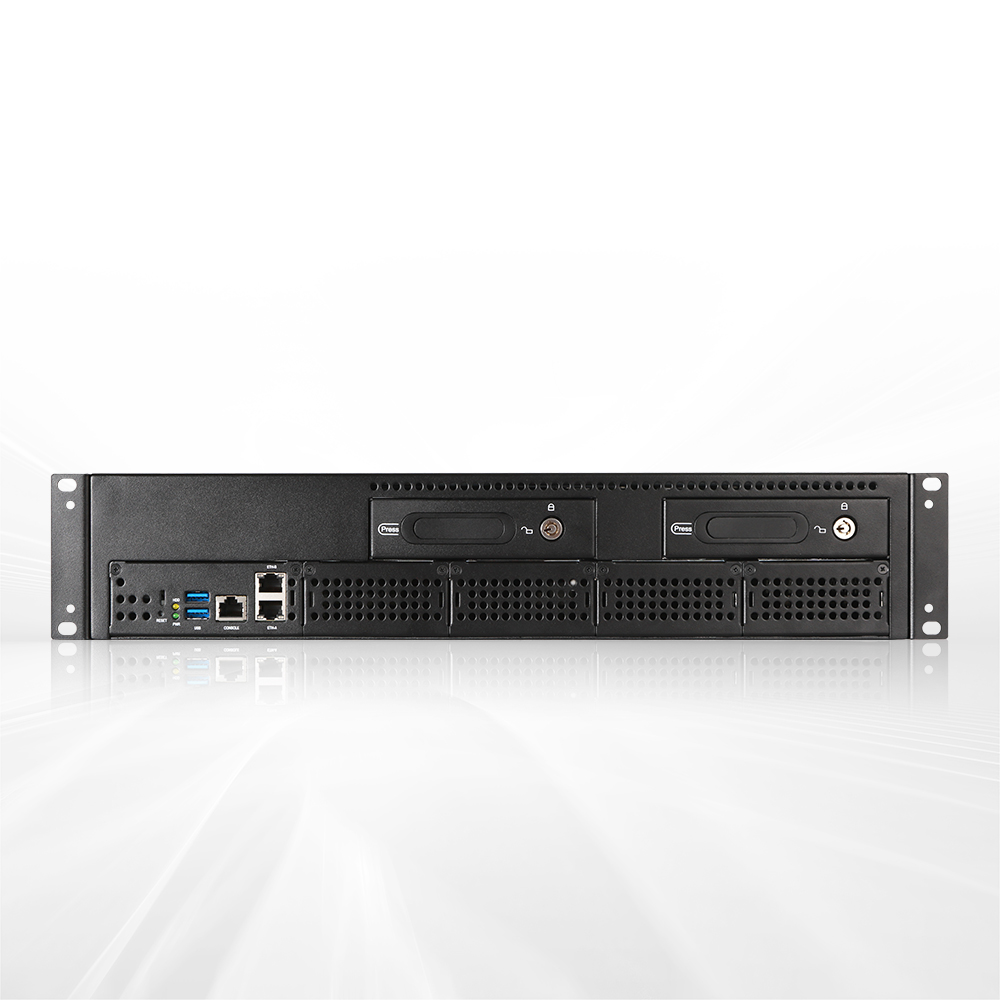

NPC-8208B-ZX is a standard 2U rack mount domestic network security application
product developed based on the domestic ZX KX-6000 series processor (optional quad-core or eight-core), supporting 4 × DDR4 memory, with a memory capacity of the complete PC of up to 64G, and supporting up to 34 × Gigabit LAN port through the configuration of network modules. NPC-8208B-ZX can be widely used in firewalls, antivirus walls and load balancing, Internet behavior management and audit, application delivery, VPN, IDS/IPS, UTM and other network security fields.
| Item | Description | |
|---|---|---|
| System Configuration | Processor | KX-6000 series processor (optional 4-core or 8-core) |
| Chipset | ZX-E | |
| Memory | 4 x DDR4 memory slot, and the total capacity of the complete PC can reach 64G | |
| Storage | SATA | 2 x SATA port, and standard configuration of 1 x hard disk bay (1 x SATA port free) |
| MSATA | 1 x MSATA slot | |
| I/O Port | USB | 2 x USB3.0 port (front), 2 x USB2.0 wafer pin (built-in) |
| COM | 1 x RJ45 Console port, 1 x built-in Wafer pin | |
| GPIO | Supports 8-channel digital GPIO interface | |
| Display Port | 1 x VGA port, 2 x DVI connector(optional) | |
| Network port | Network card chip | Intel® i211/I210 |
| LAN Port Type | Onboard 2 × Gigabit electrical port (LAN1 supports WOL and PXE) | |
| Expansion Bus | PCIE | Onboard horizontal insertion of 1 x PCIE x8 slot (X4 signal) and 1 x Mini_PCIE slot (X1 signal) |
| ENS | 4 x ENS expansion slot，Supports front-plugged ENS network modules | |
| Matched Motherboard | NET-1835 series | |
| Working Environment | Working temperature: 0°C -40°C humidity: 10% ~ 90% (non-condensing state) |
|
| Storage Environment | Storage temperature: -20°C ~ 70°C storage humidity: 10% ~ 90% (non-condensing state) |
|
| Overall Dimensions | 440mm（W）×88mm(H)×550mm(D) | |
| Power Supply | 250W ATX single power supply (optional 350W ATX redundant power supply) | |
| Operating Systems | Linux (CentOS, Red Hat, Ubuntu), Kylin operating system. Please refer to the product manual for details | |
| 料号 | 型号 | 描述 |
|---|---|---|
| 0010-189761 | NPC-8208B-ZX /KX-6640A/8GB/1TB HDD/4 × ENS slot/250W single power supply | Domestic ZX-E platform/KX-6640A 2.6GHZ/8GB memory/supporting 2 × 3.5-inch HDD hard disk bay/onboard 2*Gigabit electrical ports/4*ENS expansion slots/250W single power supply/2U rack mount network security product |
| 0010-186341 | NPC-8208B-ZX/KX-U6780A/8GB/1TB HDD/4 × ENS slot/250W single power supply | Domestic ZX-E platform/KX-U6780A 2.7GHZ/8GB memory/1T hard disk/2 × Gigabit electrical port/4*ENS expansion slots/250W single power supply |
| 0010-189771 | NPC-8208B-ZX/KX-U6780A/8GB/1TB HDD/4 × ENS slot/350W redundant power supply | Domestic ZX-E platform/KX-U6780A 2.7GHZ/8GB memory/1T hard disk/2 × Gigabit electrical port/4*ENS expansion slots/350W redundant power supply |
