NPC-8228-02

Gatekeeper Network Application Platform

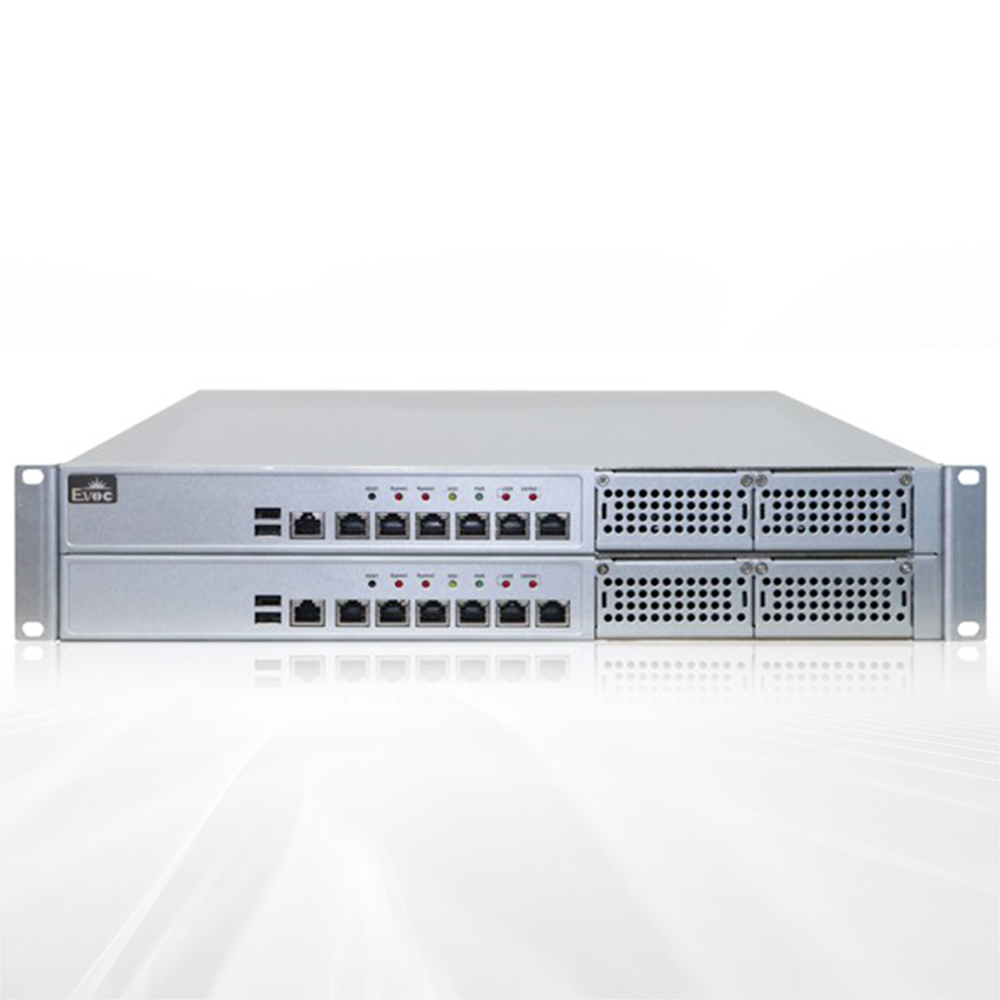

NPC-8228-02 is the 3rd Gen 2U19" dual motherboard gatekeeper product of EVOC. Based on X86 architecture, it adopts Intel mainstream chipset C236 and supports Intel® LGA1151 packaging SkyLake and KabyLake series E3\I7\I5\I3 Xeon, Core, Pentium and Celeron 10th Gen processors. The memory of a single-layer motherboard can reach 32GB. The complete PC is designed with several EVOC patents or special technologies, and its performance far exceeds that of the previous generation of H61 platform products.

Product Features

Quick customization

All-round reinforcement

Abundant LAN ports

Supports multiple power supplies

Multiple hard disk bays

Supports multiple series of processors

Product Specifications

Item Description
System Configuration Processor C236: supports LGA1151 packaging i3, i5, i7 Core 6th/7th Gen processors, Xeon E3-1200 v5 and v6 series processors
H110: supports LGA1151 packaging i3, i5, i7 Core 6th/7th Gen processors
Chipset Intel C236 (optional Intel H110)
Memory Single board: provides 2 x 288Pin standard DDR4 memory slot, and the total capacity of the complete PC can reach 32GB (UDIMM memory is selected)
Storage Port SATA Single board: supports 4 x SATA3.0 port, and standard configuration of 2 x hard disk bays (6 x SATA3.0 port free)
I/O Port USB Single board: provides 2 x USB port (front), 2 x USB2.0 pin (built-in) and 1 x USB3.0 pin (built-in)
COM Single board: provides 1 x RJ45 Console port (front) and 1 x RS232 serial port pin (built-in)
GPIO Supports 8-channel digital GPIO
Display Port 1 x VGA port
Network port Network Chip Intel® I210/I211
LAN Port Type Single board: provides 6 x Gigabit electrical port
Expansion Bus PCIE Single board: onboard 1 x PCIE 8X slot
ENS Single board:
2 x ENS expansion slot can be selected for the C236 chipset;
the H110 chipset has no ENS expansion slot
Matched Motherboard NET-1828VD6N series
Working Environment Working temperature: 0°C -40°C
Storage humidity: 10%-90% (non-condensing state)
Storage Environment Storage temperature: -20°C-70°C;
Storage humidity: 10%-90% (non-condensing state)
Overall Dimensions 440mm(W)x88mm(H)x650mm(D)
Power supply Supports 550W ATX redundant power supply
Operating Systems Linux OS (kernel version 2.6 and above). Please refer to the product manual of EVOC for details

Ordering Information

料号 型号 描述
0010-124751 NPC-8228-02/I7-6700*2/8G*2/1T*2/550W redundant power supply Intel C236 platform/dual motherboard gatekeeper/I7-6700*2/8GB memory*2/onboard 6 x electrical port*2/2 groups of BYPASS *2/supports 2 x ENS network card expansion module *2/2U network platform/with NET-1828VD6N-03 motherboard*2/550W ATX redundant power supply*1
0010-126931 NPC-8228-02/E3-1275V5*2/8G*2/1T*2/550W redundant power supply Intel C236 platform/dual motherboard gatekeeper/E3-1275 V5*2/8GB memory*2/onboard 6 x electrical port*2/2 groups of BYPASS *2/supports 2 x ENS network card expansion module *2 / 2U network platform/with NET-1828VD6N-03 motherboard*2/550W ATX redundant power supply*1
