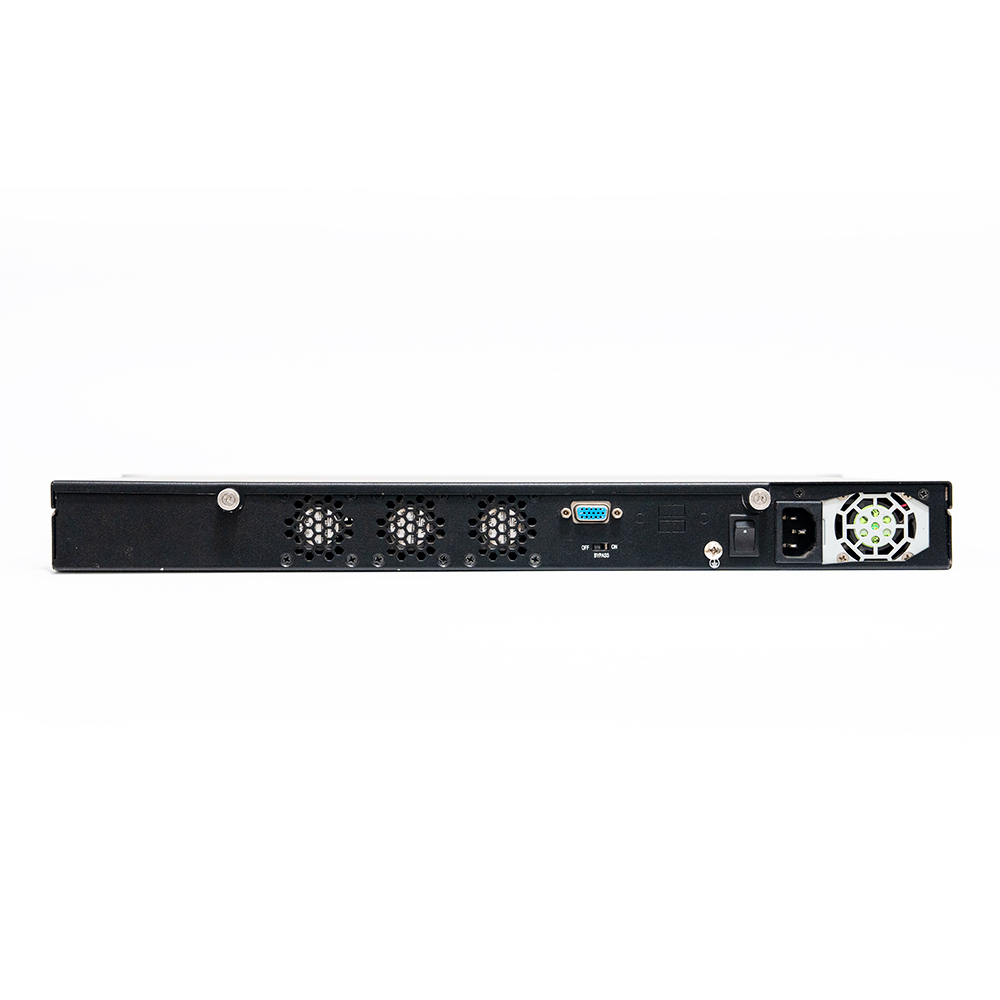

1U 19" Rackmount Network Application Platform
NPC-8128E-03 is a standard 1U 19" rack-mounted mainstream network application platform. It adopts Intel® H110 chip, supports Intel® LGA1151 packaging i3, i5 and i7 Intel 6th and 7th processors, and has 32GB DDR4 memory. The platform adopts a modular design. By configuring network modules, it supports up to 22 high-performance Gigabit LAN ports and 11 groups of bypasses. NPC-8128E-03 can be widely used in network security application scenarios such as enterprise firewalls, antivirus walls, VPN, network acceleration, gatekeepers and application delivery.
| Item | Description | |
|---|---|---|
| System Configuration | Processor | Intel® LGA1151 package i7, i5, i3 Intel Core 6th/7th generation processors and some sub 65W i7, i5, i3 Intel Core 8th/9th generation processors |
| Chipset | Intel H110 | |
| Memory | 2 x DDR4 memory slot, with a maximum capacity of the complete PC of up to 32GB | |
| Storage Port | SATA | Supports 4 x SATA port, and standard configuration of 1 x hard disk bay (3 x SATA3.0 port free) |
| I/O Port | USB | 2 x USB3.0 port (front); with 2 x USB2.0 pin and 1 x USB3.0 pin built-in |
| COM | 1 x RJ45 Console port (front), 1 x RS232 serial port pin (built-in) | |
| GPIO | Supports 8-channel digital GPIO | |
| Display Port | 1 x VGA port | |
| Network port | Network Chip | Intel® I210/I211 |
| LAN Port Type | Onboard 6 x Gigabit electrical port | |
| Expansion Bus | PCIE | Onboard 1 x PCIE X8 standard slot |
| ENS | 1 x ENS expansion slot; 2 expansion slots optional, Part No.: EB-X8N-200B Part No.: 1090-012451) | |
| Matched Motherboard | NET-1828VD6N series | |
| Working Environment | Working temperature: 0°C -40°C Storage humidity: 10%-90% (non-condensing state) |
|
| Storage Environment | Storage temperature: -20°C-70°C; Storage humidity: 10%-90% (non-condensing state) |
|
| Overall Dimensions | 440mm(W)×43.6mm(H)×500mm（D） | |
| Power supply | 250W ATX single power supply Note: When redundant power supply is selected, the chassis needs to be deepened by 50 mm |
|
| Operating Systems | Linux OS (kernel version 2.6 and above). Please refer to the product manual of EVOC for details | |
| Part No. | Model | Description |
|---|---|---|
| 0010-189481 | NPC-8128E-03/I3-6100 processor /8G memory /1T hard disk /3BP/250W single power supply | Standard 1U rack-mounted barebone system/H110 platform/I3-6100 CPU/1*8G memory/1*1T hard disk/onboard 6*Gigabit electrical port/3 groups of BP/with NET-1828VD6N(E)-02 motherboard/standard 250W single power supply |
| 0010-189491 | NPC-8128E-03/I3-6100 processor /8G memory /1T hard disk /2BP/250W | Standard 1U rack-mounted barebone system/H110 platform/I3-6100 CPU/1*8G memory/1*1T hard disk/onboard 6*Gigabit electrical ports/2 groups of BP/with NET-1828VD6N(E)-04 motherboard/standard 250W single power supply |
| 0010-189501 | NPC-8128E-03/I3-6100/8G/1T/0BP/250W | Standard 1U rack-mounted barebone system/H110 platform/I3-6100 CPU/1*8G memory/1*1T hard disk/onboard 6*Gigabit electrical port/0 group of BP/with NET-1828VD6N(E)-06 motherboard/standard 250W single power supply |
| 0020-067471 | NPC-8128E-03 / no processor / no memory / no hard disk/0BP/250W single power supply/barebone system | Standard 1U rack-mounted barebone system/H110 platform/no CPU/no memory/no hard disk/onboard 6*Gigabit electrical port/0 group of BP/with NET1828VD6N(E)-06 motherboard/standard 250W single power supply |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| Product Manual | Various Platform | Vol15.0 | 2025-04-29 | 0.09MB | Download 𐃯 |
