High-performance Network Application Platform

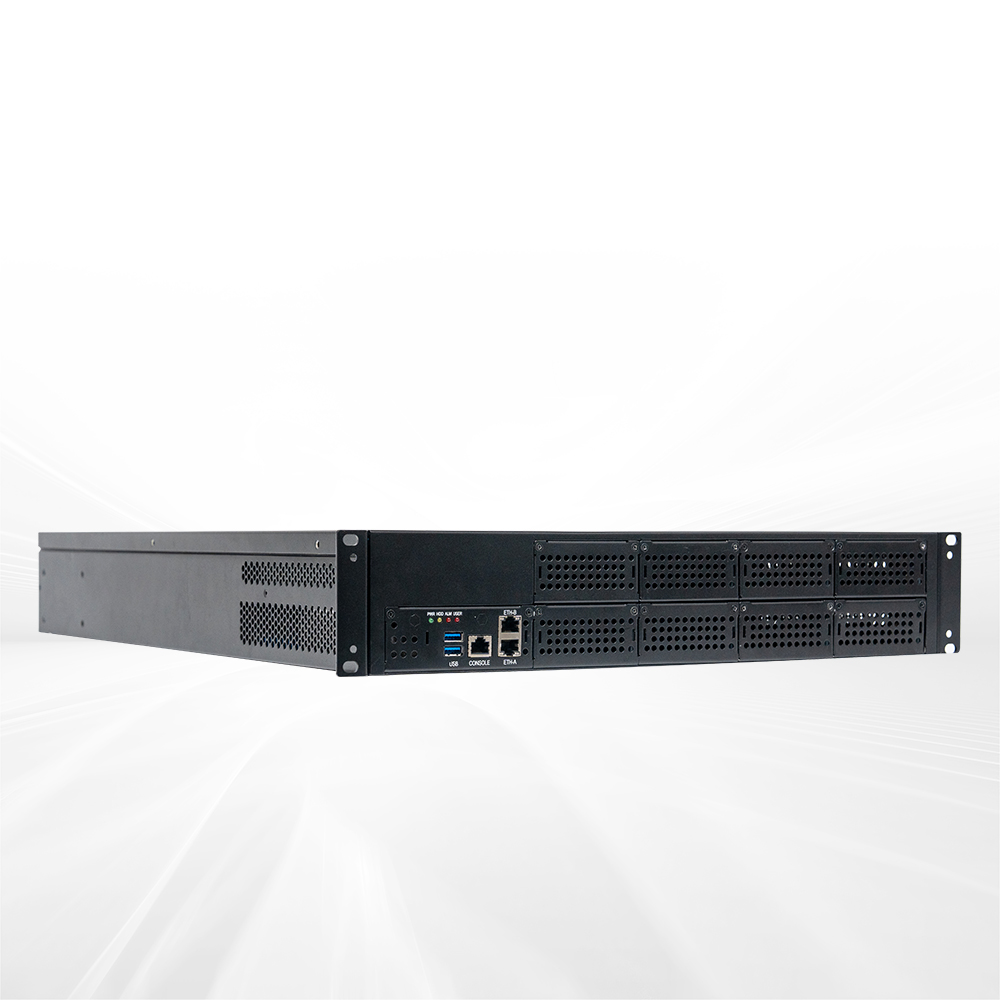

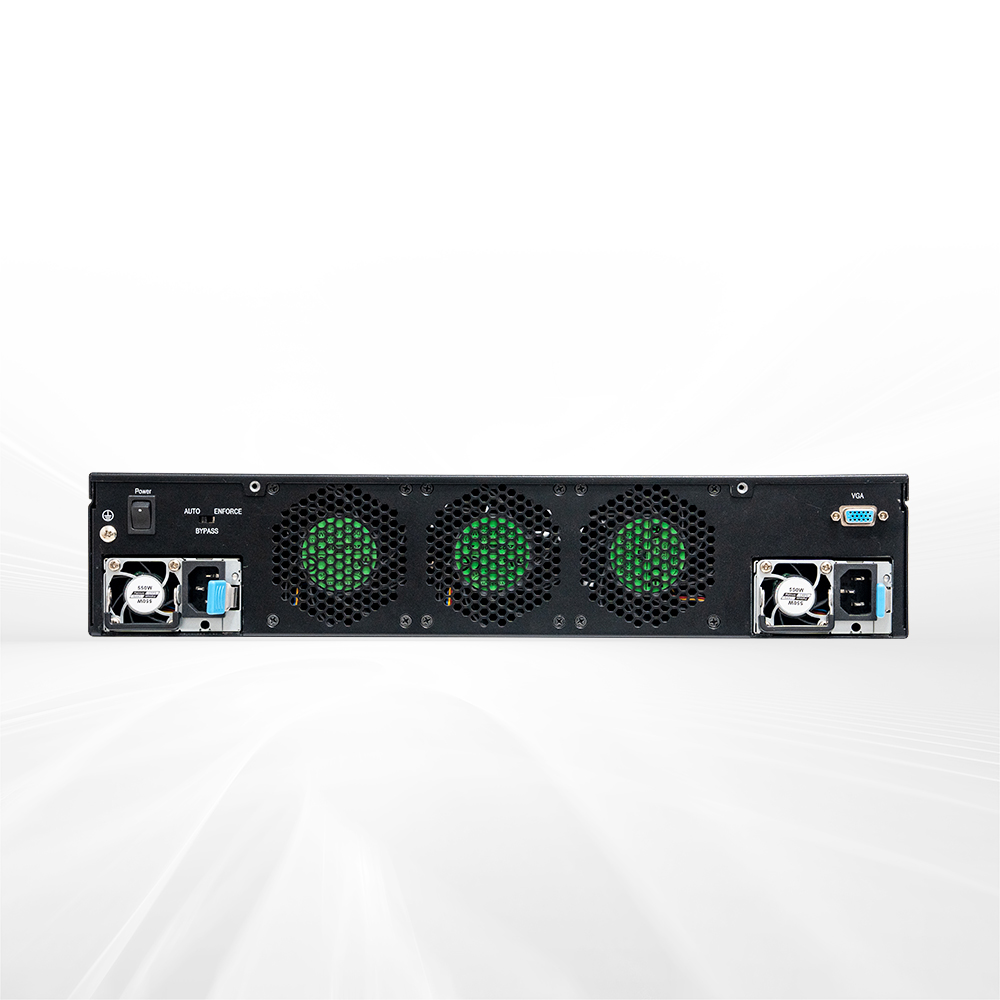

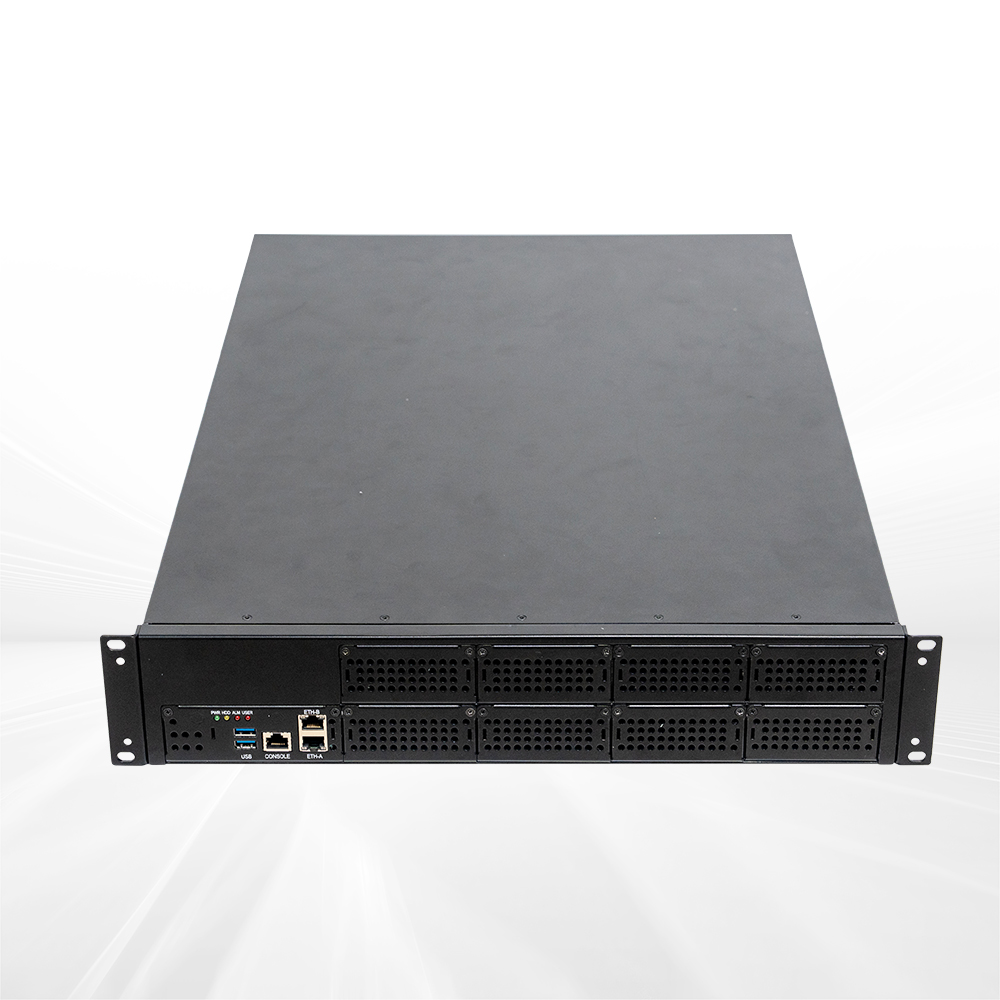

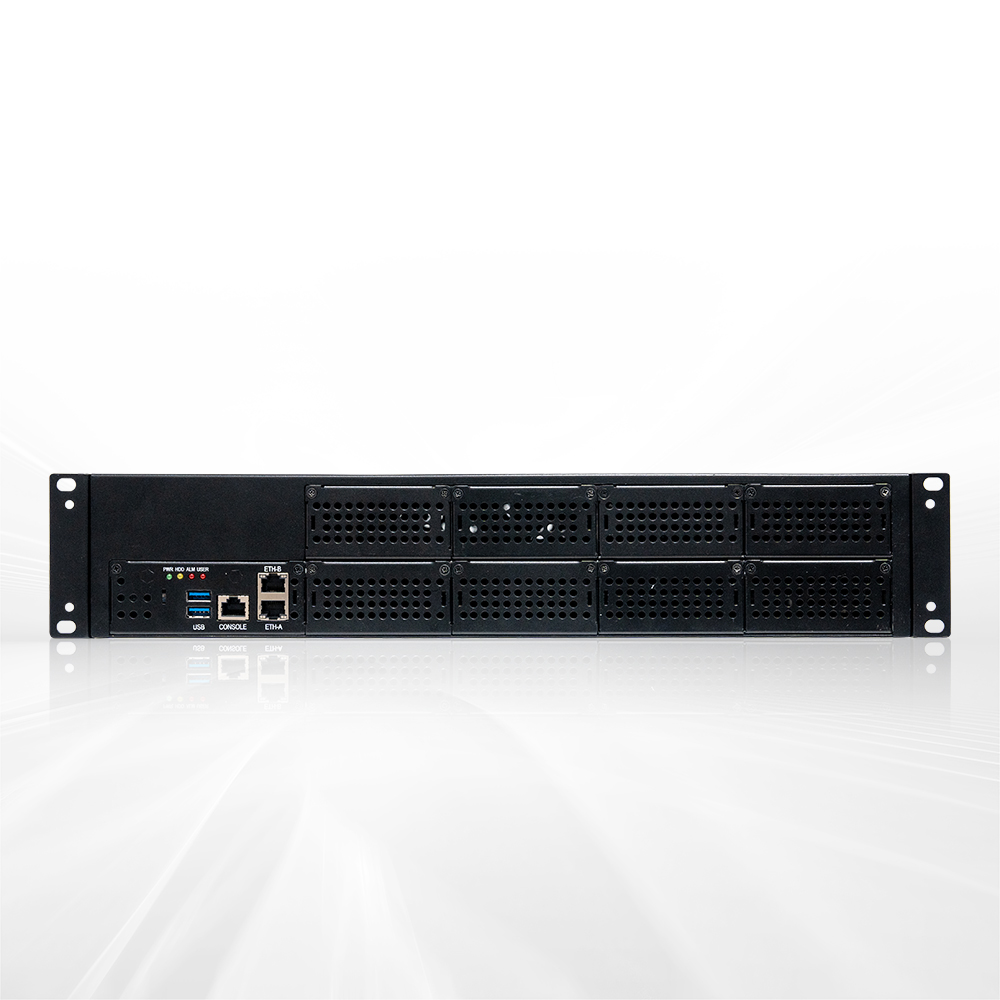

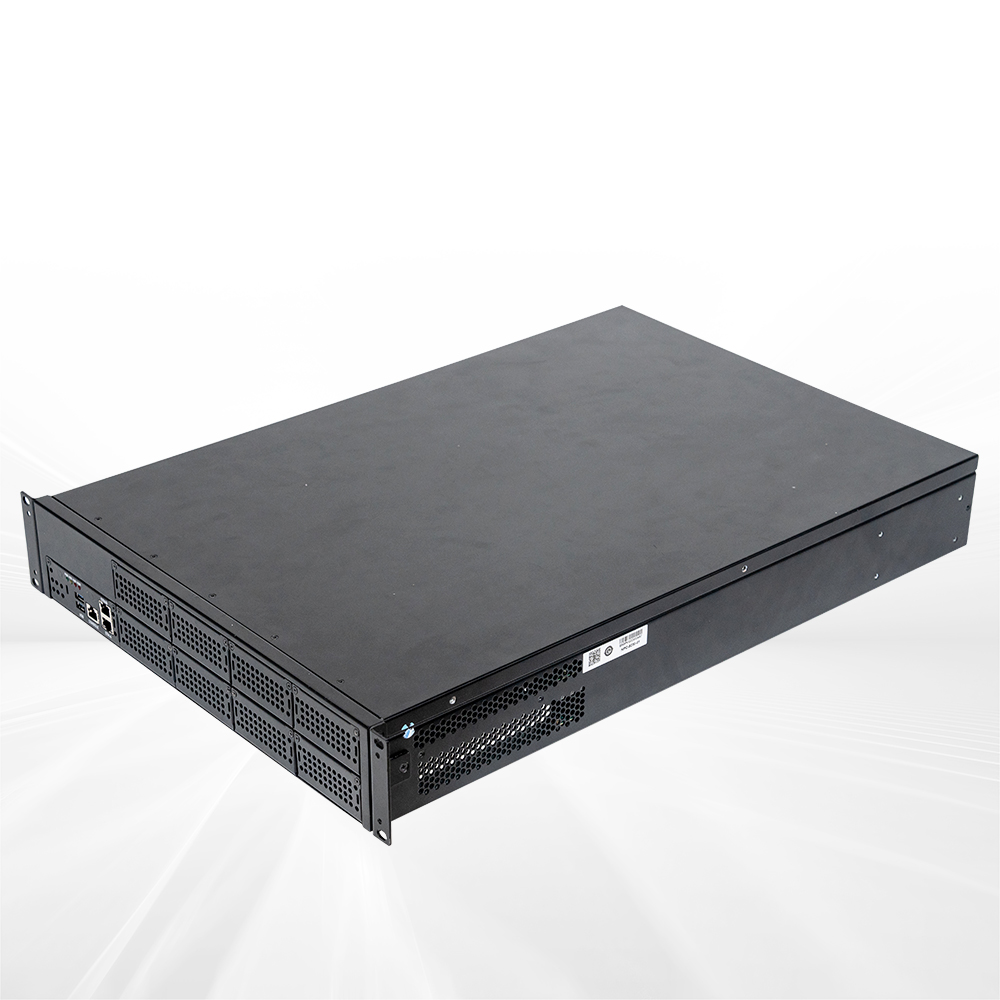

NPC-8230 is a standard 2U rack mount high-performance network application platform with stronger CPU computing power, greater network throughput capacity and richer LAN port configurations. The complete PC adopts Intel® C621/C627 chip and supports 2 Intel® LGA3647 packaged Xeon Processor Scalable Family CPUs. It adopts a modular structure design supporting 8 × ENS module. By configuring the network module, it can support up to 64 ×Gigabit LAN port or 32 × 10 Gigabit optical port, ensuring efficient network data throughput. The product can be widely used in network security application fields such as new-generation high-end application delivery, enterprise firewalls, load balancing, UTM, IDS, IPS and VPN.
| Item | Description | |
|---|---|---|
| 系统配置 | 处理器 | 支持2颗Intel® Xeon Processor Scalable Family CPU (Skylake SP / Cascade Lake SP) |
| 芯片组 | Intel®C621/C627 | |
| 内存 | 20条DDR4内存插槽，可支持 RDIMM/LRDIMM内存，最大内存容量2560GB | |
| 存储接口 | SATA | 支持4个SATA3.0接口，4个ENS扩展机型支持3个硬盘位，8个ENS扩展机型支持1个3.5英寸硬盘位 |
| MSATA | 1个MSATA接口，8个ENS扩展机型可选1个M.2 KEY-B | |
| M.2 | 1（KEY-B M.2 2280， 选配） | |
| IO 接口 | USB | 前置2个USB3.0，2个为内置USB3.0插针 |
| COM | 1个RJ45,一个内置RS-232插针 | |
| 显示接口 | 1个VGA口 | |
| 网络芯片 | I210/I211 | |
| 网口 | 2个10/100/1000Mbps RJ-45调测网口，4个万兆光口（选配），一个IPM（I 选配） | |
| 扩展总线 | PCI-E | 2个PCIE 8X或1个PCIE 8X + 1个PCIE 16X |
| ENS | 4个ENS槽或8个ENS槽 4个ENS扩展机型，支持3个硬盘位； 8个ENS扩展机型，支持1个3.5英寸硬盘位，同时支持1个M.2 KEY B |
|
| 搭配主板 | NET-2816系列 | |
| 工作环境 | 温度：0℃-40℃/湿度：10%-95%（非凝结状态） | |
| 储存环境 | 温度：-20℃-70℃/湿度：10%-95%（非凝结状态） | |
| 电源 | 800W ATX 冗余电源（支持单电源或冗余电源） | |
| 外形尺寸( 不含挂耳) | NPC-8230-01/04:440mm（宽）×88mm（高）×653mm（深） NPC-8230-02/03:440mm（宽）×88mm（高）×659mm（深） |
|
| 支持操作系统 | Linux (CentOS, Red Hat, Ubuntu)，详细请查阅产品说明书 | |
| 料号 | 型号 | 描述 |
|---|---|---|
| 0010-162371 | NPC-8230-01/4210R*2/16G*2/2T/550W redundant | Standard 2U rack-mounted chassis NPC-8230-01/ C621 platform/2*4210R CPU/2*16G DDR4 / 2*Gigabit electrical port/ 1*2T /8 × ENS slot/2 × PCIE slot/550W redundant power supply/2U network system platform |
| 0010-163451 | NPC-8230-02/4210R*2/16G*2/2T/550W redundant | Standard 2U rack-mounted chassis NPC-8230-02/C621 platform/2*4210R CPU/2*16G DDR4/2*Gigabit electrical port/1*2T/4 × ENS slot/2 × PCIE slot/550W redundant power supply/2U network system platform |
| 0020-066241 | NPC-8230-03/550W redundant power supply | Standard 2U rack-mounted chassis NPC-8230-03/Intel C621 platform/supporting two Xeon Scalable CPUs/20×DDR4 memory slots/4 × ENS slot/2 × PCIE slot/4 × 3.5-inch hard disk/550W redundant power supply |
| 0020-066221 | NPC-8230-04/550W redundant | Standard 2U rack-mounted chassis NPC-8230-03/Intel C621 platform/supporting two Xeon Scalable CPUs/20 × DDR4 memory slot/8 × ENS slot/2 × PCIE slot/1 × 3.5-inch hard disk/550W redundant power supply |
