Network Application Platform

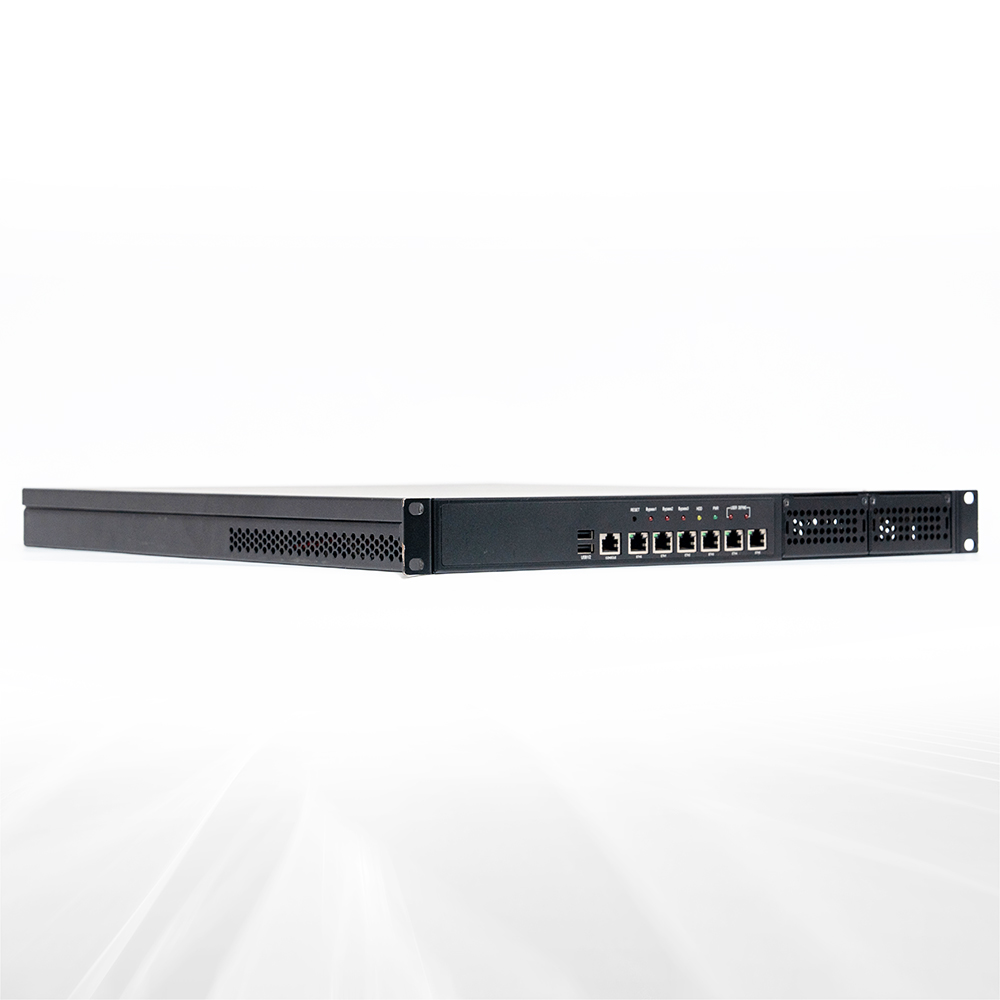

NPC-8128E-02 is a standard 1U 19" rack-mounted mainstream network application platform, which adopts Intel® C236 chip and supports Intel® LGA1151 packaging i3, i5, i7 Intel 6th/7th Gen processors, E3-1200 V5 and V6, with 32GB DDR4 memory. The platform adopts a modular design. By configuring network modules, the complete PC can support up to 22 high-performance Gigabit LAN ports and 11 groups of bypass. NPC-8128E-02 can be widely used in network security application fields such as mainstream firewalls, antivirus walls, VPNs, network acceleration, gatekeepers and application delivery.
Item | Description | |
---|---|---|
System Configuration | Processor | Intel®LGA1151 packaging Xeon E3-1200 v5、v6,i7、i5、i3 Intel Core 6th/7th Gen processors and some sub 65W i7、i5、i3 Intel Core 8/9th Gen processors |
Chipset | Intel C236 | |
Memory | 2 × DDR4 memory slot, supporting un-buffered ECC memory or Non-ECC memory, and the total capacity of the complete PC can reach 32GB | |
Storage Port | SATA | Supports 4 x SATA port, and standard configuration of 1 x hard disk bay (3 x SATA3.0 port free) |
I/O Port | USB | 2 x USB3.0 port (front); with 2 x USB2.0 pin and 1 x USB3.0 pin built-in |
COM | 1 x RJ45 Console port (front) and 1 x RS232 serial port pin (built-in) | |
GPIO | Supports 8-channel digital GPIO | |
Display Port | 1 x VGA port | |
Network port | Network Chip | Intel® I210/I211 |
LAN Port Type | Onboard 6 x Gigabit electrical port | |
Expansion Bus | PCIE | Onboard 1 x PCIE X8 standard slot |
ENS | 2 x ENS network card expansion slot (optional) | |
Matched Motherboard | NET-1828VD6N series | |
Working Environment | Working temperature: 0°C -40°C Storage humidity: 10%-90% (non-condensing state) |
|
Storage Environment | Storage temperature: -20°C-70°C; Storage humidity: 10%-90% (non-condensing state) |
|
Overall Dimensions | 440mm(W)×43.6mm(H)×500mm(D) | |
Power supply | 250W ATX single power supply Note: When redundant power supply is selected, the chassis needs to be deepened by 50 mm |
|
Operating Systems | Linux OS (kernel version 2.6 and above). Please refer to the product manual of EVOC for details |
料号 | 型号 | 描述 |
---|---|---|
0010-189451 | NPC-8128E-02/I3-6100/8G/1T/3BP/250W/with panel | Standard 1U rack-mounted Intel C236 platform complete PC/I3-6100 CPU/8GB memory/1T hard disk/onboard 6 x electrical port/3 groups of BYPASS/supporting 2 x ENS Network card expansion slot/with LCM display module/provided with NET-1828VD6N(E)-01 motherboard/250W single power supply |
0010-189461 | NPC-8128E-02/I3-8100/8G/1T/2BP/250W | Standard 1U rack-mounted Intel C236 platform complete PC/I3-8100 CPU/8GB memory/1T hard disk/onboard 6 x electrical port/2 groups of BYPASS/2 x ENS network card Expansion slot/provided with NET-1828VD6N(E)-03 motherboard/250W single power supply |
0010-189471 | NPC-8128E-02/I3-6100/8G/1T/0BP/250W | Standard 1U rack-mounted Intel C236 platform complete PC/I3-6100 CPU/8GB memory/1T hard disk/onboard 6 x electrical port/0 groups of BYPASS/supporting 2 x ENS Network card expansion slot/provided with NET-1828VD6N(E)-05 motherboard/250W single power supply |
