Network Application Platform

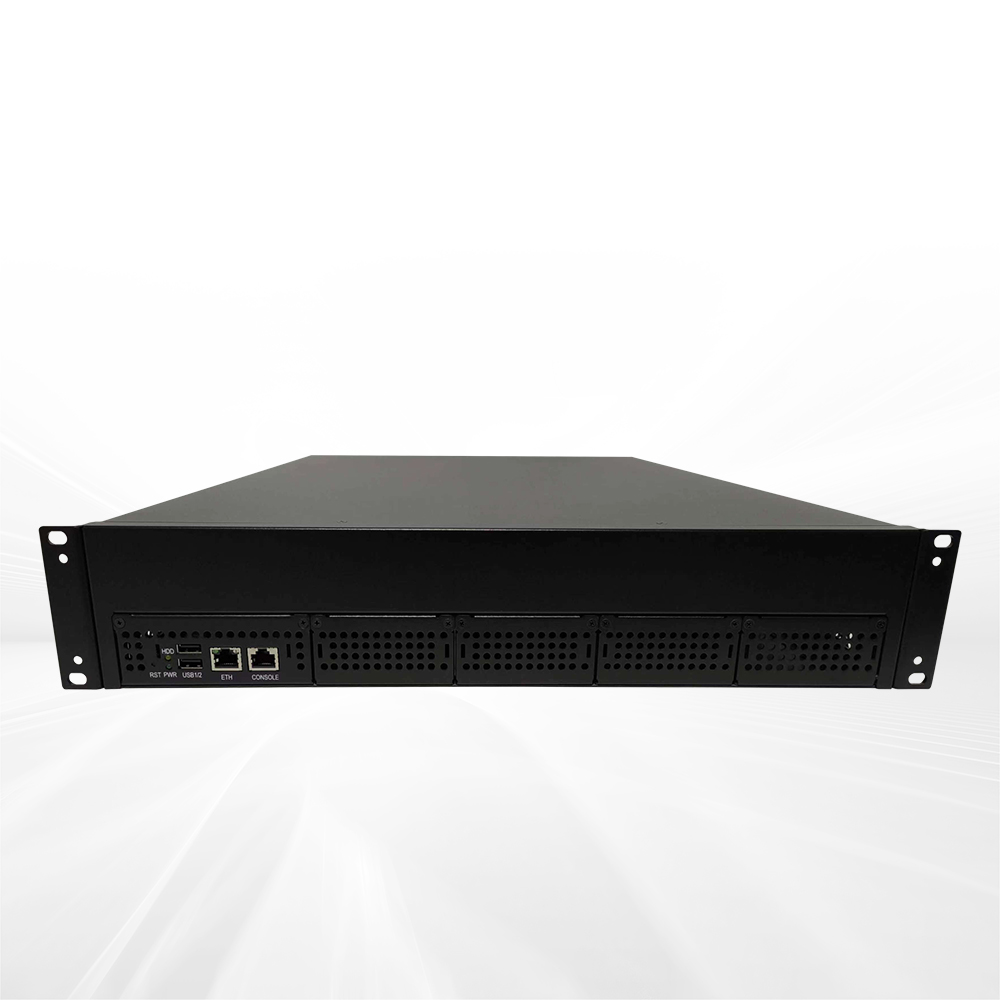

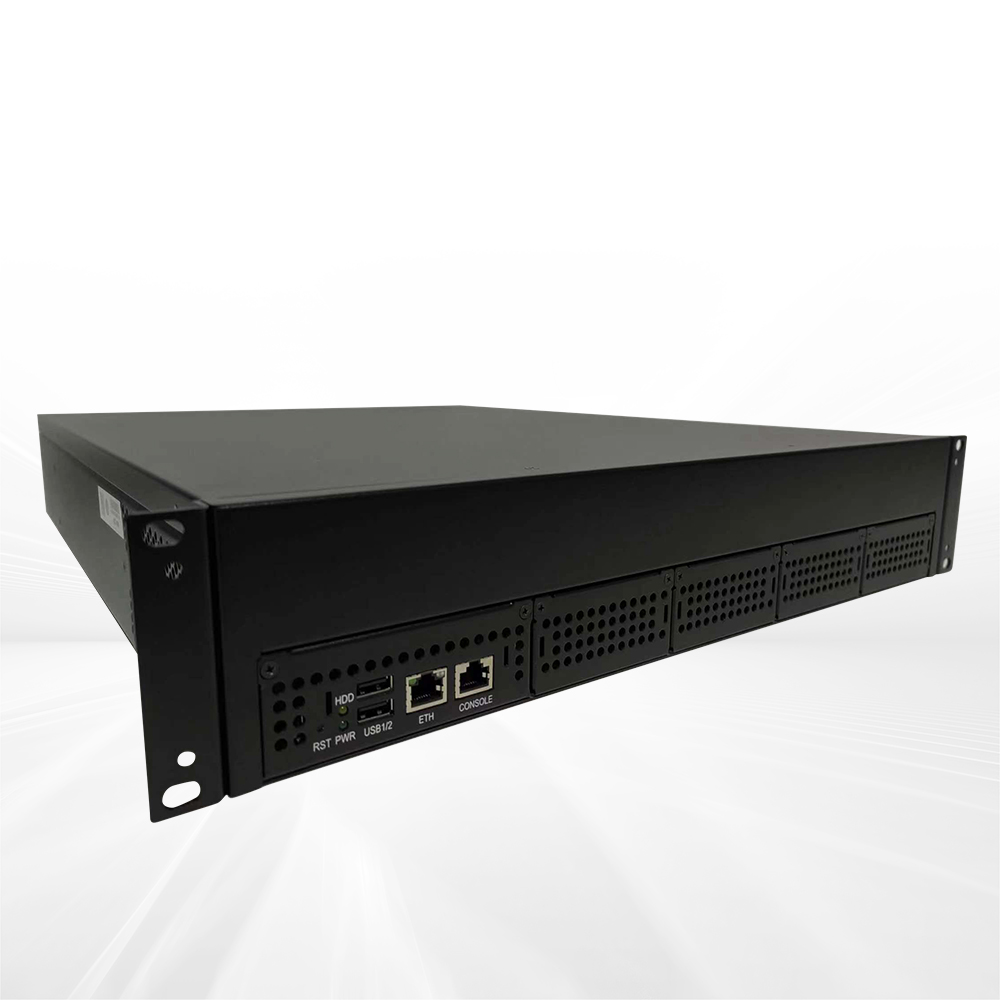

NPC-8208B is a standard 2U 19" rack-mounted network application platform, which adopts Intel® C236 chipset and supports intel® LGA1151 packaging Sky Lake or Kaby Lake 6th/7th Gen processors. The total memory capacity of the complete PC can reach 64GB, and it is compatible with a single power supply, redundant power supply or DC power supply. The platform adopts a modular design. By configuring network modules, it can support up to 32 high-performance Gigabit LAN ports and 16 groups of bypass.
NPC-8208 product can be widely used in high-end network security application fields such as enterprise firewalls, enterprise antivirus walls, load balancing and application delivery.
Item | Description | |
---|---|---|
系统配置 | 处理器 | 支持LGA1151封装i3、i5、i7 Core 6、7代处理器、Xeon E3-1200 v5、v6系列 |
芯片组 | Intel C236 | |
内存 | 4条DDR4内存插槽,可支持un-bufferedECC内存或者Non-ECC内存,整机总容量64GB | |
存储器 | SATA | 支持3个SATA 3.0 接口,标配1个硬盘位(空闲2个SATA3.0接口) |
IO接口 | USB | 2个USB2.0(前置接口),4个USB插针(内置) |
COM | 1个RJ45形式Console口(前置接口),1个RS232串口插针(内置) | |
GPIO | 支持8路数字GPIO | |
显示接口 | 1个VGA口 | |
网口 | 网卡芯片 | Intel® I210/I211 |
网口类型 | 1个千兆电口 | |
扩展总线 | PCIE | 板载1个PCIE 8X槽(与ENS1槽资源复用) |
ENS | 4个ENS拓展槽(ENS1与PCIE复用) | |
搭配主板 | NET-1825VDN(B)系列 | |
工作环境 | 温度:0℃~40℃ 湿度:10%~ 90%(非凝状态) |
|
储存环境 | 温度:-20℃-70℃ 湿度:10%-90%(非凝结状态) |
|
产品尺寸 | 440mm(W)*88mm(H)*550mm(D) | |
电源 | 支持350W冗余交流电源(可选250W单电源) | |
操作系统 | Linux OS系统(内核版本2.6以上),详细请查询研祥产品说明书 |
料号 | 型号 | 描述 |
---|---|---|
0010-190661 | NPC-8208B/NET-1825/250W single power supply | Standard 2U rack-mounted network application barebone system/onboard 1 x Gigabit electrical port/4*ENS network card expansion slot/1*PCIE X8 slot (occupying one ENS slot)/250W single power supply |
0010-190671 | NPC-8208B/NET-1825/350W redundant power supply | Standard 2U rack-mounted network application barebone system/onboard 1 x Gigabit electrical port/4*ENS network card expansion slot/1*PCIE X8 slot (occupying one ENS slot)/350W redundant / single power supply |
0010-190681 | NPC-8208B/NET-1825/I3-6100/8GB/1T/250W single power supply | Standard 2U rack-mounted network application platform complete PC/1*I3-6100 CPU/1*8GB DDR4 memory/1*1T HDD/onboard 1 x Gigabit electrical port/4*ENS network card expansion slot/1*PCIE X8 slot (occupying one ENS slot)/250W single power supply |
0020-067551 | NPC-8208B/NET-1825/I7-6700/8GB/1T/350W redundant power supply | Standard 2U rack-mounted network application platform complete PC/1*I7-6700 CPU/1*8GB DDR4 memory/1*1T HDD/onboard 1 x Gigabit electrical port/4*ENS network card expansion slot/1*PCIE X8 slot (occupying one ENS slot)/350W redundant power supply |
0020-067541 | NPC-8208B/I210/E3-1275V5/8GB/1T/350W redundant power supply | Standard 2U rack-mounted network application platform complete PC/1*E3-1275V5 CPU/1*8GB DDR4 memory/1*1T HDD/onboard 1 x Gigabit electrical port/4*ENS network card expansion slot/1*PCIE X8 slot (occupying one ENS slot)/350W redundant power supply |
