EPE-1816(C)
6~9th Gen/2xDDR4/2xLAN/2xDisplay

EPE Bus Full-Size SBC (Compatible with PICMG 1.3 Bus Standard)

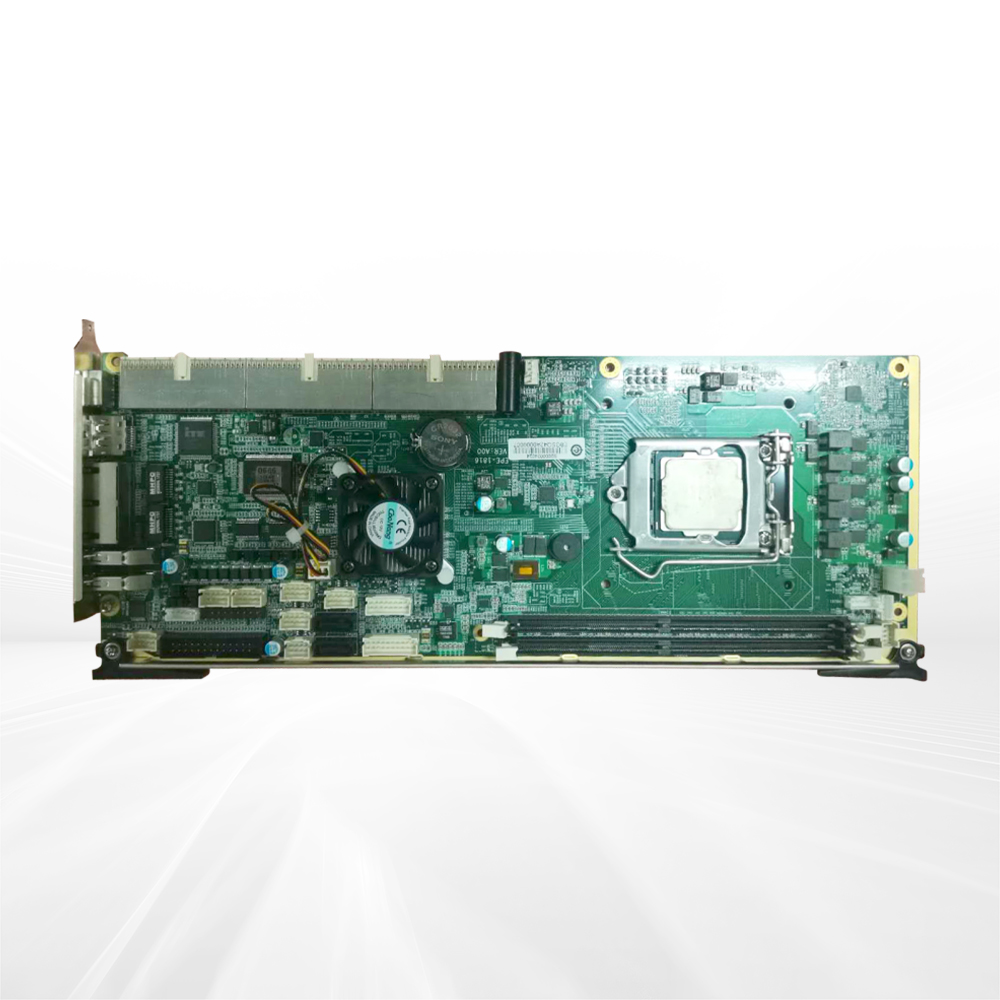

EPE-1816 is a full-length CPU card developed based on Intel H110 platform and conforming to PICMG1.3 bus standard. It supports the 6/7/8/9th Gen processors packaged in LGA1151 and 2 × 288Pin DDR4 memory slot, with a maximum memory capacity of 64GB; it has 2 onboard 10/100/1000Mbps LAN ports and features high performance and long supply cycle. It can be widely used in petrochemical engineering, automatic control, automatic detection, machine vision, safety monitoring, intelligent transportation, communication and other fields.

Product Features

Supports 2 × memory slot

EPE hardened bus

Supports Intel 6/7/8/9th Gen processors

Product Specifications

Item Description
Processor Supports 6th and 7th Gen processors in LGA1151 package
Supports quad-core 91W/eight-core 35W 8th and 9th Gen processors in LGA1151 package
Chipset H110
Memory 2 × DDR4 2133/2400/2666/3200MHz DIMM memory slot, a single memory supporting 32GB, the two supporting up to 64GB
Display Port Supports any two display ports among DP, VGA and DVI-D
DP standard onboard port, VGA and DVI-D are led out by wires with keys in the form of pins
Audio Supports MIC-IN/LINE-IN/LINE-OUT
LAN 2 × 10/100/1000Mbps LAN port, LAN1 supports LAN wakeup
Storage 4 × SATA
I/O Port 10 × USB2.0
2 × serial port, supporting RS-232/RS-422/RS-485 mode selection
1 × parallel port
1 × PS/2 port
1 × 8-channel digital I/O port
Bus Expansion EPE bus expansion, which can be equipped with EPE series backplane. H110 platform does not support ISA expansion slot
Power Supply ATX power supply
Working Environment -10℃~60℃
Storage Environment -40℃~85℃
Constant Damp Heat 40°C 95%RH, non-condensing
Overall Dimensions 340.7mm (L) × 129.7mm (W)
Operating System Supports WIN7 (Intel 6/7th Gen processors), WIN10, WIN11 (Intel 8/9th Gen processors) and high kernel version LINUX system

Ordering Information

Part No. Model Description
0030-024311 EPE-1816(C) PICMG 1.3 standard full-length card/H110 platform/supports Intel LGA1151 pin 6/7/8/9th Gen processors/2 × DDR4 memory slot/2 × Gigabit LAN port/4 × SATA/10 × USB2.0/2 × serial port/supports any two display ports among DP, VGA and DVI-D/1 × LPT Note: H110 platform does not support ISA expansion slot
