EC3-1820

3.5" single board

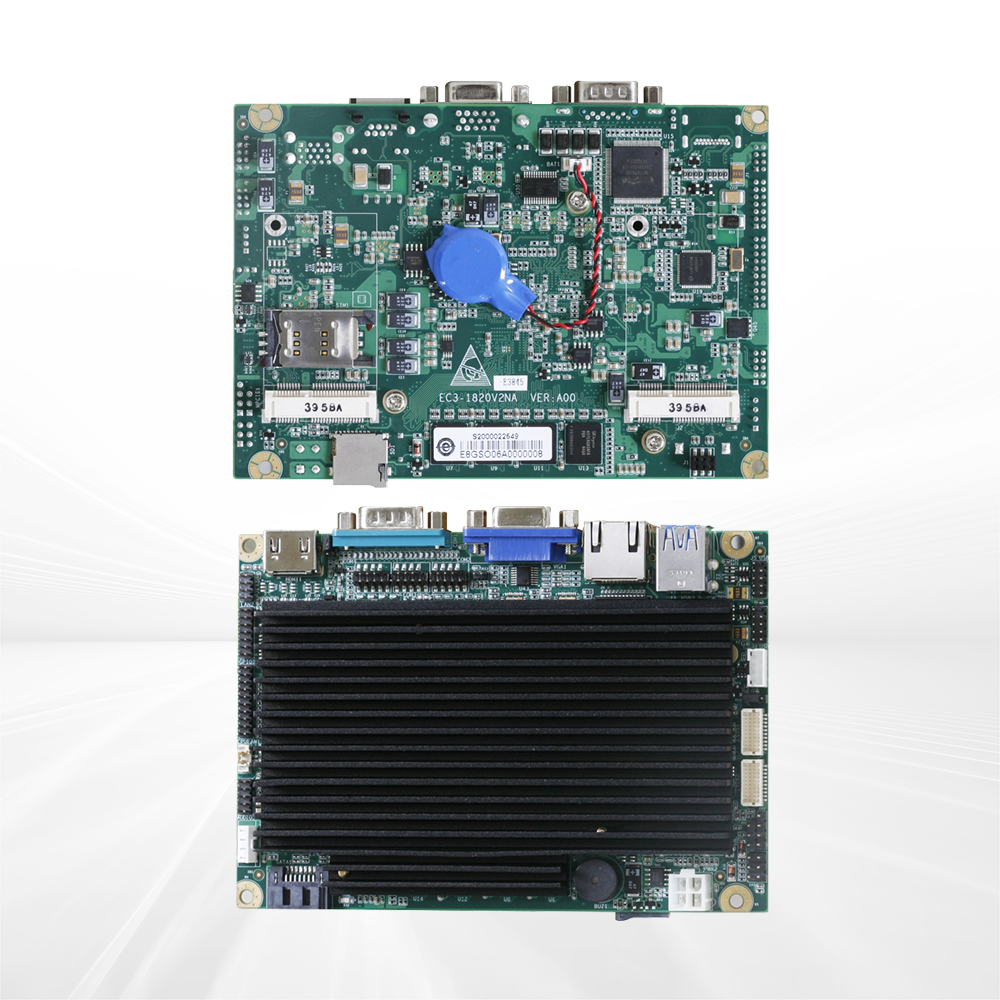

EC3-1820V2NA is a low-power embedded motherboard developed based on the Intel Bay Trail platform that complies with the 3.5 "single board specification. This product adopts Intel's low power consumption solution, and its small size design is suitable for mechanical control, electricity, medical equipment and various instruments.

Product Features

Optional wide-temperature environment

Multiple IO ports

Onboard low power consumption processor

Product Specifications

Item Description
Processor Onboard E3845, J1900 quad-core processors
Chipset BayTrail
Memory Onboard 4G memory
Display Port VGA、HDMI、LVDS
Audio Supports MIC-IN/LINE-IN/LINE-OUT
LAN 2 × 10/100/1000Mbps LAN port
Storage 1 × SATA, 1 × mSATA (optional), 1 × Micro SD card port (not supported by J1900)
I/O Port 4 × serial port, COM1 and COM2 support RS-232/RS-422/RS-485 mode selection
6 × USB2.0
2 × 8-channel digital I/O port
1 × PS/2 port
Bus Expansion 1 × Mini-pcie port
Power Supply Single 12V power supply
Working Environment 0°C~60°C (standard configuration), expandable temperature range: -40°C~85°C (optional)
Storage Environment -40℃~85℃
Constant Damp Heat 40°C 95%RH, non-condensing
Overall Dimensions 146.1mm (L) ×101.6mm (W)
Operating System WIN7, WIN8 and LINUX

Ordering Information

料号 型号 描述
0030-023731 EC3-1820V2NA(D)-E3845 3.5" single board/onboard E3845 quad-core processor/onboard 4GB DDR3 memory/VGA, HDMI, LVDS/1 × PS2 port/2 × 8-channel GPIO/6 × USB2.0/1 group of audio ports/2 × LAN port/1 × M-SATA/1 × SD/1 × SATA/4 × serial port/1 × MiniPCIE port
0030-023741 EC3-1820V2NA(D)-J1900 3.5" single board/onboard J1900 quad-core processor/onboard 4GB DDR3 memory/VGA HDMI LVDS/1 × PS2 port/2 × 8-channel GPIO/6 × USB2.0/1 group of audio ports/2 × LAN port/1 × M-SATA/1 × SATA/4 × serial port/1 × MiniPCIE port
