3.5" single board

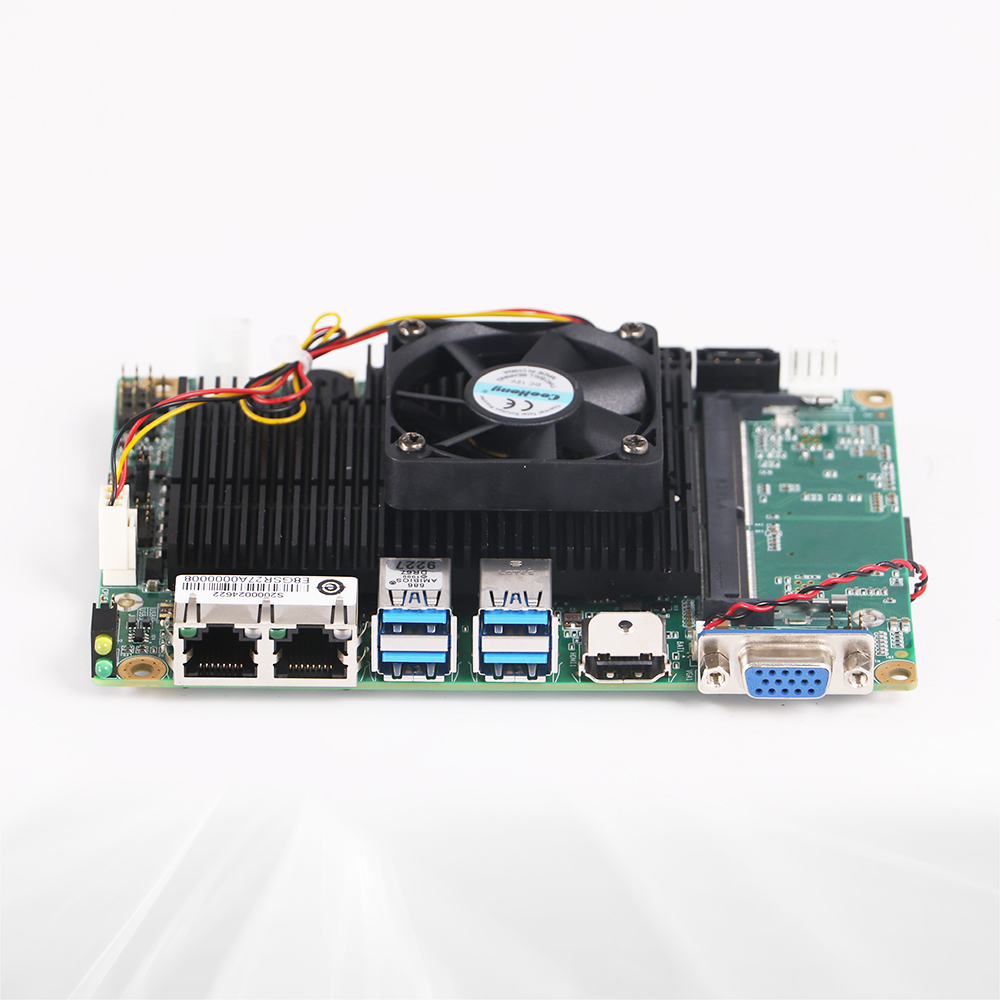

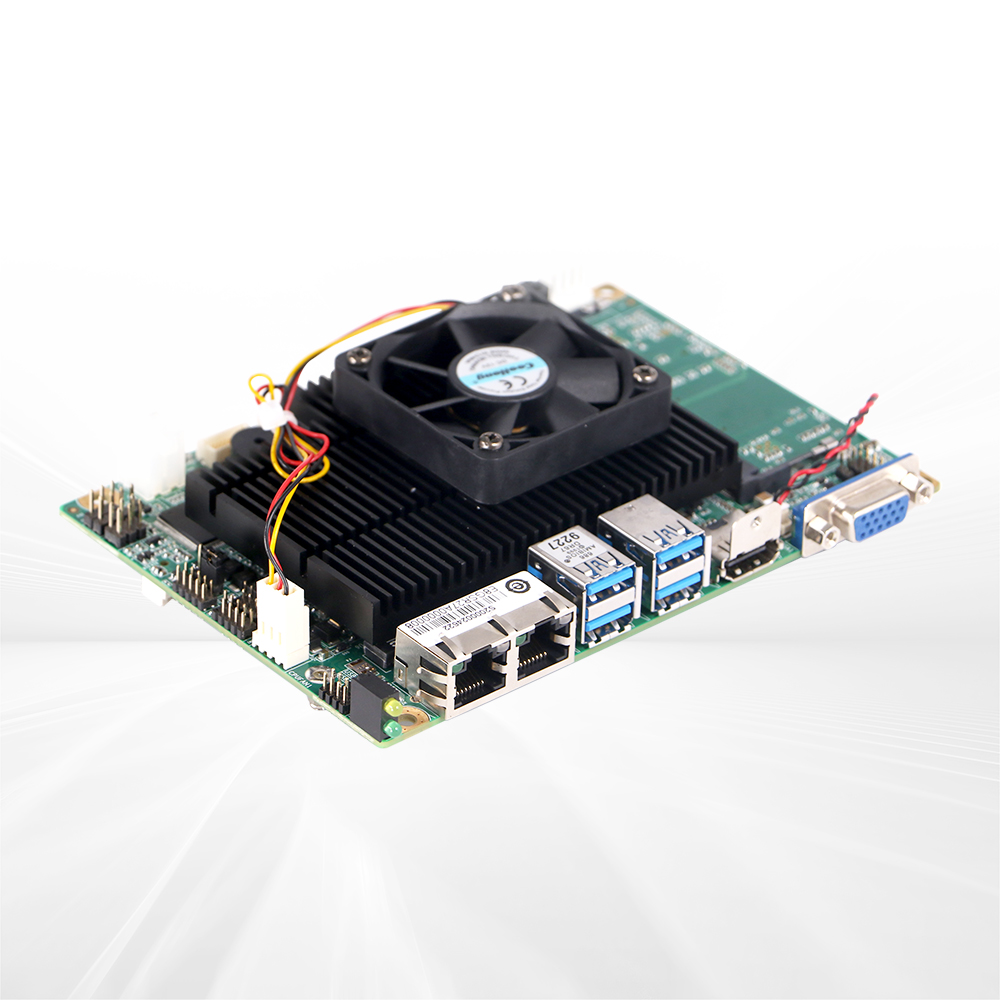

EC3-1821 is a standard 3.5-inch motherboard with onboard Intel Skylake-U series processors of high performance and low power consumption. It has abundant IO ports, supports multiple display ports, multiple U ports, multiple serial ports, 1 × Mini-pcie port, 1 × SIM card slot, 1 × M-Sata and 1 × custom expansion port. It is widely used in machine vision, intelligent robots, medical treatment, automation and other industries.
Item | Description | |
---|---|---|
Processor | Onboard I7-6600U 2.6Ghz, I5-6300U 2.4Ghz, I3-6100U 2.3Ghz and 3955U 2.0Ghz processors | |
Chipset | SkyLake-U | |
Memory | 1 × 260Pin DDR4 memory slot, supporting up to 16G | |
Display Port | VGA, HDMI, LVDS | |
Audio | Supports MIC-IN/LINE-IN/LINE-OUT | |
LAN | 2 × 10/100/1000Mbps LAN port | |
Storage | 2 × SATA3.0 port and 1 × mSATA port | |
I/O Port | 2 × serial port, supporting RS-232/RS-422/RS-485 mode selection 4 × USB3.0, 2 × USB2.0 1 × 8-channel digital I/O port |
|
Bus Expansion | 1 × Mini-pcie port 1 × SIM card port 1 × custom expansion port |
|
Power Supply | 12V power supply | |
Working Environment | 0°C~60°C (standard configuration), expandable temperature range: -40°C~85°C (optional) | |
Storage Environment | -40℃~85℃ | |
Constant Damp Heat | 40°C 95%RH, non-condensing | |
Overall Dimensions | 146.1mm (L) ×101.6mm (W) | |
Operating System | WIN7, WIN10 and LINUX |
料号 | 型号 | 描述 |
---|---|---|
0030-022211 | EC3-1821-3955U | 3.5-inch single board/onboard 3955U processor/1 × 260Pin DDR4 memory slot, supporting up to 16G/2 × SATA3.0/1 × M-sata/VGA+LVDS+HDMI/2 × Gigabit LAN port/2 × serial port/1 group of audio ports/4 × USB3.0, 2 × USB2.0/1 × Mini-pcie port/1 × SIM card port/1 × 8-channel digital I/O port/1 × custom expansion port |
0030-022151 | EC3-1821-I36100U | 3.5-inch single board/onboard I36100U processor/1 × 260Pin DDR4 memory slot supporting up to 16G/2 × SATA3.0/1 × M-sata/VGA+LVDS+HDMI/2 × Gigabit LAN port/2 × serial port/1 group of audio ports/4 × USB3.0 2 × USB2.0/1 × Mini-pcie port/1 × SIM card port/1 × 8-channel digital I/O port/1 × custom expansion port |
0030-022221 | EC3-1821-I56300U | 3.5-inch single board/onboard I56300U processor/1 × 260Pin DDR4 memory slot supporting up to 16G/2 × SATA3.0/1 × M-sata/VGA+LVDS+HDMI/2 × Gigabit LAN port/2 × serial port/1 group of audio ports/4 × USB3.0 2 × USB2.0/1 × Mini-pcie port/1 × SIM card port/1 × 8-channel digital I/O port/1 × custom expansion port |
0030-022231 | EC3-1821-I76600U | 3.5-inch single board/onboard I76600U processor/1 × 260Pin DDR4 memory slot supporting up to 16G/2 × SATA3.0/1 × M-sata/VGA+LVDS+HDMI/2 × Gigabit LAN port/2 × serial port/1 group of audio ports/4 × USB3.0 2 × USB2.0/1 × Mini-pcie port/1 × SIM card port/1 × 8-channel digital I/O port/1 × custom expansion port |
