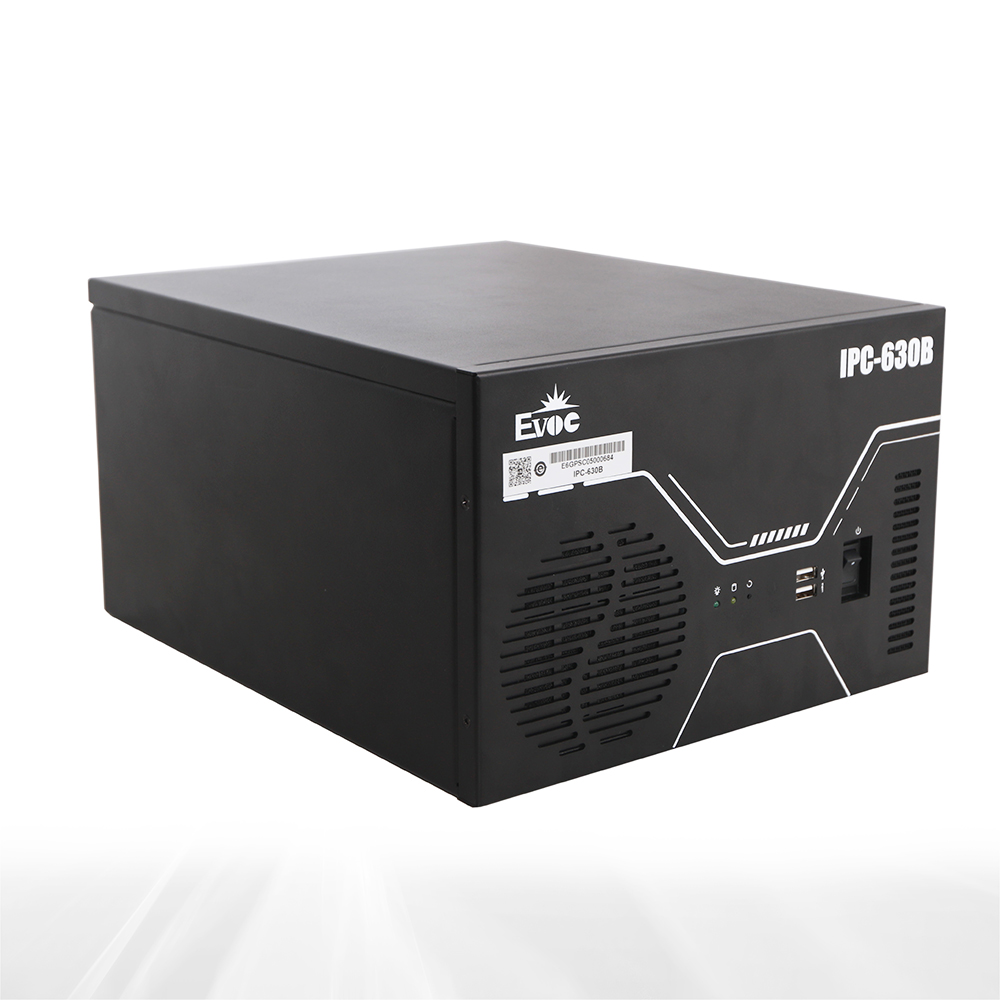

IPC-630B

Small Compact Wall-mounted Complete PC

IPC-630B is a small and compact wall-mounted complete PC, which can be installed with EC9 and ECS series motherboards. It has the characteristics of compact size, high performance and high cost performance. The expansion slot on the single board can be used to directly expand the full-height half-length application card without an adapter board, and it still has good expansion performance under a small size. The chassis adopts a miniaturized design, which can meet the needs of installation in a narrow space. Main application fields: highways, self-service terminals, automatic production and testing.

Product Features

Compatible with installation of standard 3.5-inch hard disk

Supports ATX power supply

Small size, strong expansion

Product Specifications

Item Description
Motherboard Compatible with EC9/ECS series motherboards
Memory 1 x 3.5-inch shock-absorbing hard disk bay and 1 x 2.5-inch shock-absorbing hard disk bay

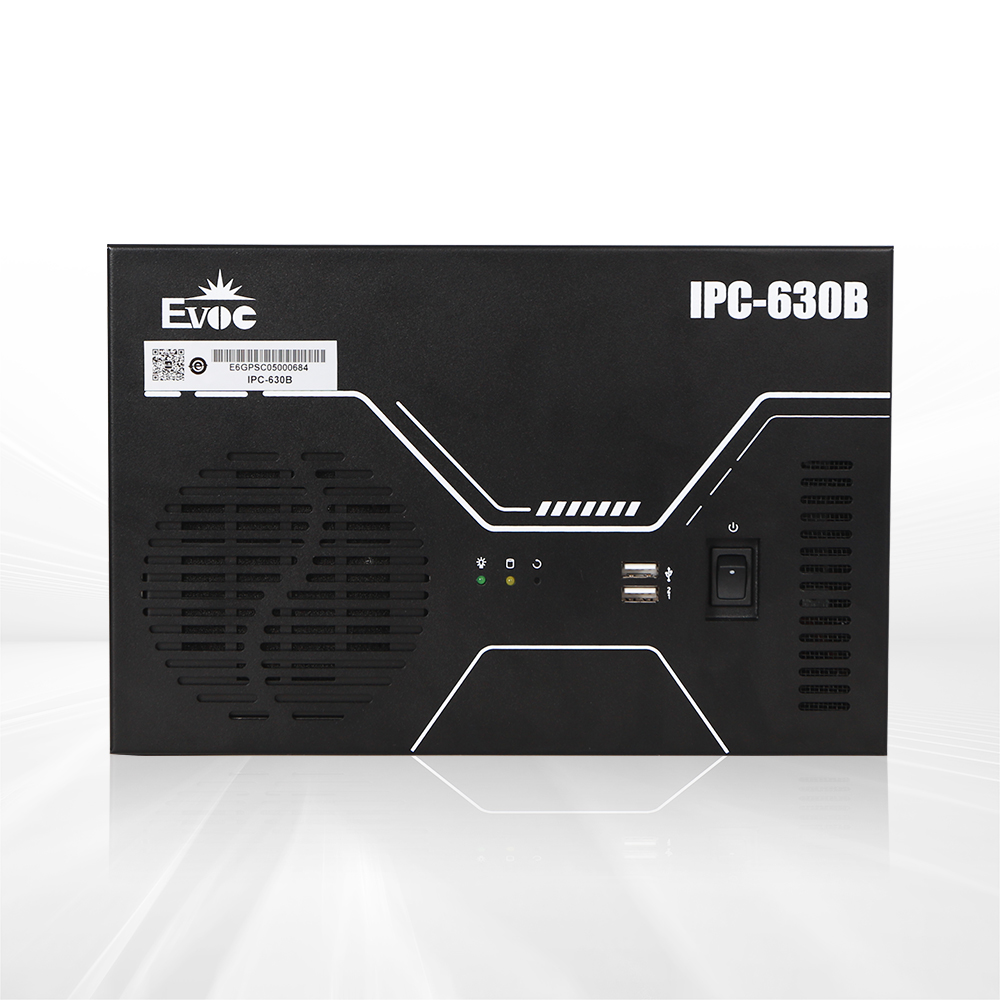

I/O Port Front panel of chassis: power switch, reset switch, power supply and hard disk indicator light, 2 x USB2.0
Power Supply Standard ATX power supply
Working Temperature 0°C~50°C, 5%~90% (non-condensing state)
Storage Temperature -20°C~60°C, 5%~90% (non-condensing state)
Overall Dimensions (W×H×D) 270mm×177mm×330mm
Supported expansion card length ≤270mm
ATX motherboard

Ordering Information

料号 型号 描述

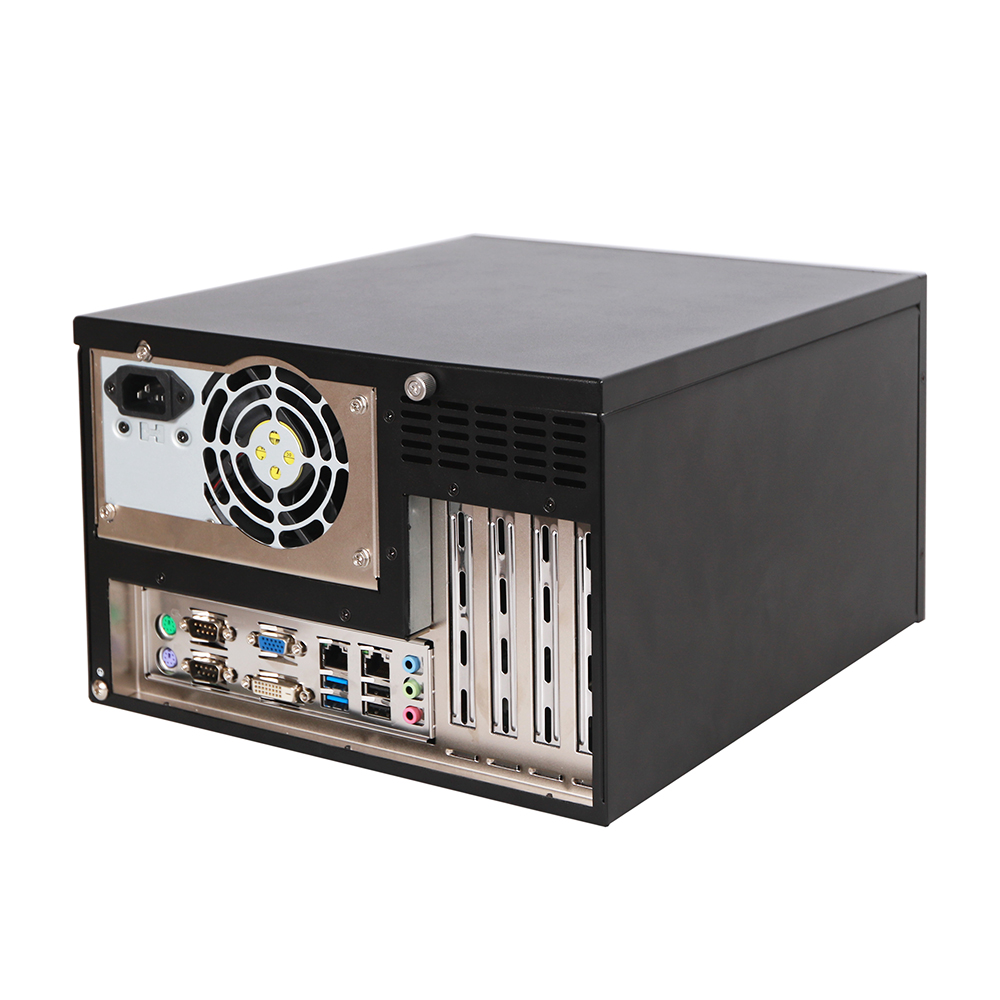

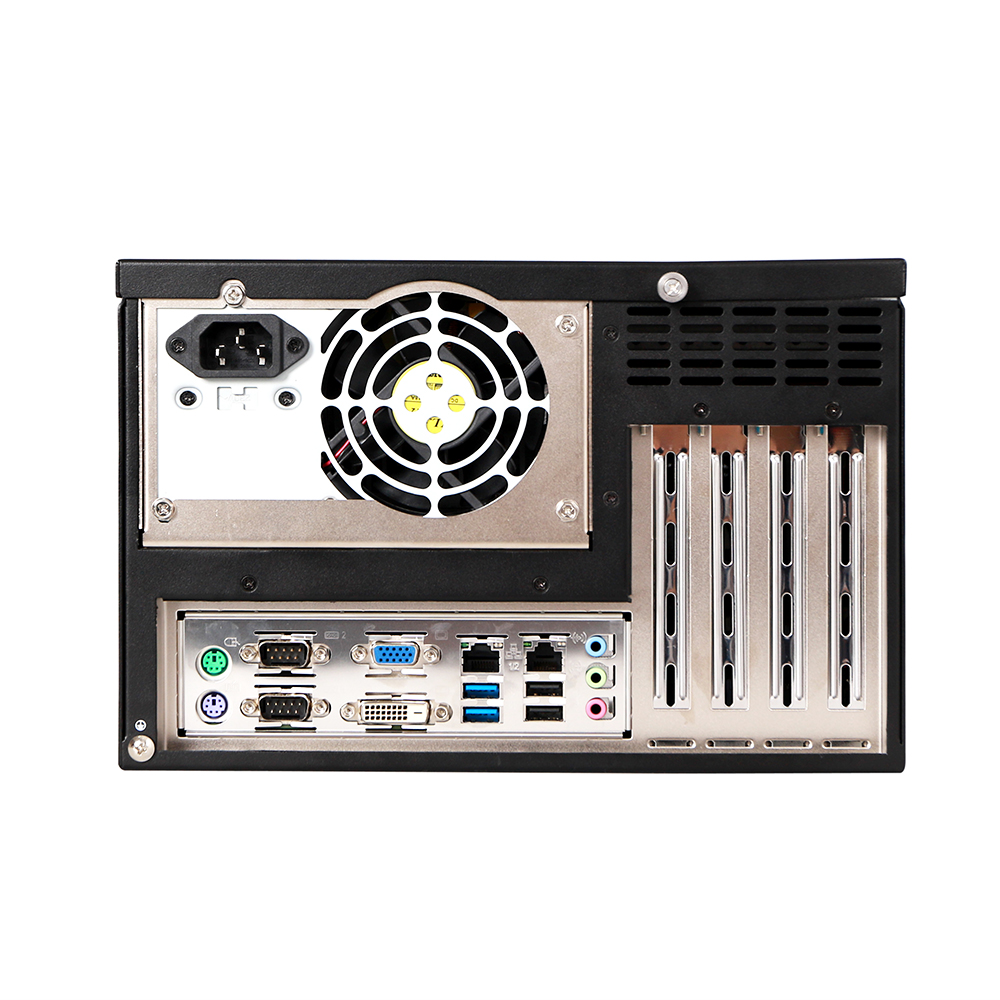

0010-120931 IPC-630B/EC9-1501-ZX/C4580/4G/1T/250W ZX-C4580 processor/4G memory/1T 3.5" hard disk/ATX 250W power supply/IO port: Front 2 x USB2.0, rear 2 x USB2.0/2 x USB3.0/2 x COM, supporting RS232\RS422\RS485 mode/VGA+DVI-D/2 x LAN port/1 x PS/2/1 x audio port: MIC-IN/LINE-IN/LINE-OUT; expansion: 2 x PCI + 1 x PCIEX4 + 1 x PCIEX16
0020-062971 IPC-630B/EC9-1501-ZX/C4580/250W ZX-C4580 processor/no memory/no hard disk/ATX 250W power supply/IO port: Front 2 x USB2.0 rear 2 x USB2.0/2 x USB3.0/2 x COM supporting RS232\RS422\RS485 mode/VGA+DVI-D/2 x LAN port/1 x PS/2 /1 x audio port: MIC-IN/LINE-IN/LINE-OUT; expansion: 2 x PCI + 1 x PCIEX4 + 1 x PCIEX16
