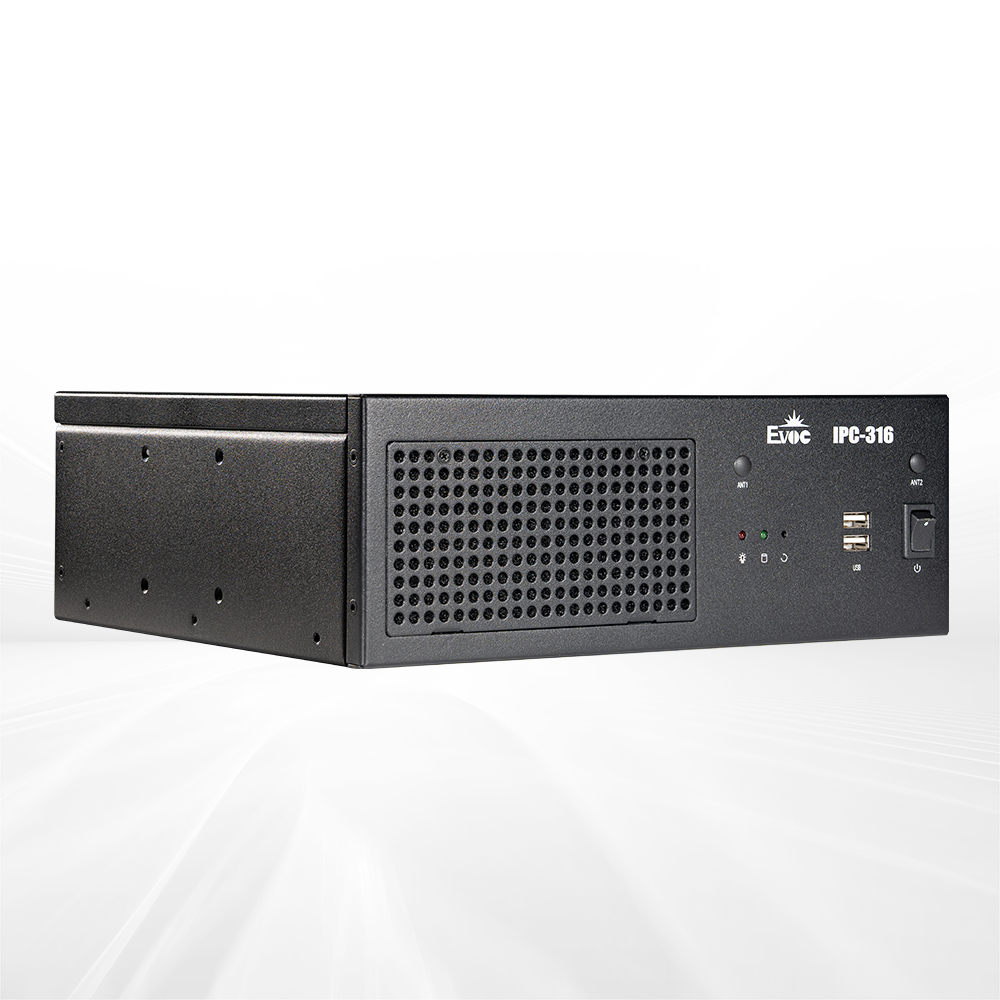

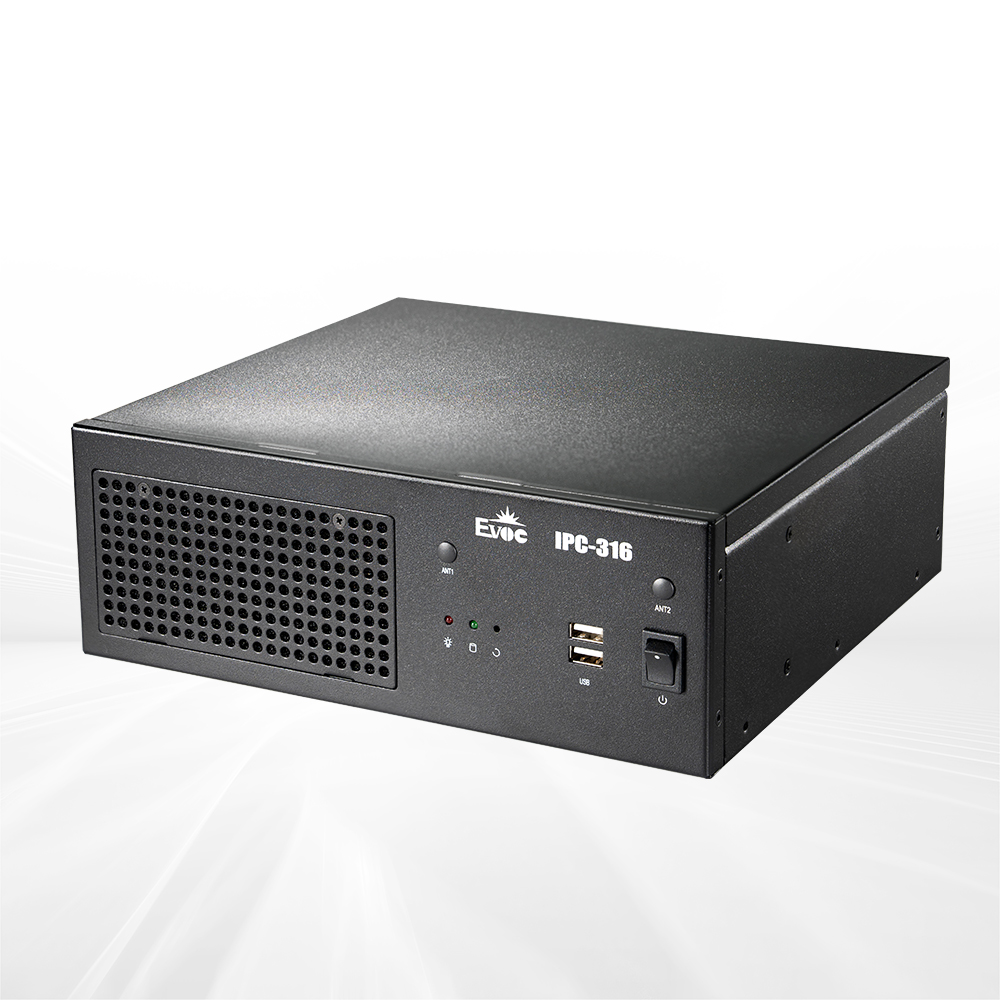

IPC-316

Small Compact Wall-mounted Complete PC

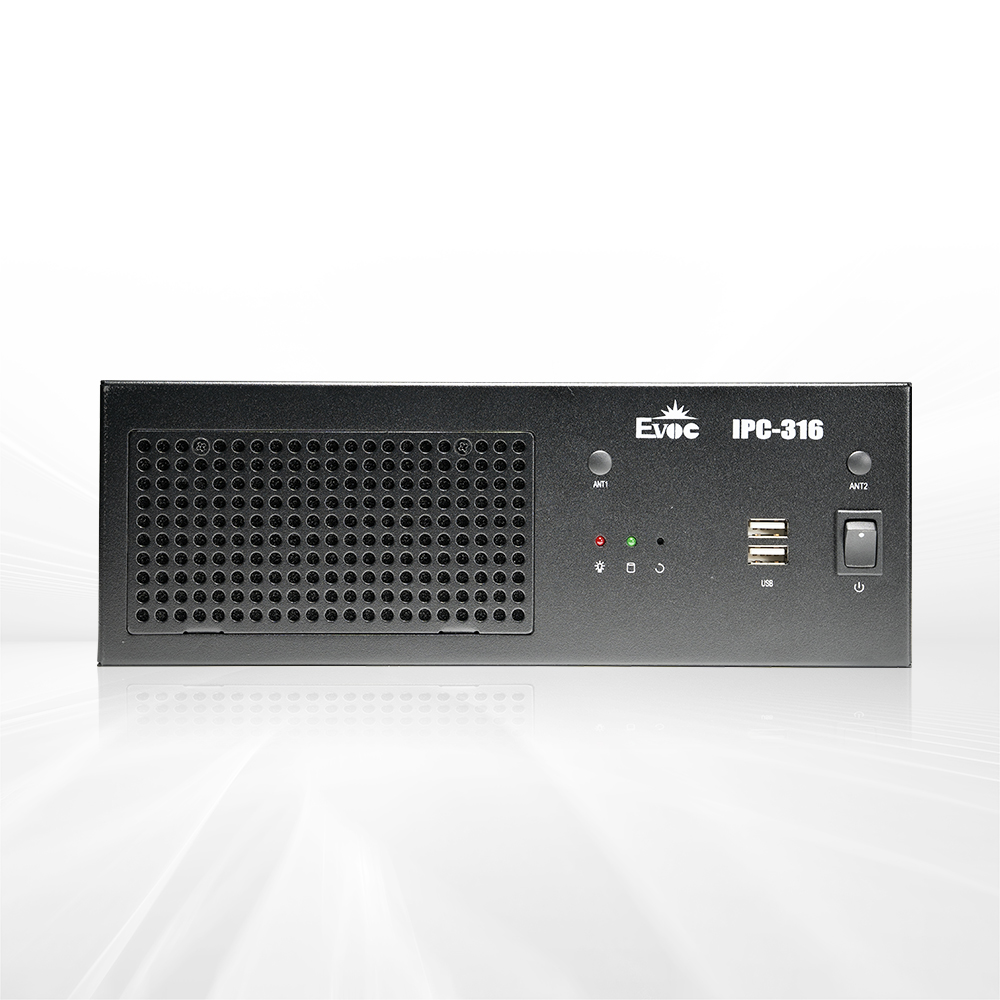

IPC-316 is a small high-performance complete PC, which can be installed in narrow spaces. The complete PC is made of sheet metal, with good heat dissipation and vibration resistance. The front panel is equipped with 2 x USB port, a status indicator light and a power switch, which are convenient for operators to use and observe the running status of the equipment. It can be widely used in industrial automation, 3C, machine vision, finance, security inspection and other fields.

Product Features

Supports 1 x PCIEx16 half-height expansion slot

Multi-serial port and multi-USB port

Tool-free maintenance of the upper cover and replaceable dust screen on the front panel

Small size

Product Specifications

Item Description
Motherboard Supports MiniITX motherboard
Memory 2 x 2.5-inch shock-absorbing hard disk bay

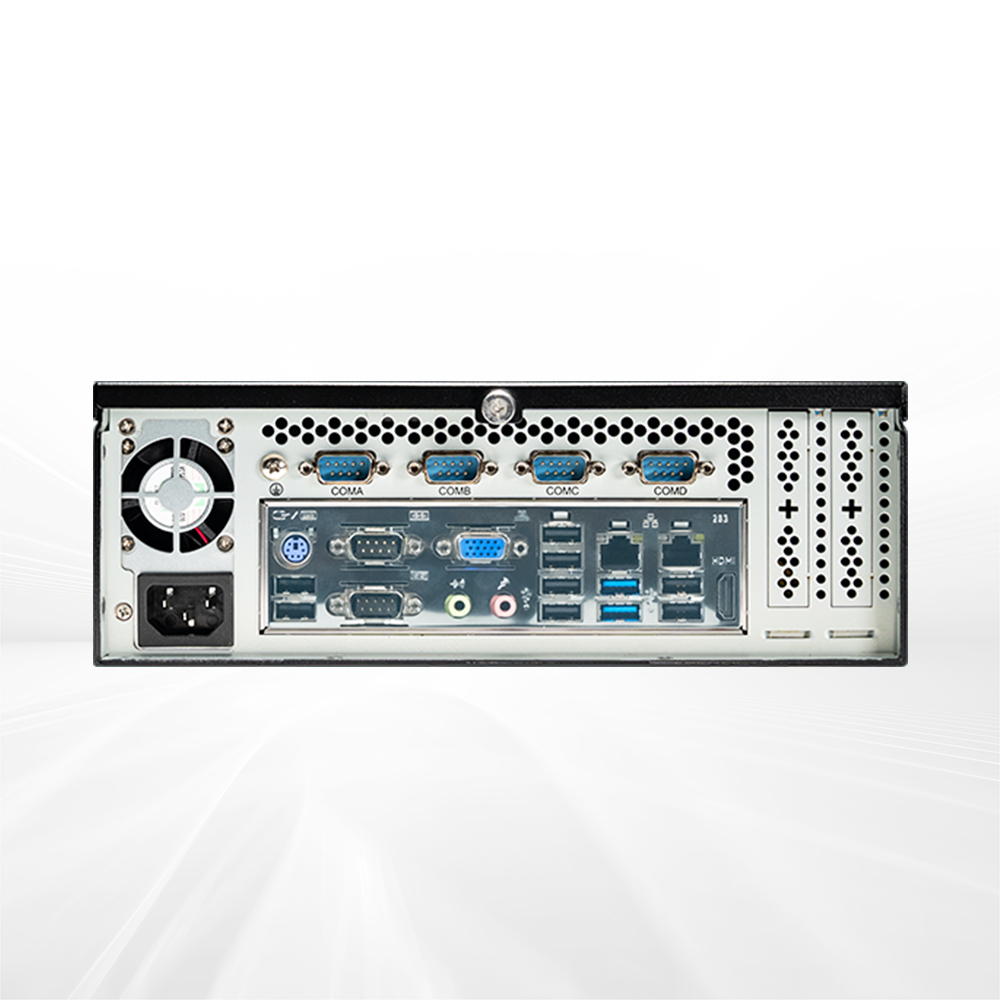

I/O Port Front panel: 2 x USB port, power switch, reset switch, power supply and hard disk indicator;Rear panel: matched with the motherboard
Power Supply 1U small power supply
Working Temperature 0℃~40℃
Storage Temperature -20℃~60℃
Overall Dimensions (W×H×D) 260 mm×91 mm×240 mm

Ordering Information

料号 型号 描述
0020-068241 IPC-316/EC7-1825/250W Equipped with H110 motherboard/250W power supply/no CPU radiator Rear: VGA+HDMI, 2 x LAN port, 2 x USB3.0, 8 x USB2.0, 2 x COM, 1 x PS2 and 1 group of audio ports Expansion bus: 1 x PCIE×16, 1 x Mini PCIE (WIFI + 3G), and 1 x SIM card slot
0020-068231 IPC-316/EC7-1826/250W Equipped with H310 motherboard/250W power supply/no CPU radiator Front: 2 x USB2.0 Rear: VGA+HDMI 2 x LAN port 4 x USB3.1 6 x USB2.0 1 x PS2 1 group of audio ports 1 set of system + hard disk indicator light 1*Power Button Expansion bus: 1 x PCIE×16 1 x Mini PCIE (WIFI+4G) and 1 x SIM card slot
0020-068221 IPC-316/EC7-1827/250W Equipped with H470 motherboard/250W power supply/no CPU radiator Front: 2 x USB2.0 Rear: VGA+HDMI 2 x LAN port 6 x USB3.0 4 x USB2.0 1 x PS2 1 group of audio ports 1 set of system + hard disk indicator light 1*Power Button Expansion bus: 1 * PCIE×161 * M.2 Key-E (PCIE+USB2.0WIFI+BT)
0020-068211 IPC-316/EC7-1828/250W Equipped with H610 motherboard/250W power supply/no CPU radiator Front: 2 x USB2.0 Rear: VGA+HDMI 2 x LAN port 4 x USB3.2 Gen1 6 x USB2.0 1 x PS2 1 group of audio ports 1 set of system + hard disk indicator light 1*Power Button Expansion bus: 1 x PCIE×16 1 x M.2 Key-E (WIFI+BT) 1 * M.2 Key-M (PCIE x4 signal)
