Supports ATX Industrial Motherboard

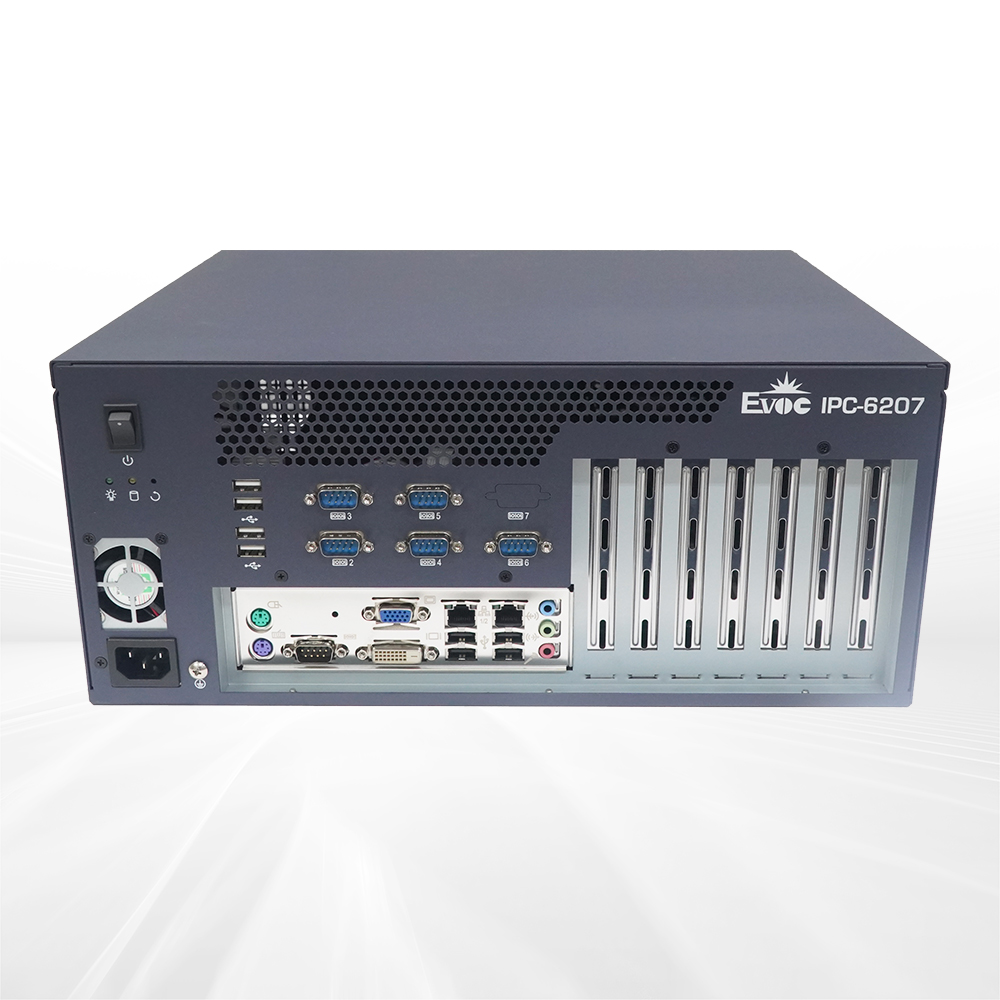

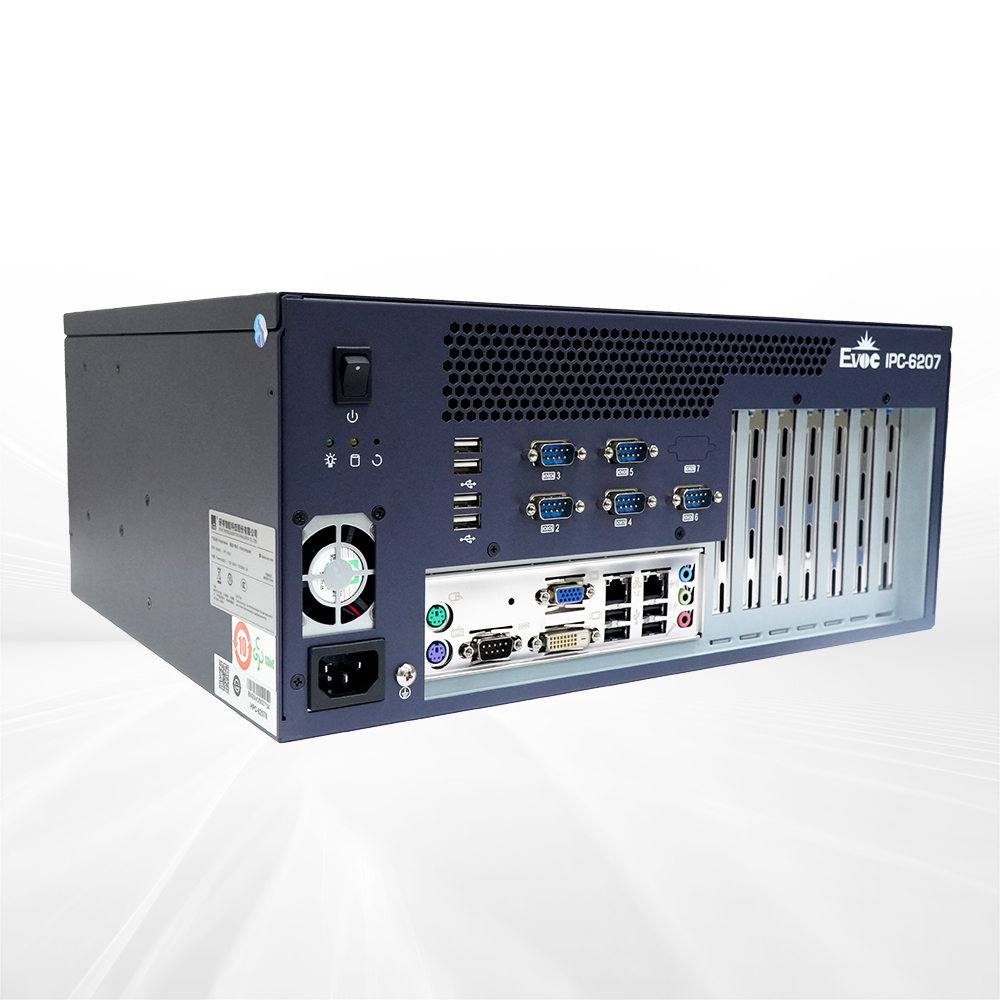

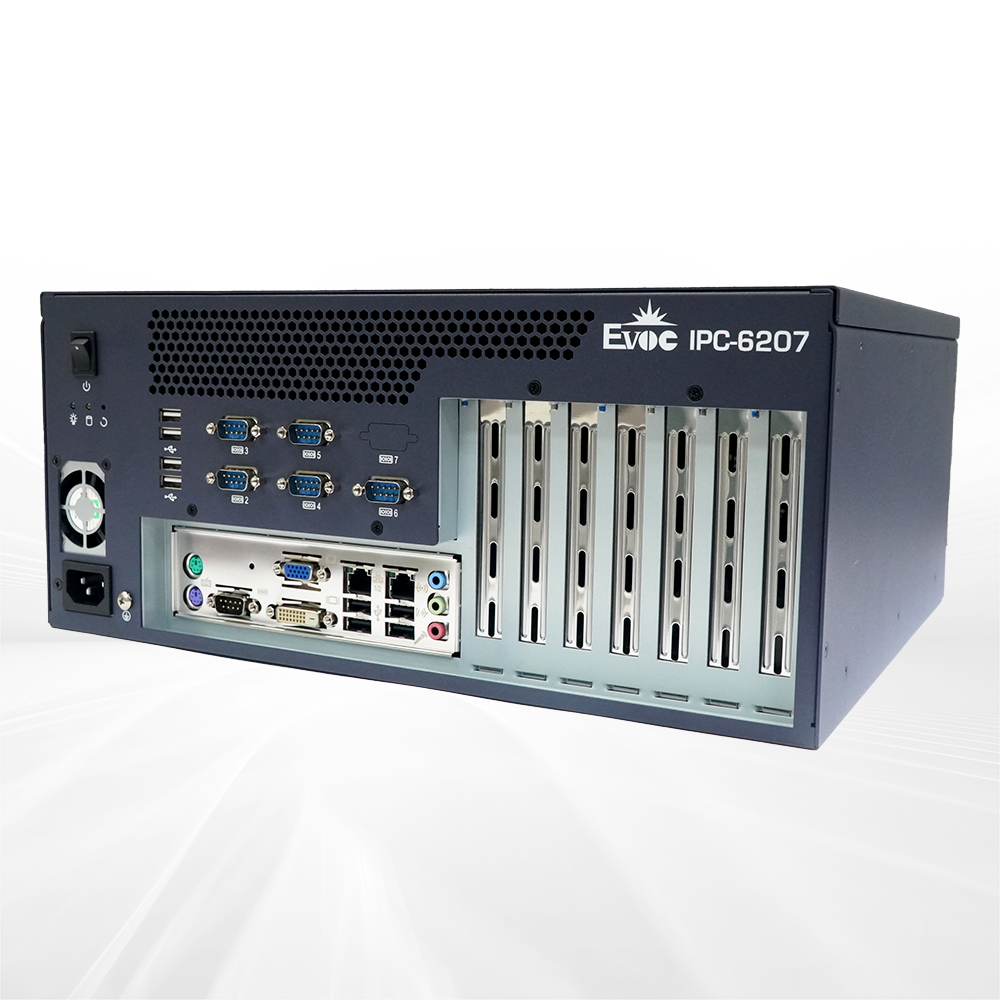

IPC-6207 is a seven-slot compact wall-mounted complete PC, which can be matched with EC0, ECS and other series motherboards. It still has good expansion performance under compact size, supporting 7 x expansion slot; it is easy to operate, and all IO ports of the complete PC are located on the same plane; it has the port characteristics of compact size, high performance and rich IO; it is mainly used in the intelligent manufacturing industry, including 3C manufacturing, machine vision, security inspection, highway, self-service terminal and other fields.
| Item | Description | |
|---|---|---|
| Motherboard | Compatible with EC0/ECS series motherboards | |
| Memory | 2 x 3.5-inch shock-absorbing hard disk bay | |
| I/O Port | Power switch, reset switch, power supply and hard disk indicator | |
| Power Supply | 1U small power supply | |
| Working Temperature | 0°C~50°C, 5%~90% (non-condensing state) | |
| Storage Temperature | -20°C~60°C, 5%~90% (non-condensing state) | |
| Overall Dimensions (W×H×D) | 380mm×164mm×316mm Supported expansion card length ≤270mm |
|
| Part No. | Model | Description |
|---|---|---|
| 0020-066461 | IPC-6207/EC0-1816/250W | Equipped with H61 platform motherboard/250W power supply/2 x COM, 4 x USB, 2 x Gigabit LAN port, VGA+DVI-D, 1 group of audio ports, 1 x PS2; expansion: 4 x PCI+1 x PCIEX4+1 x PCIEX16 Note: As PCIE x4 slot shares resources with LAN2, the LAN2 LAN port has no function when inserting a PCIE x4 card. |
| 0020-066451 | IPC-6207/EC0-1817/250W | Equipped with H81 platform motherboard/250W power supply/2 x COM 4 x USB 2 x Gigabit LAN port VGA+DVI-D 1 group of audio ports 1 x PS2; expansion: 4 x PCI + 2 x PCIEX1 + 1 x PCIEX16 |
| 0020-066441 | IPC-6207/EC0-1818/250W | Equipped with H110 platform motherboard/250W power supply/2 x COM 4 x USB 2 x Gigabit LAN port VGA+HDMI 1 group of audio ports 1 x PS2; expansion: 4 x PCI+1 x PCIEX4+1 x PCIEX16 |
| 0020-066761 | IPC-6207/EC0-1818-C236/250W | Equipped with C236 platform motherboard/250W power supply/2 x COM 4 x USB 2 x Gigabit LAN port supports any three displays (VGA HDMI DVI-D DP) 1 group of audio ports 1 x PS2; expansion: 2 x PCI + 3 x PCIEX4 (X8 connector) + 2 x PCIEX16 (see the product manual for details) |
| 0020-066431 | IPC-6207/EC0-1820/250W | Equipped with H310 platform motherboard/250W power supply/2 x COM 4 x USB 2 x Gigabit LAN port any two-out-of-four display (VGA HDMI DVI-D DP) 1 group of audio ports expansion: 5 x PCI + 1 x PCIEX4 1 x PCIEX16 |
| 0020-067031 | IPC-6207/EC0-1821/250W | Equipped with C246 platform motherboard/250W power supply/2 x COM 2 x Gigabit LAN port 8 x USB any three-out-of-four display (VGA DVI-D DP HDMI) 1 group of audio ports expansion: 2 x PCI + 3 x PCIe x4 + 2 x PCIe x16 (When two PCIE*16 slots are inserted at same time the speed is reduced to the speed of PCIE*8) |
| 0010-143531 | IPC-6207/ECO-1816/I5-3550/4G/1T/250W | Equipped with H61 platform motherboard/i5-3550/4G memory/1T hard disk/250W power supply/6 x COM 8 x USB 2 x Gigabit LAN port VGA+DVI-D 1 group of audio ports and 1 x PS2; expansion: 4 x PCI + 1 x PCIEX4 + 1 x PCIEX16 Note: As PCIE x4 slot shares resources with LAN2 the LAN2 port has no function when inserting a PCIE x4 card. |
| 0010-143541 | IPC-6207/EC0-1817/I5-4570/4G/1T/250W | Equipped with H81 platform motherboard/i5-4570/4G memory/1T hard disk/250W power supply/6 x COM 8 x USB 2 x Gigabit LAN port VGA+DVI-D 1 group of audio ports and 1 x PS2; expansion: 4 x PCI + 2 x PCIEX1+1 x PCIEX16 |
| 0020-067711 | IPC-6207/EC0-1823/350W | 0020-067711 IPC-6207/EC0-1823/350W Equipped with Q470E platform motherboard/350W power supply/1 x COM 8 x USB 2 x Gigabit LAN port VGA+DP+DVI-D 1 group of audio ports expansion: 2 x PCI 2 x PCIE x16 and 3 x PCIE x4 |
| 0020-067511 | IPC-6207/EC0-1826/350W | Equipped with Q670E platform motherboard/ATX350W power supply/1 x COM port/8 x USB/2 x Gigabit LAN port/VGA+DP+HDMI2.0 three-display/MIC-IN/LINE-OUT /1 x PCI 1 x PCIe3.0 x4 3 x PCIe4.0 x4 1 x PCIe4.0 x16 and 1 x PCIe4.0 x16 (x8 link) Note: If two PCIe x16 slots are used at the same time the speed will be reduced to PCIe x8 |
| 0010-190041 | IPC-6207/EC0-1826/i5-12500/8G/1T/350W | Equipped with Q670E platform motherboard/i5-12500/8G memory/1T hard disk/ATX 350W power supply/6 x COM port/8 x USB/2 x Gigabit LAN port/VGA+DP+HDMI2.0 three-display/MIC-IN/LINE-OUT /1 x PCI 1 x PCIe3.0 x4 3 x PCIe4.0 x4 1 x PCIe4.0 x16 and 1 x PCIe4.0 x16 (x8 link) Note: If two PCIe x16 slots are used at the same time the speed will be reduced to PCIe x8 |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| Product Manual | Various Platform | Vol15.0 | 2025-04-27 | 0.16MB | Download 𐃯 |
