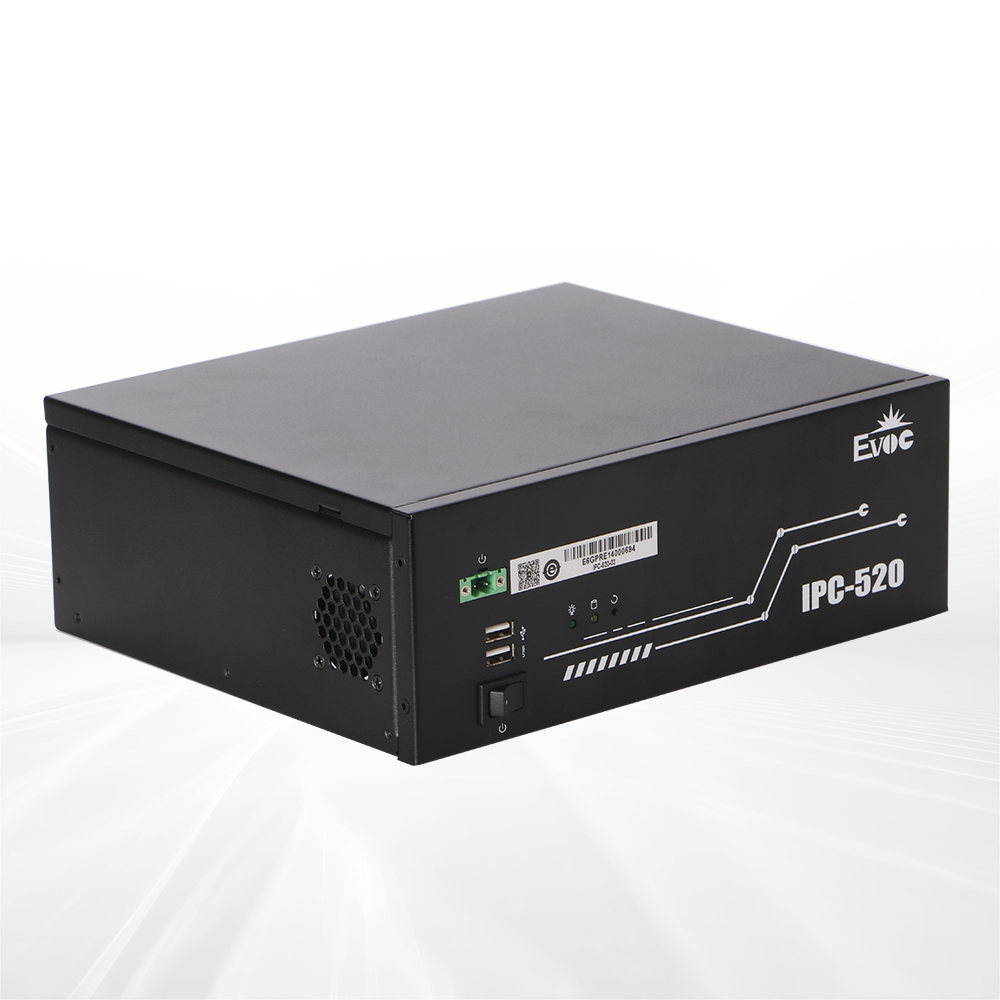

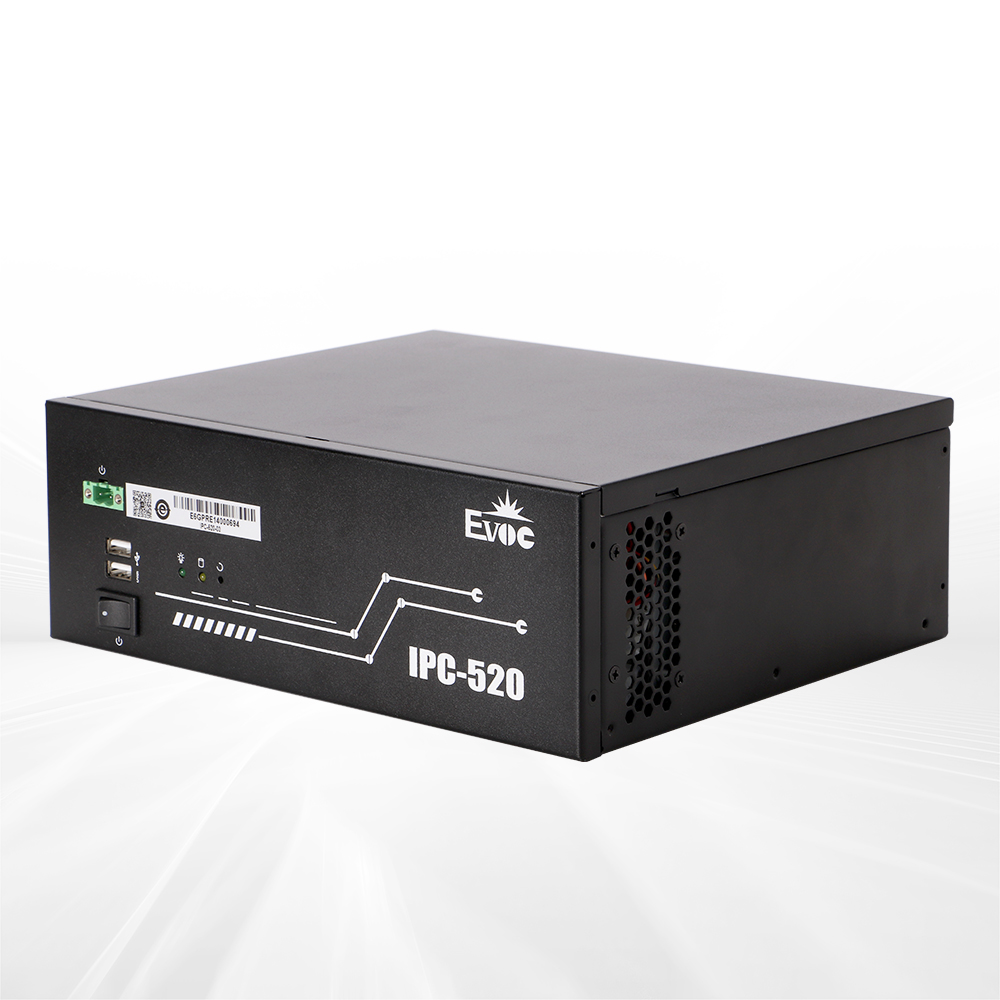

IPC-520S

Small Compact Wall-mounted Complete PC

IPC-520S is a small and compact complete PC made of sheet metal, with good heat dissipation and vibration resistance. It can be installed with the EC7 series motherboard. The H110/C236 platform's motherboard supports Intel LGA 1151 pin 6th and 7th Gen series processors and extended full-height half-length expansion cards. It has good expansion performance and can be installed in narrow spaces and it can be widely used in industrial manufacturing, machine vision industry, security inspection industry and other industries.

Product Features

Multiple IO ports

Multi-expansion

Small size

Product Specifications

Item Description
Motherboard Supports MiniITX motherboard
Chipset Intel H110/C236 platform chipset
CPU Supports InteL LGA 1151-pin 6th and 7th Gen series processors
Memory 1 x DDR4 U-DIMM slot, supporting up to 16G memory capacity

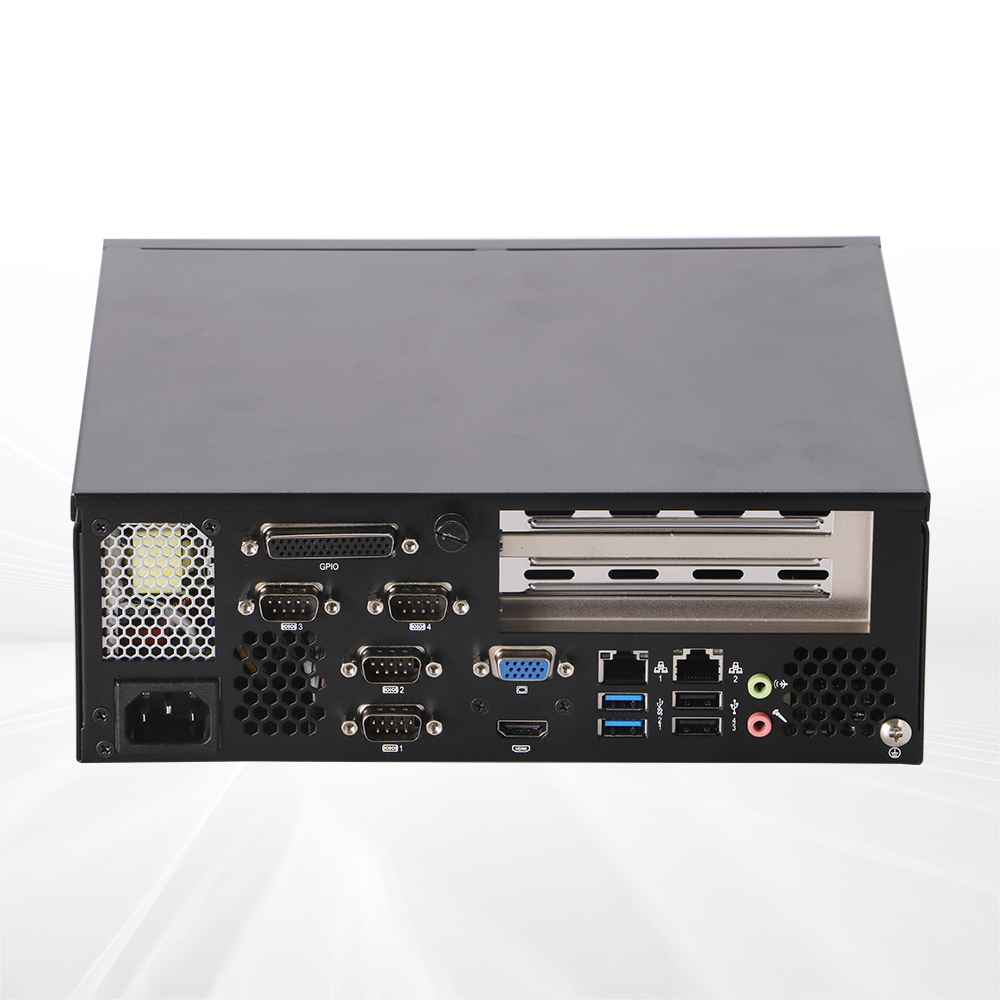

I/O port Rear:
2 x USB3.0, 2 x USB2.0
4 x COM, COM1 and COM2 support RS232\RS422\RS485
1 x VGA, 1 x HDMI
2 x Gigabit LAN port
1 x ATX power outlet
1 x LINE-IN, 1 x LINE-OUT
1 x 16-bit GPIO is brought out via lead wire by means of DB44

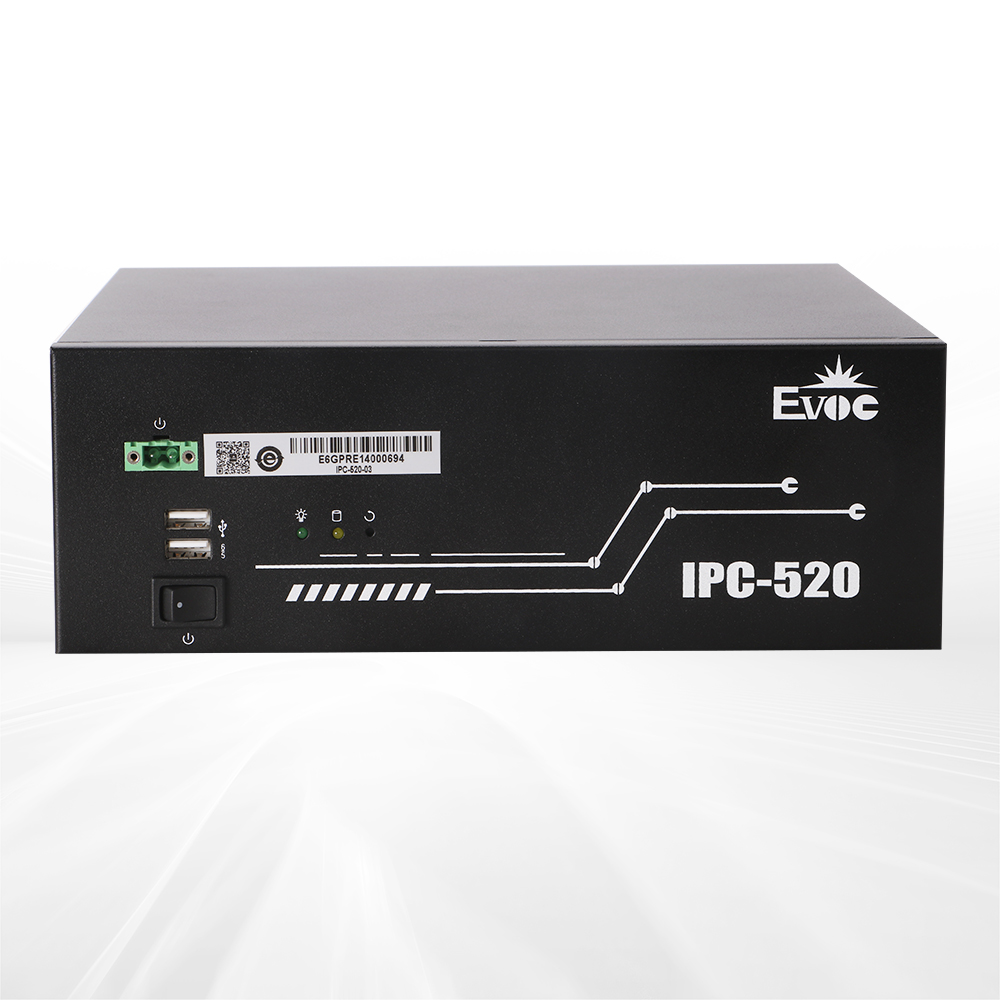

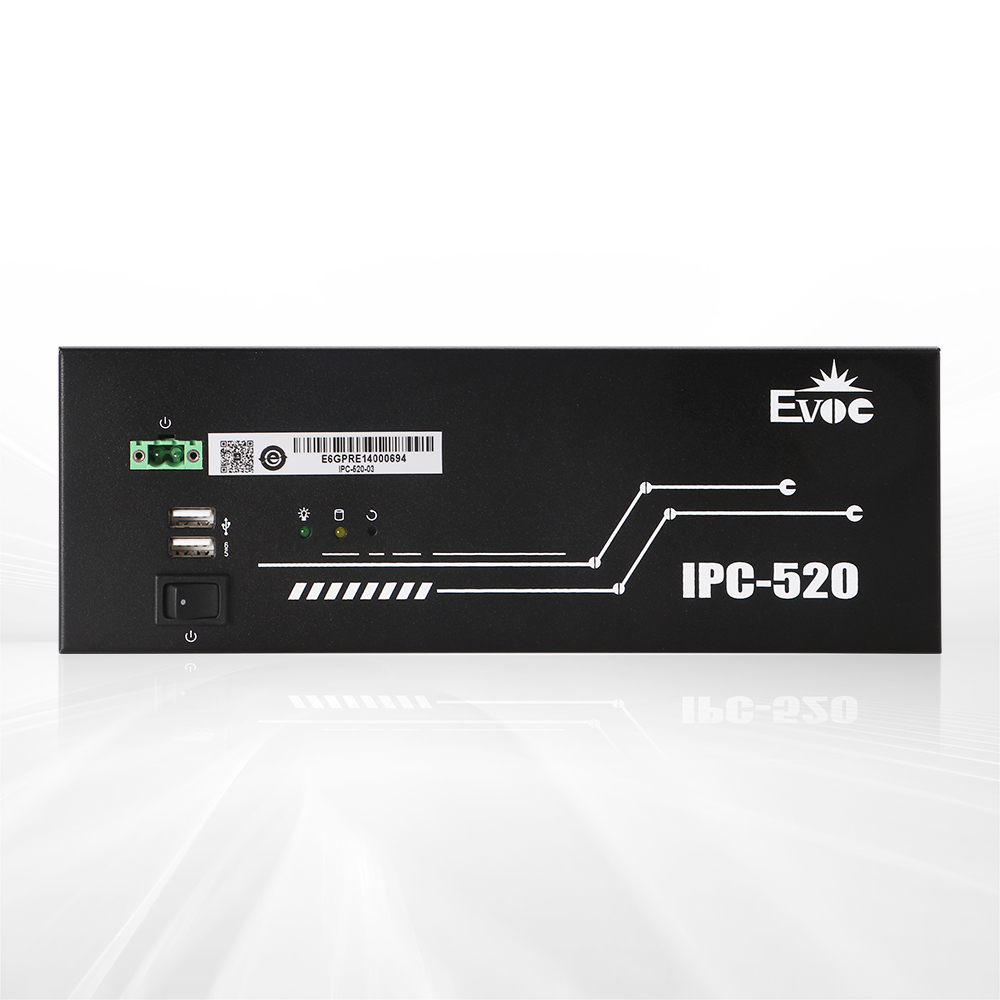

Front:
2 x USB2.0 port
Front power switch
The Phoenix terminal port is used to connect the front power supply
Memory 1 x 2.5-inch shock-absorbing hard disk bay, without optical drive installation
Bus Expansion 1 x PCIEx16
Working Temperature 0°C~50°C, 5%~90% (non-condensing state)
Storage Temperature -20°C~60°C, 5%~90% (non-condensing state)
Power Supply MiniATX Industrial-grade Power supply
Operating System WIN7、WIN8、WIN10、LINUX

Ordering Information

料号 型号 描述
0010-114851 IPC-520S-01 Equipped with EC7-1821-H110 motherboard/I3-6100/4G memory/500G hard disk/ATX 200W power supply/without optical drive, without keyboard and mouse/2 x LAN port, 6 x serial port (4 x external chassis, 2 x motherboard pin), VGA+HDMI dual display, 6 x USB/1 x LINE-IN, 1 x LINE-OUT/1 x 16-channel GPIO pin brought out via lead wire by means of DB44/1 x PCIE*16 (with heat dissipation holes above the chassis)
0010-114861 IPC-520S-02 Equipped with EC7-1821-H110 motherboard/I5-6500/4G memory/1T hard disk/ATX 200W power supply/without optical drive without keyboard and mouse/2 x LAN port 6 x serial port (4 x external chassis 2 x motherboard pin) VGA+HDMI dual display 6 x USB/1 x LINE-IN 1 x LINE-OUT/1 x 16-channel GPIO pin brought out via lead wire by means of DB44/1 x PCIE*16 (with heat dissipation holes above the chassis)
0020-062731 IPC-520S barebone system Equipped with EC7-1821-H110-01 motherboard/no CPU/no memory/no hard disk/ATX 200W power supply/no optical drive no keyboard and mouse/2 x LAN port 6 x serial port (4 x external chassis 2 x motherboard pin) VGA+HDMI dual display 6 x USB/1 x LINE-IN 1 x LINE-OUT/1 x 16-channel GPIO pin brought out via lead wire by means of DB44/1 x PCIE*16 (without heat dissipation hole above the chassis). Note: The axial flow fan radiator is adopted and this configuration does not support the insertion of expansion cards
0020-062741 IPC-520S-01 barebone system Equipped with EC7-1821-C236 motherboard/no CPU/no memory/no hard disk/ATX 200W power supply/no optical drive no keyboard and mouse/2 x LAN port 6 x serial port (4 x external chassis 2 x motherboard pin) VGA+HDMI dual display 6 x USB/1 x LINE-IN 1 x LINE-OUT/1 x 16-channel GPIO pin brought out via lead wire by means of DB44/1 x PCIE*16 (with heat dissipation holes above the chassis)
