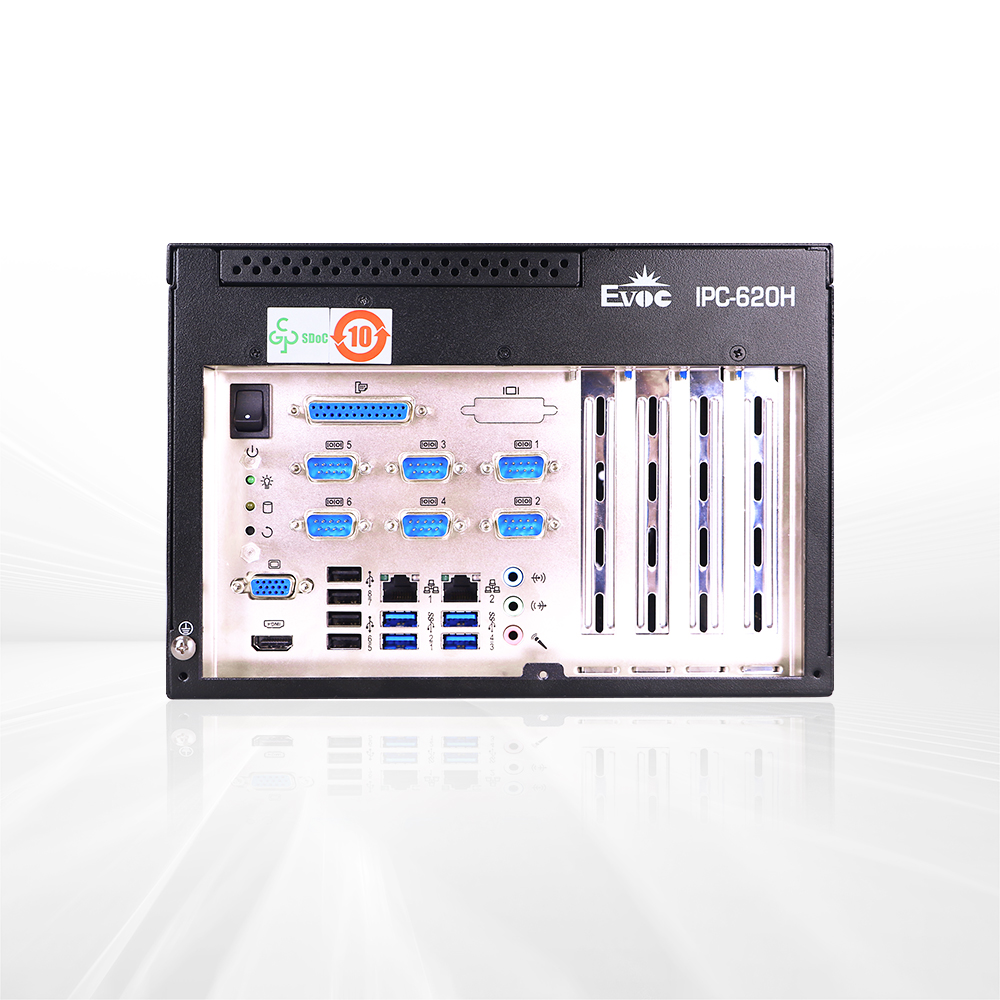

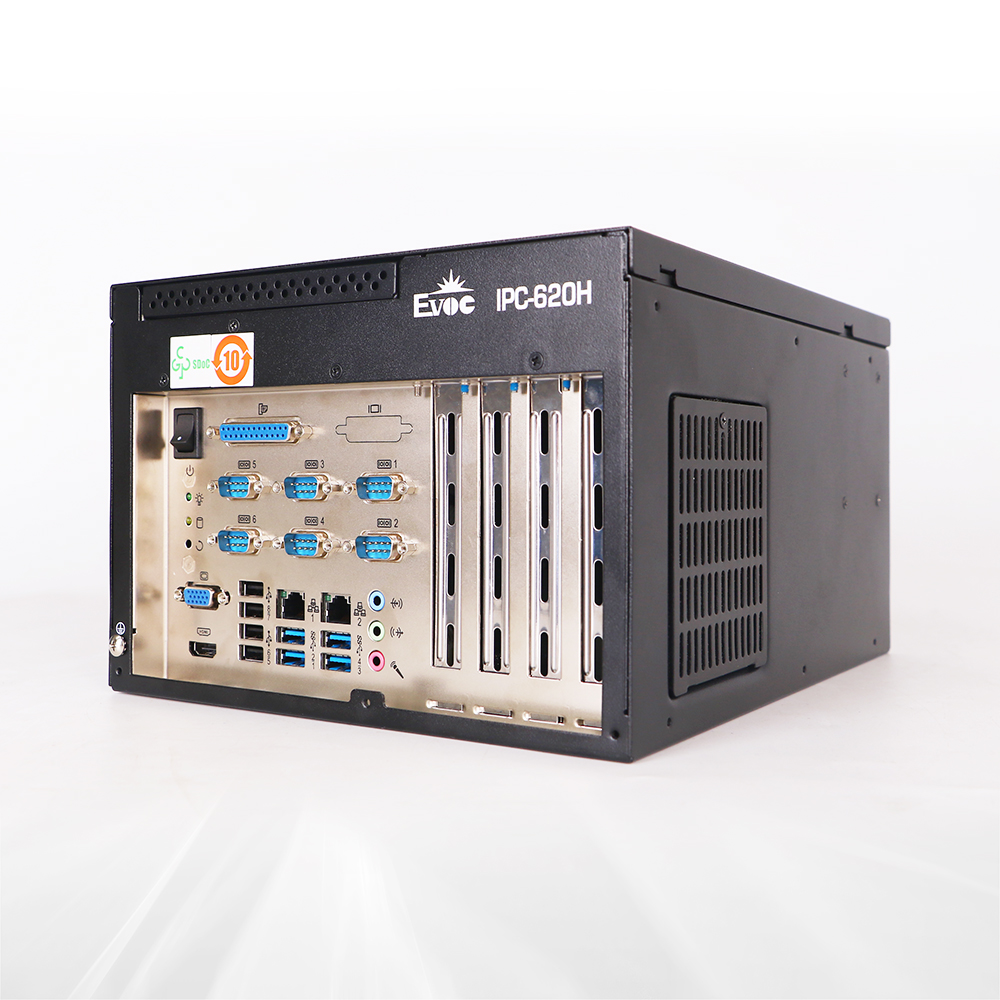

IPC-620H

Small Compact Wall-mounted Complete PC

IPC-620H is a small and compact wall-mounted chassis equipped with ECS series special motherboards and can be matched with H81, H110, H310 and other platform motherboards. It has the characteristics of compact size, high performance and high cost performance. With multiple IO ports, it still has good expansion performance even in a small size. The chassis adopts a miniaturized design and can be installed in a narrow space. Main application fields: 3C manufacturing, machine vision, security inspection, highways, self-service terminals, etc.

Product Features

Abundant IO ports

Easy-to-maintain and clamshell-type

Strong expansion capability and compact size

Product Specifications

Item Description
Motherboard ECS special motherboard: H81 platform ECS-1830; H110 platform ECS-1839; H310 platform ECS-1852
Memory 1 x 2.5-inch hard shock-absorbing hard disk bays; 1 x ultra-thin optical drive bay (compatible with the installation of 1 x 2.5-inch hard disk)
I/O Port All IO ports are on the same plane, depending on different motherboard platforms
Power Supply Small PS2 ATX power supply or 1U small power supply
Working Temperature 0°C~50°C, 5%~90% (non-condensing state)
Storage Temperature -20°C~60°C, 5%~90% (non-condensing state)
Overall Dimensions (W×H×D) 280mm×165mm×238mm

Ordering Information

料号 型号 描述
0020-061151 IPC-620H/ECS-1830/250W/ barebone system Equipped with H81 platform motherboard/250W/6 x COM, 2 x USB3.0, 6 x USB2.0, 2 x LAN port, VGA+DVI-D, 1 x LPT, 1 group of audio ports and 1 x PS2; expansion: 2 x PCI+1 x PCIEX4+1 x PCIEX16
0020-062121 IPC-620H barebone system /ECS-1839/250W Equipped with H110 platform motherboard/250W power supply/2 x COM 4 x USB3.0 4 x USB2.0 2 x LAN port VGA+HDMI 1 x LPT 1 group of audio ports expansion: 2 x PCI+1 x PCIEX4+1 x PCIEX16
0010-106061 IPC-620H/ECS-1839/I5-6500/4G/1T/250W Equipped with H110 platform motherboard/i5-6500/4G memory/1T hard disk/250W power supply/6 x COM 4 x USB3.0 4 x USB2.0 2 x LAN port VGA+HDMI 1 x LPT and 1 group of audio ports; expansion: 2 x PCI+1 x PCIEX4+1 x PCIEX16
0010-106071 IPC-620H/ECS-1839/I7-6700/8G/1T/250W Equipped with H110 platform motherboard/i7-6700/8G memory/1T hard disk/250W power supply/6 x COM 4 x USB3.0 4 x USB2.0 2 x LAN port VGA+HDMI 1 x LPT and 1 group of audio ports; expansion: 2 x PCI+1 x PCIEX4+1 x PCIEX16
0020-065471 IPC-620H/ECS-1852/250W Equipped with H310 platform motherboard/supports Intel® 8th/9th LGA1151 pin full series processors TDP maximum power consumption 95W/supports two DDR4 memory modules supporting up to 64G/ 250W power supply/2 x COM VGA+HDMI 4 x USB3.1 4 x USB2.0 2 x RJ45 and 1 group of audio ports; expansion: 2 x PCI+1 x PCIEX4+1 x PCIEX16
0010-152241 IPC-620H/ECS-1852/I3-8100/4G/128G/250W Equipped with H310 platform motherboard/I3-8100/4G memory/128G SSD/250W power supply/6 x COM VGA+HDMI 4 x USB3.1 4 x USB2.0 2 x RJ45 1 x LPT and 1 group of audio ports; expansion: 2 x PCI+1 x PCIEX4+1 x PCIEX16
0010-152251 IPC-620H/ECS-1852/I5-8500/8G/1T/250W Equipped with H310 platform motherboard/I5-8500/8G memory/1T hard disk/250W power supply/6 x COM VGA+HDMI 4 x USB3.1 4 x USB2.0 2 x RJ45 1 x LPT and 1 group of audio ports; expansion: 2 x PCI+1 x PCIEX4+1 x PCIEX16
0010-152261 IPC-620H/ECS-1852/I7-8700/8G/1T/250W Equipped with H310 platform motherboard/I7-8700/8G memory/1T hard disk/250W power supply/6 x COM VGA+HDMI 4 x USB3.1 4 x USB2.0 2 x RJ45 1 x LPT and 1 group of audio ports; expansion: 2 x PCI+1 x PCIEX4+1 x PCIEX16
