SPC-8271D

2U Standard Rack Mounted Multi-LAN Port Industry-specific Complete PC

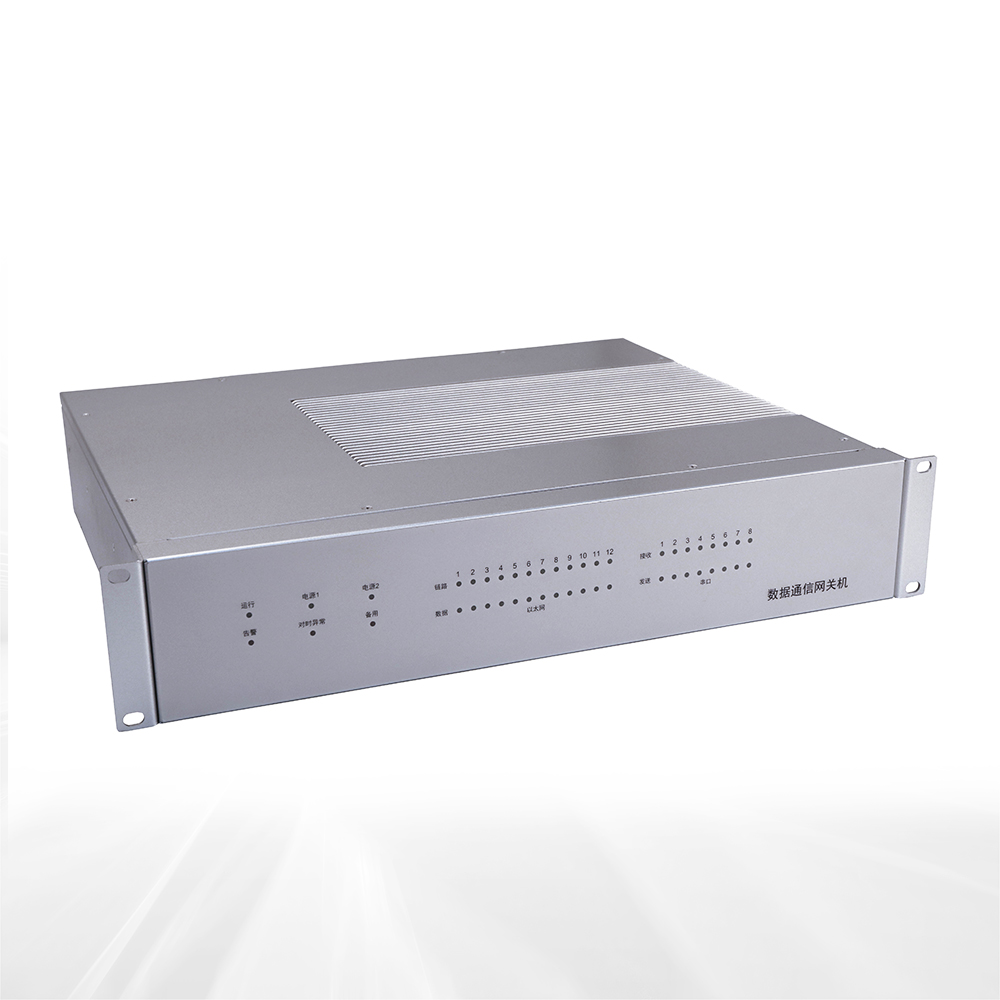

SPC-8271D is a 19'' 2U standard rack-mounted multi-LAN port complete PC. It adopts COM board and carrier board architecture, and INTEL SkyLake-U Soc platform, wherein the carrier board is connected by means of high-speed connectors, and various functional modules are brought out via the carrier board. The PC has multiple expansion ports. The front panel and chassis of the complete PC are made of sheet metal structure. The PC has excellent heat dissipation, high EMC protection grade, and excellent anti-dust performance. It can be widely used in remote terminal management of substations, smart grid dispatch communication manager, power supervisory control and data acquisition (PSCADA) system, and subway comprehensive monitoring front-end processor (FEP), and fully meets the IEC 61850 international standard.

Product Features

Supports multiple operating systems

12 × LAN port and 8 × serial port

EMC performance conforming to National Electric Power Level 4

Conform to IEC-61850 international standard

Product Specifications

Item Description
System Configuration Processor Based on Intel 3955U 2.0GHz/I3-6100U 2.3GHz/I5-6300U 2.4GHz/I7-6600U 2.6GHz processor
Chipset SkyLake-U SOC
Memory Provides 2 × 260Pin DDR4 2133MHz So-DIMM memory slot, with a maximum capacity of 16GB for each memory and a maximum total memory capacity of 32GB
I/O port LAN port Onboard fixed configuration: 6 × Gigabit RJ45 LAN port. Standard configuration of the complete PC: 1 × network module (6 × Gigabit RJ45 LAN port). Standard configuration of the complete PC: 1 × serial port module (8 × serial port, in the form of 2*10Pin Phoenix terminal interfaces). Note: Network modules and serial port modules can be configured freely
Display 1 × standard VGA display interface
USB The complete PC provides 3 × USB2.0 port
COM 1 × serial port module (8 × serial port)
Indicator Lights depends on the configuration of the complete PC, subject to the actual complete PC
DI/DO 2-channel DO relay port
Expansion Bus 2 x Network ENS module or COM module expansion
1 x standard PCIE X1 expansion
Storage 2 × 2.5-inch hard disk bay
Working Environment -5℃~+45℃
Storage Environment Storage Temperature -25℃~+70℃
Storage Humidity 40°C, 95%RH (non-condensing)
Installation Method Rack-mounted
Product Dimensions (Excluding Mounting Ears)440mm (width) * 88mm (height) * 375mm (depth)
Net Weight About 11.25Kg (excluding the weight of the package and accessories)
Power supply Input: AC/50Hz, 110V~220V; DC: 110V~220V single power supply/redundant power supply (optional)
Time Tick 1 × B code time tick port
Electromagnetic Compatibility Conforming to National Electric Power Level 4
Operating system Supports high kernel version Linux systems such as Kylinsec and Cent OS

Ordering Information

料号 型号 描述
0010-145661 SPC-8271D 2U 19" rack-mounted multi-LAN port and multi-serial port complete PC/INTEL3955U2.0GHz/4G memory/128G SSD (non-wide-temperature)/12 × Gigabit LAN port/8 × isolated serial port/3 × USB2.0 at rear/1 × VGA/1 × B code/2-channel DO relay output/AC, DC110V~220V input 150W dual-power-supply/power loss alarm/neutral LOGO
0010-145671 SPC-8271D-01 2U 19" rack-mounted multi-LAN port and multi-serial port complete PC/INTEL13-6100U2.3GHz/4G memory/128G SSD (wide-temperature)/6 × Gigabit LAN ports/8 isolated serial ports/3 × USB2.0 at rear/1 × VGA/1 × B code/2-channel DO relay output/AC DC110V~220V input 150W dual-power-supply/power loss alarm/neutral LOGO
0010-145681 SPC-8271D-02 2U 19" rack-mounted multi-LAN port and multi-serial port complete PC/INTEL5-6300U2.3Hz/4G memory/128G SSD (non-wide-temperature)/12 × Gigabit LAN port/8 × isolated serial port/3 × USB2.0 at rear/1 × VGA/1 × B code/2-channel DO relay output/AC DC110V~220V input 150W dual-power-supply/power loss alarm/neutral LOGO
0010-203761 SPC-8271D-03 2U 19" rack-mounted multi-LAN port and multi-serial port complete PC/INTELI7-6600U 2.3Hz/16G memory/512G SSD (half-width temperature)/12 × Gigabit LAN port/8 × isolated serial port/3 × USB2.0 at rear/1 × VGA/1 × B code/2-channel DO relay output/AC DC110V~220V input 150W dual-power-supply/power loss alarm/neutral LOGO
