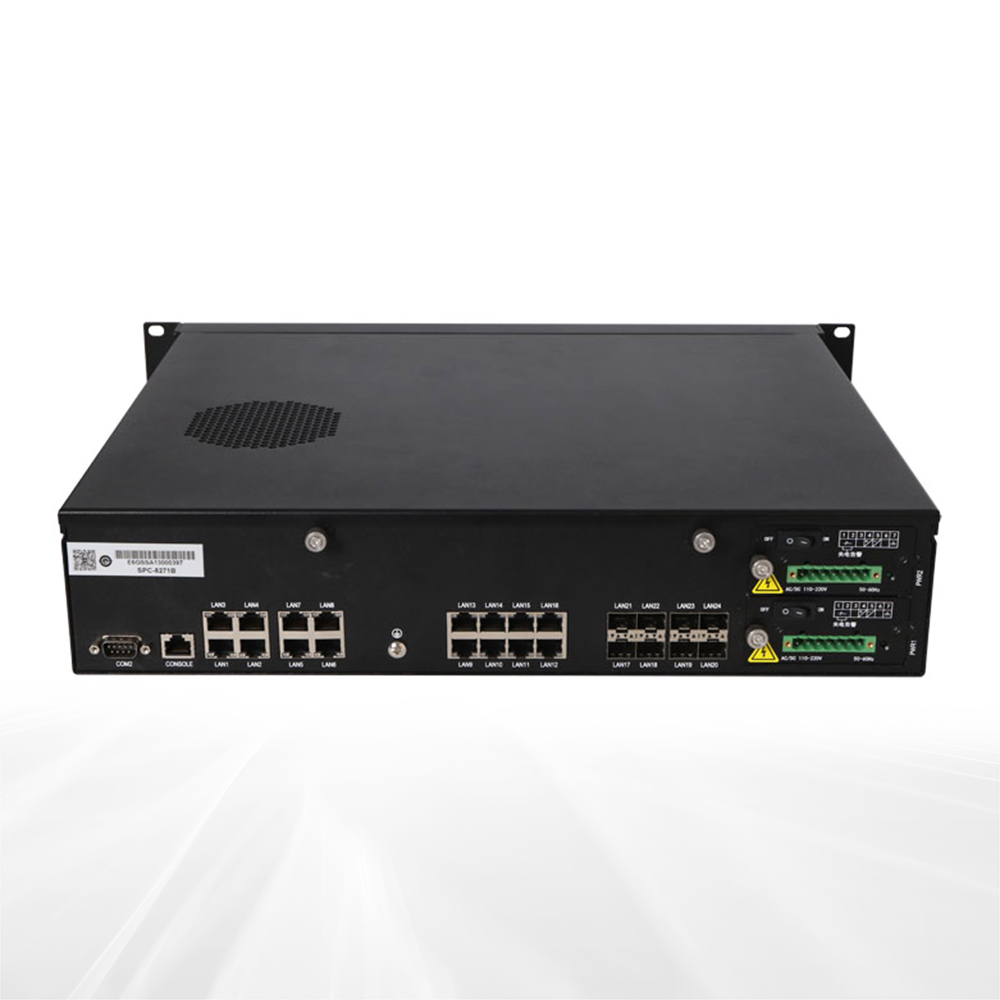

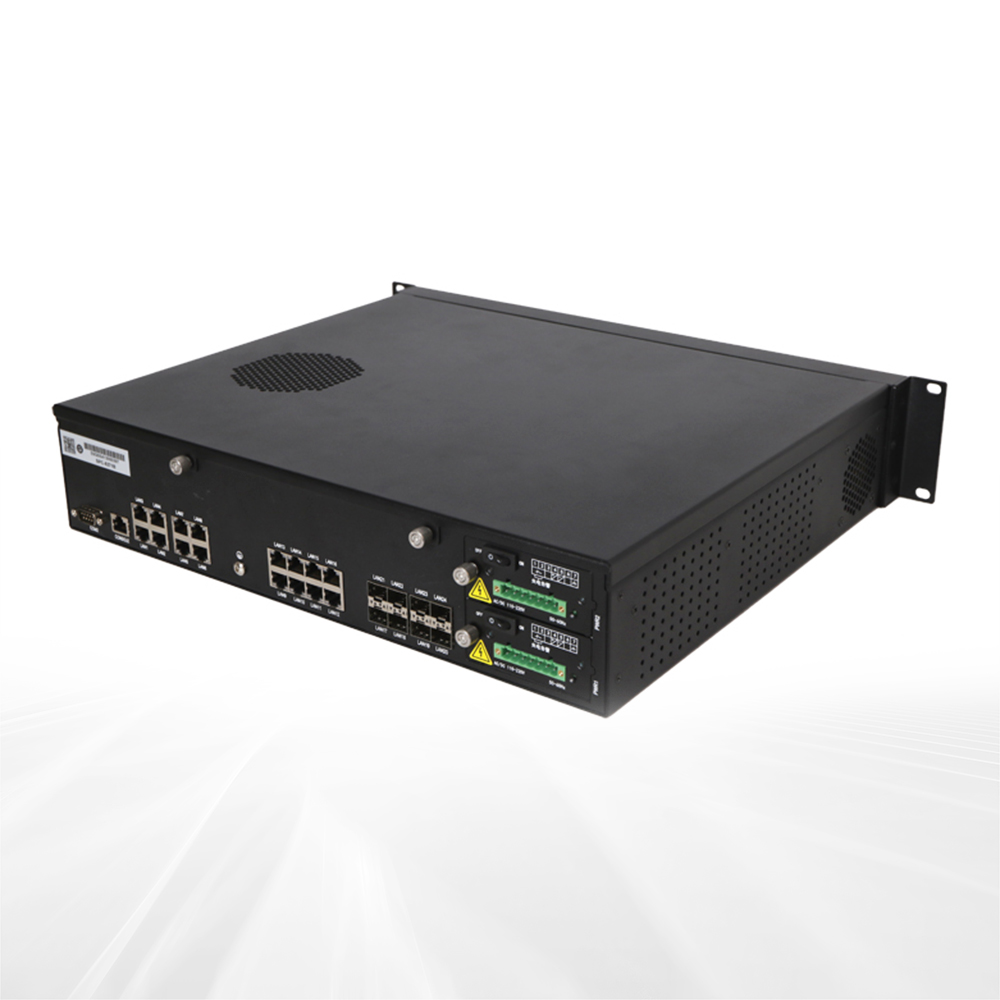

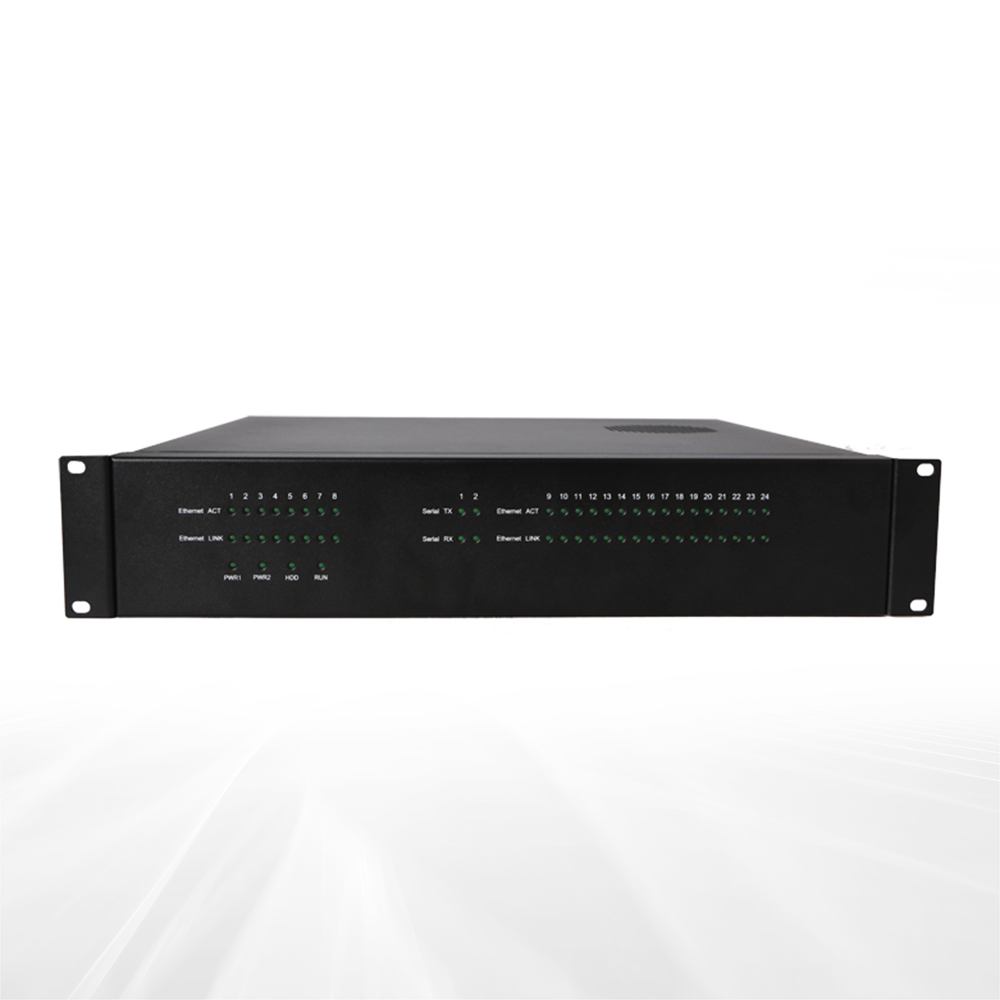

SPC-8271C

2U Standard Rack Mounted Multi-LAN Port Industry-specific Complete PC

SPC-8271C is a 19" 2U standard rack-mounted multi-LAN port industry-specific complete PC that meets IEC61850. The complete PC is of sheet metal structure, with excellent dust prevention, heat dissipation and good EMC performance, and its EMC performance meets the requirements of National Electric Power Level 4. Supports Windows, Linux, domestic Kylin and other operating systems. It can be widely used in the network security situational awareness device of the power monitoring system and deployed in the power monitoring systems of all levels of dispatching centers and power plants/substations to collect, analyze and process the network security data of the master station or plant station power monitoring system and communicate with the master station system.

Product Features

Multi-LAN port and multi-serial port

Domestic Hygon platform

EMC performance conforming to National Electric Power Level 4

Conform to IEC-61850 international standard

Product Specifications

Item Description
系统配置 处理器 海光HG3250、HG3330、HG3350封装为BGA1515的处理器可选
芯片组 /
内存 提供2条DDR4内存插槽,单条内存最大16GB,最大总内存容量32GB
I/O 接口 网口 支持多达24个网络接口(板载8个电口,其它可以通过网络模块扩展,光口电口可选)
显示 内置VGA接口
USB 内置USB调试接口
COM 1个RS485串口,标准DB9形式,1个RS232CONSOLE口,RJ45形式
指示灯 根据不同配置而定
扩展总线 2个ENS网络模块扩展槽
存储器 硬盘 1个2.5寸硬盘位、1个3.5寸硬盘位
Cfast 1个CF卡槽
工作环境 -5℃~+45℃
存储环境 存储温度 -25℃~+70℃
存储湿度 温度40℃,相对湿度95%(非凝结状态)
安装方式 机架式
产品尺寸 不含挂耳:425mm(宽)*88mm(高)*375mm(深)
净重 约11.8Kg(不包含包装、配件重量)
颜色 黑色
电源 输入:AC/50Hz,110V~220V; DC,110V~220V单电源、冗余电源可选
电磁兼容性 满足国家电力四级
操作系统 支持Windows 7、Windows10、湖南麒麟操作系统、Cent OS等高内核版本Linux系统。

Ordering Information

料号 型号 描述
0010-200401 SPC-8271C-08 2U 19" rack-mounted industrial computer for power industry/Hygon 3350 3.0GHz eight-core processor/16G memory/256GB 2.5-inch SSD/2T 3.5-inch enterprise HDD/24 × Gigabit LAN port (8 × optical port and 16 × electrical port/excluding SFP)/1 × Console port/1 × isolated serial port/AC, DC110V~220V input 150W dual-power-supply/power loss alarm
0010-200411 SPC-8271C-09 2U 19" rack-mounted industrial computer for power industry/Hygon 3330 3.0GHz quad-core processor/16G memory/256GB 2.5-inch SSD/2T 3.5-inch enterprise HDD/24 × Gigabit LAN port (8 × optical port and 16 × electrical port/excluding SFP)/1 × Console port/1 × isolated serial port/AC DC110V~220V input 150W dual power supply/power loss alarm
0010-200421 SPC-8271C-10 2U 19" rack-mounted industrial computer for power industry/Hygon 3250 2.8GHz eight-core processor/16G memory/256GB 2.5-inch SSD/2T 3.5-inch enterprise HDD/24 × Gigabit LAN port (8 × optical port and 16 × electrical port/excluding SFP)/1 × Console port/1 × isolated serial port/AC DC110V~220V input 150W dual-power-supply/power loss alarm
