SPC-8271B

2U Standard Rack Mounted Multi-LAN Port Industry-specific Complete PC

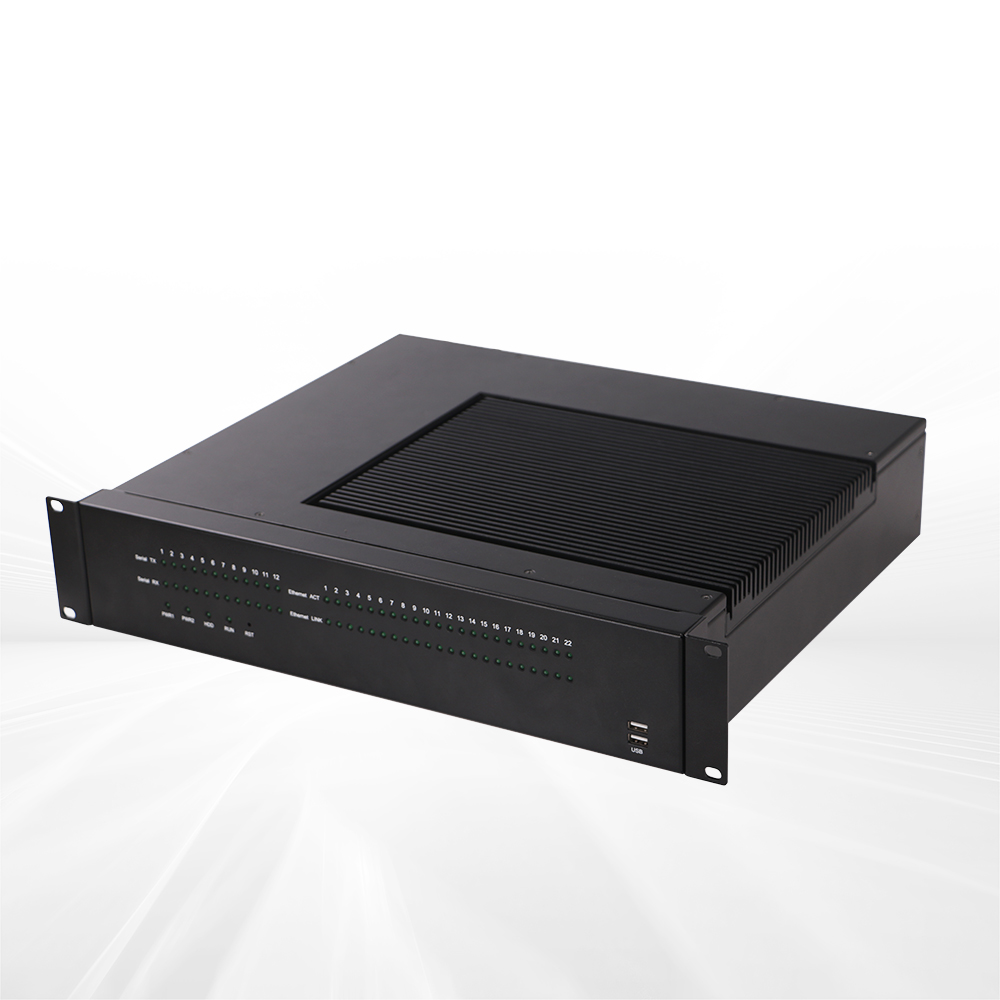

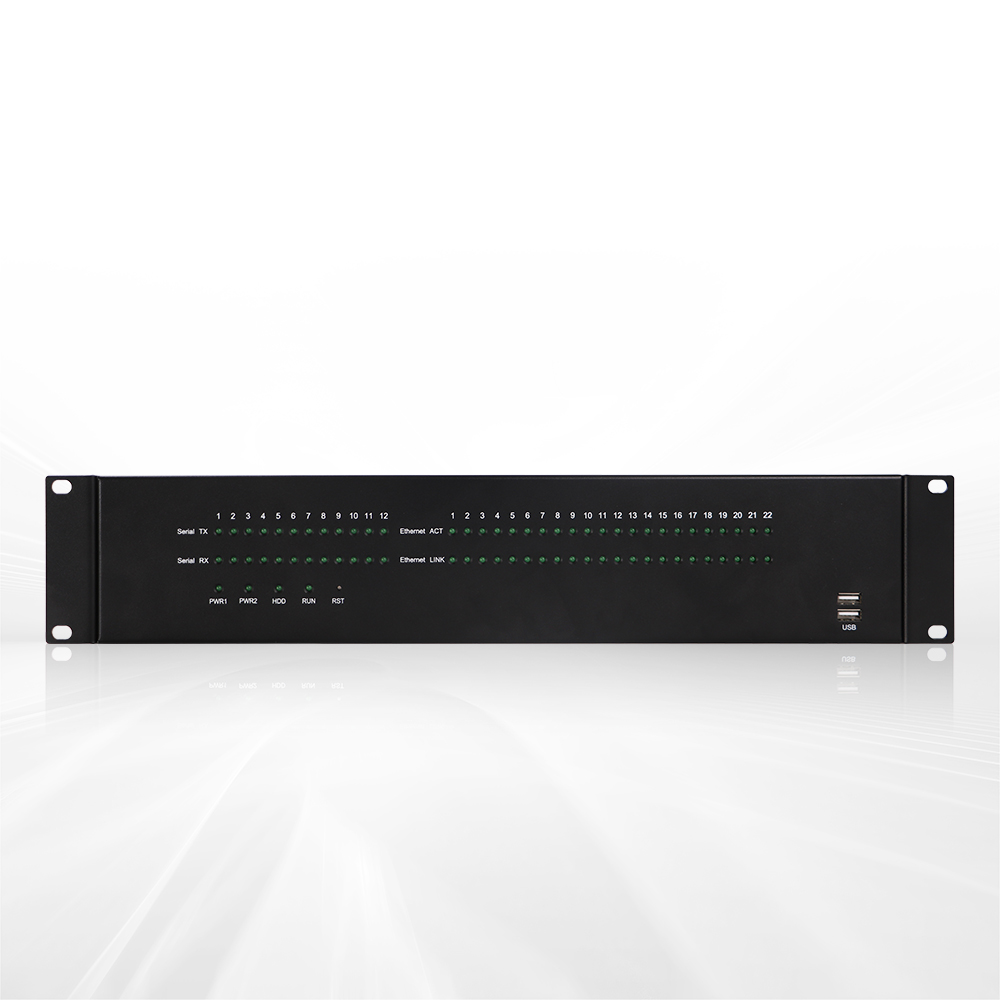

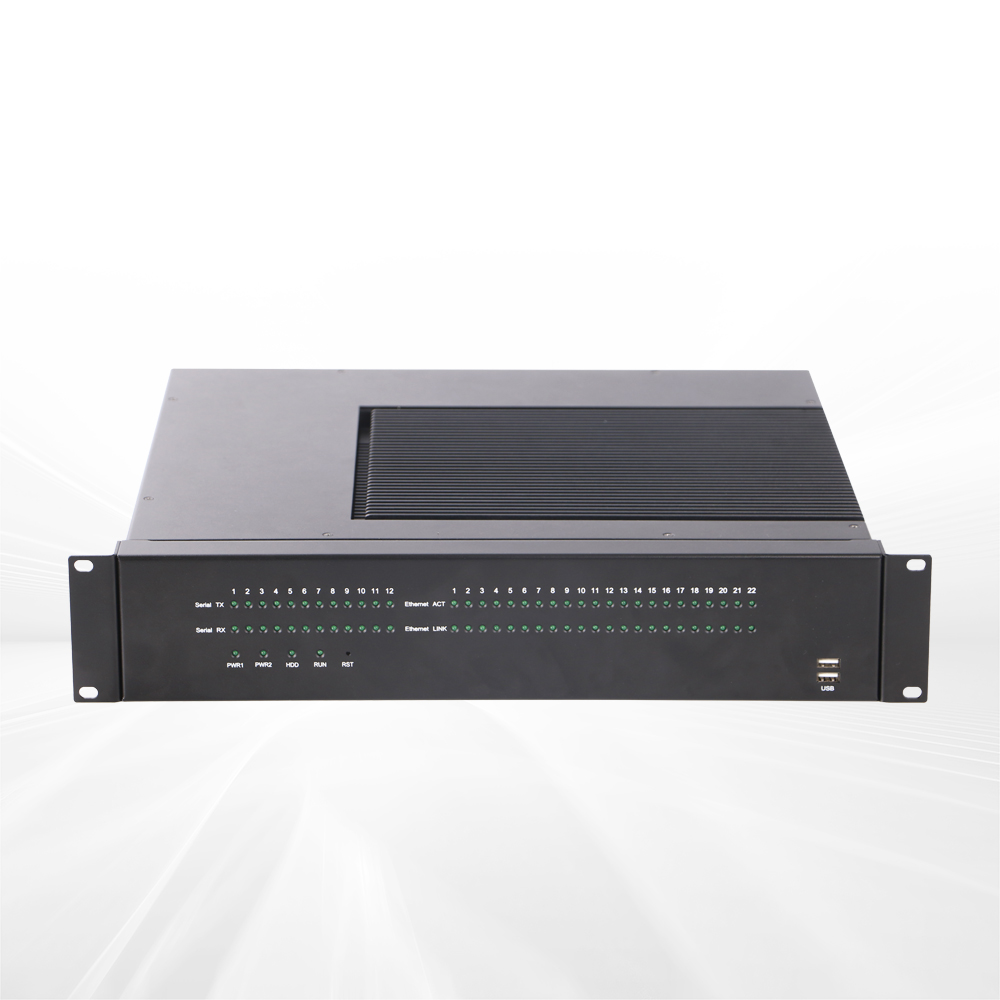

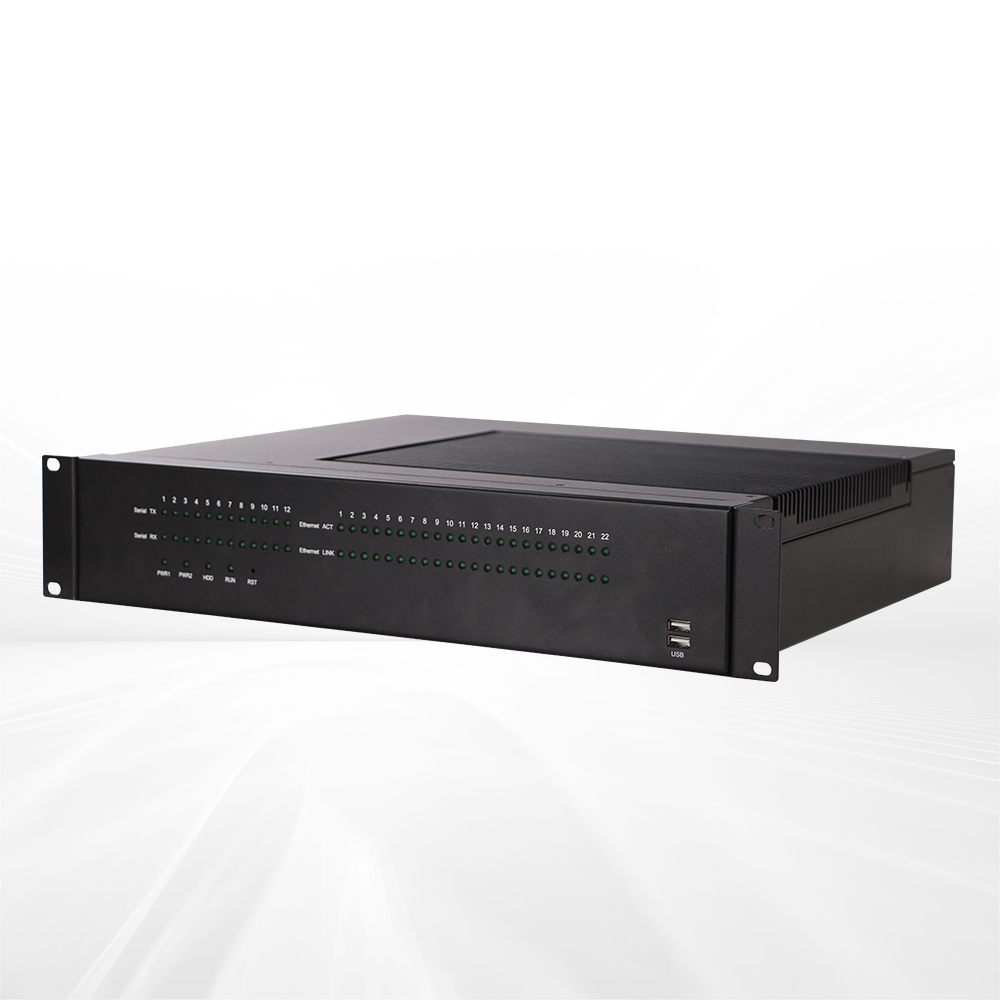

SPC-8271B is a 19" 2U standard rack-mounted multi-LAN port industry-specific complete PC that meets IEC61850. The complete PC is of sheet metal structure, with excellent dust prevention, heat dissipation and good EMC performance, and its EMC performance meets the requirements of National Electric Power Level 4. Supports Windows, Linux, domestic Kylin and other operating systems. It can be widely used in remote terminal management of substations, smart grid dispatch communication manager, power supervisory control and data acquisition (PSCADA) system, subway comprehensive monitoring front-end processor (FEP) and other scenarios.

Product Features

Redundant power supply

24 × LAN port (optional)

EMC performance conforming to National Electric Power Level 4

Conform to IEC-61850 international standard

Product Specifications

Item Description
系统配置 处理器 板载至强 E3-1225V5处理器
芯片组 C236
内存 提供2条DDR4内存插槽,单条内存最大16GB,最大总内存容量32GB

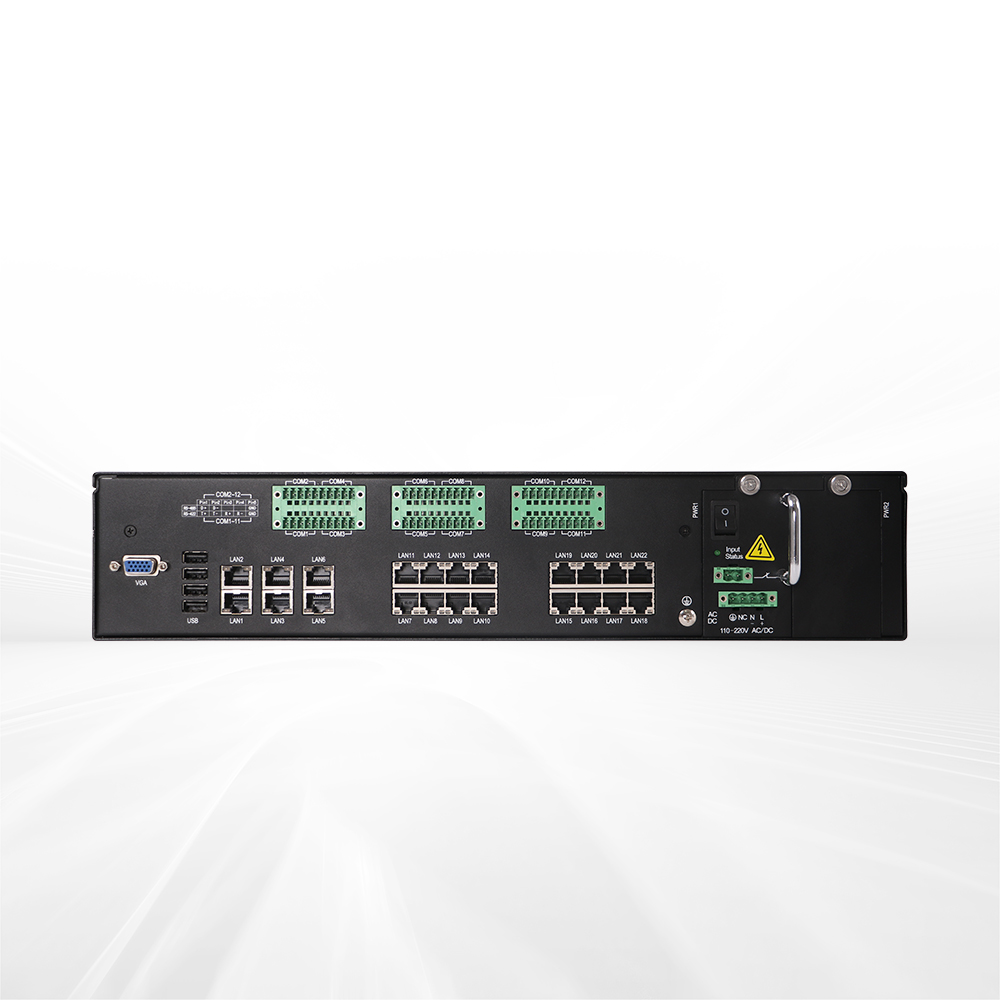

I/O 接口 网口 支持多达24个网络接口(板载8个电口,其它可以通过网络模块扩展,光口电口可选)
显示 内置VGA接口
USB 内置USB调试接口
COM 1个RS485串口,标准DB9形式,1个RS232CONSOLE口,RJ45形式
指示灯 48个网口指示灯
扩展总线 1个PCIE X8扩展槽
2个ENS网络模块扩展槽
存储器 硬盘 1个2.5寸硬盘位、1个3.5寸硬盘位
Cfast 1个CF卡槽
工作环境 -5℃~+45℃
存储环境 存储温度 -25℃~+70℃
存储湿度 温度40℃,相对湿度95%(非凝结状态)
安装方式 机架式
产品尺寸 不含挂耳:425mm(宽)*88mm(高)*376.9mm(深)
净重 约11.8Kg(不包含包装、配件重量)
电源 输入:AC/50Hz,110V~220V; DC,110V~220V单电源、冗余电源可选
颜色 黑色
电磁兼容性 满足国家电力四级
操作系统 支持Windows 7、Windows10、湖南麒麟操作系统、Cent OS等高内核版本Linux系统。

Ordering Information

料号 型号 描述
0010-118041 SPC-8271B 2U, 19" rack-mounted industrial computer for power industry/Intel E3-1225V5 3.3GHz /16G memory/256GB 2.5-inch MLC SSD/2T 3.5-inch enterprise HDD/24 × Gigabit LAN port (8 × optical port and 16 × electrical port/excluding SFP)/1 × Console port/1 × isolated serial port/AC and DC110V~220V input 150W dual power supply/horizontal installation of power supply/power loss alarm
0010-130511 SPC-8271B-02 2U 19" rack-mounted industrial computer for power industry/Intel E3-1225V5 3.3GHz /16G memory/256GB 2.5-inch MLC SSD/2T 3.5-inch enterprise HDD/24 × Gigabit LAN port (8 × optical port and 16 × electrical port/excluding SFP)/1 × Console port/1 × isolated serial port/AC & DC110V~220V input 150W dual power supply/vertical installation of power supply/power loss alarm
