SPC-8231-ZX

2U Standard Rack-mounted Multi-LAN Port Industry-specific Complete PC

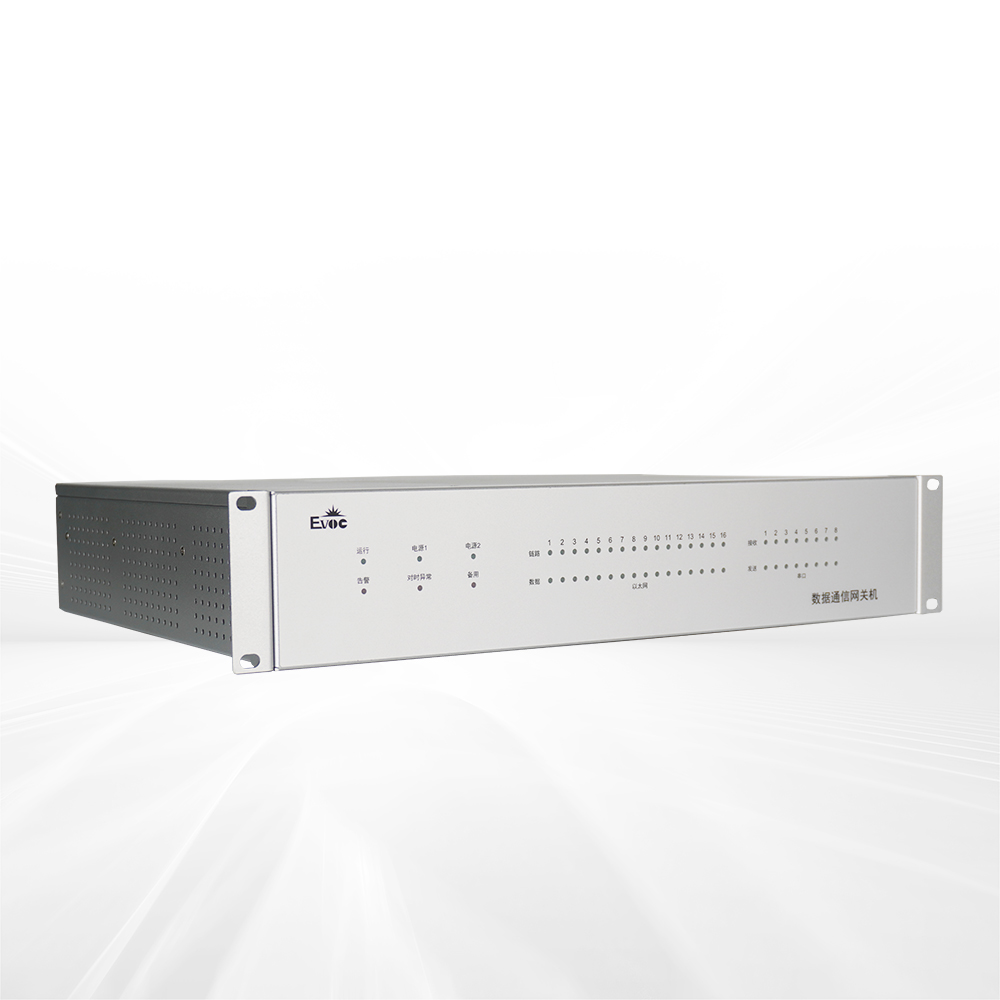

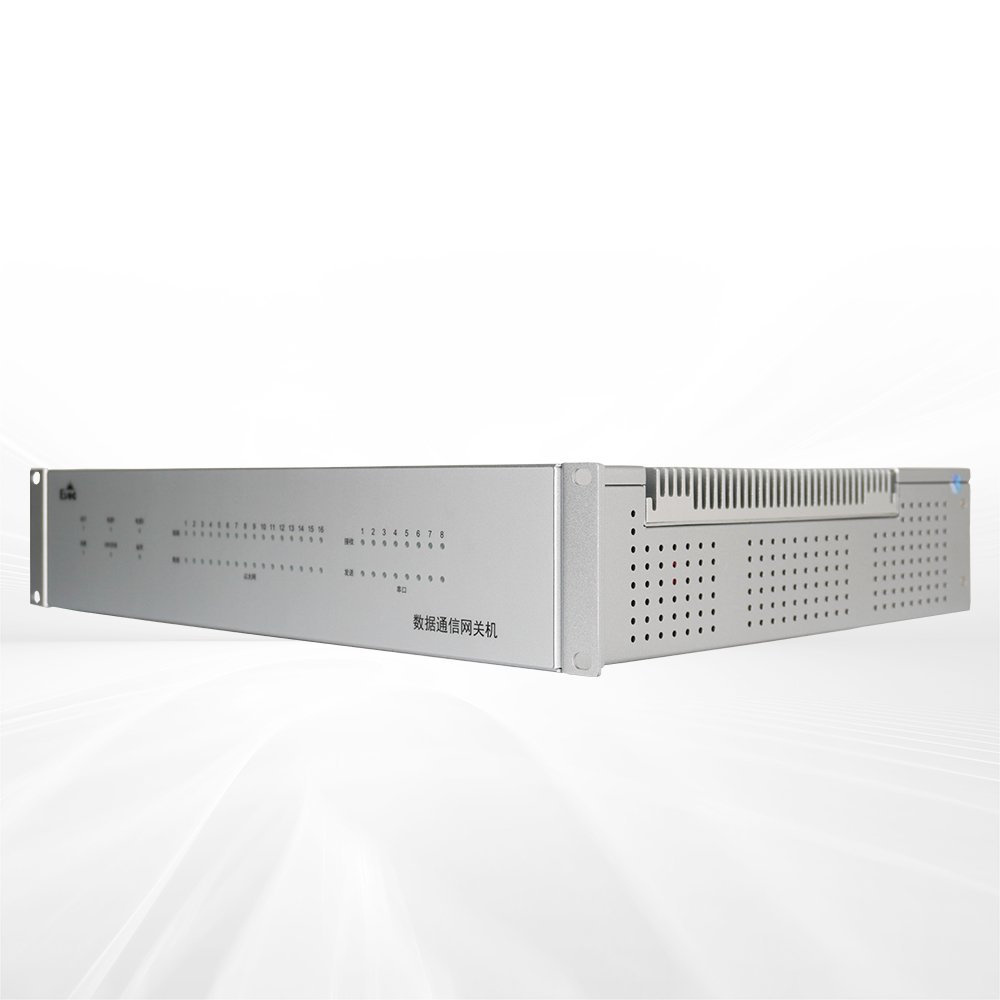

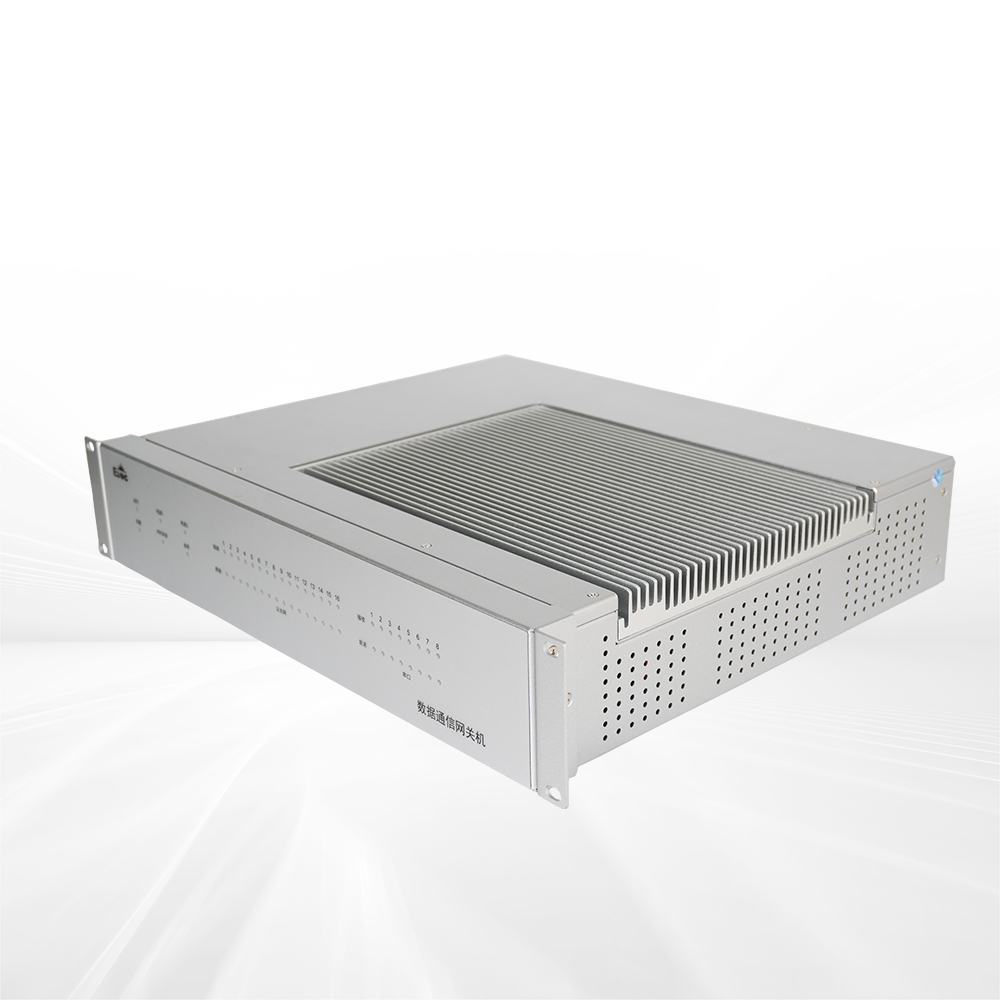

SPC-8231-ZX is a 19" 2U standard rack-mounted multi-LAN port complete PC that meets IEC61850. The front panel and main body of the chassis are both of sheet metal structure. The complete PC is designed with multi-LAN ports and has excellent sealing, dust-proof, heat dissipation and EMC performance. It can be used in harsh environments with heavy pollution, dust and serious electromagnetic interference. It can be widely used in remote terminal management of substations, smart grid dispatch communication management, power supervisory control and data acquisition (PSCADA) system, subway comprehensive monitoring front-end processor (FEP) and other scenarios.

Product Features

150W冗余电源

Redundant power supply

16 × LAN port (optional)

EMC performance conforming to National Electric Power Level 4

Comply with IEC-61850 international standard

Product Specifications

Item Description
系统配置 处理器 基于兆芯平台C-Quadcore C4580四核处理器
芯片组 /
内存 提供2条204Pin DDR3L SO-DIMM内存插槽,单条内存最大16GB,最大总内存容量32GB

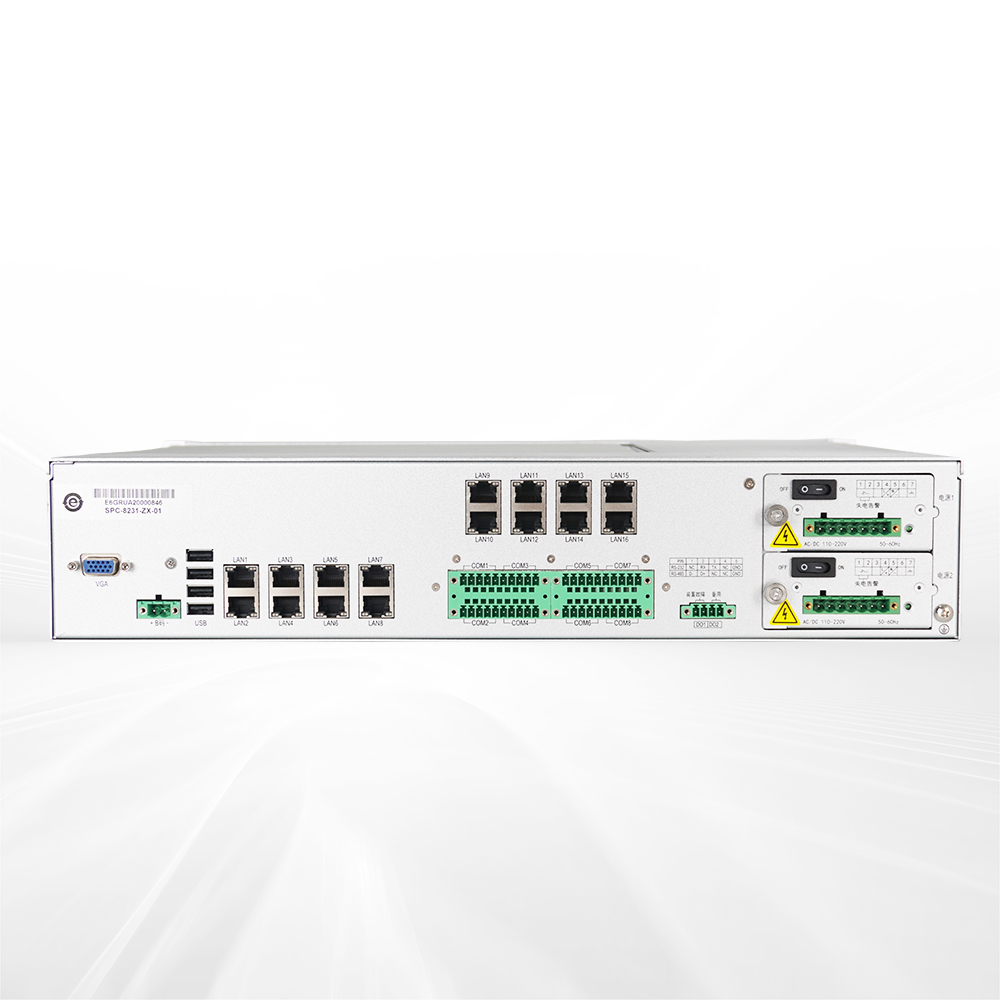

I/O 接口 网口 提供16个千兆网口,其中板载8个,通过模块卡引出8个
显示 1个VGA显示接口
USB 4个USB2.0接口
COM 可选串口模块(含8个串口),其中RS232/485可调,带隔离,凤凰端子接口形式
指示灯 根据不同配置而定
扩展总线 内置1个标准PCIE X1扩展槽
存储器 2个2.5寸硬盘位
工作环境 机械硬盘:-5℃~+45℃
固态硬盘:-15℃~+55℃
存储环境 存储温度 -40℃~+70℃
存储湿度 温度40℃,相对湿度95%(非凝结状态)
安装方式 机架式
产品尺寸 不含挂耳:425mm(宽)*88mm(高)*375mm(深)
净重 约12.2Kg(不包含包装、配件重量)
颜色 银白色
电源 输入:AC/50Hz,110V~220V; DC:110V~220V单电源、冗余电源可选
电磁兼容性 满足国家电力四级
操作系统 支持湖南麒麟,CentOS7.x等高内核版本Linux系统

Ordering Information

料号 型号 描述
0010-137471 SPC-8231-ZX 2U, 19" rack mount sealed multi-serial port server/ Zhaoxin C4580 1.83GHz /4G memory /256G SSD/16 × Gigabit LAN port/8 × isolated serial port/4× USB2.0 port at rear/1 × VGA/AC, DC110V~220V input 150W dual power supply/power loss alarm/neutral
0010-137601 SPC-8231-ZX-01 2U 19" rack mount special complete PC for power industry/ Zhaoxin C4580 1.83GHz /4G memory /256G SSD/16 × Gigabit LAN port/8 × isolated serial port/4 × USB2.0 port at rear/1 × VGA/AC DC110V~220V input 150W dual power supply/power loss alarm/for state grid
