Domestic Network Security Application Platform

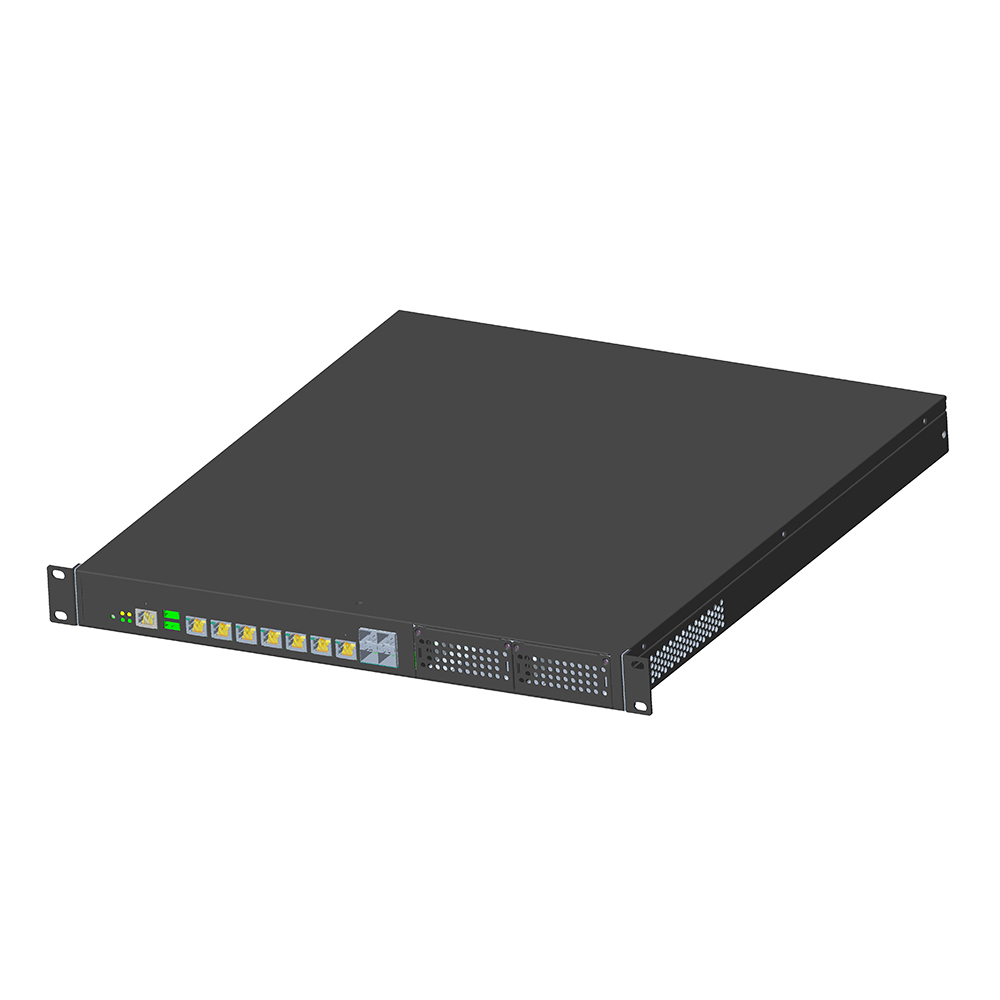

NPC-5118-FT is a standard 1U rack mount network security application product developed based on a Phytium D2000 processor, supporting domestic Linux systems such as Kylin. The product is mainly used in communication, enterprise, finance, education, medical treatment and other fields. NPC-5118-FT can replace the application scenarios of most non-domestic H110, C236 and other platforms and is positioned as a domestic middle-end platform to help enterprises with domestic replacement and upgrading and consolidate enterprise information and asset security. It can be widely used in the new-generation high-end application delivery and can be widely applied to information security protection such as firewalls, behavior management and audit, VPN, vulnerability scanning, and gatekeepers.
Item | Description | |
---|---|---|
系统配置 | 处理器 | 飞腾D2000/8C 主频2.3GHz |
芯片组 | X100 | |
内存 | 双DDR4内存插槽,最大支持32GB | |
存储器 | SATA | 2个SATA 3.0接口,标配1个硬盘位(空闲1个SATA3.0接口) |
MSATA/M.2 | 1个MSATA插槽(与SATA1资源复用),1个M.2 KEY M | |
IO接口 | USB | 2个USB3.0(前置接口),2个USB3.0插针(内置) |
COM | 1个Console口,2个串口Wafer座子(内置,RS-232模式) | |
GPIO | 支持8路数字GPIO | |
显示接口 | 后置1个VGA口 | |
网口 | 网卡芯片 | Intel® i210+沐创N400L |
网口类型 | 板载7个千兆网口+4千兆光口,其中1个电口为专用管理口 | |
扩展总线 | PCIE | 板载2个PCI_E X8插槽,1个Mini_PCIe槽(板内,X1信号) |
ENS | 2个ENS网卡扩展槽位 | |
搭配主板 | NET-1601A11N1B系列 | |
工作环境 | 温度:0℃~40℃ 湿度:10%~ 90%(非凝状态) |
|
储存环境 | 温度:-20℃-70℃ 湿度:10%-90%(非凝结状态) |
|
产品尺寸 | 440mm(W)×43.8mm(H)×500mm(D) | |
电源 | 250W ATX单电源(可选300W冗余电源) | |
操作系统 | 麒麟X86和麒麟软件等飞腾版系统,详情请查阅产品说明书 |
料号 | 型号 | 描述 |
---|---|---|
0010-199941 | NPC-5118-FT01/16G/2T/1BP/250W single power supply | 1U network rack-mounted complete PC/X100 chipset/D2000 2.3Ghz/1*16G memory/1*2T HDD/7*Gigabit electrical ports +4*Gigabit optical ports/1 group of bypass/2 × USB3.0/2*PCIE slots/2*ENS extension slots/1*VGA interface/1*Console port/2*USB ports/250W single power supply |
0010-199951 | NPC-5118-FT02/16G/2T/2BP/300W redundant power supply | 1U network rack-mounted complete PC/X100 chipset/D2000 2.3Ghz/1*16G memory/1*2T HDD /7*Gigabit electrical ports +4*Gigabit optical ports/2 groups of bypass/2 × USB3.0/2*PCIE slots/2*ENS extension slots/1*VGA interface/1*Console port/2*USB ports/1*300W redundant power supply 0010-19996103/16G/2T/3BP/300W redundant power supply |
0010-199961 | NPC-5118-FT-03/16G/2T/300W冗余 | 1U network rack-mounted complete PC/X100 chipset/D2000 2.3Ghz/1*16G memory/1*2T HDD /7*Gigabit electrical ports +4*Gigabit optical ports/3 groups of bypass/2 × USB3.0/2*PCIE slots/2*ENS expansion slots/1*VGA port/1*Console port/2*USB ports/300W redundant power supply |
0020-068081 | NPC-5118-FT-04/D2000/2BP/2 expansion slots/250W single power supply barebone system | 1U network rack mount barebone system/X100 chipset/D2000 2.3Ghz/no memory/no hard disk/7*Gigabit electrical ports +4*Gigabit optical ports/2 groups of bypass/2*PCIE slots/2*ENS expansion slots/1*VGA port/1*Console/2*USB ports/1*250W single power supply |
