Domestic Network Application Platform

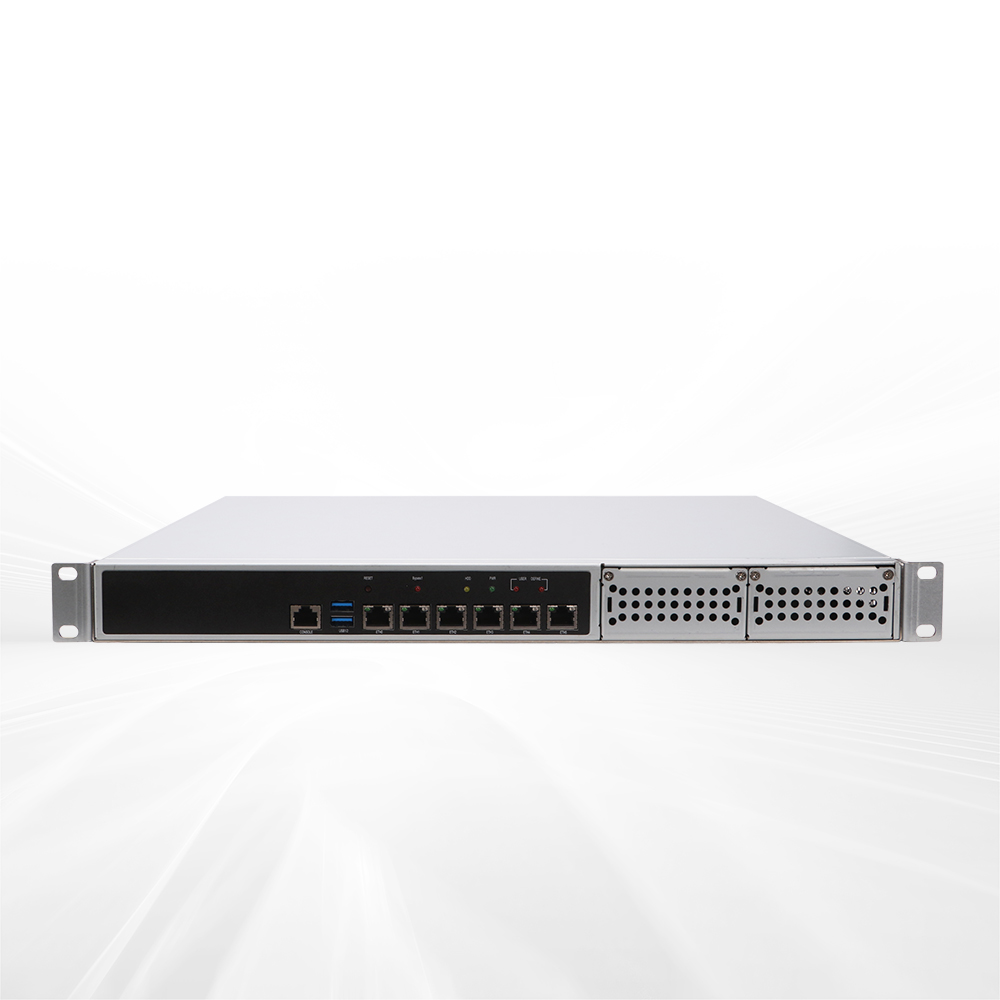

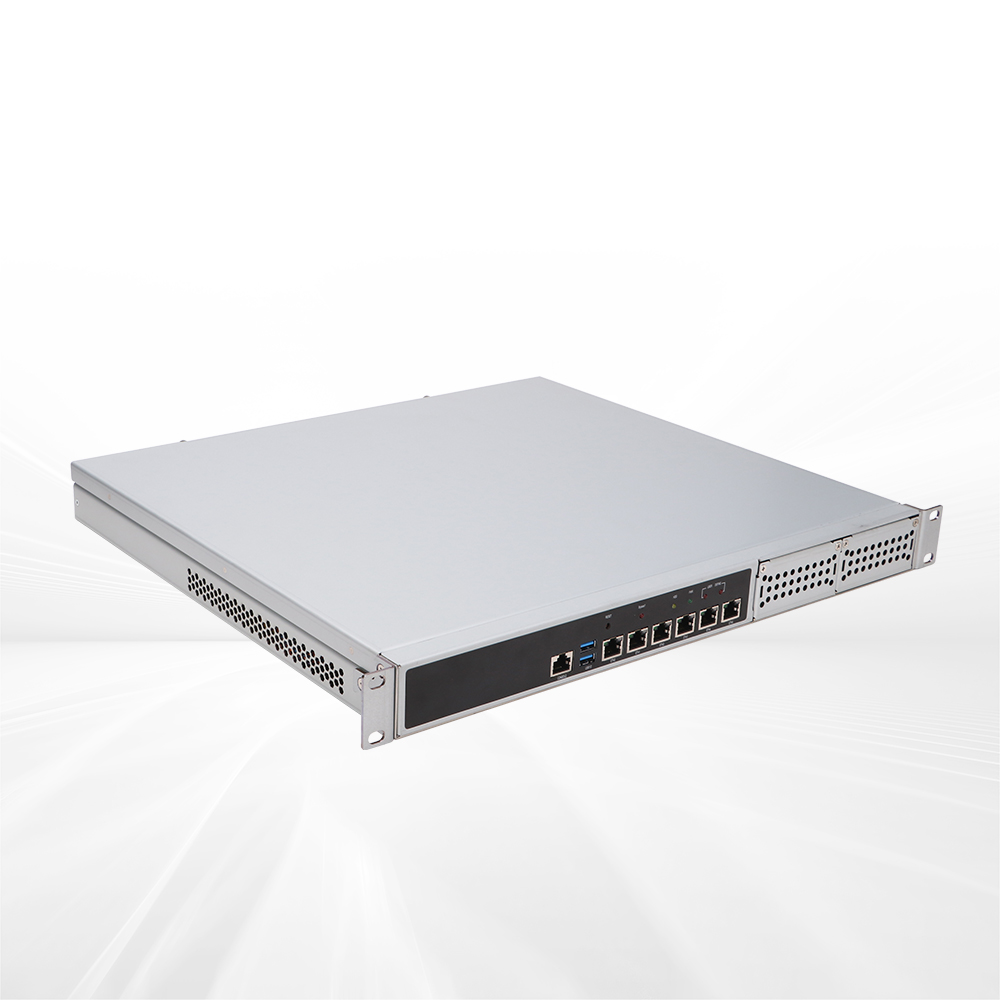

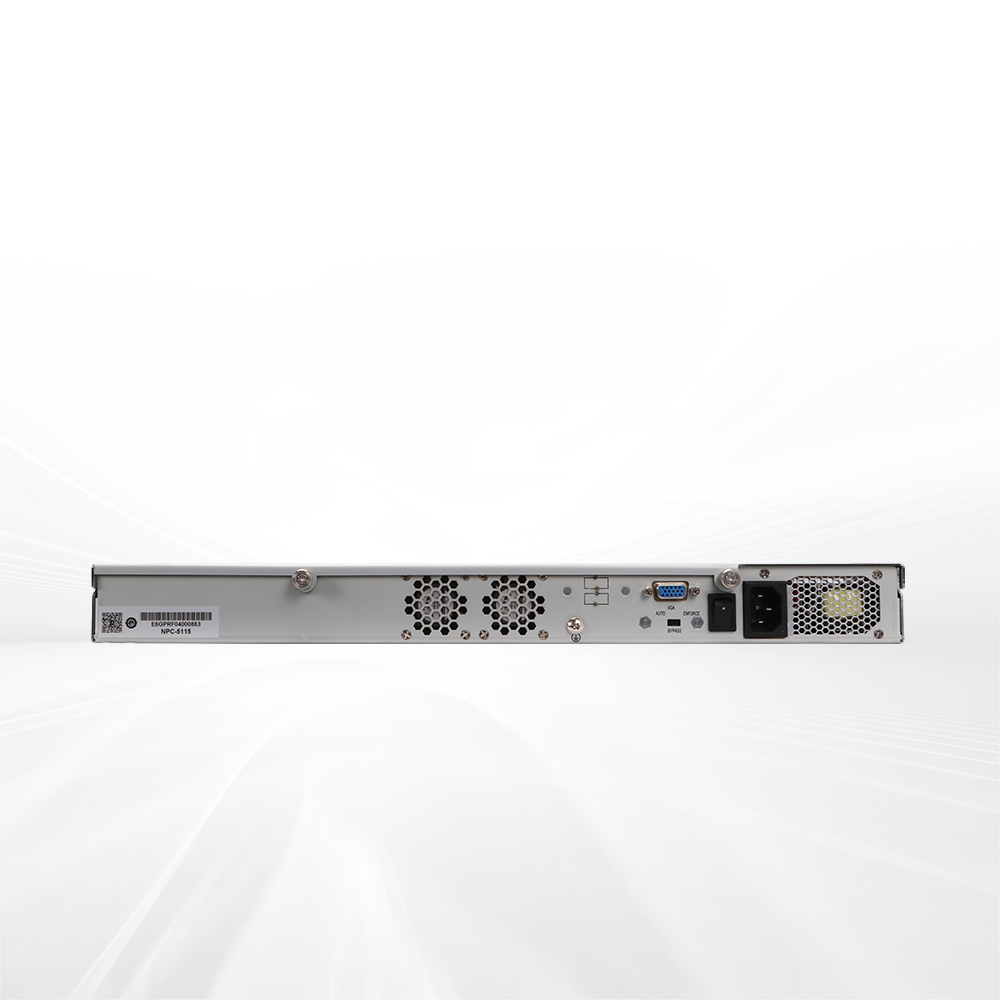

NPC-5115-ZX is a network security application product developed based on autonomous controllable ZX-C+ and ZX-C series quad-core processors. The motherboard is fully compatible with X86 architecture and adapts to the traditional Linux operating system. The complete PC can be configured with DDR3 32GB memory, onboard 6 × Gigabit electrical port, and 2 × optional ENS expansion slot. NPC-5115-ZX is mainly used in mainstream firewalls, antivirus walls, VPN, gatekeepers and network acceleration.
| Item | Description | |
|---|---|---|
| 系统配置 | 处理器 | C-Quadcore C4710 四核处理器, 主频2.0GHz C-Quadcore C4600 四核处理器, 主频2.0GHz |
| 芯片组 | ZX-100S | |
| 内存 | 2条DDR3内存插槽，支持Un-buffered ECC，整机总容量最大32GB | |
| 存储器 | SATA | 2个SATA 3.0 接口，标配1个硬盘位（空闲1个SATA3.0接口） |
| IO接口 | USB | 2个USB3.0接口（前置接口），2个USB2.0插针（内置），2个USB3.0插针（内置） |
| COM | 1个RJ45形式Console口（前置接口），1个内置wafer插针 | |
| GPIO | 支持8路数字GPIO | |
| 显示接口 | 1个VGA接口 | |
| 网口 | 网卡芯片 | Intel® i211/I210 |
| 网口类型 | 6个千兆电口 | |
| 扩展总线 | PCIE | 板载1个标准PCI_E2.0 8X（X8信号，与ENS槽资源复用，二选一） |
| ENS | 1个ENS扩展槽（可选2扩展，EB-X8N-200B 料号：1090-012451） | |
| 搭配主板 | NET-1512VD6N系列 | |
| 工作环境 | 温度：0℃～40℃ 湿度：10%～ 90%（非凝状态） |
|
| 储存环境 | 温度：-20℃-70℃ 湿度：10%-90%（非凝结状态） |
|
| 产品尺寸 | 440mm（W）*88mm(H)*550mm(D) | |
| 电源 | 250W/180W ATX（可选300W冗余，箱体需加长） | |
| 操作系统 | Linux (CentOS, Red Hat, Ubuntu)，麒麟操作系统，详细请查阅产品说明书 | |
| 料号 | 型号 | 描述 |
|---|---|---|
| 0010-122231 | NPC-5115/ZX/C4600/1BP/4G/1TB/180W | Standard 1U rack mount ZX-100S platform complete PC/C4600 CPU/4GB memory/1TB hard disk/onboard 6 × electrical ports/1 group of bypass/supporting 1 × ENS network card expansion module position/matched with NET-1512VD6N-08 motherboard/standard 180W ATX power supply |
| 0010-144911 | NPC-5115/ZX/C4710/1BP/8G/1TB/180W | Standard 1U rack mount ZX-100S platform complete PC/C4710 CPU/8GB memory/1TB hard disk/onboard 6 × electrical ports/1 group of bypass/supporting 1× ENS network card expansion module position/matched with NET-1512VD6N-08 motherboard/standard 180W ATX power supply |
| 0010-143241 | NPC-5115/ZX/C4710/3BP/8G/1TB/180W | Standard 1U rack mount ZX-100S platform complete PC/C4710 CPU/8GB memory/1TB hard disk/onboard 6 × electrical port/3 groups of bypass/supporting 1 × ENS network card expansion module position/matched with NET-1512VD6N-03 motherboard/standard 180W ATX power supply |
