High-performance Domestic Network Application Platform

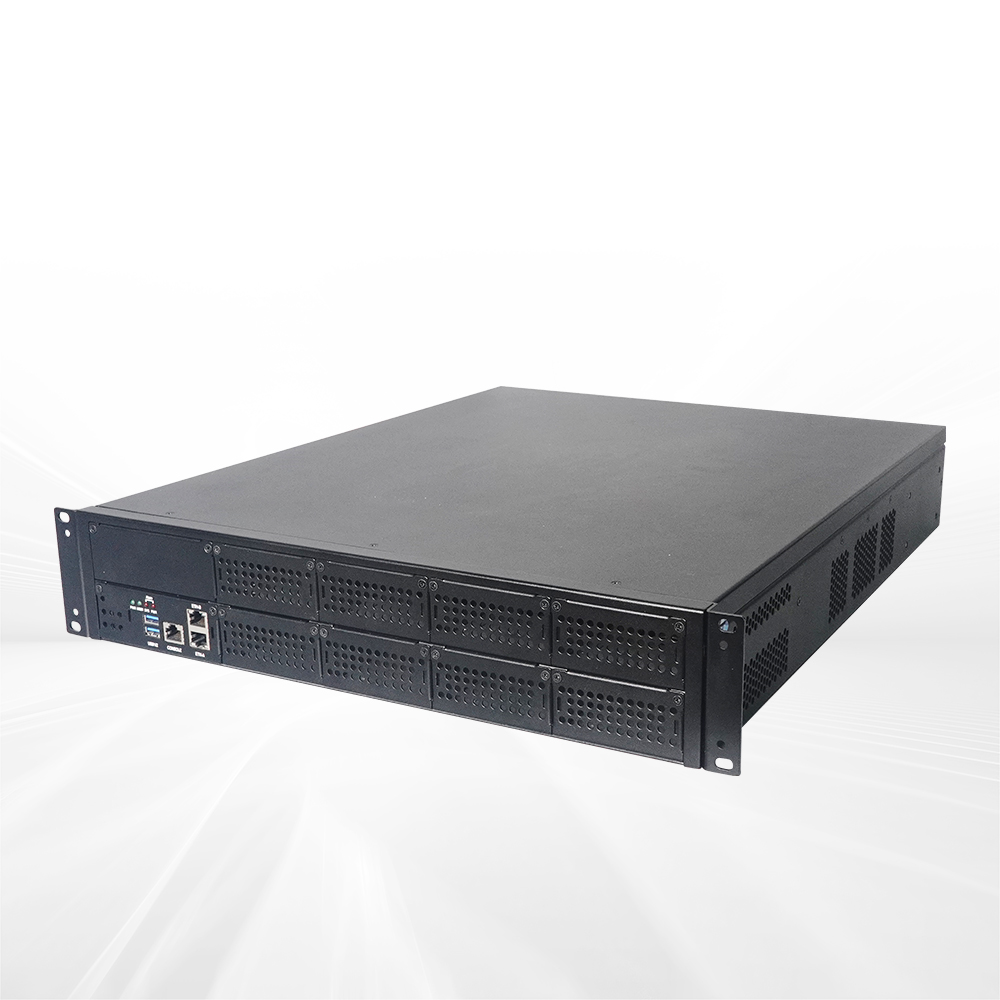

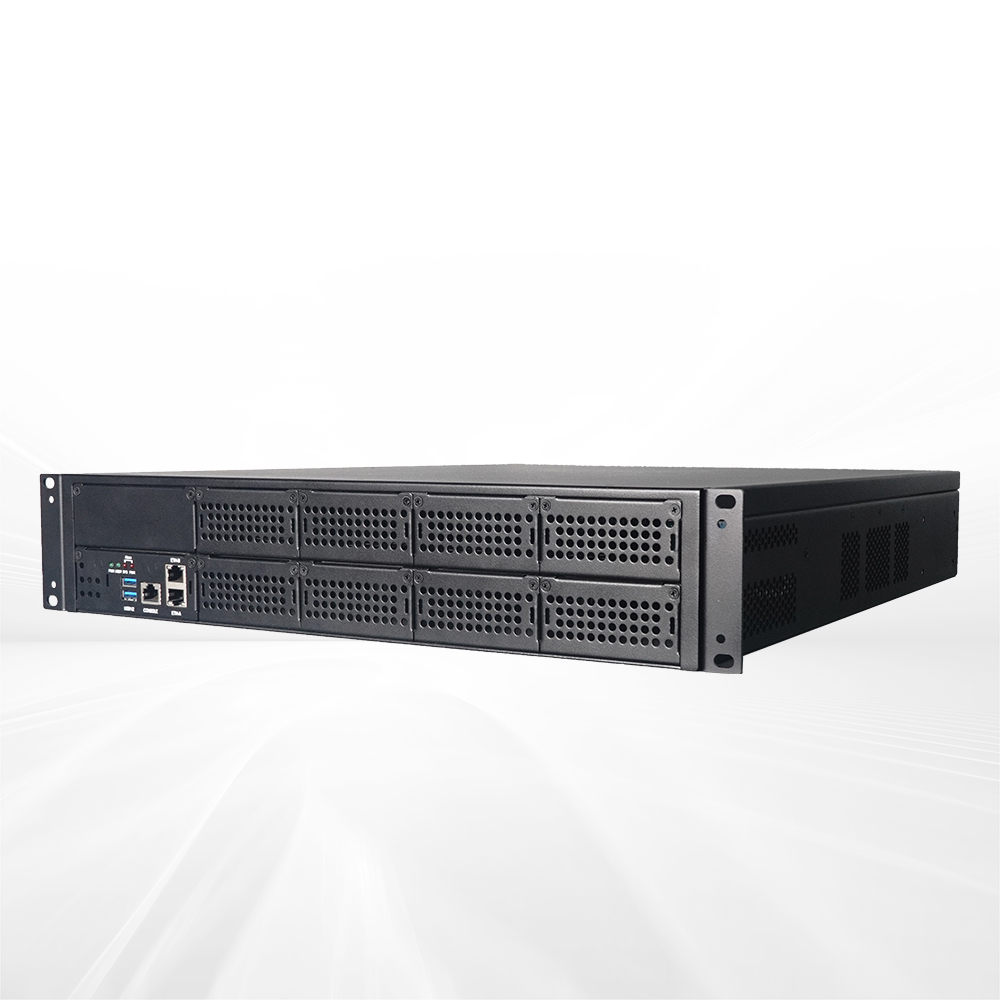

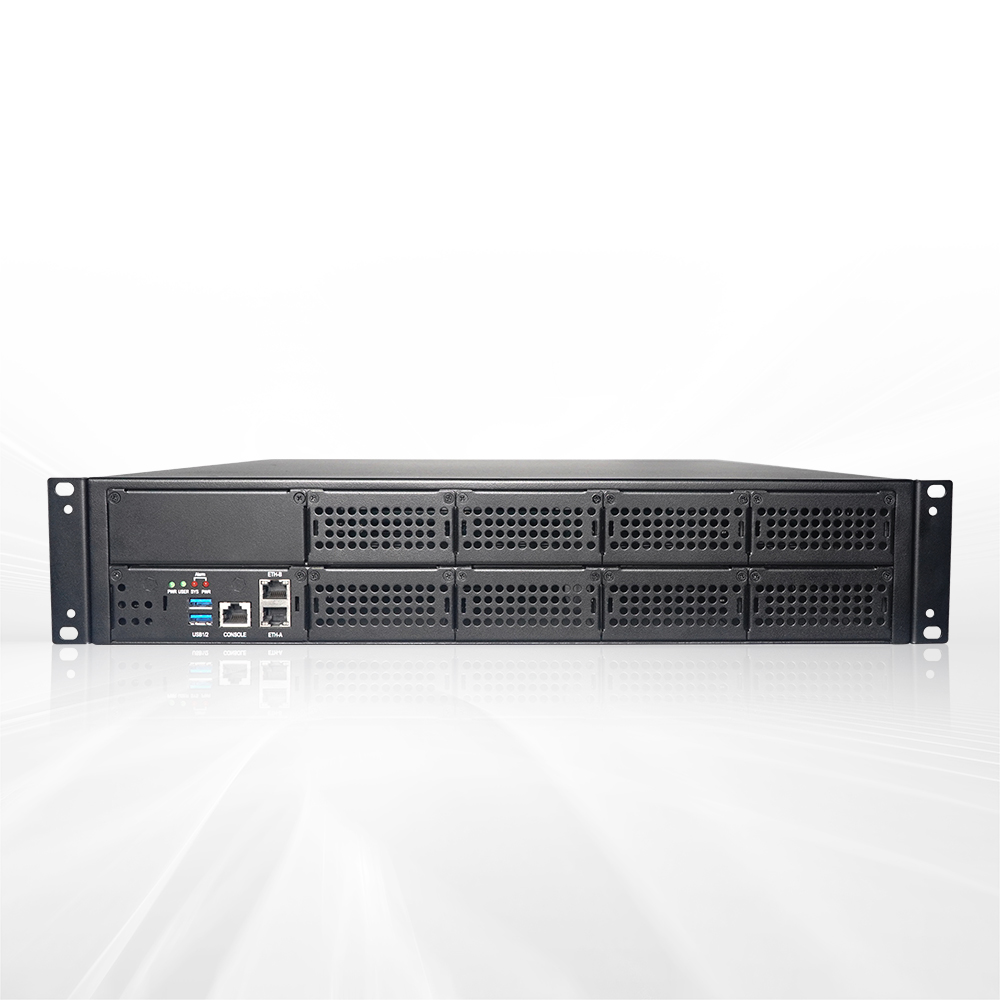

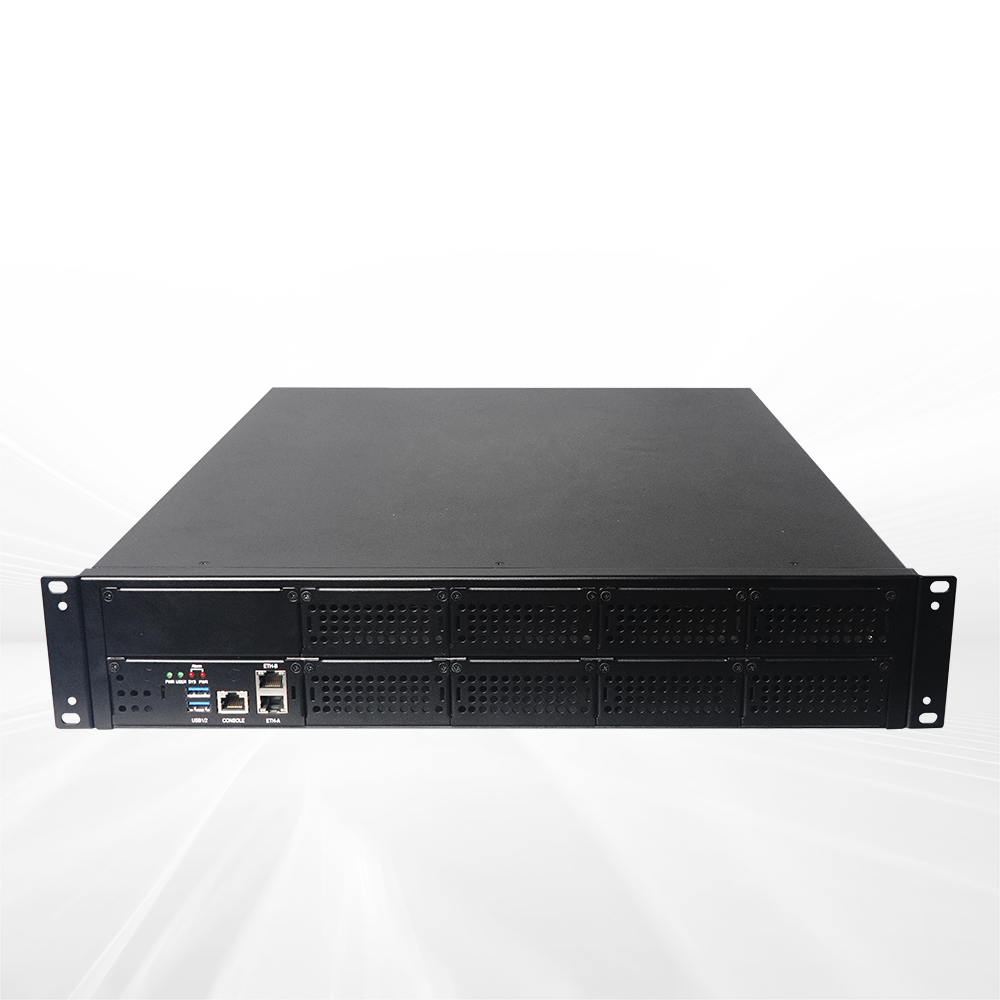

NPC-5217B-HG is a standard 2U rack mount network security application product developed based on Hygon 7 series 2nd and 3rd Gen processors (compatible with 5 series 2nd/3rd Gen) and supports Kylin, CentOS 7.x, ubantu and other Linux systems. The product is applied to communication, enterprise, finance, education, medical treatment and other fields. The network performance of NPC-5217B-HG can be comparable to that of the Xeon GOLD 6152 CPU. It can replace most application scenarios of the non-domestic Purley platform and is positioned as a domestic high-end platform. It can be widely used in the new-generation high-end application delivery and can be widely applied to firewalls, behavior management and audit, VPN, vulnerability scanning, gatekeeper and other information security protection.
Item | Description | |
---|---|---|
系统配置 | 处理器 | 支持Hygon-5系/7系 2号/3号处理器 |
芯片组 | HG-5/7系 | |
内存 | 8条DDR4内存插槽,整机总容量可达512G | |
存储器 | SATA | 4个SATA3.0接口,标配1个硬盘位(空闲3个SATA3.0接口) |
MSATA/M.2 | 1个MSATA,1个M.2 2280 KEY B | |
IO接口 | USB | 2个USB3.0接口(前置接口),2个USB3.0插针(内置) |
COM | 1个RJ45形式Console口(前置接口),1个内置wafer插针 | |
GPIO | 支持8路数字GPIO | |
显示接口 | 1个VGA接口 | |
网口 | 网卡芯片 | WX1860 |
网口类型 | 板载2个千兆网口,其中1个网口可选配为IPMI口 | |
扩展总线 | PCIE | 海光5系处理器:板载2个标准PCIE X8插槽;海光7系处理器:板载1个标准X8和1个标准X16插槽 |
ENS | 8个ENS网卡扩展槽位(可选4扩) | |
搭配主板 | NET-1513VD2N系列 | |
工作环境 | 温度:0℃~40℃ 湿度:10%~ 90%(非凝状态) |
|
储存环境 | 温度:-20℃-70℃ 湿度:10%-90%(非凝结状态) |
|
产品尺寸 | 440mm(W)*88mm(H)*550mm(D) | |

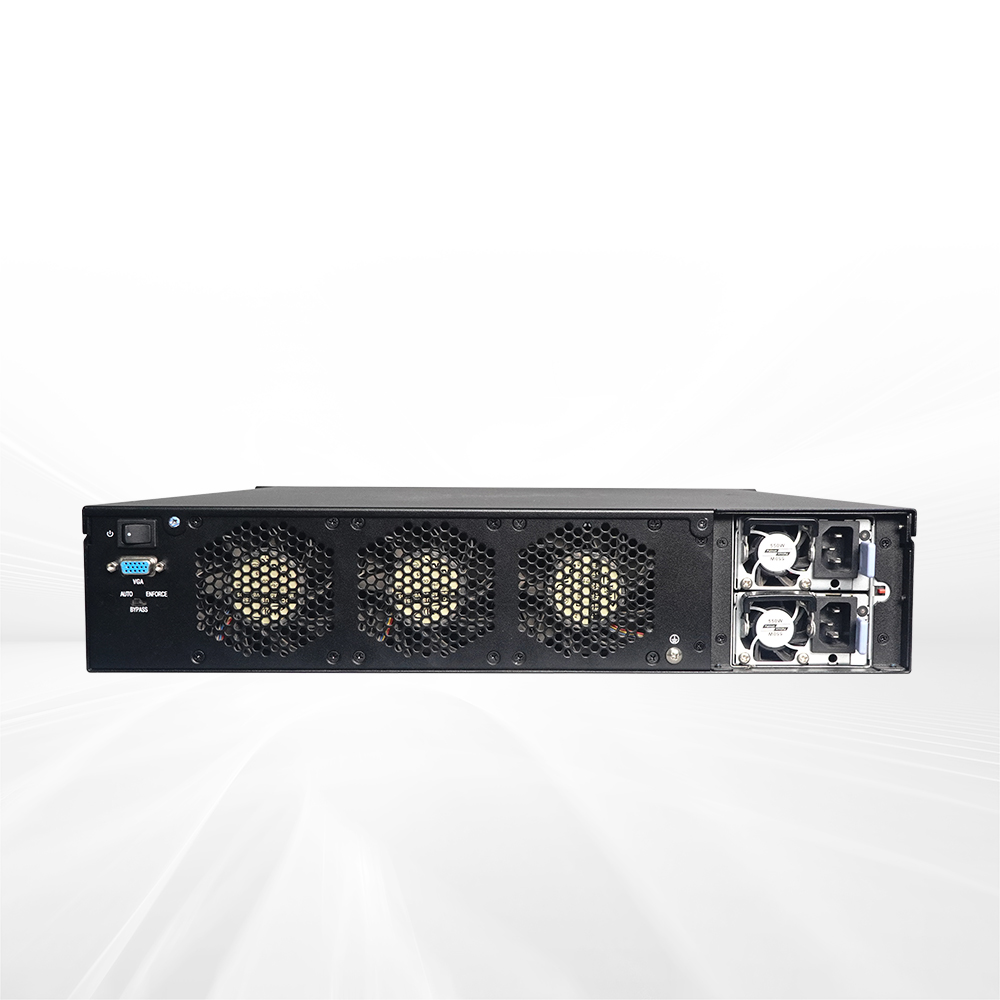

电源 | 550W ATX冗余电源(可选单电源或直流电源) | |
操作系统 | Ubuntu16.04及以上版本、CentOS8.x以上内核Linux系统、麒麟X86和UOS、中科方德、湖南麒麟等海光版系统,详细请查阅产品说明书 |
料号 | 型号 | 描述 |
---|---|---|
0010-193621 | NPC-5217B-HG-01 | NPC-5217BHG-01 standard 2U rack-mounted complete PC/Hygon platform/1*HG-7380/1*16G REG-DDR4/1*2T HDD/onboard 2*Gigabit electrical ports/8*ENS slot/2*standard PCIE slot/1*VGA port/1*Console port/2*USB port/1*550W redundant power supply |
0010-194191 | NPC-5217B-HG-02 | NPC-5217BHG-02 standard 2U rack-mounted complete PC/Hygon platform/1*HG-7375/1*16G DDR4/1*2T HDD/onboard 2*Gigabit electrical ports/4*ENS slot/2*standard PCIE slot/1*VGA port/1*Console port/2*USB port/1*550W redundant power supply/with LCD screen |
0010-194201 | NPC-5217B-HG-03 | NPC-5217BHG-03 standard 2U rack-mounted complete PC/Hygon platform/1*HG-5380/1*16G DDR4/1*2T HDD/6*Gigabit electrical ports+4*Gigabit optical ports/3*ENS slot/2*standard PCIE slot/1*VGA port/1*Console port/2*USB port/1*550W redundant power supply |
0020-067701 | NPC-5217B-HG-04 | NPC-5217BHG-04 standard 2U rack mount barebone system/Hygon platform/no processor/no memory/no hard disk/3*3.5-inch HDD bays/onboard 2*Gigabit electrical ports/4*ENS slot/2*standard PCIE slots/1*VGA port/1*Console port/2*USB ports/1*550W redundant power supply |
