Domestic Network Application Platform

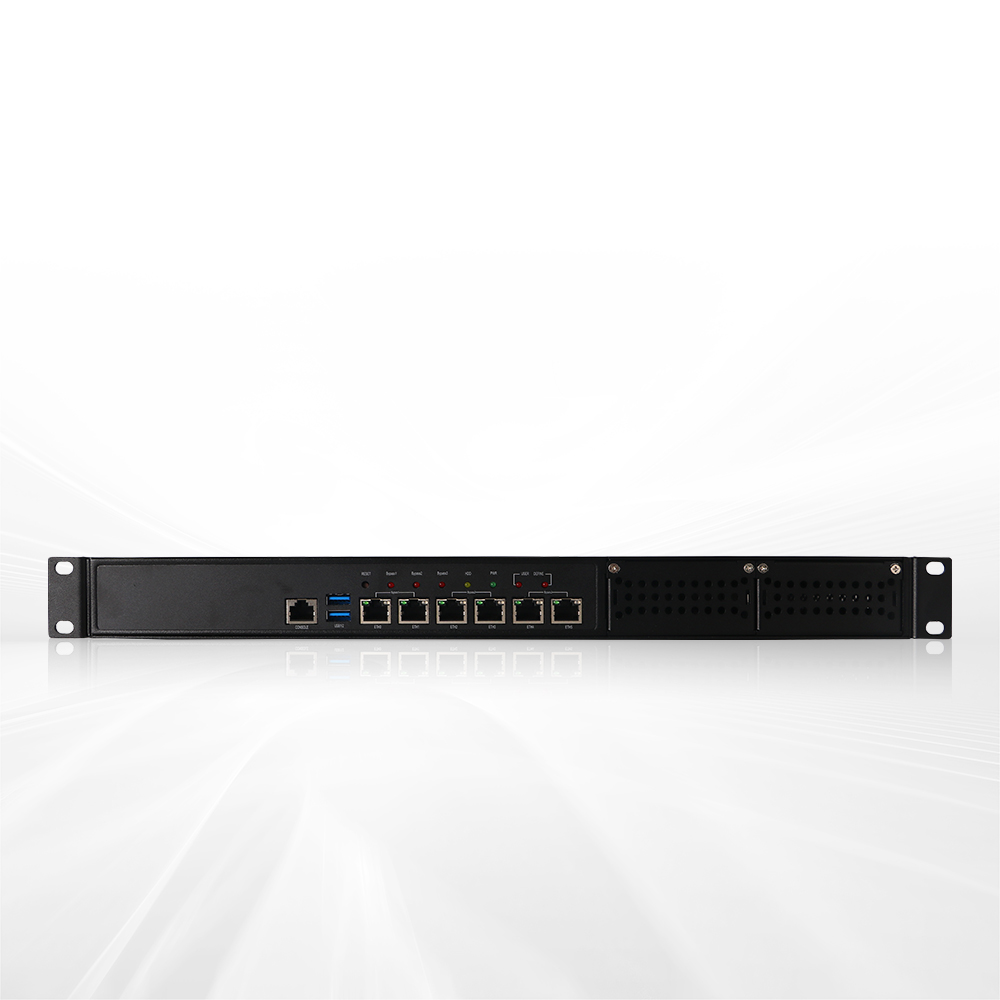

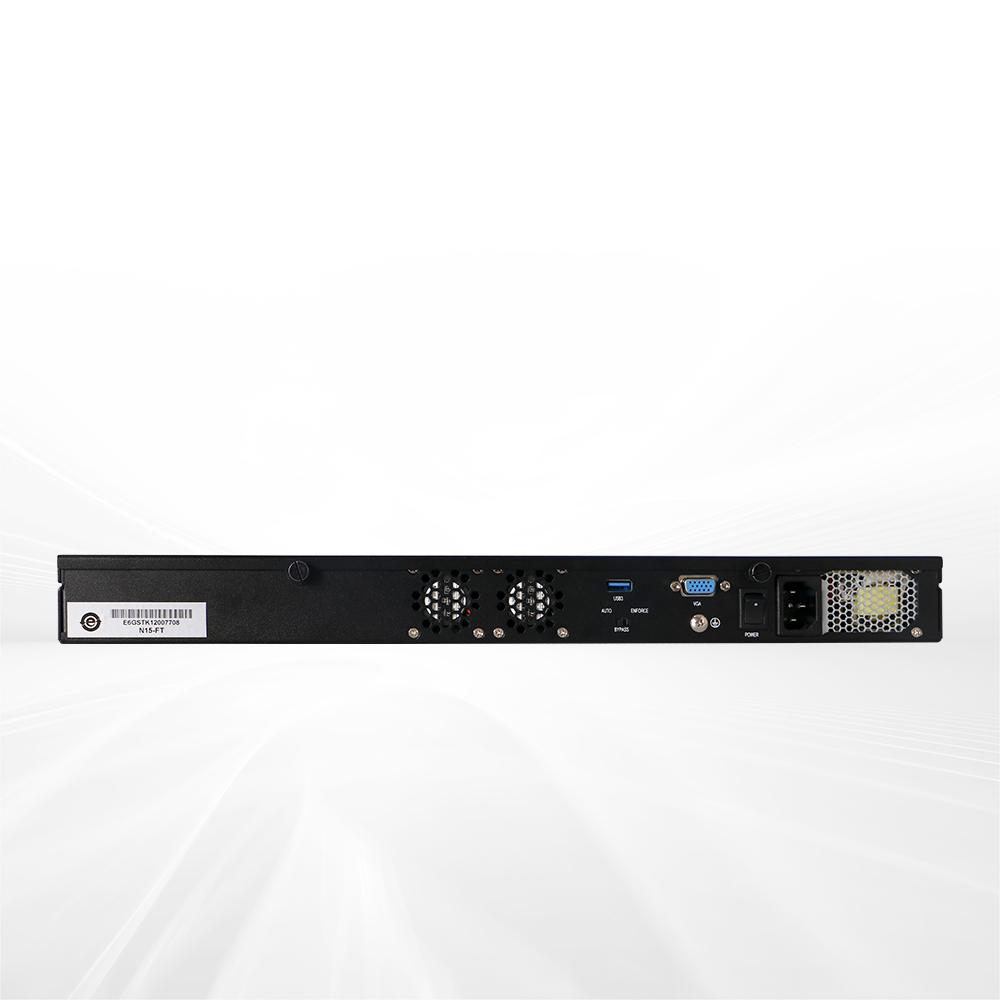

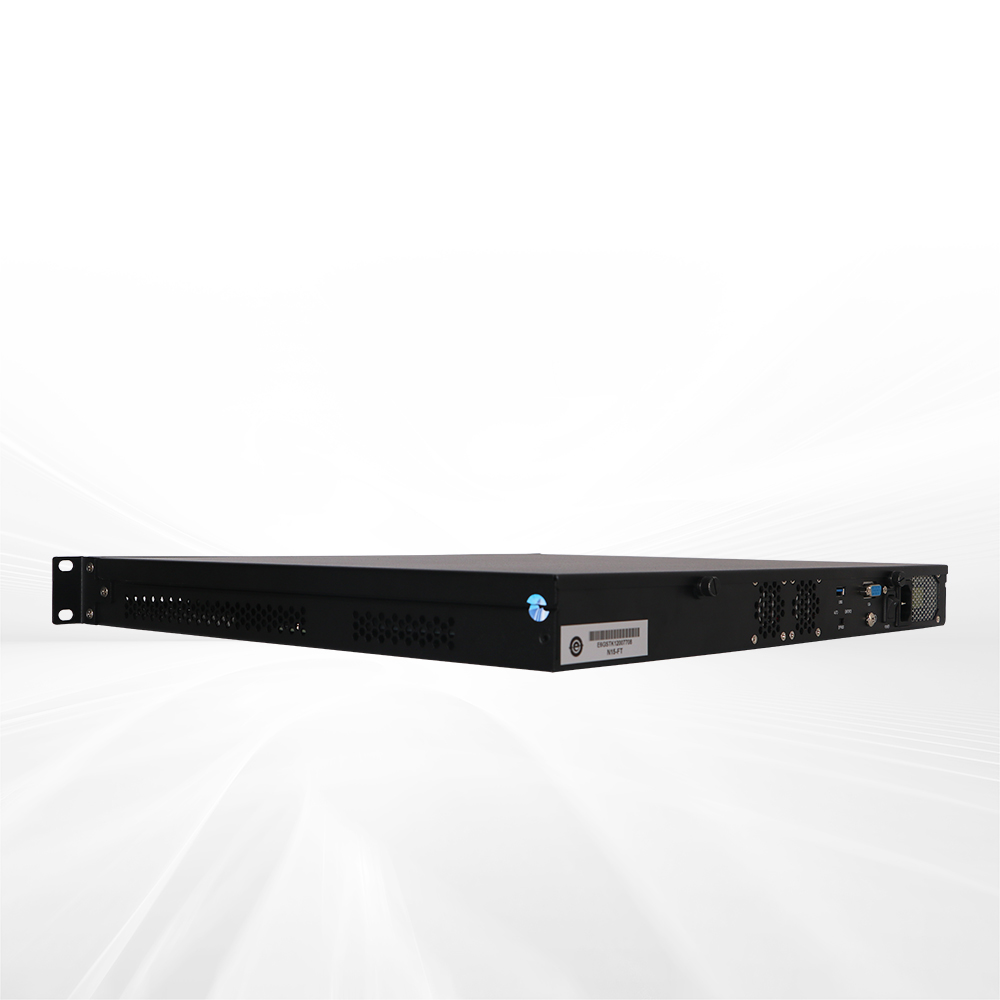

N15-FT is a standard 1U rack mount network security application product developed based on the autonomous and controllable Phytium FT-2000/quad-core processor, equipped with 2 × DDR4 memory slot, which can adapt to domestic operating systems such as Kylin. The product is applied to communications, enterprises, finance, education, medical treatment and other industries. N15-FT is widely used in the new-generation high-end application delivery and can be widely applied to information security protection such as firewalls, behavior management and audit, VPN, vulnerability scanning, and gatekeepers.
Item | Description | |
---|---|---|
System Configuration | Processor | Phytium FT2000/4 quad-core processor, dominant frequency of 2.6GHz |
Memory | Dual DDR4 memory slot,supporting up to 32GB | |
Storage | SATA | 3 x SATA3.0 port, 1 × 3.5-inch hard disk bay |
MSATA | 1 x MSATA slot | |
I/O Port | USB | 2 ×USB3.0 port (at front), 2 × USB3.0 pin (built-in) |
COM | 1 × Console port, 3 × serial Wafer socket (built-in, RS-232 mode) | |
GPIO | Supports 8-channel digital GPIO interface | |
Display Port | 1 x VGA port at rear | |
Network port | Network card chip | Intel® i210 |
LAN Port Type | 6 x 10/100/1000Mbps RJ-45 port | |
Expansion Bus | PCIE | 1 x standard PCIE 8X slot |
ENS | Supports up to 2 x ENS network card expansion slot, and 1 x ENS network card expansion slot can be selected | |
Matched Motherboard | COM-1502-FT series | |
Working Environment | Working temperature: 0°C -40°C humidity: 10% ~ 90% (non-condensing state) |
|
Storage Environment | Storage temperature: -20°C ~ 70°C storage humidity: 10% ~ 90% (non-condensing state) |
|
Overall Dimensions | 440mm(W)×43.6mm(H)×400mm(D) | |
Power Supply | 180W ATX single power supply | |
Operating Systems | Kylin X86, Unity and other Phytium systems. Please refer to the product manual for details |
料号 | 型号 | 描述 |
---|---|---|
0010-150441 | N15-FT-01/FT2000/3BP/8G/64G MSATA/180W single power supply | Standard 1U rack-mounted complete PC/Phytium platform/1*FT-2000/1*8G memory/1*64G MSATA/onboard 6*Gigabit electrical ports/3BP/2*ENS network card expansion slots/1*standard PCIE slot/1*VGA interface/1*Console port/2*USB ports/1*180W single power supply |
0010-145531 | N15-FT/FT-2000 2.6GHz/8G DDR4/64G MSATA/180W single power supply | Standard 1U rack-mounted complete PC/Phytium platform/1*FT-2000/1*8G memory/1*64G MSATA/onboard 6*Gigabit electrical ports/2*ENS network card expansion slots/1*standard PCIE slot/1*VGA interface/1*Console port/2*USB ports/1*180 single power supply |
