Homepage Products Network Security N15-01B

N15-01B

Network Application Platform

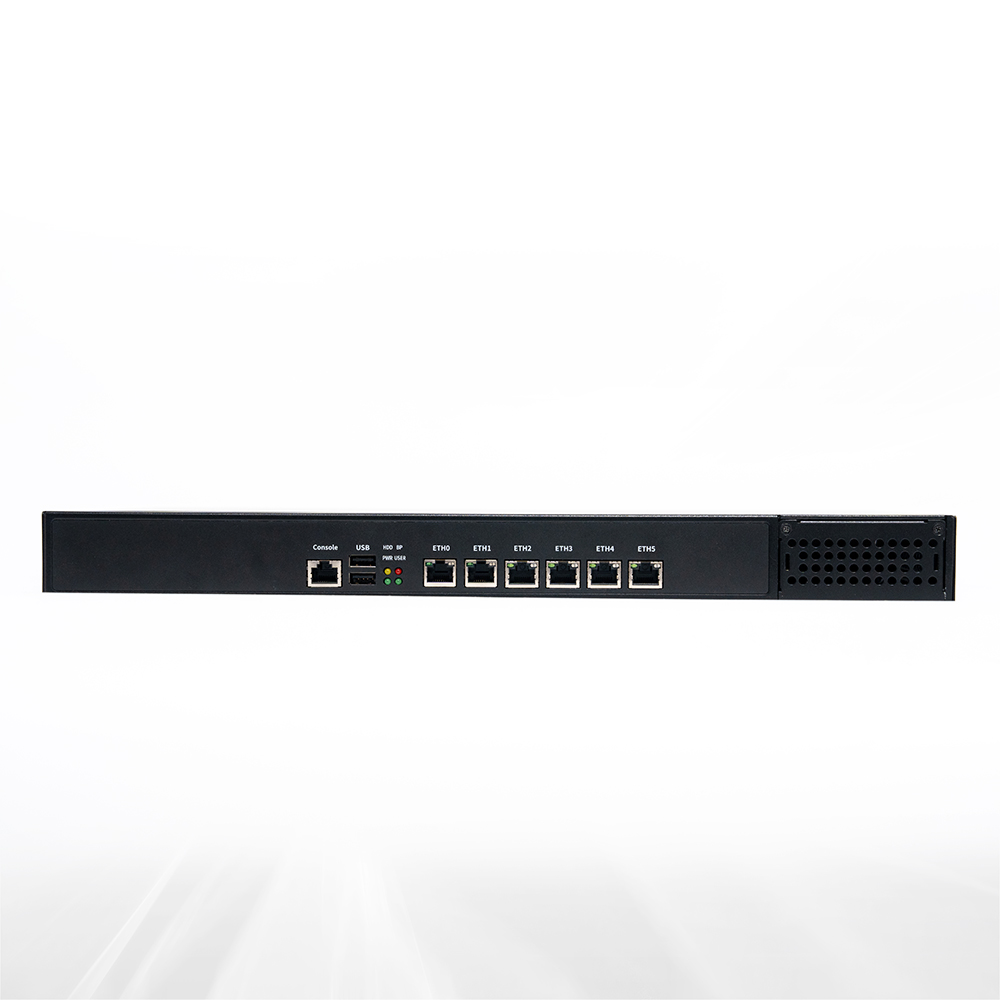

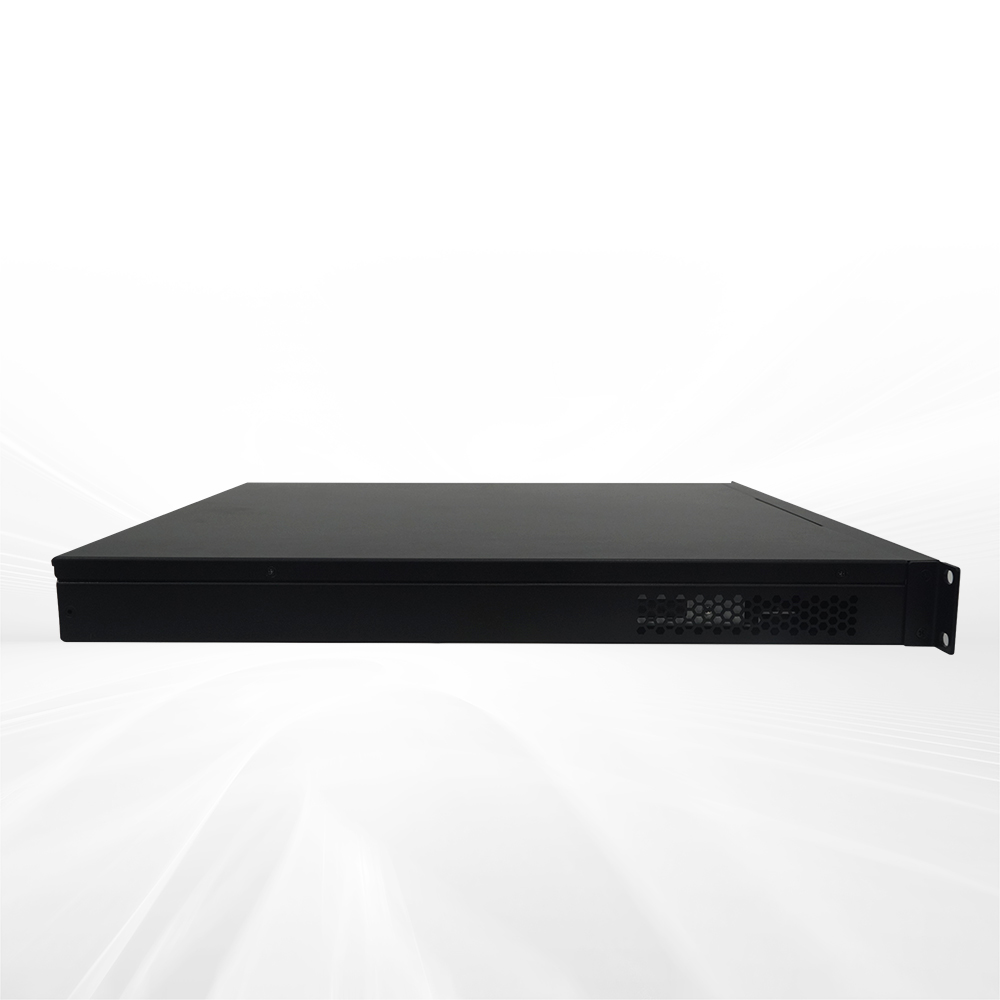

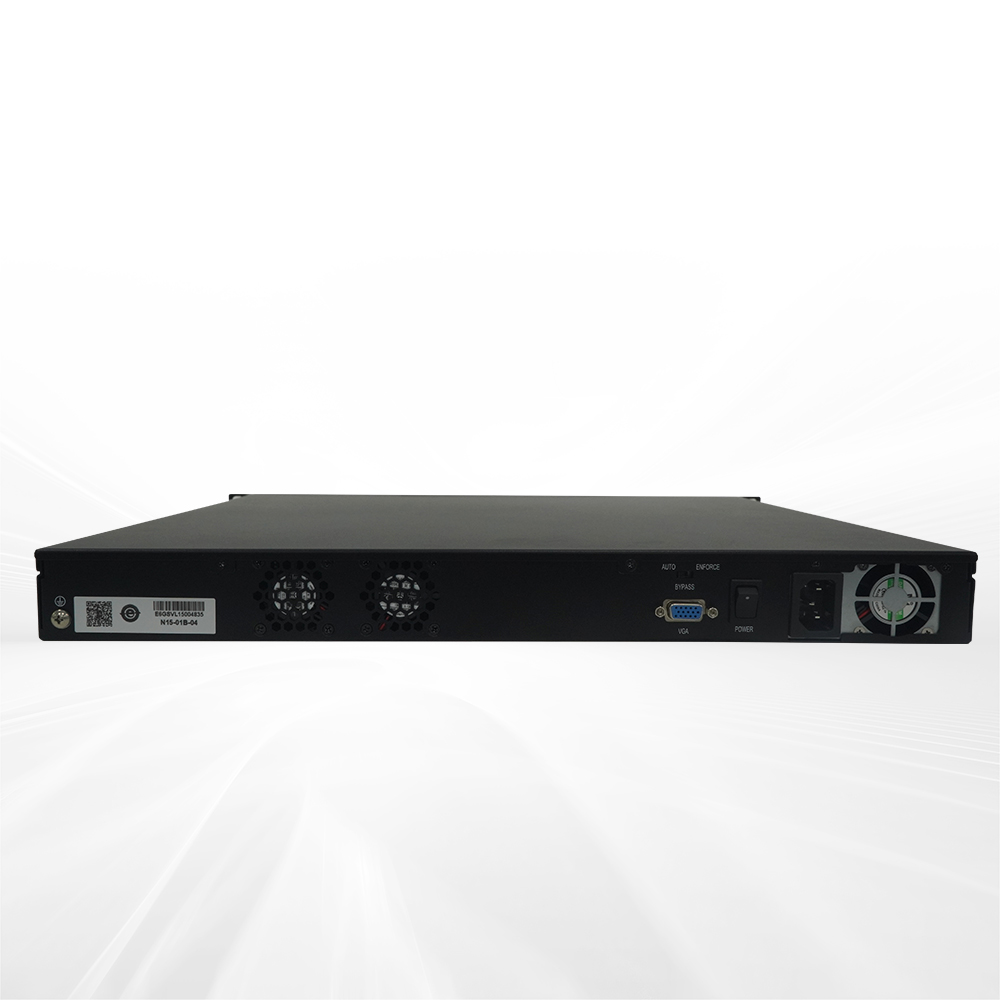

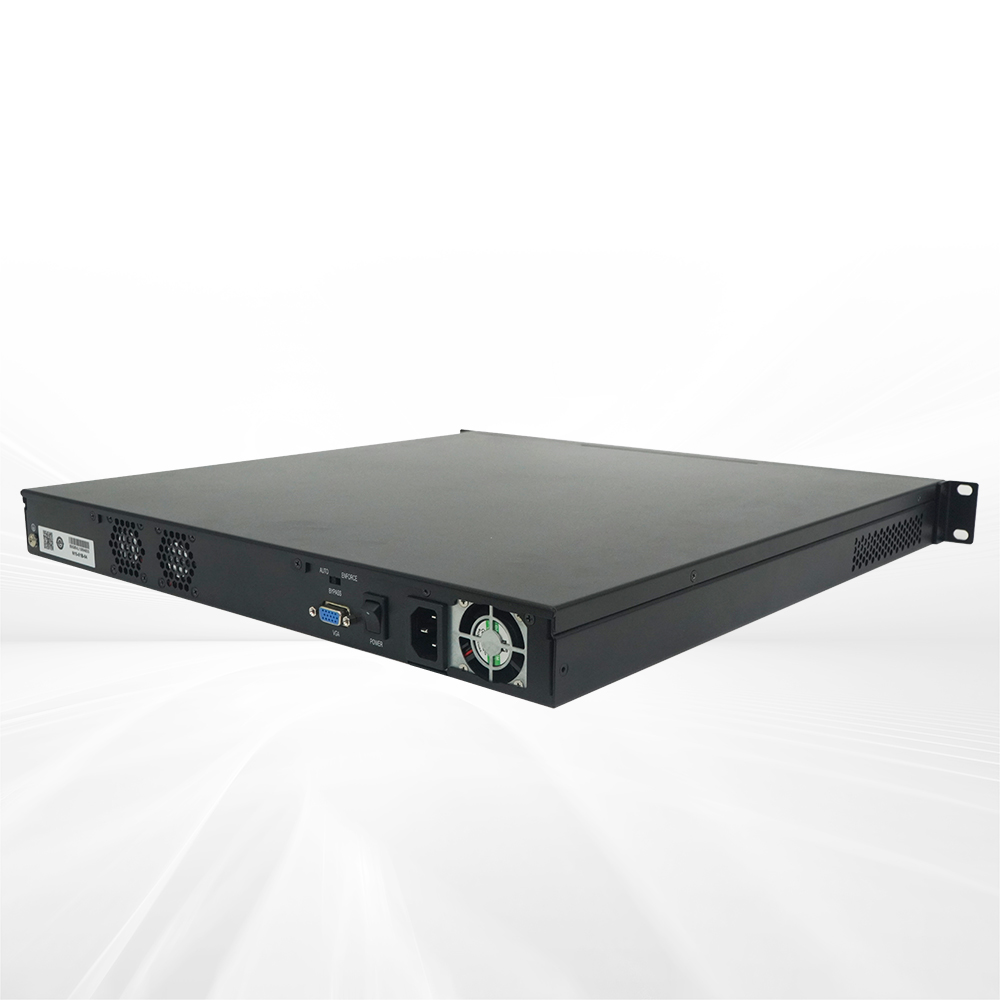

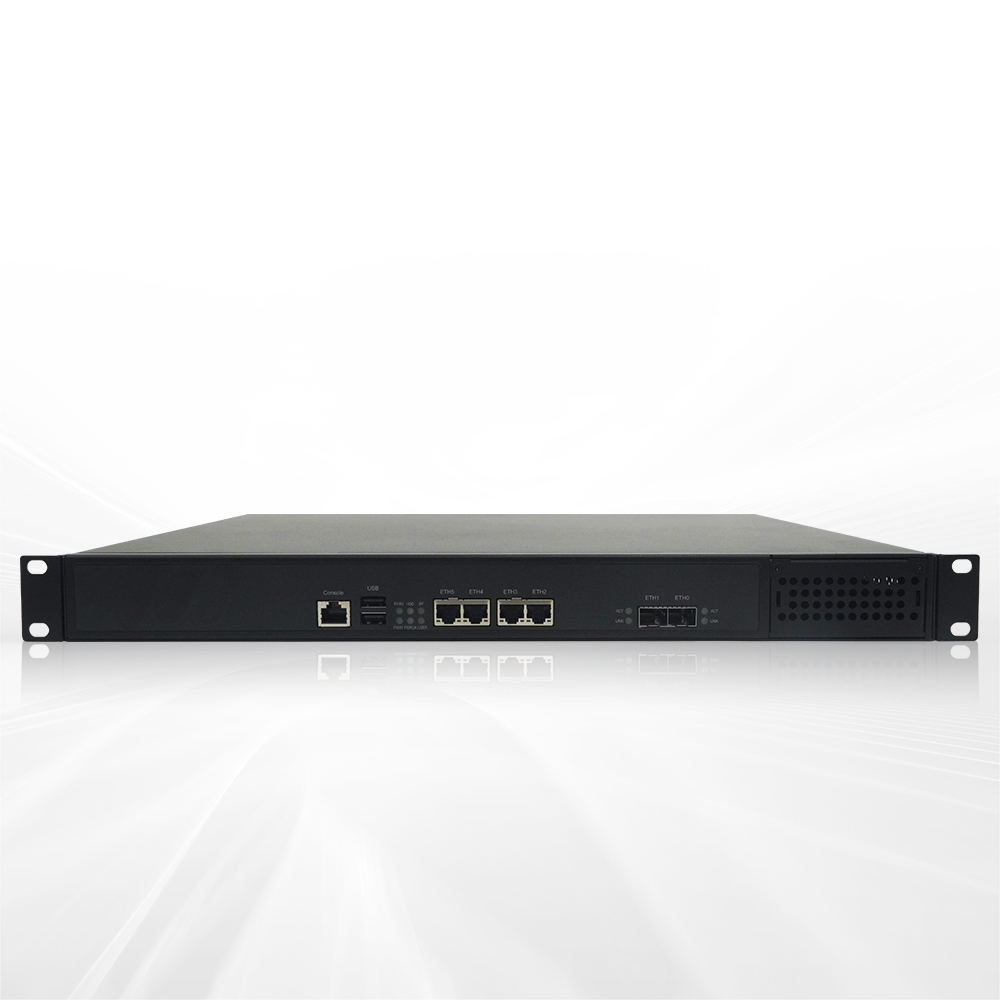

N15-01B is an economical network security hardware solution developed based on the 3rd Gen C3000 of Intel® Atom and a 1U 19" standard rack-mounted chassis is adopted. It supports 1 x Mini PCI_E slot and 1 x PCI_E (signal X1). The onboard module supports up to 6 x Gigabit LAN ports, and the high-configuration module supports 1 x ENS LAN expansion. The complete PC supports up to 14 x Gigabit LAN ports. N15-01B is mainly applicable to firewalls, antivirus walls, next-generation firewalls, application delivery, traffic management, VPN, DNS, IDS/IPS, UTM and other scenarios.

Product Features

Low power consumption

Quick customization

Abundant IO ports

1 x mini-PCIe slot

2 x DDR4 memory

C3000 processor

Product Specifications

Item Description
Storage Port SATA Supports 1 x SATA port. Note: The standard configuration of 1 x hard disk bay, and the economical model has no SATA port or SATA hard disk bay
MSATA supports 1 x MSATA slot
I/O Port USB 2 * USB3.0 (front)
COM 1 x RJ45 Console port (front), RS232 mode by default, supporting redirection function
GPIO Supports 8-channel digital GPIO Expansion bus
Display Port 1 x VGA port (optional and can be led out at the rear). Note: If necessary, please indicate that VGA is provided when placing an order
Optional chipset Part No.:1060-009761 EF-V-001-EFI
Network port Network Chip Intel® I210/I211
LAN Port Type Scheme 1: 6 x Gigabit electrical port onboard;

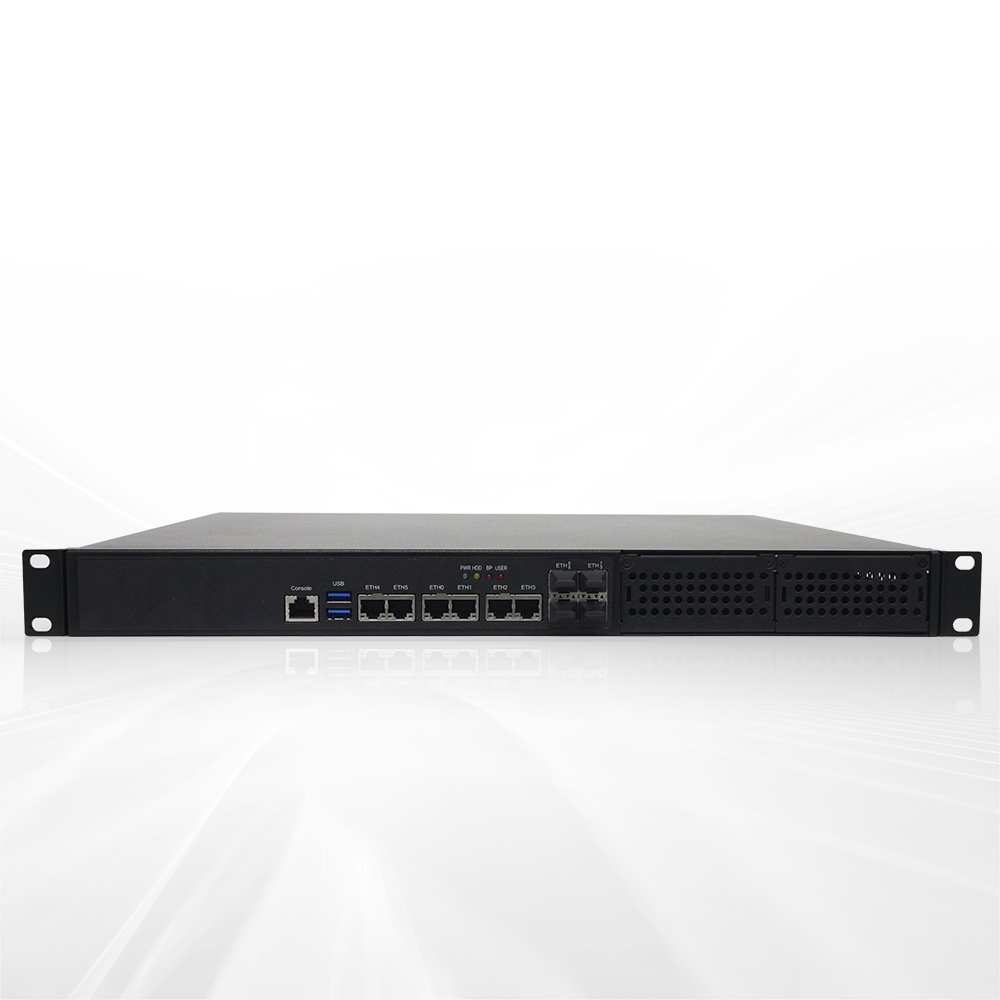

Scheme 2: 4 x Gigabit electrical port + 2 x 10-Gigabit optical port onboard
Expansion Bus PCIE 1 x standard PCIE X8 slot (X1 signal)
ENS High-configuration module: Supports 1 x ENS network card expansion slot.
Matched Motherboard NET-1832VD6N series
Working Environment Working temperature: 0°C -40°C
Storage humidity: 10%-90% (non-condensing state)
Storage Environment Storage temperature: -20°C-70°C;
Storage humidity: 10%-90% (non-condensing state)
Overall Dimensions 440mm(W)×44mm(H)×450mm(D)
Power supply Low configuration (no network expansion slot): default 1*60W single power supply, optional dual power supply.
High configuration (1 x ENS expansion slot): default 1*150W single power supply, optional redundant power supply
Operating Systems Linux OS (kernel version 2.6 and later). Please refer to the product manual for details

Ordering Information

料号 型号 描述
0010-196221 N15-01C-02/C3558/8G*2/1T/150W single power supply Intel C3000 platform/C3558/dual memory slots/onboard 6*Gigabit electrical port/3 sets of BP/2*USB 2.0/1*console port/1*MSATA slot/1*SATA connector/1*PCIE X4 standard slot/1 x ENS expansion slot (X4 signal)/150W single power supply
0010-196231 N15-01C-03/C3558/8G/64G/60W single power supply N15-01C-03/C3558/8G/64G/60W single power Intel C3000 platform/C3558/single memory slot/onboard 6*Gigabit electrical port/0 group of BP/2*USB 2.0/1*console port/1*MSATA slot/without ENS expansion slot/1*PCIE X4 standard slot/1*60W power supply
0010-196241 N15-01C-04/C3558/8G*2/1T/150W single power supply Intel C3000 platform/C3558/dual memory slots/onboard 4*Gigabit electrical port + 2*10-Gigabit optical port/2 sets of BP/2*USB 2.0/1*console port/1*MSATA slot/1*SATA connector/1*PCIE X4 standard slot/1*ENS expansion slot (X4 signal)/150W single power supply
