N15-01

Network Application Platform

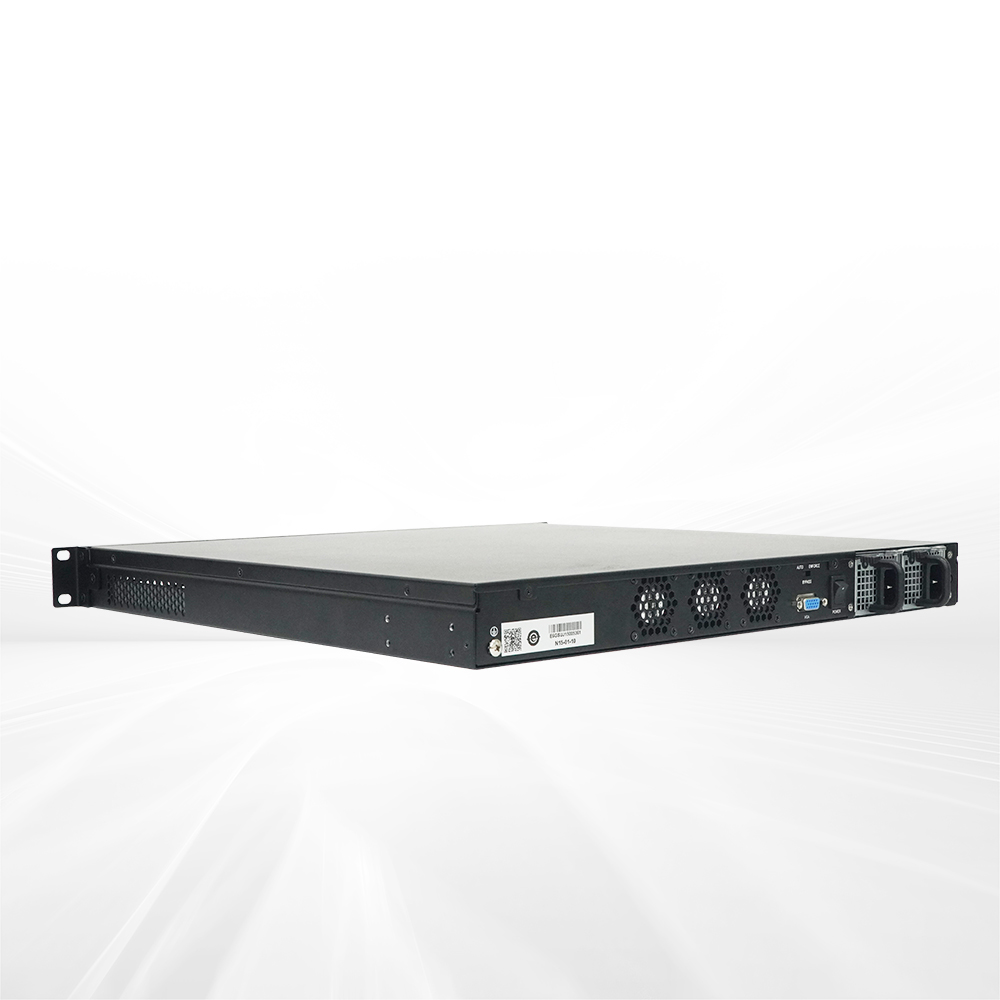

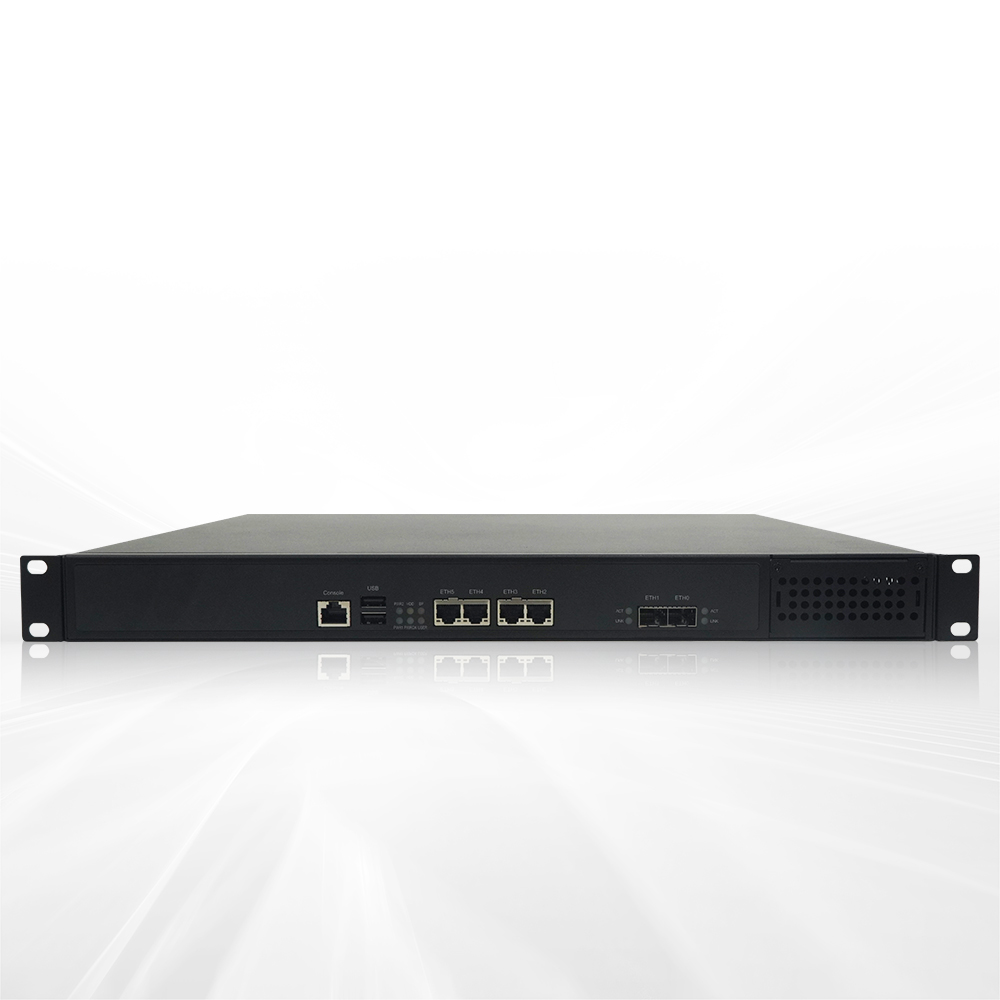

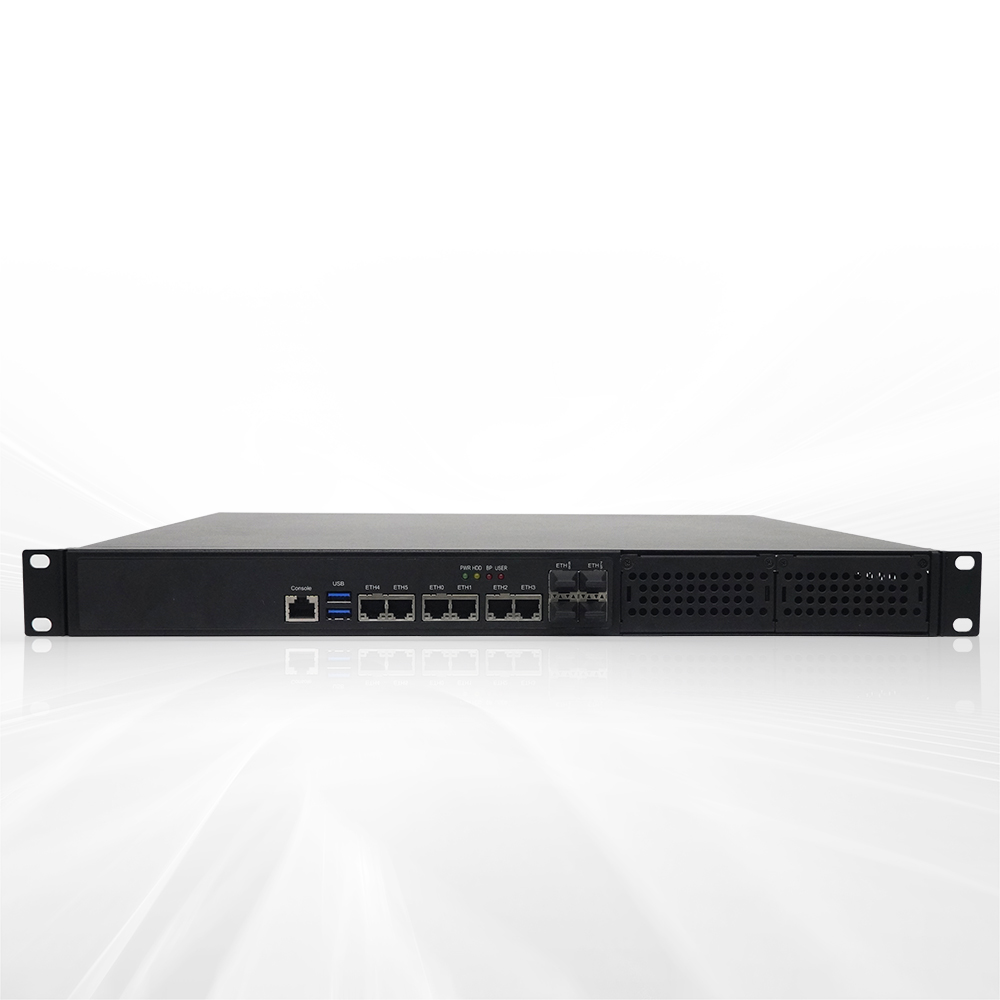

The N15-01 is a standard 1U 19" rack-mounted mainstream network application platform, using Intel Atom C3000 and REFRESH series FCBGA1310 packaging CPU. N15-01 has front 6 x Gigabit electrical port + 2 x Gigabit optical port + 2 x 10-Gigabit optical port + 2 x network card expansion port and supports 1 x Mini-PCIe slot (accessible to VGA display module and 4G module), 1 x PCI-E slot (accessible to encryption card or accelerator card), 1 x SATA3.0 port, and 1 x MSATA slot, and it can meet the needs of various network security applications in the market. N15-01 is mainly used in various network security application scenarios such as firewalls, anti-virus walls, VPN, Internet behavior management and audit, next-generation firewalls, traffic management, IDS, IPS, UTM and gatekeeper.

Product Features

Quick customization

Supports hard disk encryption and intrusion detection

1 x SATA 3.0 port and 1 x MSATA slot

Onboard 6 x Gigabit electrical port + 2 x Gigabit optical port + 2 x 10-Gigabit optical port

1 x mini-PCIe slot

2 x DDR4 memory

C3000 processor

Product Specifications

Item Description
System Configuration Processor Intel Atom C3000 series FCBGA1310 packaging, supporting C3000 and REFRESH full series CPU
Memory 2 x 288pin DDR4 memory slot, up to 128GB
Storage Port SATA Supports 1 x SATA port and 1 x hard disk bay
MSATA 1 x MSATA slot
IO interface USB 2 USB3.0 (front)
COM 1 x RJ45 Console port (front) and 1 x wafer serial port pin (built-in)
GPIO Supports 8-channel digital GPIO
Display Port 1 x VGA port (optional and can be led out at the rear). Note: If necessary, please indicate that a VGA port is provided when placing an order
Optional chipset Part No.:1060-009761 EF-V-001-EFI
LAN port Network card chip Intel® I210/I211
LAN Port Type 6 x Gigabit electrical port + 2 x Gigabit/10-Gigabit optical port + 2 x 10-Gigabit optical port (up to 3 sets of BP optional)
Expansion Bus PCIE 1 x standard PCIE 8X slot (X2 signal)
ENS Supports up to 2 x ENS network card expansion slot, and 1 x ENS network card expansion slot can be selected
Matched Motherboard NET-1832VD10N(B) series
Working Environment Working temperature: 0°C -40°C
storage humidity: 10% ~ 90% (non-condensing state)
Storage Environment Storage temperature: -20°C ~ 70°C
storage humidity: 10% ~ 90% (non-condensing state)
Overall Dimensions 440mm(W)×44mm(H)×450mm(D)
Power supply 150W single and redundant power supply
Operating Systems Linux OS (kernel version 2.6 and above). Please refer to the product manual of EVOC for details

Ordering Information

料号 型号 描述
0010-189821 1 x N15-01-13/C3558R/8G/1T/150 redundant power supply Standard 1U rack-mounted network complete PC/C3558R/8G/6 x Gigabit electrical port/2 x Gigabit optical port/2 x 10-Gigabit optical port/2BP/1T/150W redundant power supply
0010-189831 N15-01-14/C3558R/8G/1T/150 single power supply Standard 1U rack-mounted network complete PC/C3558R/8G/6 x Gigabit electrical port/2 x Gigabit optical port/2 x 10-Gigabit optical port/2BP/1T/150W single power supply
