N15-02

Network Application Platform

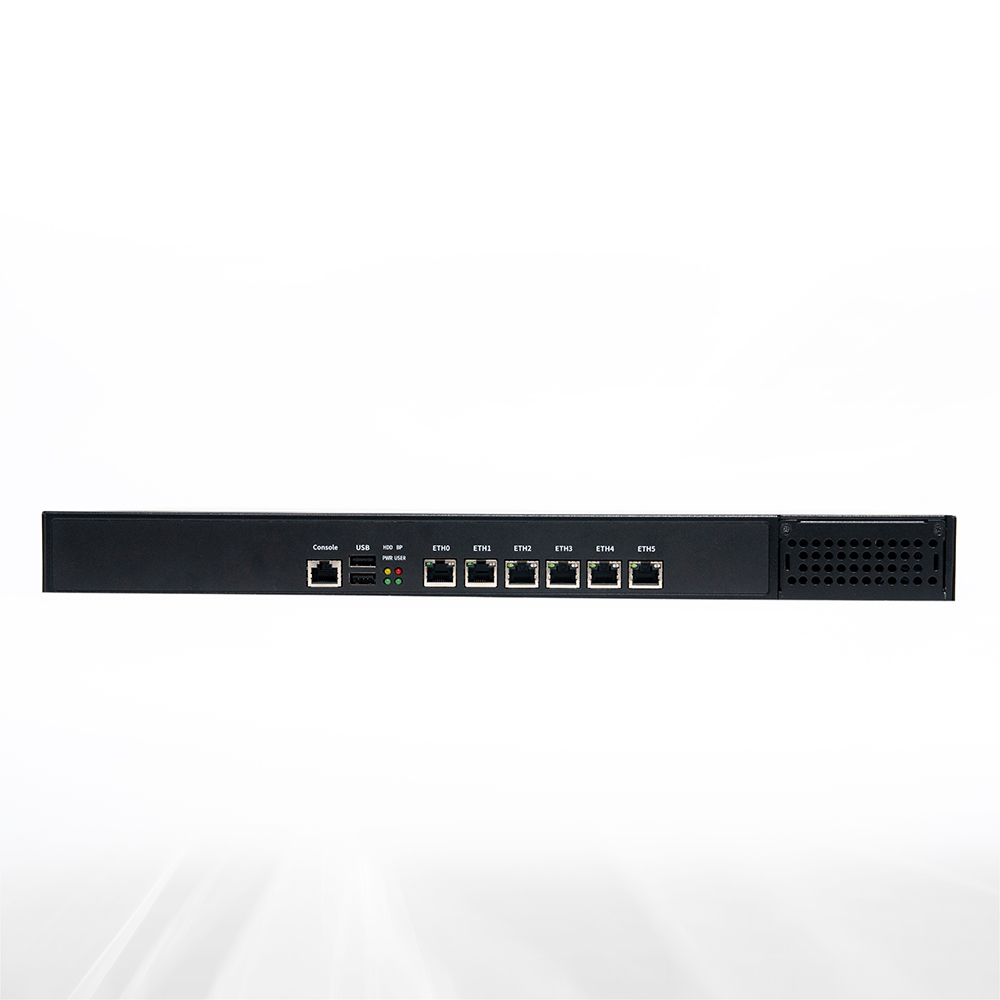

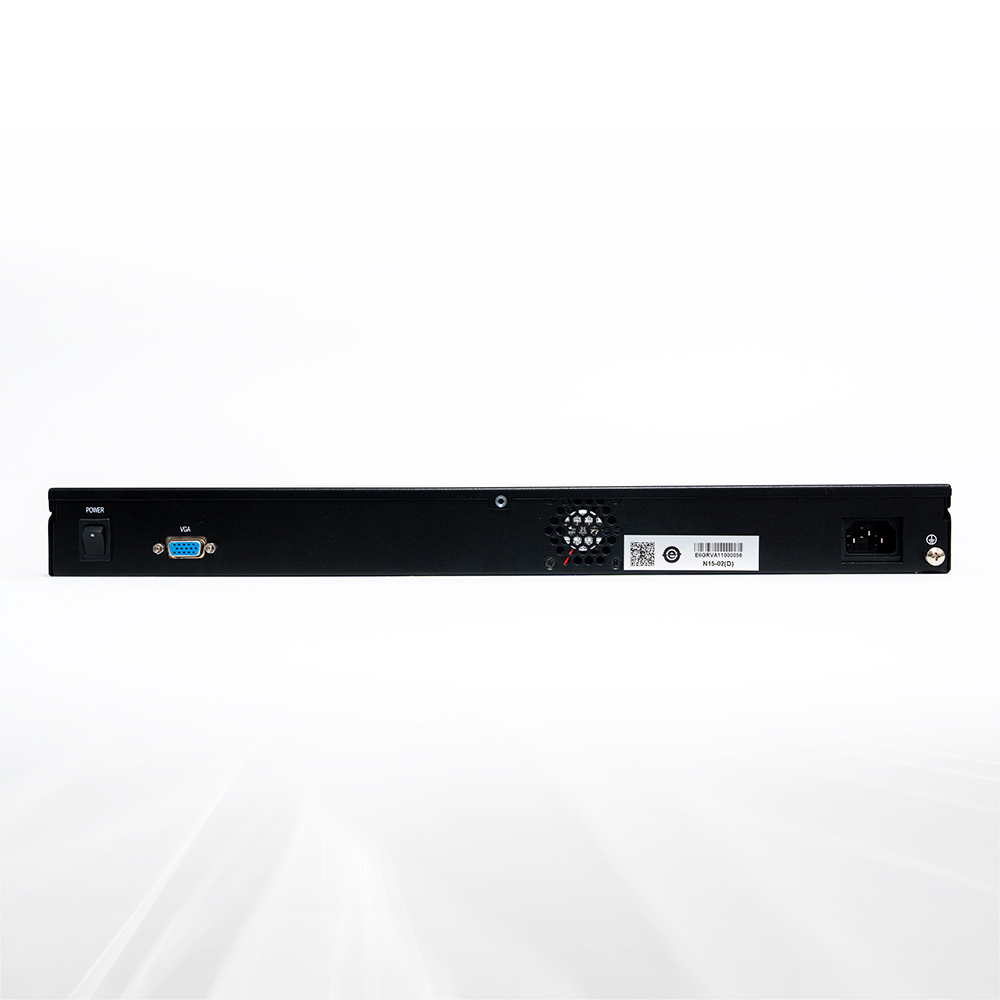

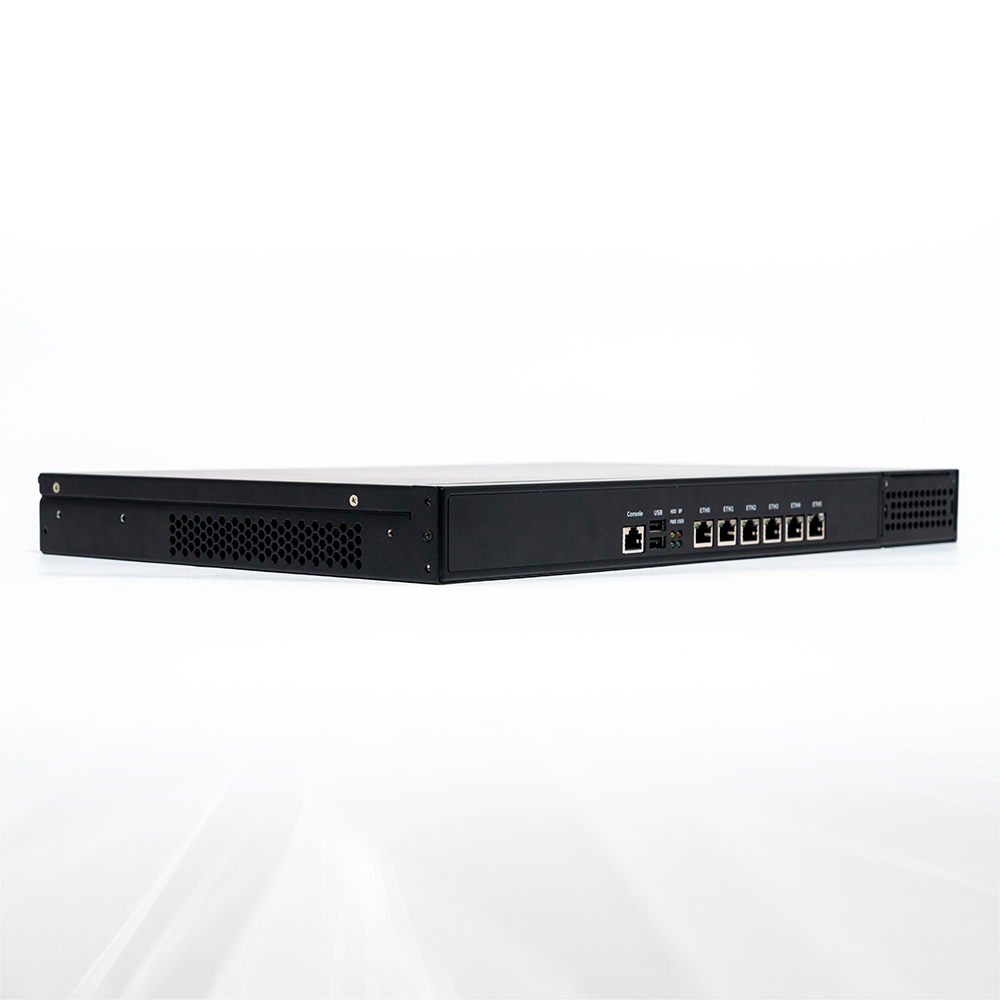

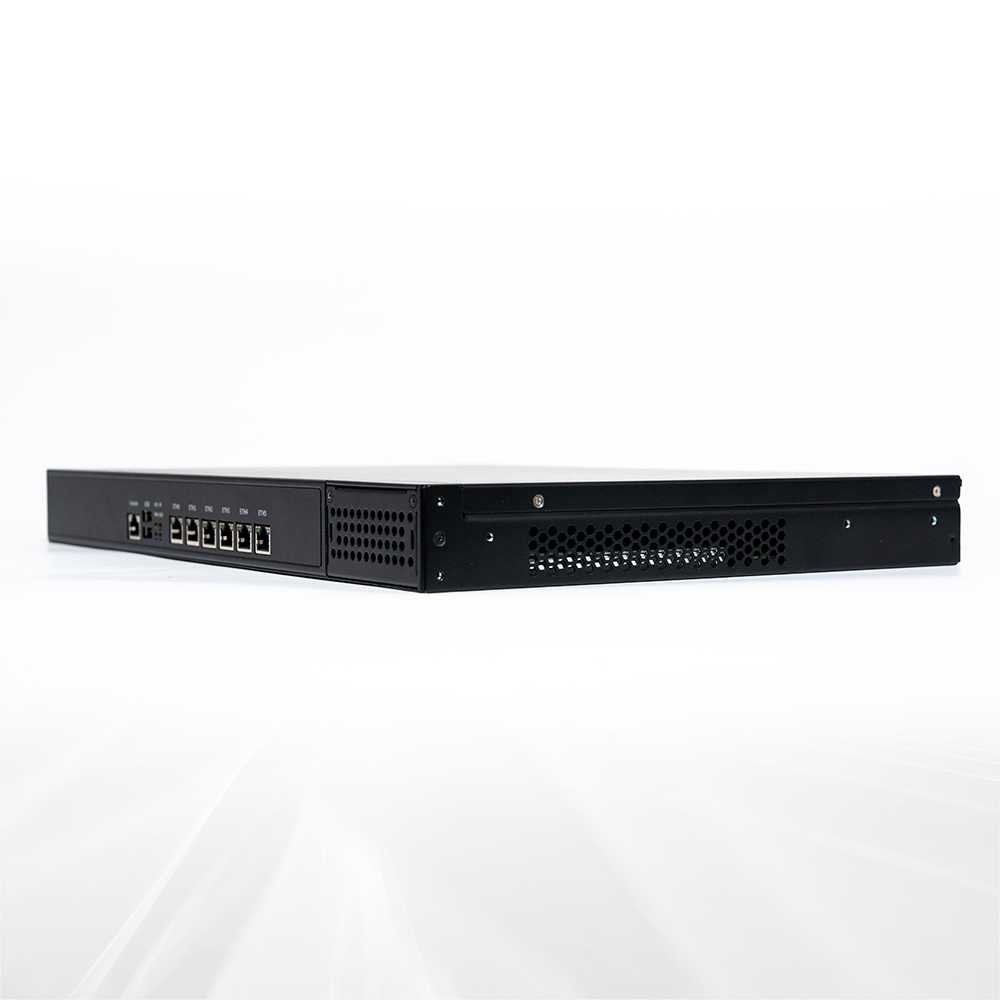

N15-02 is a standard 1U rack-mounted mainstream network application platform, which adopts an Intel® Celeron™ J1900 processor, 1 x SO-DIMM DDR3L memory slot, maximum memory support of 8GB, onboard 6 x electrical ports and 1 x expansion slot. N15-02 can be widely used in network security application fields such as entry-level firewalls, intrusion detection systems and Internet behavior management.

Product Features

Quick customization

1 x MSATA or 1 x Cfast slot

Supports BP

The motherboard provides 6 x Gigabit electrical port

Low power consumption & high performance

Celeron J1900 chip

Product Specifications

Item Description
系统配置 处理器 Intel® Celeron™ J1900
芯片组 Intel® Celeron
内存 1个 DDR3L SO-DIMM内存槽,整机总容量最大8GB
存储器 SATA 1个SATA接口,标配1个硬盘位
MSATA 1个MSATA槽
IO接口 USB 2个USB3.0(前置)
COM 1个RJ45形式Console串口
GPIO 支持8路数字GPIO
显示接口 1个VGA口
网口 网卡芯片 Intel® I210/I211
网口类型 板载6个千兆电口
扩展总线 PCIE 1个标准PCIE 8X 插槽(X1信号)
ENS 1个ENS网卡扩展槽位(选配),与PCIE槽共用,二者二选一
搭配主板 NET-1837VD6N系列
工作环境 温度:0℃~40℃
湿度:10%~ 90%(非凝状态)
储存环境 温度:-20℃-70℃
湿度:10%-90%(非凝结状态)
产品尺寸 440mm(W)×43.6mm(H)×300mm(D)
电源 60W单电源
操作系统 Linux OS系统(内核版本2.6以上),详细请查询研祥产品说明书

Ordering Information

料号 型号 描述
0010-196311 N15-02E-01/NET1837(D)-01/J1900/4GB/6 × electrical port /1BP/128GB/60W Standard 1U rack-mounted complete PC/Celeron J1900 2.0G/4GB memory/128G MSATA/onboard 6 x Gigabit LAN port/1 group of BP/built-in 1 x PCIE slot or supporting 1 x ENS module expansion (optional)/60W single power supply
0010-196321 N15-02E-02/NET1837(D)-02/J1900/4GB/6 × electrical port/2BP/128GB/60W Standard 1U rack-mounted complete PC/Celeron J1900 2.0G/4GB memory/128G MSATA/onboard 6 x Gigabit LAN port/2 groups of BP/built-in 1 x PCIE slot or supporting 1 x ENS module expansion (optional)/60W single power supply
0010-196331 N15-02E-03/NET-1837(D)- 03-I210/J1900/4GB/6 × electrical port/0BP/128GB/60W Standard 1U rack-mounted complete PC/Celeron J1900 2.0G/4GB memory/128G MSATA/onboard 6 x Gigabit LAN port/0 group of BP/built-in 1 x PCIE slot or supporting 1 x ENS module expansion (optional)/60W single power supply
