Network Expansion Module
This series of network cards is a server level high-performance network card module developed based on Intel XL710 or E810 series network card chips. It provides one or two 40G or 100G fiber network interfaces, and some modules can support one set of Bypass function. The network card module is installed in a plug and play manner and is suitable for Advantech's network communication series products.
Adopting industrial design concepts, it can meet the 7 * 24H uninterrupted operation of products
| Item | Description | |
|---|---|---|

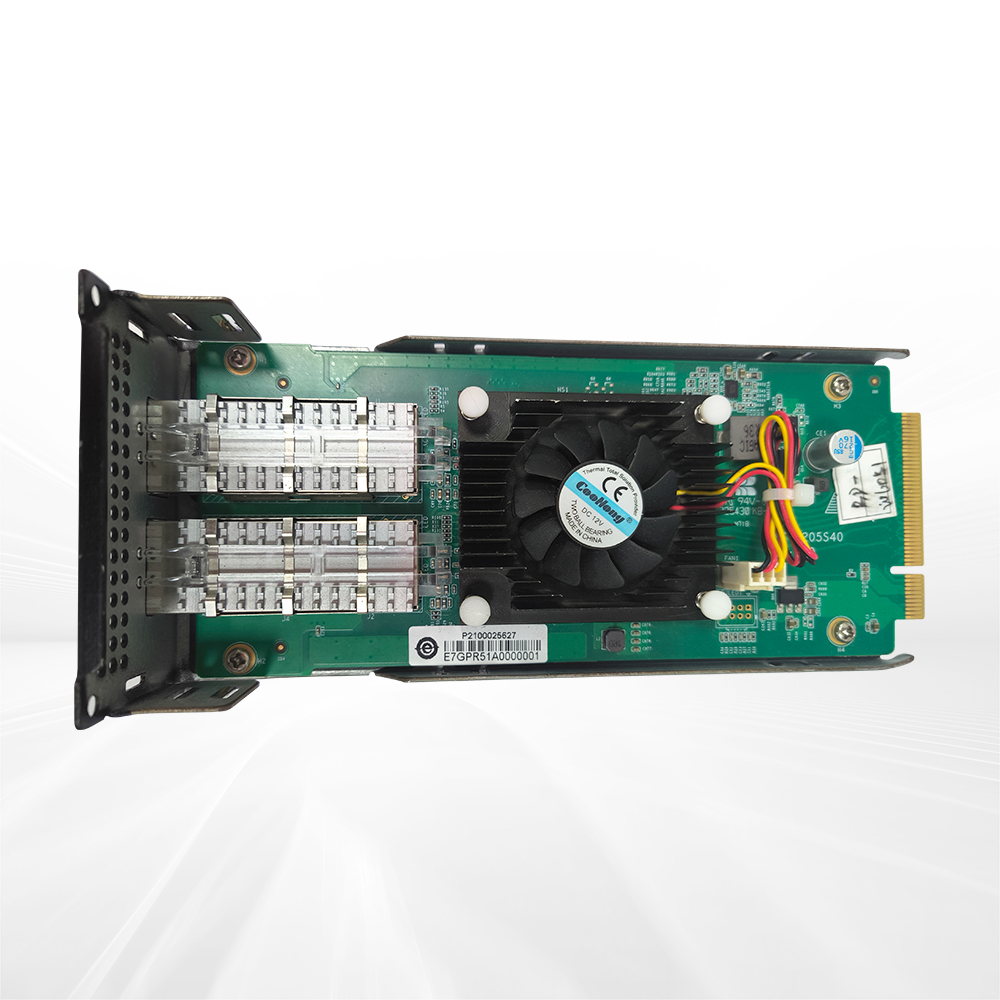

| ENS-4205S40-01 | Chipset | Intel XL710 |
| Bus | 1 x PCIE X8 | |
| LAN Port | 2 | |
| LAN Port Speed | 40G | |
| LAN Port Type | QSFP+ | |
| bypass | NA | |
| Product Dimensions | 182.8mm x 78.6mm | |
| ENS-4205S40-02 | Chipset | Intel XL710 |
| Bus | 1 x PCIE X8 | |
| LAN Port | 1 | |
| LAN Port Speed | 40G | |
| LAN Port Type | QSFP+ | |
| bypass | NA | |
| Product Dimensions | 182.8mm x 78.6mm | |

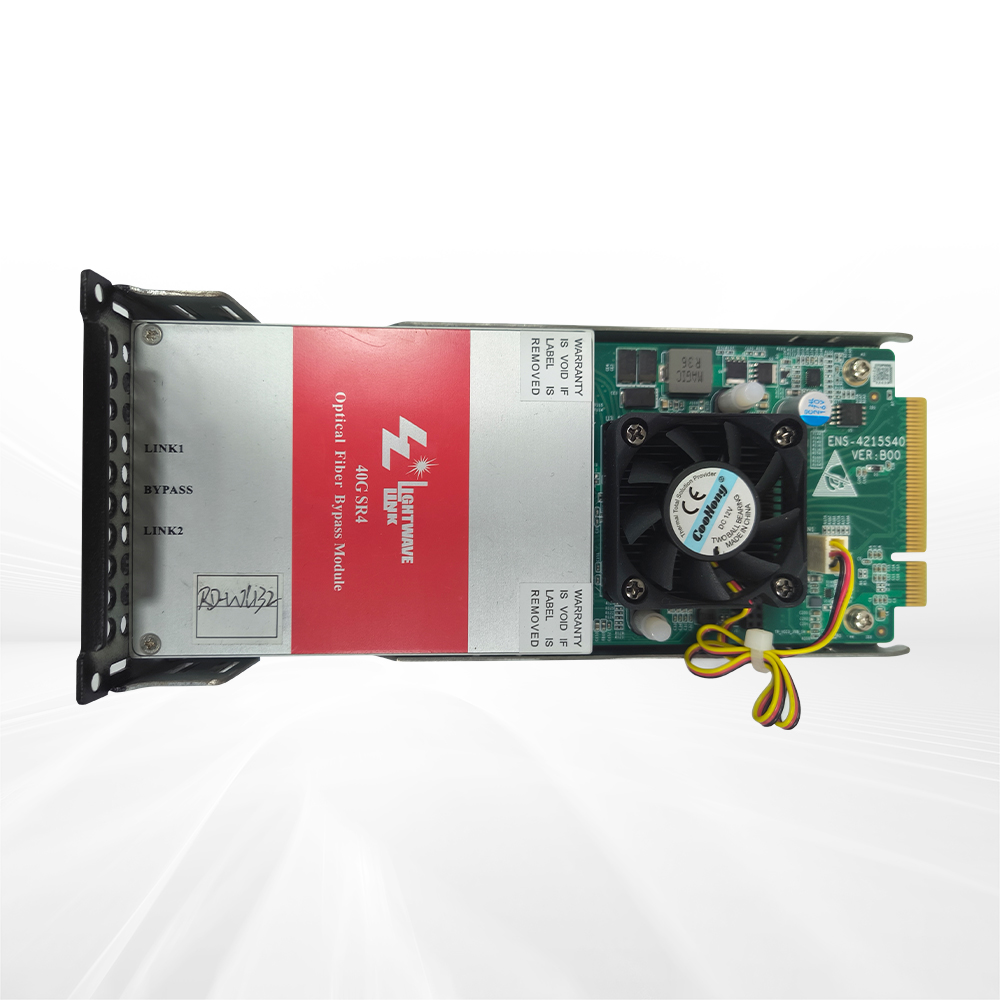

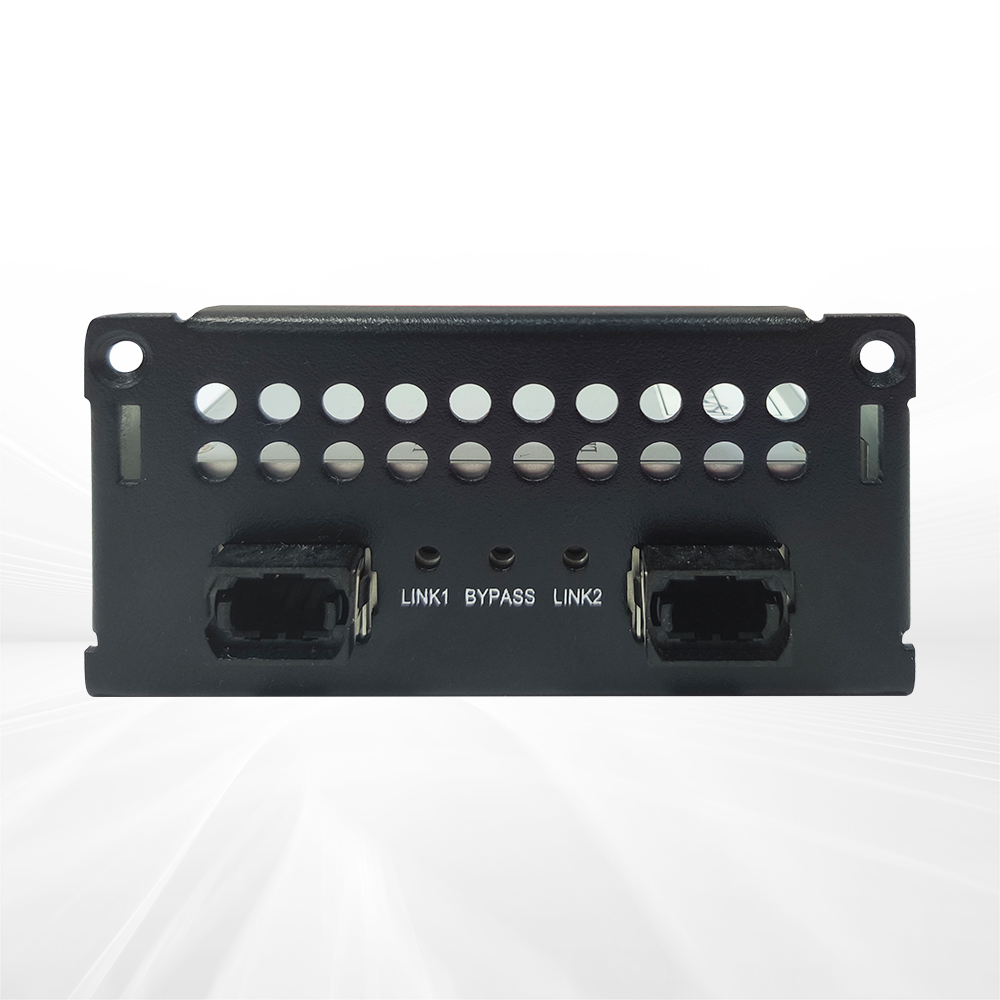

| ENS-4215S40-MM | Chipset | Intel XL710 |
| Bus | 1 x PCIE X8 | |
| LAN Port | 2 | |
| LAN Port Speed | 40G | |
| LAN Port Type | NPO Multimode | |
| bypass | 1 | |
| Product Dimensions | 182.8mm x 78.6mm | |
| ENS-4215S40-SM | Chipset | Intel XL710 |
| Bus | 1 x PCIE X8 | |
| LAN Port | 2 | |
| LAN Port Speed | 40G | |
| LAN Port Type | LC Singlemode | |
| bypass | 1 | |
| Product Dimensions | 182.8mm x 78.6mm | |

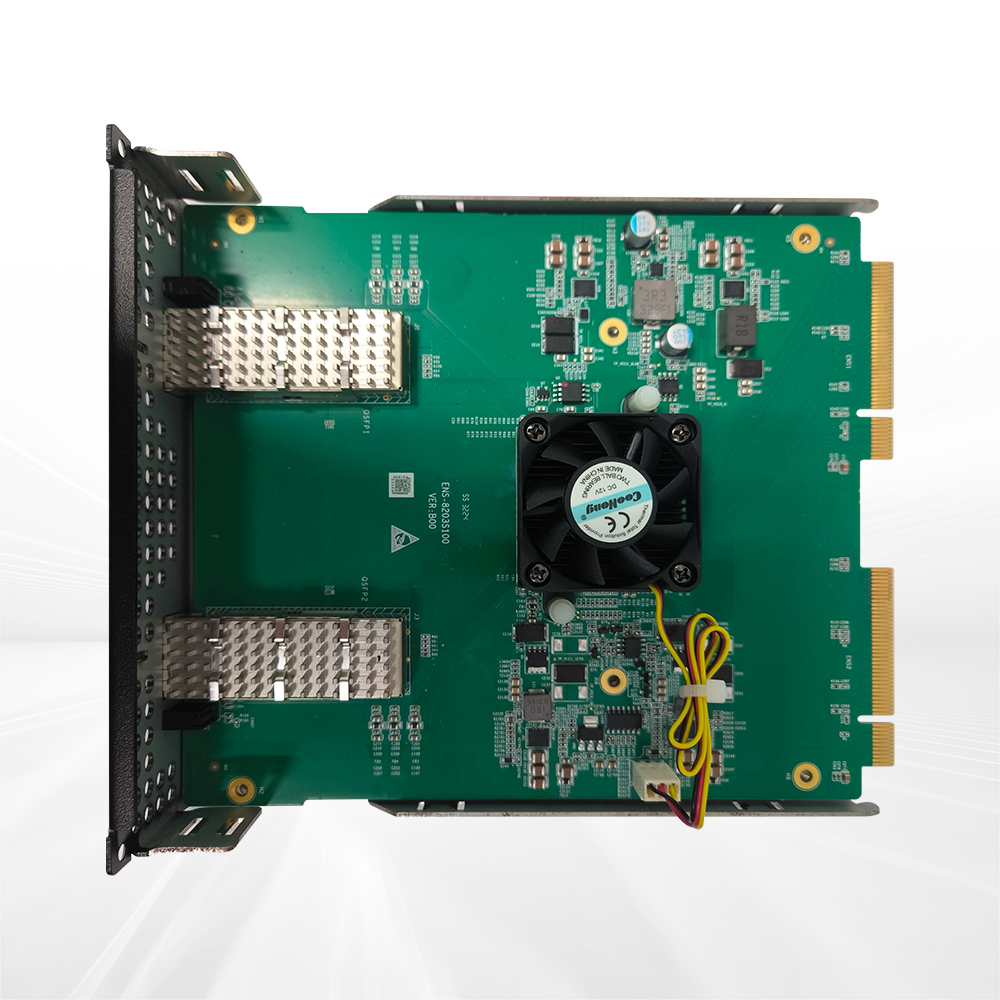

| ENS-8203S100-01 | Chipset | Intel E810 |
| Bus | 1 x PCIE X16 | |
| LAN Port | 2 | |
| LAN Port Speed | 100G | |
| LAN Port Type | QSFP28 | |
| bypass | NA | |
| Product Dimensions | 183.6 mmx157.6 mm | |
| ENS-8203S100-02 | Chipset | Intel E810 |
| Bus | 1 x PCIE X16 | |
| LAN Port | 1 | |
| LAN Port Speed | 100G | |
| LAN Port Type | QSFP28 | |
| bypass | NA | |
| Product Dimensions | 183.6 mmx157.6 mm | |
| 料号 | 型号 | 描述 |
|---|---|---|
| 0070-003031 | ENS-4205S40-01 | Intel XL710网卡芯片/PCIE X8带宽输入/2个40G QSFP+光口输出 |
| 0070-003041 | ENS-4205S40-02 | Intel XL710网卡芯片/PCIE X8带宽输入/1个40G QSFP+光口输出 |
| 0070-003961 | ENS-4215S40-MM | Intel XL710网卡芯片/PCIE X8带宽输入/2个40G NPO多模光口输出/支持1组bypass |
| 0070-003971 | ENS-4215S40-SM | Intel XL710网卡芯片/PCIE X8带宽输入/2个40G LC单模光口输出/支持1组bypass |
| 0070-004081 | ENS-8203S100-01 | Intel E810网卡芯片/PCIE X16带宽输入/2个100G QSFP+光口输出 |
| 0070-004091 | ENS-8203S100-02 | Intel E810网卡芯片/PCIE X16带宽输入/1个100G QSFP+光口输出 |
