Network Expansion Module
This series of network cards is developed based on Intel I350 or domestic gigabit network card chips, with 4 or 8 gigabit optical port modules. Some modules can support 2 sets of bypass functions, and the network card modules are installed in a plug and play manner, suitable for Advantech's network communication series products.
Adopting industrial design concepts, it can meet the 7 * 24H uninterrupted operation of products
Item | Description | |
---|---|---|

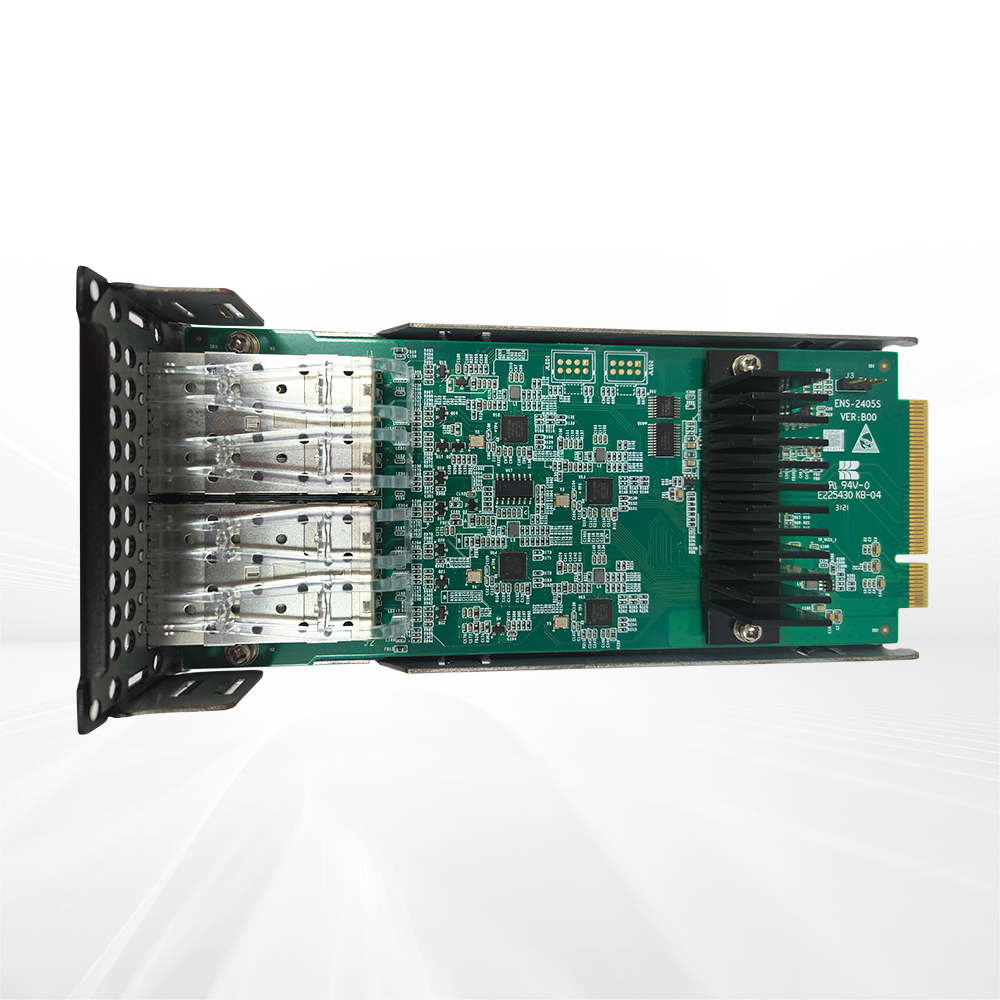

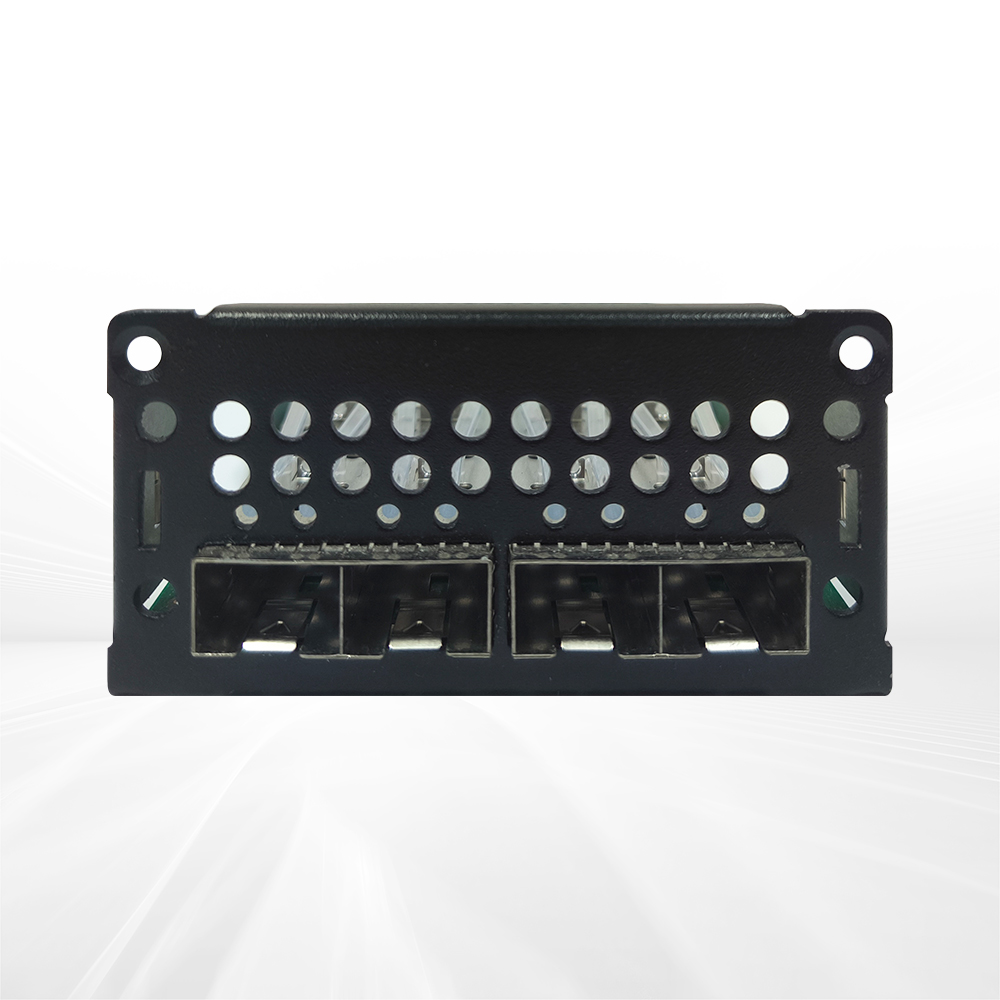

ENS-2405S | Chipset | WX1860/Netswift WX1860 |
Bus | 1 x PCIE X4 | |
LAN Port | 4 | |
LAN Port Speed | 1G | |
LAN Port Type | SFP | |
bypass | NA | |
Product Dimensions | 182.8mm x 78.6mm | |

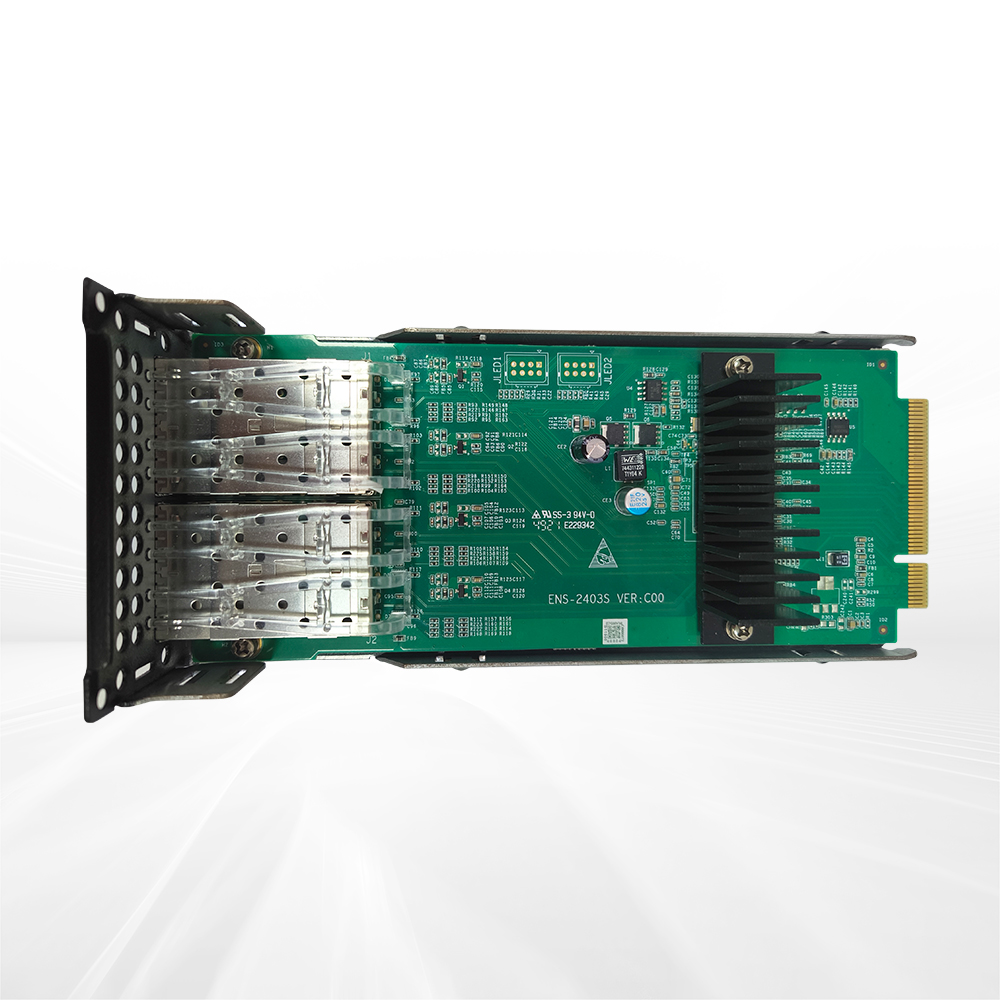

ENS-2403S | Chipset | Intel I350AM4 |
Bus | 1 x PCIE X4 | |
LAN Port | 4 | |
LAN Port Speed | 1G | |
LAN Port Type | SFP | |
bypass | NA | |
Product Dimensions | 182.8mm x 78.6mm | |

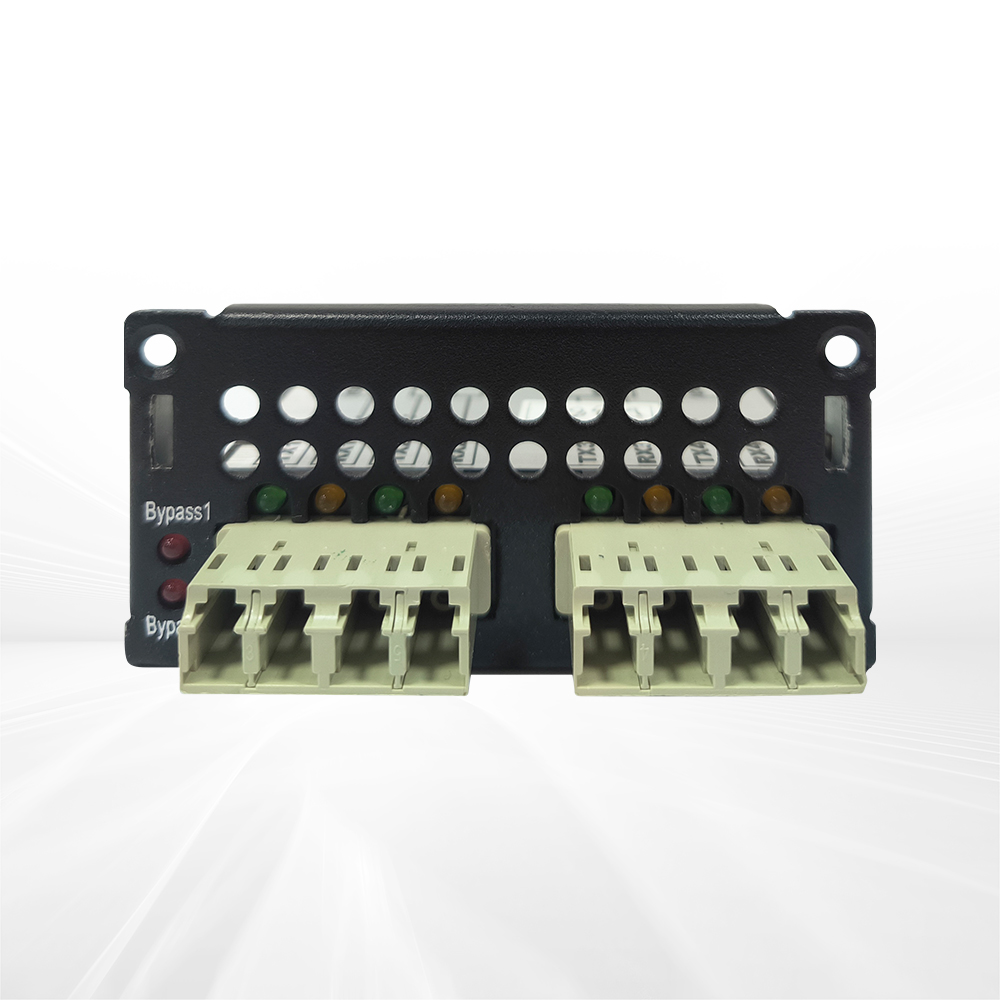

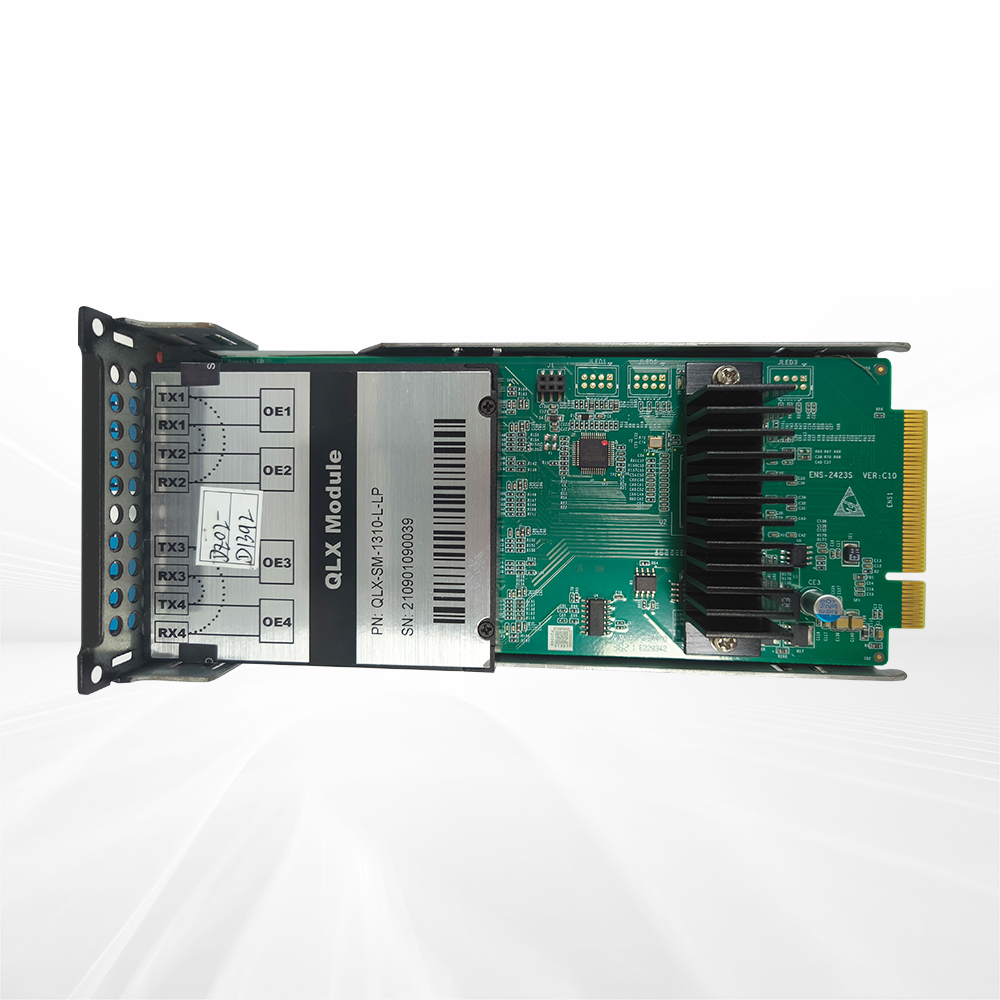

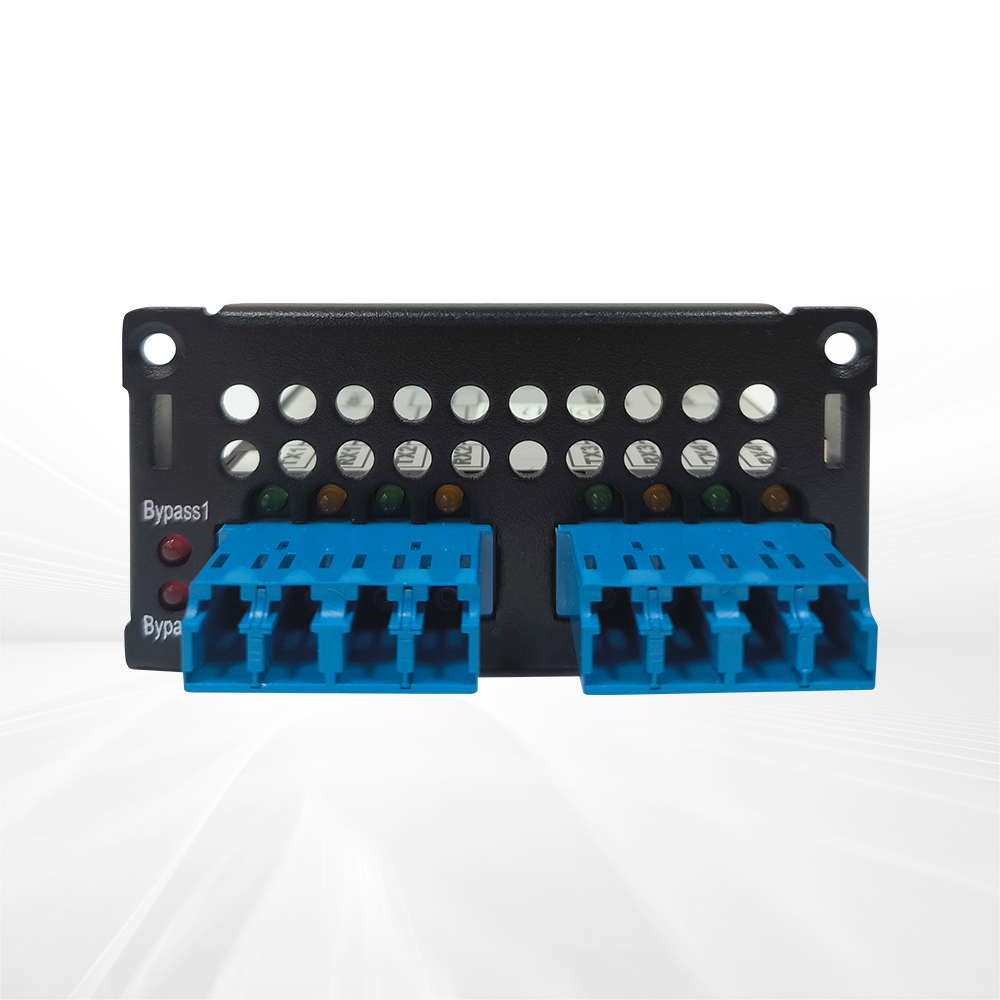

ENS-2423S(B)-MM | Chipset | Intel I350AM4 |
Bus | 1 x PCIE X4 | |
LAN Port | 4 | |
LAN Port Speed | 1G | |
LAN Port Type | LC Multimode | |
bypass | groups | |
Product Dimensions | 182.8mm x 78.6mm | |
ENS-2423S(B)-SM | Chipset | Intel I350AM4 |
Bus | 1 x PCIE X4 | |
LAN Port | 4 | |
LAN Port Speed | 1G | |
LAN Port Type | LC Single-mode | |
bypass | 2 groups | |
Product Dimensions | 182.8mm x 78.6mm | |

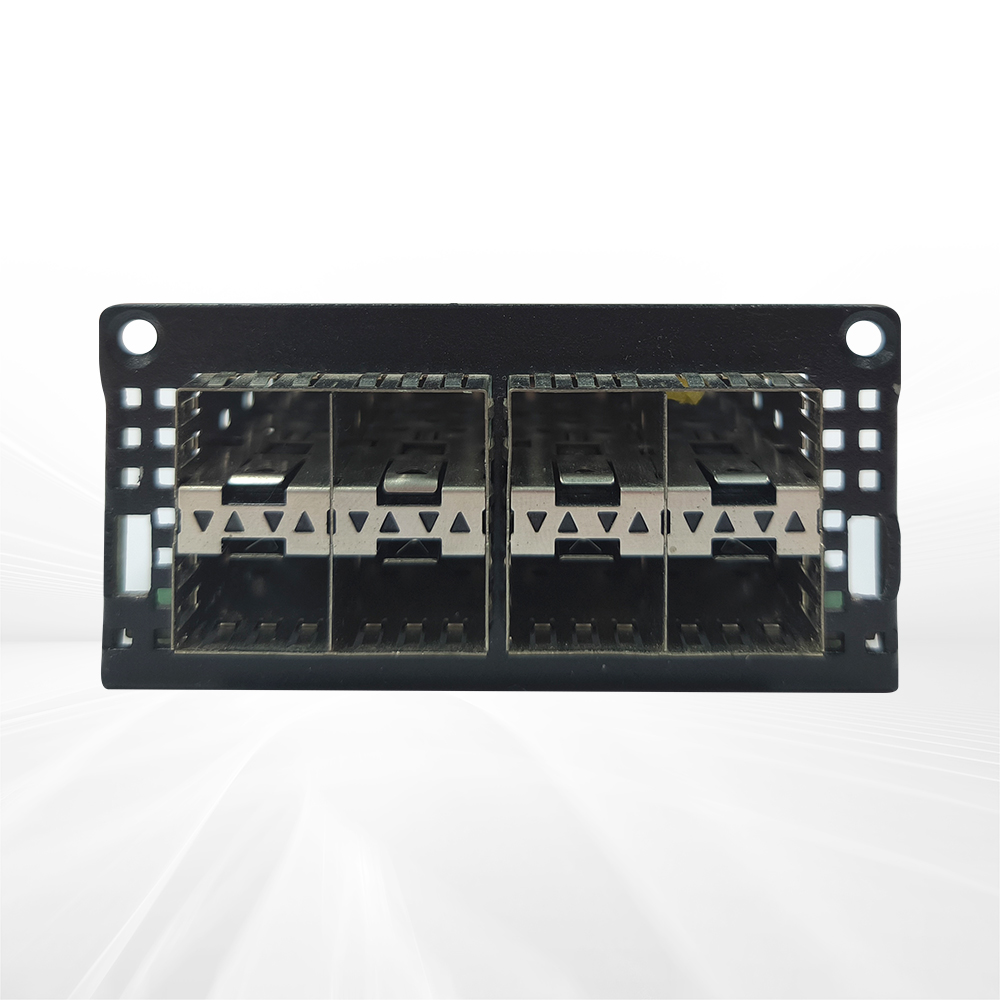

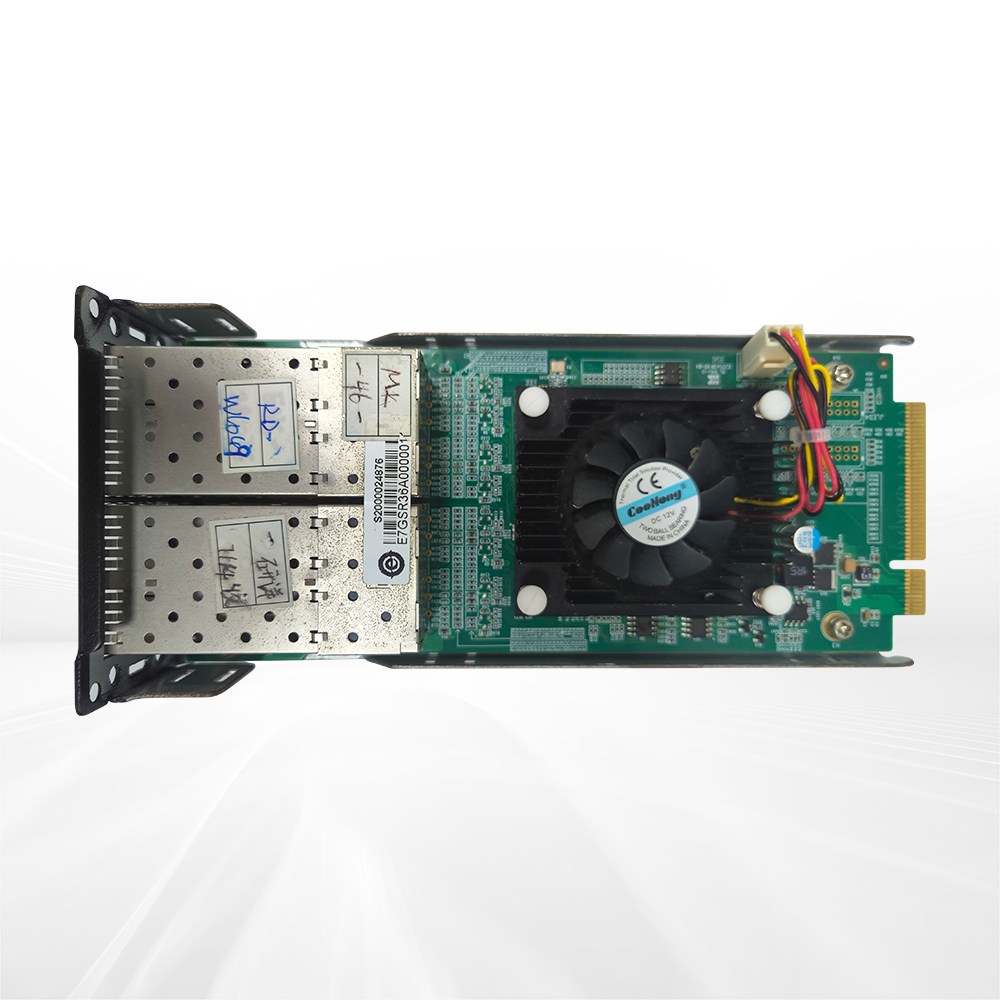

ENS-2803S | Chipset | 2xIntel I350AM4 |
Bus | 1 x PCIE X4 | |
LAN Port | 8 | |
LAN Port Speed | 1G | |
LAN Port Type | SFP | |
bypass | NA | |
Product Dimensions | 182.8mm x 78.6mm | |
ENS-4803S | Chipset | 2xIntel I350AM4 |
Bus | 2 x PCIE X4 | |
LAN Port | 8 | |
LAN Port Speed | 1G | |
LAN Port Type | SFP | |
bypass | NA | |
Product Dimensions | 182.8mm x 78.6mm | |

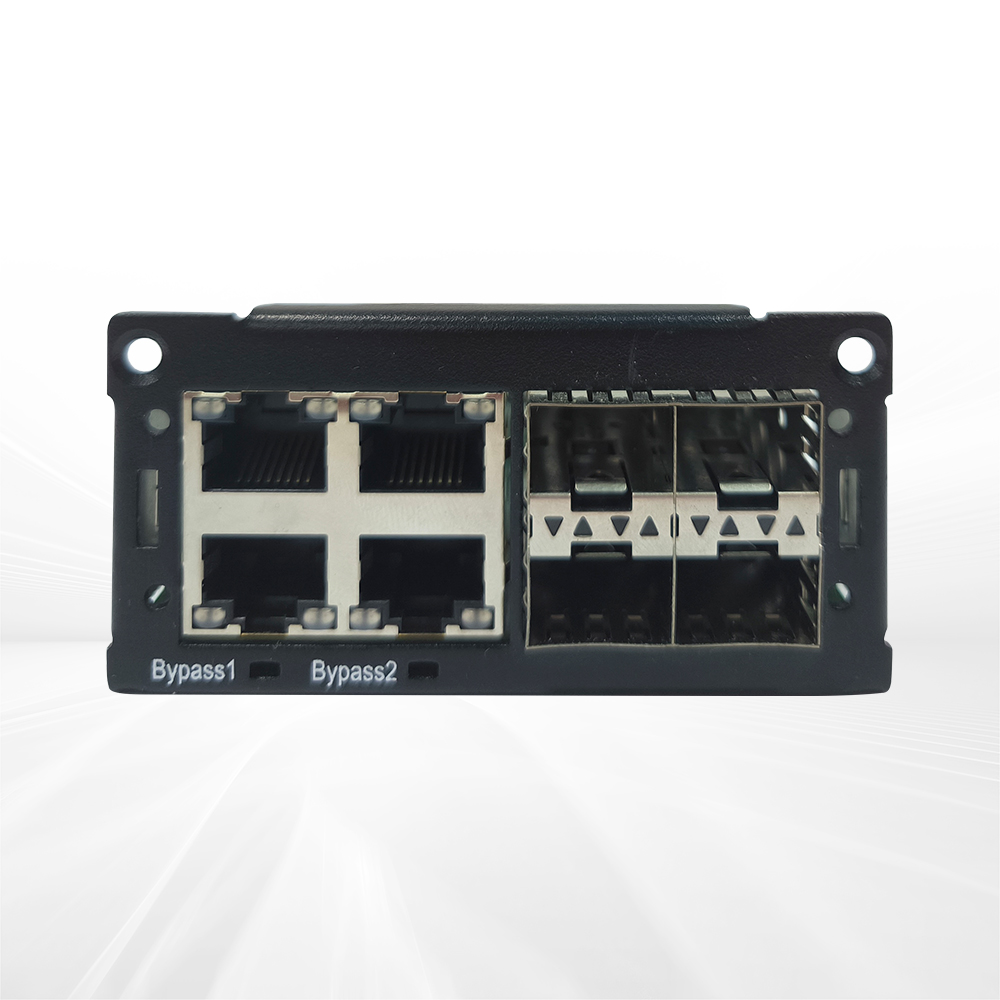

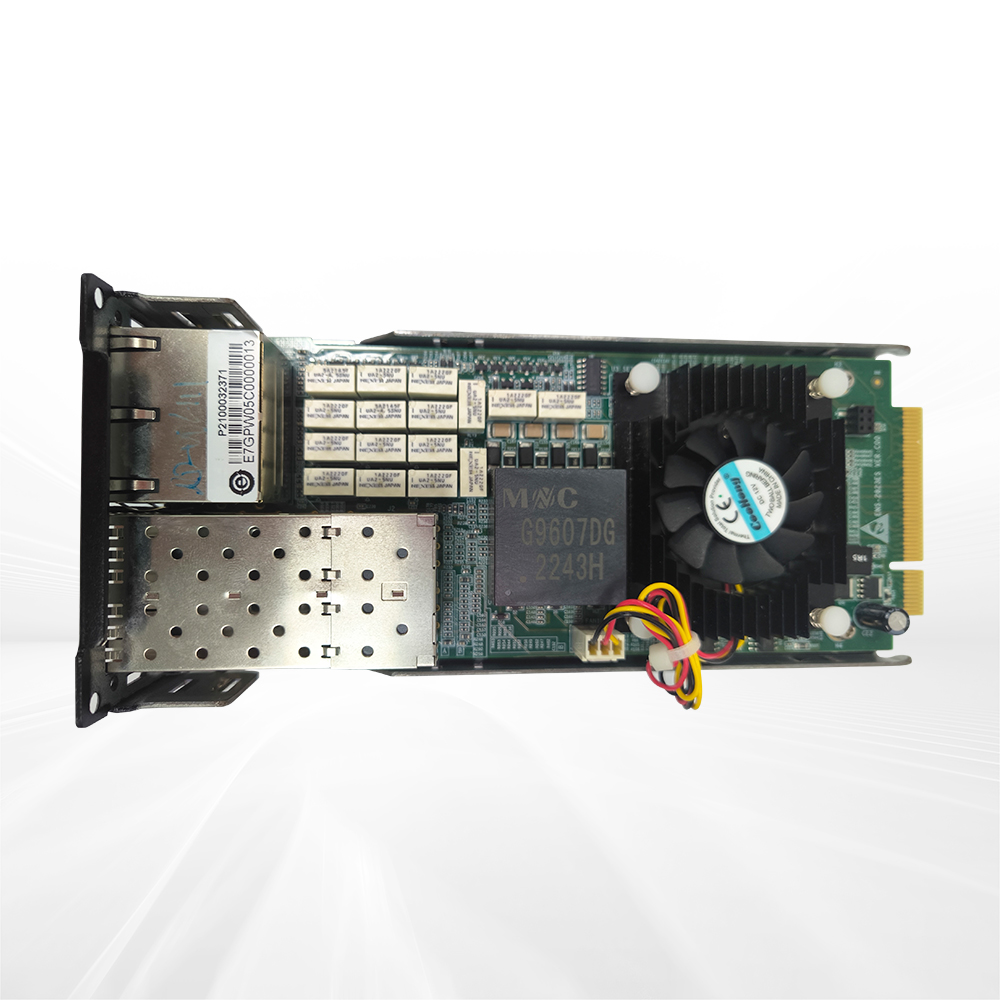

ENS-2823ES | Chipset | 2xIntel I350AM4 |
Bus | 1 x PCIE X4 | |
LAN Port | 8 | |
LAN Port Speed | 1G | |
LAN Port Type | 4xRJ45+4xSFP | |
bypass | 2 groups available, option to select 0 group | |
Product Dimensions | 182.8mm x 78.6mm | |
ENS-4823ES | Chipset | 2xIntel I350AM4 |
Bus | 2 x PCIE X4 | |
LAN Port | 8 | |
LAN Port Speed | 1G | |
LAN Port Type | 4xRJ45+4xSFP | |
bypass | 2 groups available, option to select 0 group | |
Product Dimensions | 182.8mm x 78.6mm |
料号 | 型号 | 描述 |
---|---|---|
0070-003681 | ENS-2405S | 网讯WX1860网卡芯片/PCIE X4带宽输入/4个千兆光口输出 |
0070-002711 | ENS-2403S | Intel I350AM4网卡芯片/PCIE X4带宽输入/4个千兆光口输出 |
0070-003461 | ENS-2423S(B)-MM | Intel I350AM4网卡芯片/PCIE X4带宽输入/4个千兆LC多模光口输出/支持2组bypass |
0070-003471 | ENS-2423S(B)-SM | Intel I350AM4网卡芯片/PCIE X4带宽输入/4个千兆LC单模光口输出/支持2组bypass |
0070-002971 | ENS-2803S | Intel I350AM4网卡芯片/1*PCIE X4带宽输入/8个千兆光口输出 |
0070-002791 | ENS-4803S | Intel I350AM4网卡芯片/2*PCIE X4带宽输入/8个千兆光口输出 |
0070-002981 | ENS-2823ES | 2*Intel I350AM4网卡芯片/PCIE X4带宽输入/4个千兆RJ45电口+4个千兆SFP光口输出/支持2组bypass |
0070-002691 | ENS-4823ES | 2*Intel I350AM4网卡芯片/2*PCIE X4带宽输入/4个千兆RJ45电口+4个千兆SFP光口输出/支持2组bypass |
