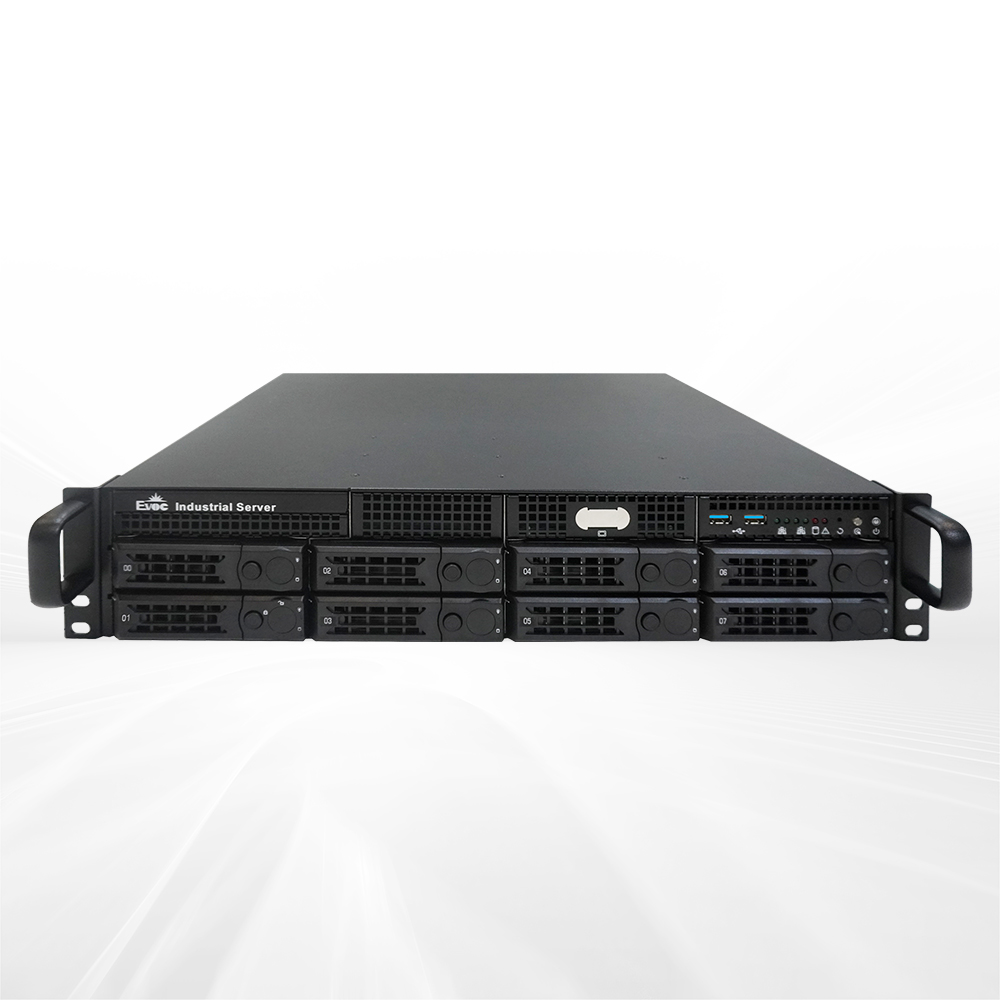

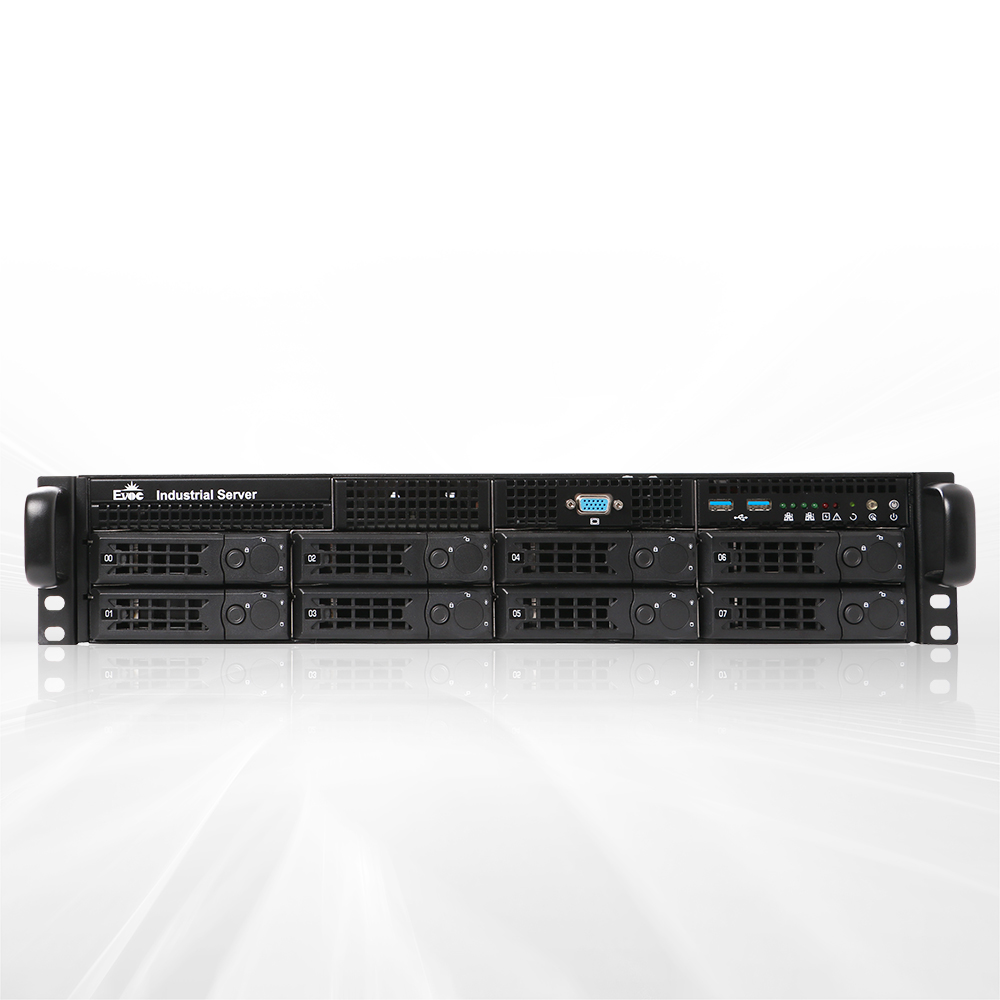

2U 19" Standard Rackmount Server
EIS-2210-FT is a 2U rack-mounted server independently developed based on the domestic Phytium S5000C/64-core processor. It provides strong computing performance and expansion capability at the enterprise level and is suitable for processing needs with high information security requirements. It is mainly used in Internet big data, cloud computing, distributed storage and other industries. EIS-2210-FT Phytium 2U rack-mounted server is developed and designed with Phytium S5000C/64-core dual-channel processor. The BMC module supports the health status monitoring of key components, KVM Over IP, remote media and other management features, and adapts to operating systems such as Kylin.
| Item | Description | |
|---|---|---|
| System Configuration | Processor | Phytium S5000C/64-core dual-channel processor, with a dominant frequency of 2.1 GHz. It is the highest-performing ARM processor in China and has a strong performance |
| Core Architecture | Adopt brand-new FTC862 core architecture | |
| Memory | Supports 10 × DDR5 memory slot, supports RDIMM, speed up to 4000MHz. The single slot supports up to 64G | |
| Storage | Supports 8 × hotswap at front, 2.5/3.5-inch SATA/SAS hard disk 2 × built-in m.2 2242/2280 Nvme hard disk on the motherboard |
|
| RAID Support | Support 8 × onboard SATA 3.0 interface, support configurations such as RAID 0, 1, 5, 6 and 10 modes (with no onboard raid, and add-in-card application) | |
| I/O Port | Front: 2 × USB 3.0 Rear: 4 × Gigabit LAN port, 2 × 10 Gigabit optical port, 1 × management LAN port, 1 × DB9 debugging serial port, 4 × USB3.0 port and 1 × VGA display port |
|
| PCIE Expansion | The PCIE bandwidth performance is doubled, greatly improving the I/O throughput capacity of the system. It supports 5 × PCIe expansion slot, including 2-channel PCIE X16 slot (5.0 signal) and 3-channel PCIE X8 slot (at least 2-channel 5.0 signals) | |
| Management | Supports domestic BMC management module (including hardware and firmware), supports IPMI, SOL, KVM Over IP, virtualization | |
| Operating temperature | 0℃～40℃ | |
| Storage Environment Temperature | Temperature: -40°C~+55°C Relative humidity: 5%~90% (non-condensing state) | |
| Power supply | Supports 1+1 redundant hot-swap power supply, and is equipped with domestic 1200W/1600W redundant power supply | |
| Operating system | Supports domestic Kylin V10 server operating system | |
| Dimensions | 482.9 mm (width) × 88 mm (height) × 730 mm (depth) | |
| Part No. | Model | Description |
|---|---|---|
| 0010-194961 | EIS-2210-FT-01 complete PC | 2U domestic 8-bay rack-mounted server EIS-2210-FT /CYB-2501-FT/ 2*FT-S5000C 64Core 2.1GHz/2*32GB/DDR5/ 1 *128GB and 3*1TB domestic SSD/supporting RAID 0, 1, 5, 6 and 10 modes/4 × Gigabit LAN port, 2 × 10 Gigabit optical port and 1 × management LAN port/1 × DB9 debugging serial port/ 2 × USB 3.0 port at front and 4 × USB3.0 port at rear/1 × VGA/1600W redundant power supply |
| 0010-194971 | EIS-2210-FT-02 complete PC | 2U domestic 8-bay rack-mounted server EIS-2210-FT -01/CYB-2501-FT/ 2*FT-S5000C 64Core 2.1GHz/8*32GB/DDR5 / 1 *1TB SSD and 3*2TB HDD/supporting RAID 0 1 5 6 and 10 modes with power-off protection function/4 × Gigabit LAN port 2 × 10 Gigabit optical port and 1 ×management LAN port/1 × DB9 debugging serial port/2 × USB 3.0 port at front and 4 × USB 3.0 port at rear/1 x VGA/1600W redundant power supply |
| 0020-067741 | EIS-2210-FT barebone system | 2U domestic 8-bay rack-mounted server EIS-2210-FT /CYB-2501-FT/ 2*FT-S5000C 64Core 2.1GHz/supporting 10 × DDR5 memory slot/supporting 8 × 2.5/3.5-inch pull-out hard disk bay/supporting RAID 0 1 5 6 and 10 modes/4 × Gigabit LAN port 2 × 10 Gigabit optical port and 1 × management LAN port/1 × DB9 debugging serial port/2 × USB 3.0 port at front and 4 × USB 3.0 port at rear/1 VGA/1600W redundant power supply |
| 0020-067751 | EIS-2210-FT-01/ with hard disk power supply/barebone system | 2U domestic 8-bay rack-mounted server EIS-2210-FT/CYB-2501-FT/ 2*FT-S5000C 64Core 2.1GHz/ 1 *128G SSD and 3*1TB domestic SSD/supporting RAID 0 1 5 6 and 10 modes/4 × Gigabit LAN port 2 × 10 Gigabit optical port and 1 × management LAN port/1 × DB9 debugging serial port/2 × USB 3.0 port at front and 4 × USB3.0 port at rear/ 1 × VGA/1600W redundant power supply |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| Product Manual | Various Platform | Vol15.0 | 2025-04-29 | 0.09MB | Download 𐃯 |
