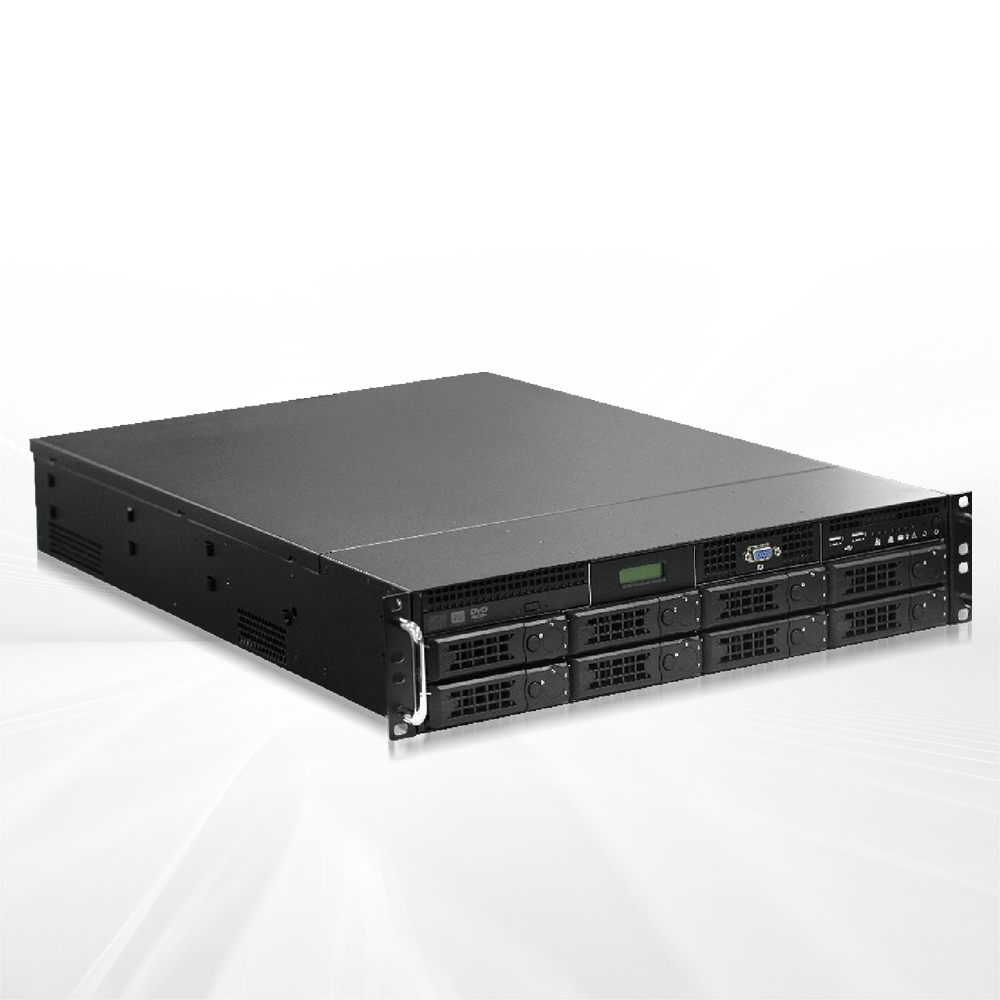

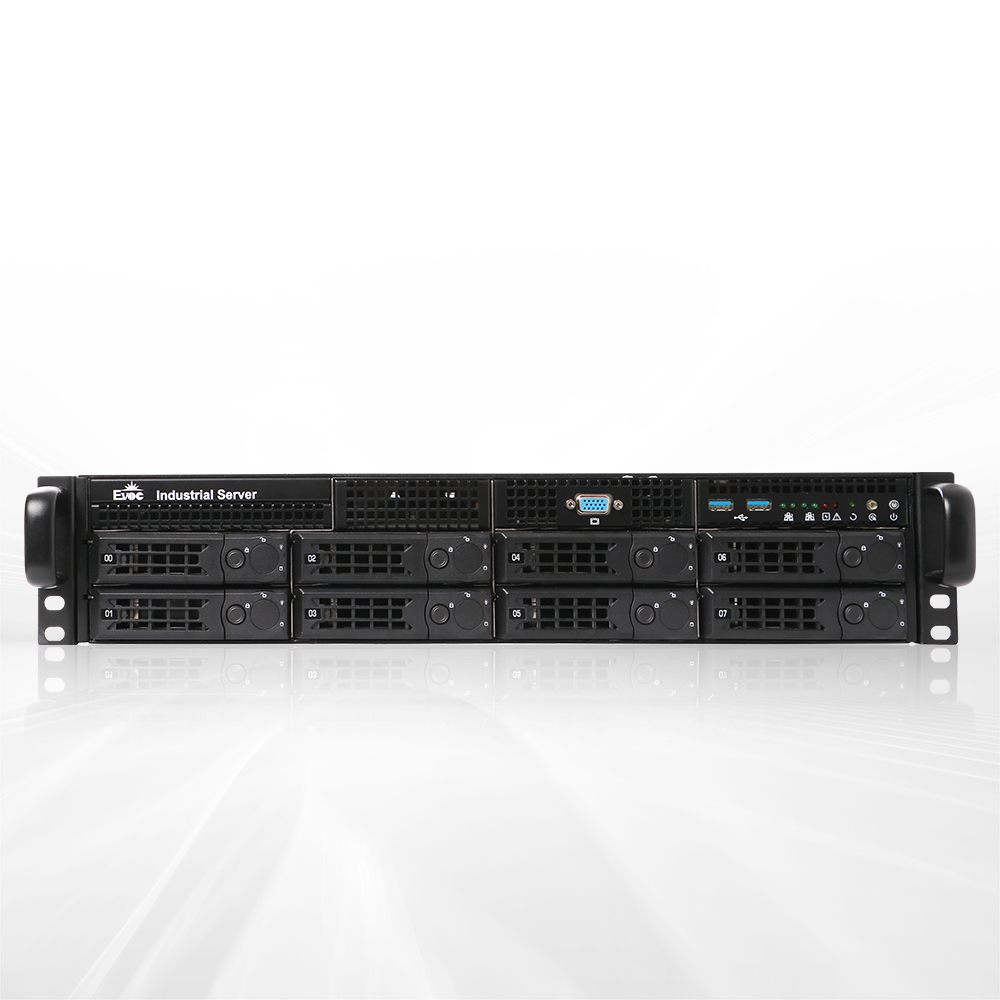

2U 19" Standard Rackmount Server
The independent controllable EIS-2208FT/64 rack-mounted server of EVOC is designed and developed based on the domestic Phytium 64-core processor FT-2000+. It adopts domestic independent firmware and domestic independent Linux operating system EIS-2208FT/64 as the domestic independent information processing and control platform. It has unique security and is suitable for the needs of big data, cloud computing informatization, security monitoring industry, industrial automation, detection industry, IT communication industry and other markets.
| Item | Description | |
|---|---|---|
| Processor | Domestic FT-2000+ 64 processor (64-core, 2.2GHz) | |
| Memory | Supports 8 × RDIMM DDR4 slot, working rate above 2400Mbps, supports ECC | |
| Expansion | Supports 6 × PCIe expansions. For reference: 1-channel PCIe x 16 × expansion slot, 4 × PCIe3.0 x8 slot (signal x8), 1 × PCIe3.0 x8 slot (signal x4), 1 × M.2 and 1 × Mini PCIe | |
| Storage | Onboard 8 × SAS/SATA 3.0 | |
| RAID | Supports RAID 0, 1, 10, 5, 6, 50 and 60 (noted for non-onboard raid) | |
| LAN | Onboard 4 ×10/100/1000Base-T Gigabit Ethernet port (RJ45) Onboard 1 × 10/100/1000Base-T Gigabit Ethernet port (RJ45, dedicated for BMC) |
|
| USB | Supports 6 × USB 2.0/3.0 port | |
| Display | Supports 1-channel VGA port and 1-channel debugging COM port | |
| IPMI | Expandable BMC management function, supporting IPMI2.0 | |
| Operating System | Operating System Adaptive to Kylin, Unity UOS, etc. | |
| Environment | Working environment temperature: 0~40ºC Storage environment temperature: -40~85ºC | |
| Dimension | Standard E-ATX form, adaptable to standard 1/2U box body | |
| Part No. | Model | Description |
|---|---|---|
| 0010-146731 | EIS-2208-FT | EIS-2208FT-03/EIS-2208FT domestic 2U rack-mounted server/SVE-2903FT/FT2000+64Core 2.2GHz/2 * 16GDDR4 / 3* 4TB/3.5" enterprise hard disk 1*128GSSD/1*LSI9361-8I/6*PCIE/4*GbE/1*debugging COM/6*USB/1*VGA/550W redundant power supply |
| 0020-065081 | EIS-2208-FT/powerless barebone system | EIS-2208FT domestic 2U rack-mounted server/SVE-2903FT/FT2000+64Core 2.2GHz/8 * GDDR4 / 8* /3.5" enterprise hard disk/6*PCIE/4*GbE/1* debugging COM/6*USB/1*VGA/powerless barebone system |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| Product Manual | Various Platform | Vol15.0 | 2025-04-29 | 0.09MB | Download 𐃯 |
