Special Controller for AFC system

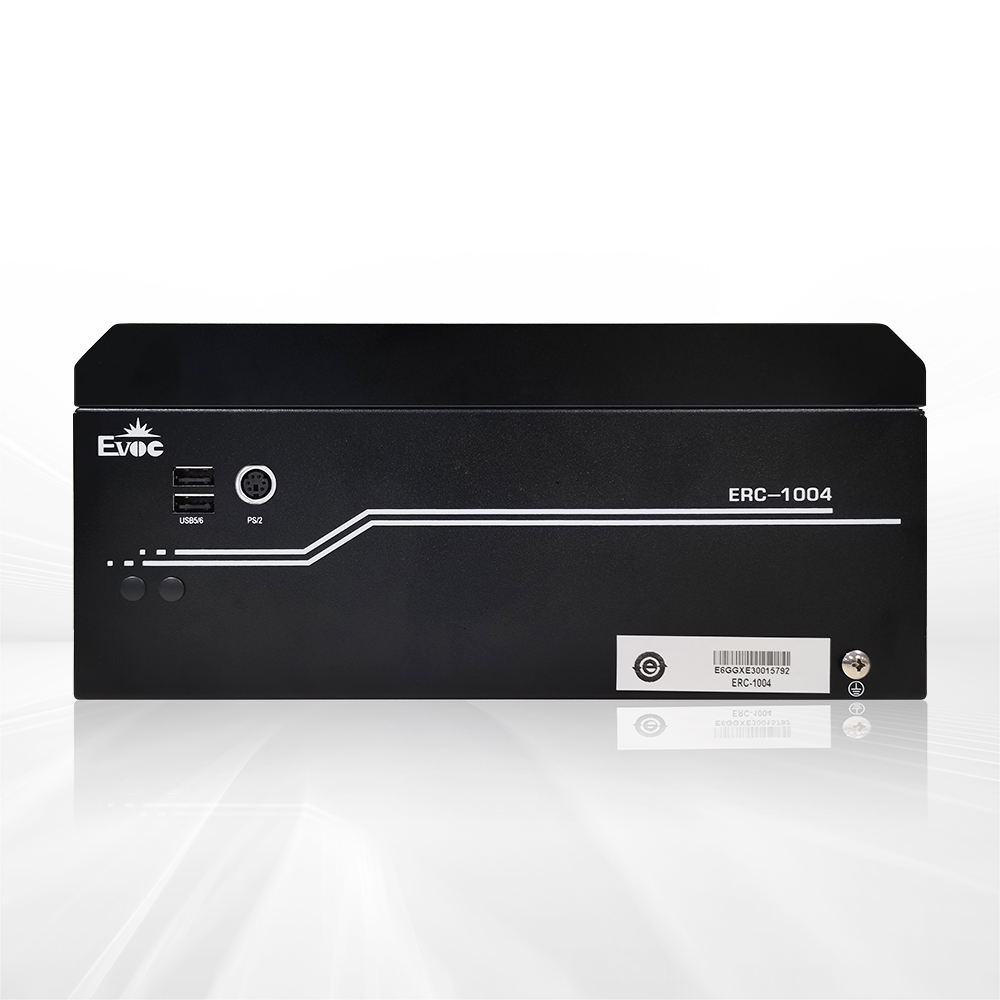

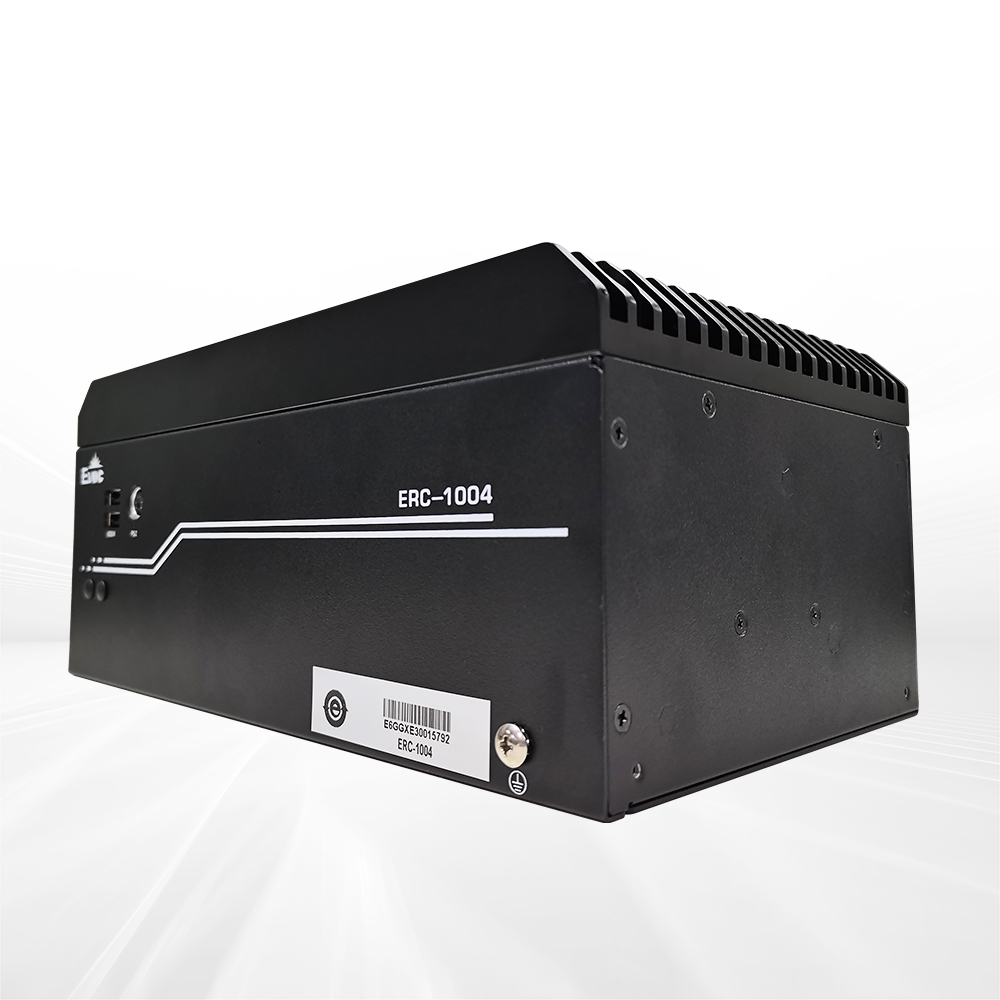

ERC-1004C is a multi-serial port multi-display fanless embedded complete PC, which is specially designed for the application of terminal equipment main control unit of the metro AFC system. The complete PC has a compact structure, reasonable internal layout and rich I/O and expansion ports, and can be widely used in terminal equipment main control units of automatic gate machines (AGM), ticket vending machines (TVM) and booking office machines (BOM) of metro AFC system.
| Item | Description | |
|---|---|---|
| System Configuration | Processor | Supports 6/7/8th Gen Intel® Core™ I3/I5/I7 series, 9th Gen Intel® Core™ I3/I5 series, CPU TDP ≤ 35W |
| Chipset | C236 | |
| Memory | Onboard 8GB DDR4 memory, plus a 260 Pin SO-DIMM memory slot for memory expansion (up to 40GB) | |

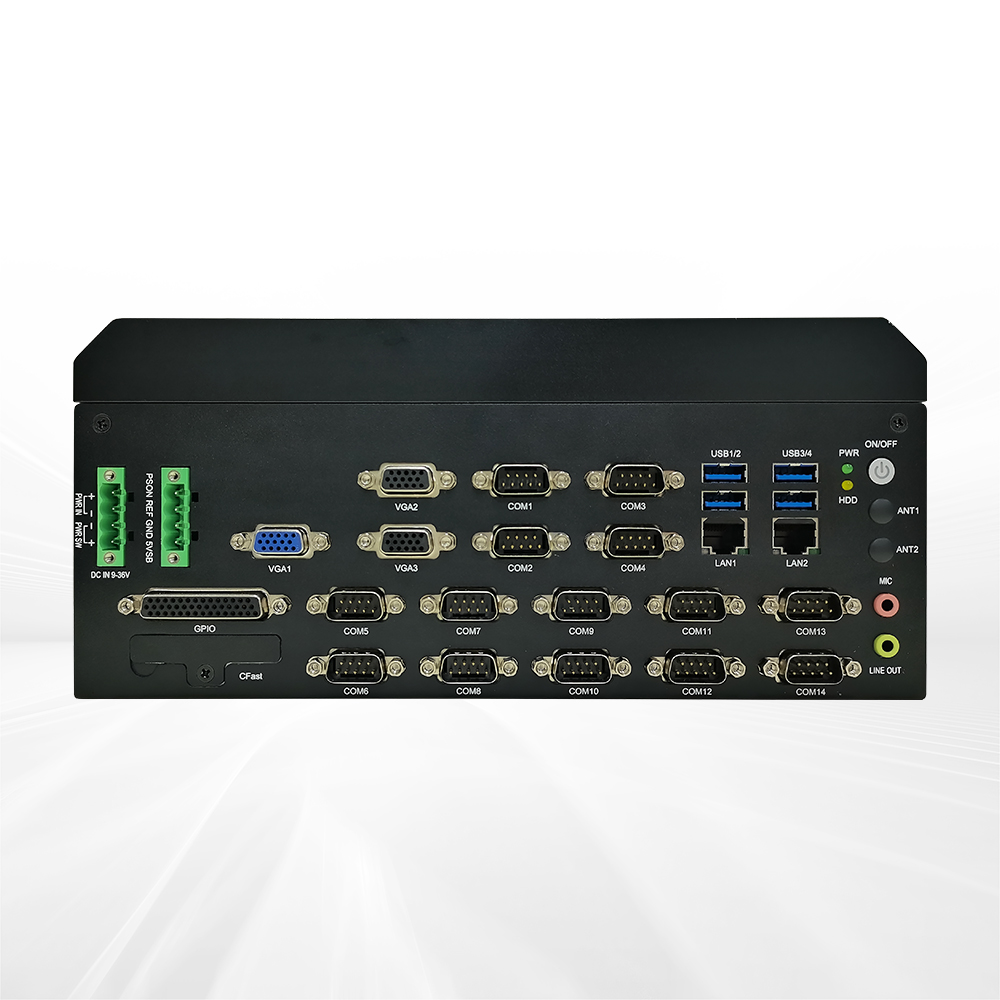

| I/O port | LAN port | 2 × 10/100/1000Mbps RJ45 LAN port; LAN1 supports LAN wake-up 1 × 10/100/1000Mbps RJ45 LAN port (optional) |
| Display | Provides 3 VGAs and support combined three-display: VGA1 (resolution 1920×1080), VGA2 (resolution 1920×1080) and VGA3 (resolution 1920×1080) | |
| USB | 2 × USB2.0, 4 × USB3.0, supporting USB boot operating system | |
| COM | 14 × RS232 serial port: COM1-COM4 supports RS232/422/485 mode setting; COM5-COM14 supports three-wire RS232 serial port (with isolation) | |
| GPIO | 32-channel GPIO port | |
| PS/2 | 1 × PS/2 | |
| Audio | 1 group of audio ports, supporting MIC-IN/LINE-OUT | |
| Switches and Indicator Lights | 1 × power switch button, 1 × power status indicator and 1 × hard disk status indicator | |
| Antenna | 2 × antenna holes | |
| Expansion Bus | Motherboard Integration | 1 × MiniPCIe expansion slot; 1 × SIM card slot; 1 × PCI slot (optional) |
| Storage | Hard Disk | 1 × 2.5-inch SSD bay (mSATA or SSD optional) |
| M-SATA/Cfast | 1 × CFast card slot, 1 × mSATA port | |
| Working Environment | Operating temperature | -20℃～+70℃ |
| Storage Environment | Storage Temperature | -40℃～+80℃ |
| Storage Humidity | Temperature 40°C, relative humidity 95% (non-condensing) | |
| Installation Method | Wall-mounted, desktop | |
| Product Dimensions | 265mm (width) × 117.7mm (height) × 165mm (depth)(Excluding Tripod) | |
| Power supply | Wide voltage DC9~36V input, supporting power wake-up function | |
| Operating system | WIN10, LINUX(2.6 kernel), KylinOS | |
| Part No. | Model | Description |
|---|---|---|
| 0010-179531 | ERC-1004C-8G/I5-6500T/128GSSD/14× serial port/6USB | ERC-1004C complete PC/equipped with I5-6500T 2.50 GHz processor/onboard 8G memory/128G SSD/14 × serial port (including 10 × RS232, with isolation)/6 × USB port/3 × VGA/32-channel GPIO/2 × LAN port/1 × PS/2 × port/1 group of audio port/DC 9~36V input |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| Product Manual | Various Platform | Vol15.0 | 2025-04-29 | 0MB | Download 𐃯 |
