Special Controller for AFC system

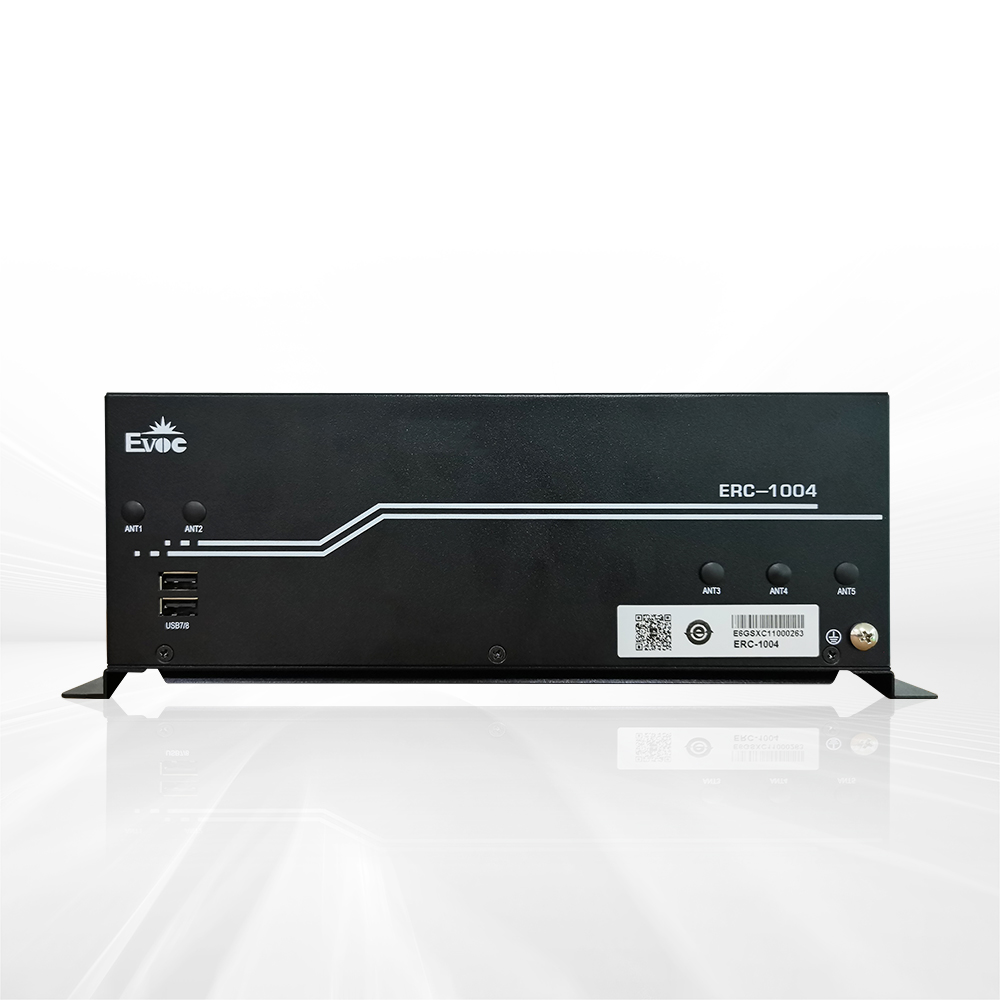

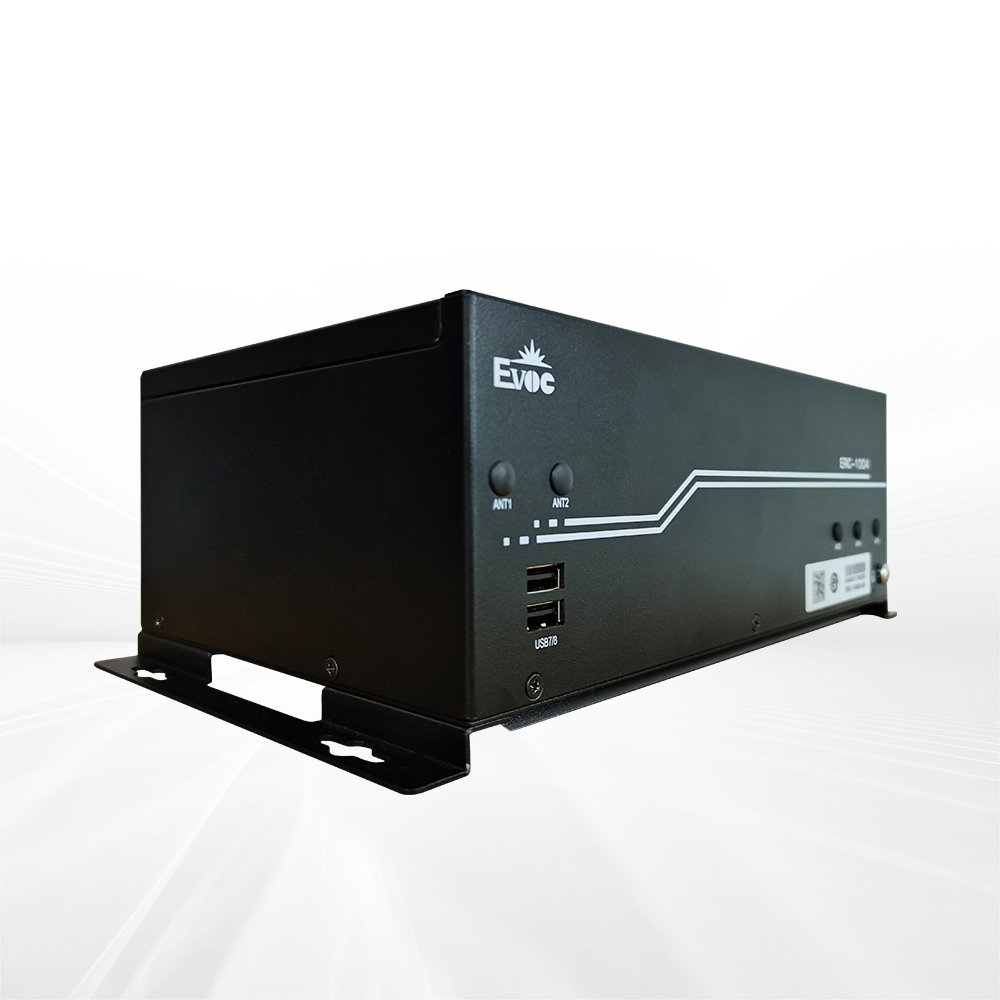

ERC-1004B is a multi-serial port multi-display low-power fanless embedded complete PC, which is specially designed for the application of terminal equipment main control unit of metro AFC system. The complete PC has a compact structure, reasonable internal layout and rich I/O and expansion ports, and can be widely used in terminal equipment main control units of automatic gate machines (AGM), ticket vending machines (TVM) and booking office machines (BOM) of metro AFC system.
| Item | Description | |
|---|---|---|
| System Configuration | Processor | Onboard Intel® Celeron J1900 CPU 2.0GHz M60A-H：Intel® H110/C236：支持6/7/8代Intel® Core™ I3/I5/I7系列，支持9代Intel® Core™ I3/I5系列，LGA1151，CPU TDP ≤ 65W |
| Chipset | Intel® Baytrail-I SOC | |
| Memory | Onboard DDR3L memory, 2GB/4GB/8GB (optional) | |
| I/O port | LAN port | 2 × 10/100/1000Mbps RJ45 network port; LAN1 supports network wake-up 1 × 10/100Mbps RJ45 LAN port (optional) |
| Display | 1 × LVDS (optional), DB24+4 port, resolution: 1920×1080, supporting single channel | |
| USB | 5 × USB2.0, 1 × USB3.0 | |

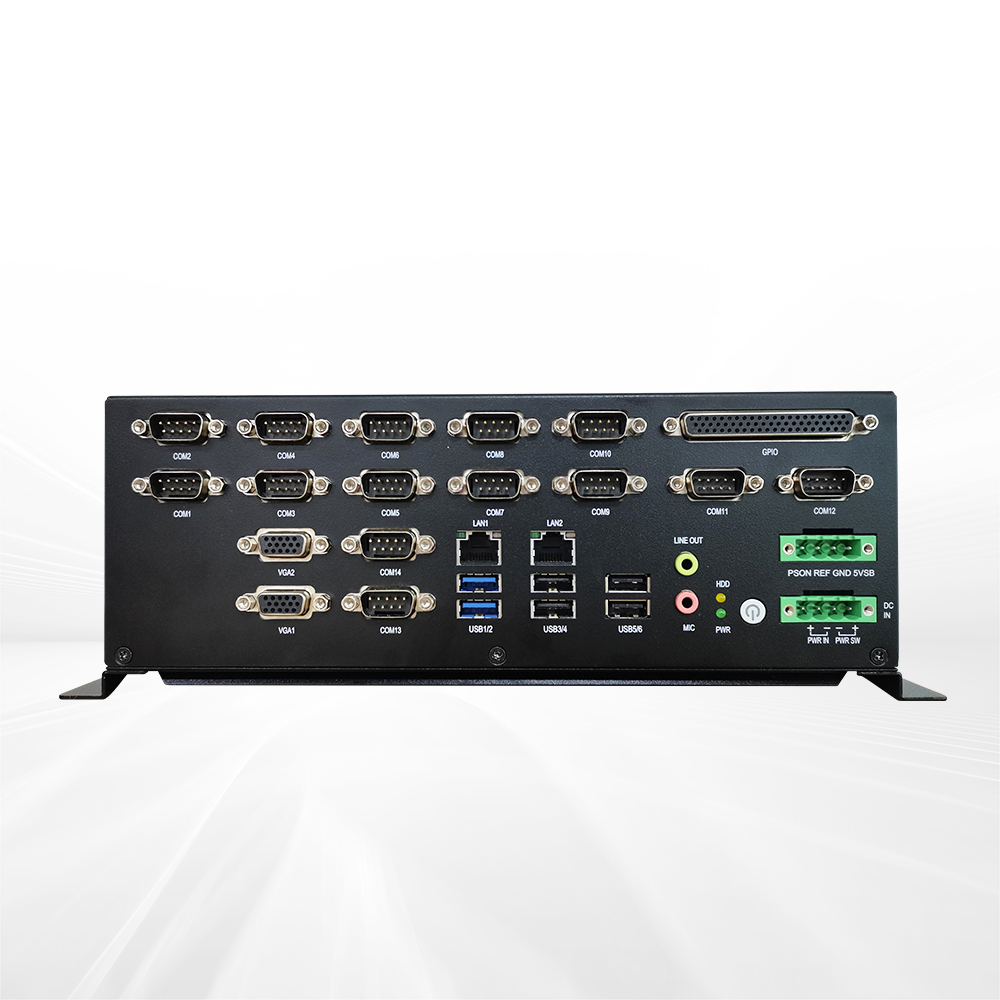

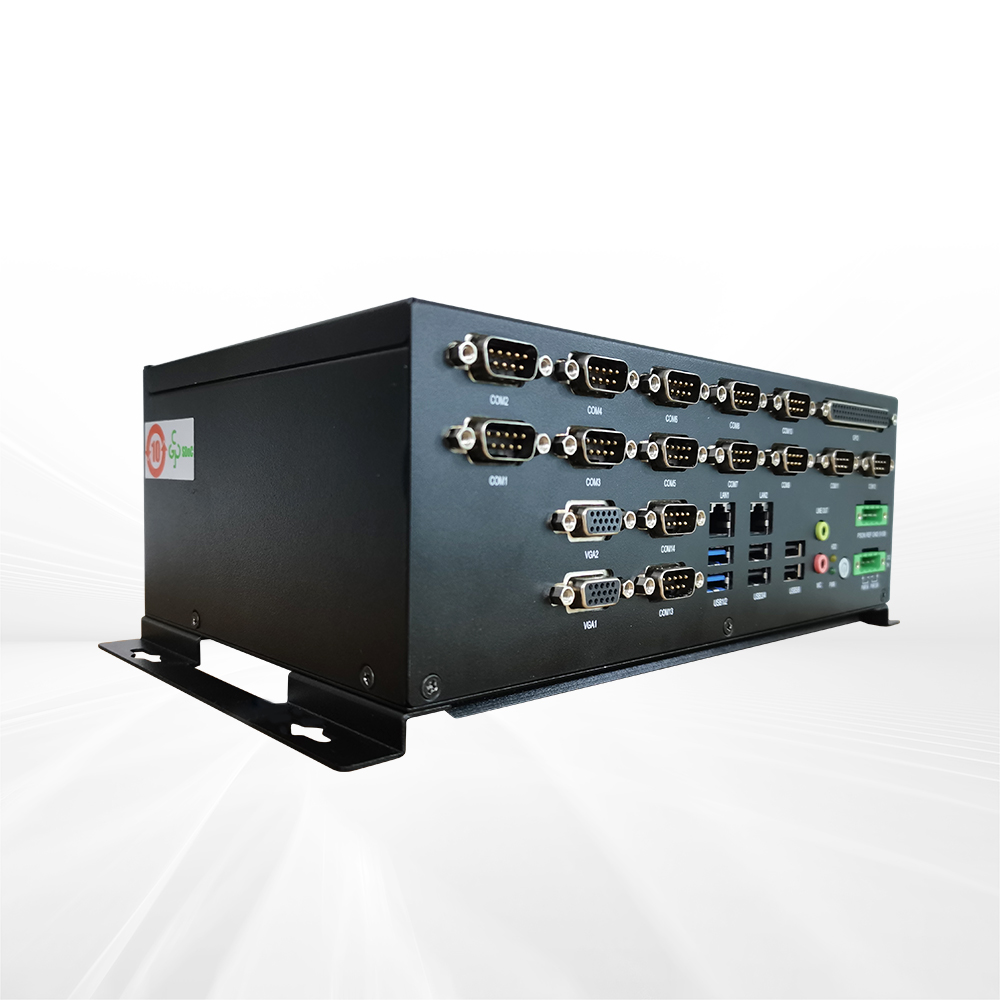

| COM | 14 × RS232 serial port, including 4 × RS232/422/485 port | |
| GPIO | 32-channel GPIO port | |
| PS/2 | 1 × PS/2 | |
| Audio | 1 group of audio ports, supporting MIC-IN/LINE-OUT | |
| Antenna | 2 × antenna holes | |
| Expansion Bus | Motherboard Integration | 1 × PCI expansion slot (optional); 1 × MiniPCIe expansion slot; 1 × SIM card slot (optional) |
| Storage | Hard Disk | 1 × 2.5-inch SSD bay (mSATA or SSD optional) |
| M-SATA/Cfast | 1 × CFast card slot, 1 × mSATA port | |
| Working Environment | Operating temperature | -20℃～+70℃ |
| Storage Environment | Storage Temperature | -40℃～+80℃ |
| Storage Humidity | Temperature 40°C, relative humidity 95% (non-condensing) | |
| Installation Method | Wall-mounted, desktop | |
| Product Dimensions | 260mm (W) × 91.7mm (H) × 165mm (D) (Excluding Tripod) | |
| Power supply | Support DC12V power input and optional DC9-36V input, support power wake-up function | |
| Operating system | WIN7(64bit)、WIN10、LINUX(2.6 kernel) | |
| Part No. | Model | Description |
|---|---|---|
| 0010-198321 | ERC-1004B-4G/J1900/4G/64GSSD/14串-N/6USB | Onboard J1900 2.0 Ghz/onboard 4GB memory/14 × serial port/32-channel GPIO/5 × USB2.0/1 × USB3.0/1 ×V GA/2 × LAN port/1 × PS2 port/1 group of Audio port/1 × MiniPCle/512KB NVRAM/16GB CFast card/64GB SSD/DC12V input/supporting power wake-up function |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| Product Manual | Various Platform | Vol15.0 | 2025-04-29 | 0MB | Download 𐃯 |
