COM-1819

ComExpress Single Board

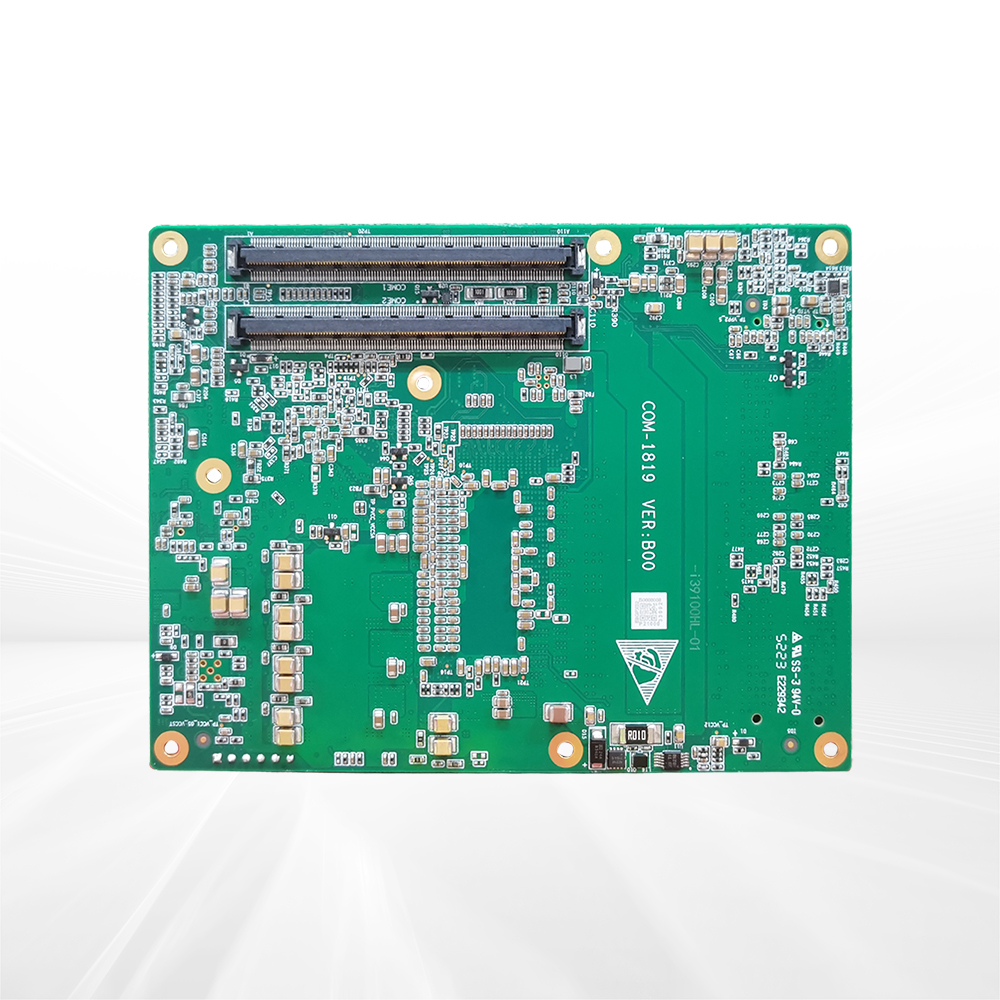

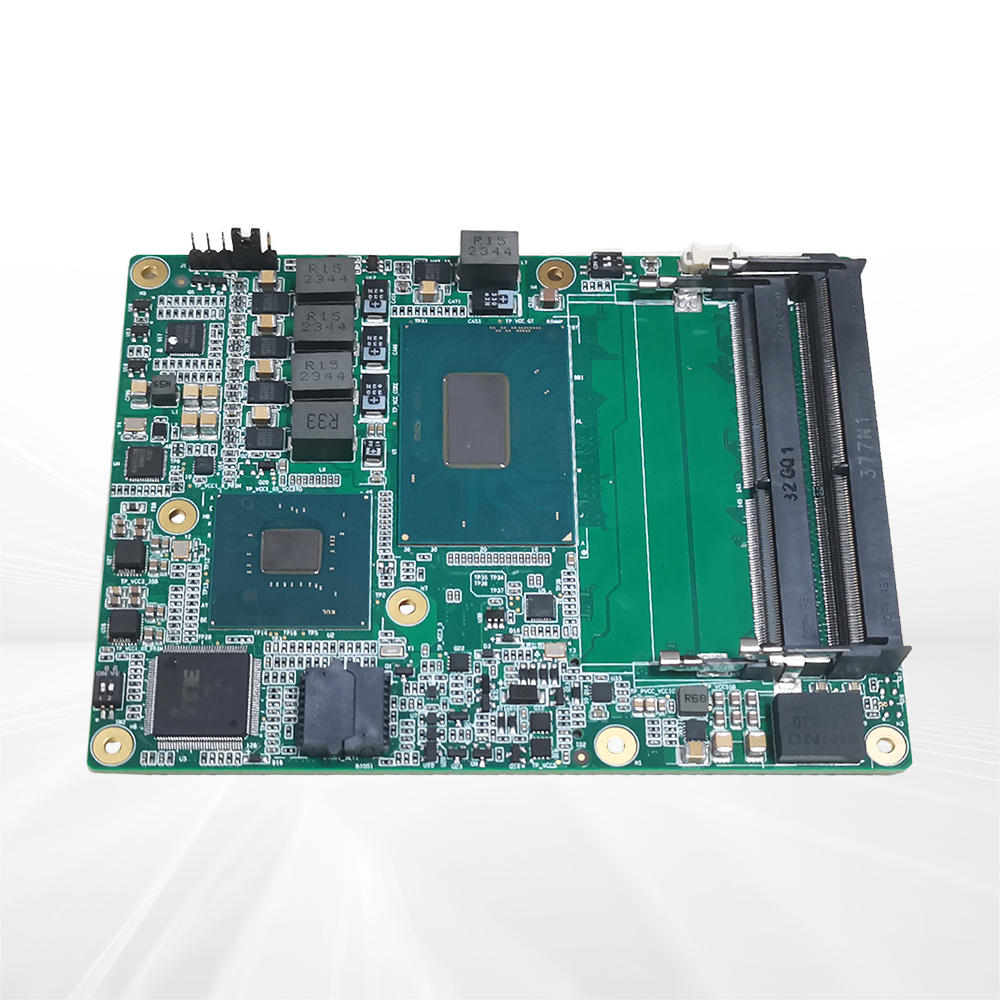

COM-1819 is a Type 6 COM express Basic Module motherboard based on the Intel® Coffee Lake H platform, with onboard Intel i7-9850HL/i7-9850HE/i3-9100HL processor, QM370 chipset and Intel® UHD Graphics630 integrated graphics card. With two DDR4 2666MHZ SO-DIMM memory slots, it supports up to 64GB. It has strong computing capability and rich port types, which are widely used in automation, electricity, communication, transportation, medical treatment and other fields.

Product Features

Wide voltage power supply (8.5V~16V)

Supports wide temperature range of -40°C~+85°C

Multiple PCIE signals

Supports independent display of 3 channels

Dual-channel DDR4 memory slot

9th Gen processor

Product Specifications

Item Description
Version COM Express® basic, Type 6
Processor Intel® Core™ i7- 9850HE/i7-9850HL/i3-9100HL
Chipset QM370
System Memory 2x SO-DIMMs DDR4, single slot of maximum 32 GB 2133/2400/2666 MHz UP to 64GB (non-ECC)
Storage Configuration 4*SATA3.0
Display Signal 3 x DDI channel (standard configuration: 3*DP++, VGA, DVI and other displays can be configured), 1*eDP
USB Signal 4*USB2.0/4*USB3.1
LAN Signal 1-channel 10/100/1000Mbps Ethernet
Sound Card Configuration 1*HAD
Other Port Signals 2-channel serial ports, 8*GPIO (4*GPI/4*GPO), I2C, LPC and SMBus
Bus Expansion 4*PCIEx1, 1*PCIEx4, 1* PCIE x16 (1* PCIe x16 can be divided into 2 * x8 or 1* x8+2*x4)
Power Supply Adopt a single 12V power supply or 5VSB plus 12V dual power supply, supporting S0, S1 and S5, and AT/ATX working mode. The single power supply can support wide voltage 8.5V~16V input
Operating temperature COM-1819-i79850HL-01/i39100HL-01:0℃~+60℃
COM-1819-i79850HL-02/i79850HE-01:-40℃~+85℃;
Storage Temperature -40℃~+85℃
Product Dimensions 125mm * 95 mm
Ordering Information Windows10 ,Linux(Ubuntu)

Ordering Information

料号 型号 描述
0030-024411 COM-1819-i79850HE COM Express Basic Type6 module/QM370 chipset/onboard Intel Core i7-9850HE 2.7GHz CPU/ 2x SO-DIMMs DDR4 slots/3*DP++/1*eDP / 4*SATA/ 1 x Gigabit LAN port/4*USB3.1/4*USB2.0/2*serial port/1*HAD/ 4 x PCIEx1/ 1 x PCIEx4/ 1 x PCIe x16/ -40°C~+85°C
0030-024391 COM-1819-i79850HL-01 COM Express Basic Type6 module/QM370 chipset/onboard Intel Core i7-9850HL 1.9GHz CPU/ 2x SO-DIMMs DDR4 slots/3*DP++/1*eDP / 4*SATA/ 1 x Gigabit LAN port/4*USB3.1/4*USB2.0/2*serial port/1*HAD/ 4 x PCIEx1/ 1 PCIEx4/ 1 x PCIe x16/0℃~+60℃
0030-024401 COM-1819-i79850HL-02 COM Express Basic Type6 module/QM370 chipset/onboard Intel Core i7-9850HL 1.9GHz CPU/ 2x SO-DIMMs DDR4 slot/3*DP++/1*eDP / 4*SATA/ 1 x Gigabit LAN port/4*USB3.1/4*USB2.0/2*serial port/1*HAD/ 4 x PCIEx1/ 1 x PCIEx4/ 1 x PCIe x16/-40℃~+85℃
0030-024631 COM-1819-i39100HL-01 COM Express Basic Type6 module/QM370 chipset/onboard Intel Core i3-9100HL 1.6GHz CPU/ 2x SO-DIMMs DDR4 slots/3*DP++/1*eDP / 4*SATA/ 1 x Gigabit LAN port/4*USB3.1/4*USB2.0/2*serial port/1*HAD/ 4 x PCIEx1/ 1 x PCIEx4/ 1 x PCIe x16/0℃~+60℃
1500-016181 COM-1819 Radiator Module Including heat-conducting plate CPU radiator etc.
0050-001801 EDB-COM16 Part No. of backplane
